Everyone Needs an HTTP Proxy for Debugging

Introduction

This article introduces how front-end engineers can use HTTP proxies for debugging, going beyond the limitations of DevTools. Today’s front-end reading is shared by @huli.

The main content starts here~~

As a front-end engineer who deals with web pages daily, it is quite reasonable to be familiar with the use of DevTools. Whenever there is an issue with an API, I press the shortcut to open DevTools, switch to the Network tab, find the red line, right-click to copy it as cURL, and paste it into the group chat for the backend to troubleshoot.

But I wonder if anyone has encountered situations where DevTools is insufficient; what should we do then?

Is DevTools really insufficient? Or is it just that you don’t know how to use it?

Let me give a few examples I’ve encountered. If DevTools can solve the issue, that would be the most convenient, but sometimes I can’t (it might also be that I don’t know how to use it). Additionally, the DevTools referred to here are Chrome DevTools; perhaps other browsers do not have these issues.

Request details before redirection are not visible

Many websites implementing OAuth-related services will redirect to a redirect URL after logging in, carrying a code. At this point, some websites will use the code to exchange for an access_token, and then redirect to the next page with the access_token. If there is an issue with the code exchanging for the access_token, how do we debug it?

Chrome DevTools, when redirecting to another page, will by default clear the console and network data. There is an option called “Preserve log”; checking it seems to solve the problem, but it actually does not.

Everyone can randomly find a webpage, open DevTools, and check the preserve log option, then execute the following code:

fetch('https://httpbin.org/user-agent')
.then(()=> window.location ='https://example.com')

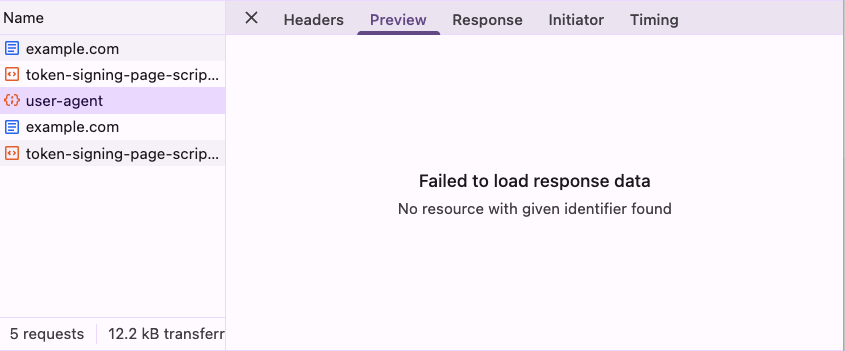

After the redirection is complete, although the request can indeed be seen in the Network tab, clicking into it will only show “Failed to load response data”:

Cannot see the request

This issue has been reported since 2012, and after waiting for over a decade, it was mentioned at the end of 2023 that it would be on the roadmap for 2024, but there is still no news: DevTools: XHR (and other resources) content not available after navigation.

The essence of this problem is that once the page redirects, the browser discards the network request data from the old page. Therefore, even if the request has been sent, DevTools cannot retain or view the response.

In summary, in this situation, not being able to see the response makes debugging nearly impossible, which is quite inconvenient.

WebSocket connection handshake failure without a clear reason

Although we usually establish a WebSocket connection with just one line of code, it actually involves two steps behind the scenes.

The first step sends an HTTP Upgrade request, and only after that does it switch to the WebSocket connection. While the first step usually succeeds, what happens if it fails?

We can ask AI to write a very simple demo:

• Write a Node.js WebSocket server and place an Nginx in front of it
• The role of Nginx is to return a 500 error when the URL contains ?debug
• When the WebSocket connects, it automatically sends a hello message to the client
• Finally, package it to run with Docker Compose

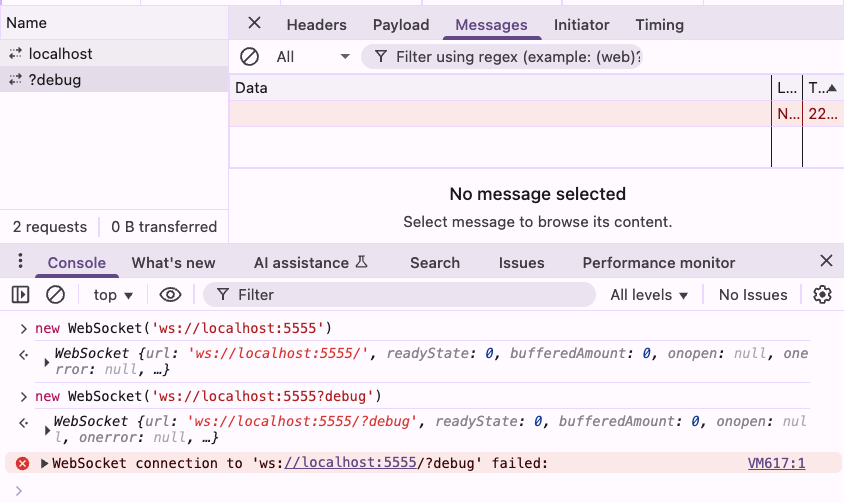

After AI generates it, run it with Docker, and randomly open a webpage to establish a connection. You will find that for the connection request with debug, you only know it failed but have no idea why:

Cannot see the reason

This error message is even similar to connecting to a random closed port, leaving you completely unaware of why it failed, making it difficult to communicate the issue to the backend.

In fact, when encountering a WebSocket handshake failure, you can also try using other methods to assist debugging, such as using <span>curl -i --include</span> to manually simulate the HTTP Upgrade request and check if it is being blocked by the backend or proxy server. This is a good alternative when detailed error information from the browser is unavailable.

【Issue #1882】Reliable Node.js HTTP Proxy Implementation Based on Unix Socket (Supports WebSocket Protocol)

These are two examples I remember, but in actual development, there should be many more cases where relying solely on DevTools to view the network is insufficient, either because you cannot see anything or what you see is not accurate.

Simple and Easy-to-Use HTTP Proxy

Since we cannot rely on DevTools, we must depend on lower-level tools, such as HTTP Proxies! Some tools will start a proxy on your local machine, allowing all traffic to pass through it, so you can see all requests without being limited by DevTools.

An HTTP Proxy acts as a relay station between you and the website: all traffic first goes to the Proxy and then to the target server. This allows you to intercept, view, and even modify the request and response content completely. This is why Proxies can break through the limitations of browser DevTools and directly obtain the raw data you want.

Moreover, another benefit is that you have a point of comparison; if the proxy shows something different from what DevTools displays, it is possible that what DevTools shows is incorrect.

Therefore, I sincerely recommend everyone to find an HTTP Proxy to use. The ones I have used are these three:

• Charles
• Burp Suite
• mitmproxy

When I first encountered proxies, I used Charles, and after getting into security testing, I switched to Burp Suite. It is actually a tool that can be used for various security-related tests, but I think it is perfectly fine to use it just as a proxy; it is very convenient.

The third one, mitmproxy, is open-source and free, and it is quite well-known. I occasionally use it, but in a different way, which I will explain later.

Using Burp Suite as a Proxy App

First, download and install the free community version from the official website: https://portswigger.net/burp/communitydownload

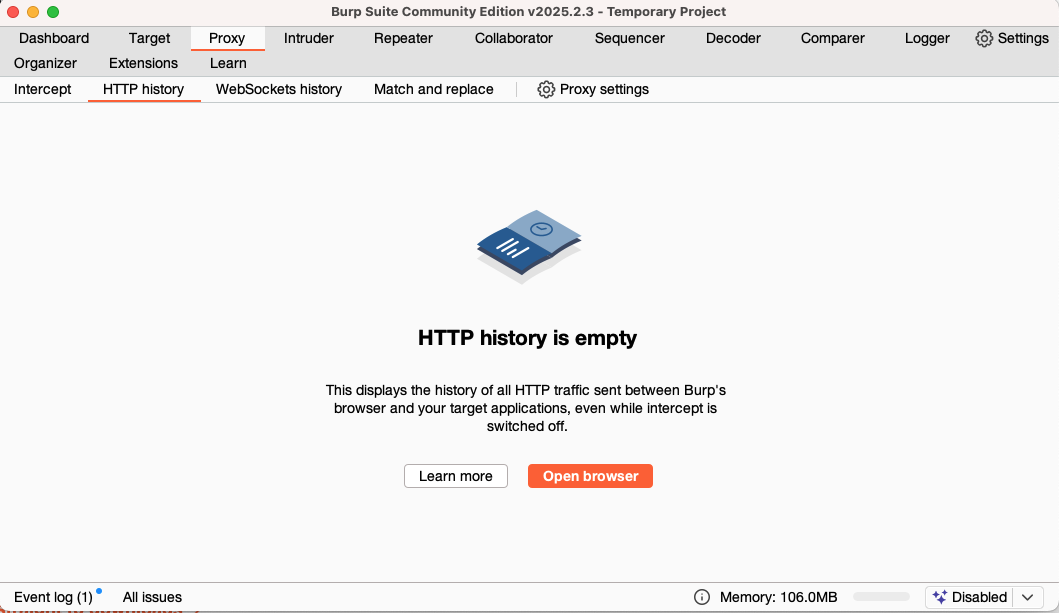

After opening it, click Next and then Start Burp, and you will see the main screen. You will notice it has many features, but we will just switch to the “Proxy” tab and the “HTTP history” page:

Burp Screen

Then click the prominent orange “Open Browser” button, which will launch its built-in Chrome browser. You can use this browser to access any webpage, such as example.com.

Next, switch back to the tool, and you will find that the HTTP history records all the original content and responses of the requests:

Request Records

In this way, the previously mentioned redirection case and WebSocket handshake failure can both be seen here with the original request content, making errors clear at a glance:

Original Content

If in the future you encounter requests that are not visible, it may be because they have been filtered out by the default filter. Click on Filter settings, select show all, and apply; you should be able to see them.

If you encounter issues with insecure connections, you need to install the certificate first. Please refer to: Installing Burp’s CA certificate

This is a basic introduction to using Burp Suite as an HTTP Proxy. If you do not want to use the Chrome it provides, you can also set your computer or browser’s proxy; it defaults to port 8080.

For example, on my Mac, I will install a separate Chrome Canary specifically for debugging. I can use this command to start it and set the proxy location:

 open -a "Google Chrome Canary" --args --proxy-server="http://localhost:8080"

In this way, you can debug using your familiar browser.

By the way, Burp Suite has many other features, such as request replay or brute force cracking, etc., but I think it is already very helpful for general engineers to use it as a proxy. For those interested in the complete functionality, you can refer to HackerCat’s “Web Penetration Testing – Complete Burp Suite Tutorial Series”.

Using mitmproxy with Scripts to Dynamically Change Content

I won’t go into detail about the installation process for mitmproxy; you can refer to the official documentation or collaborate with AI to install it yourself. After installation, remember to visit http://mitm.it to download and install the certificate to intercept HTTPS traffic.

Once everything is installed, executing <span>mitmproxy</span> will start the proxy, and you will see a CLI interface.

Since Burp Suite is already very useful, when would you use mitmproxy? It has a useful feature that allows you to customize the proxy’s behavior through simple Python scripts, which is very convenient.

For example, suppose for some reason, the testing environment cannot fully simulate the production environment, but you cannot directly deploy the code to the production environment for testing. In this case, you can use the proxy to dynamically replace the production response and simulate some behaviors locally.

Although Chrome also has a response overriding feature, it has many limitations, such as content being fixed, etc. Using a proxy with scripts is definitely a more flexible and higher degree of freedom option.

Here is a simple mitmproxy script that aims to replace my blog’s script.js with a local version:

 from mitmproxy import http
import requests

URL_MAPPINGS={
"https://blog.huli.tw/js/script.js":"http://localhost:5555/script.js",
}

def request(flow: http.HTTPFlow) -> None:
    for url in URL_MAPPINGS:
        if flow.request.pretty_url.startswith(url):
            replacement_url = URL_MAPPINGS[url]
            replacement_response = requests.get(replacement_url)
            flow.response = http.Response.make(
                200,
                replacement_response.content,
                {"Content-Type":"application/javascript"}
            )
    return

You can run it with this command:

 mitmproxy -s proxy.py

Then use the previously mentioned command to open a browser with the proxy server set up:

 open -a "Google Chrome Canary" --args --proxy-server="http://localhost:8080"

Now, when you visit https://blog.huli.tw, you will see that the content of the script has been replaced.

Conclusion

This concludes some of the proxy servers and usage methods that I commonly use.

Relying too much on the browser is not a good thing; if the browser does not display anything, you won’t know what to do. However, as front-end engineers on the front lines, we definitely have ways to obtain the entire request and response to clarify issues further. In the future, if you encounter problems where requests are not visible in the browser, consider using a proxy server to obtain the complete request and response.

In addition to web pages on computers, mobile devices can also use this; you can set up a proxy server on Android to connect to a computer on the same Wi-Fi, and then install the certificate on the phone to intercept mobile traffic.

Lastly, a small tip: when executing commands in the Mac terminal, add:

 https_proxy=http://localhost:8080

This will configure the proxy server. For example:

 https_proxy=http://localhost:8080 cursor

This will route the traffic of the Cursor IDE to the proxy server.
