The previous two articles discussed component selection and hardware design for embedded data reliability. In this issue, we will focus on software design. Even if the hardware design is perfect, if the software is not well designed, the expected reliability cannot be achieved. Only with the cooperation of hardware and software can we effectively address data reliability issues.
Software DesignSoftware design plays a crucial role in the reliability of embedded data storage. It encompasses not only the development of system drivers but also optimization at the application level. A well-designed software system can significantly enhance data integrity and system stability. Software design includes both system drivers and application aspects.1. System Driver DesignSystem driver design is a key part of software design, directly affecting hardware performance and reliability.1.1 ECC VerificationThe low-level driver for NAND Flash must implement effective ECC (Error Correction Code) verification, which can detect and correct errors within a certain range, ensuring data integrity. When designing the low-level driver, it is essential to ensure the accuracy and reliability of ECC verification. For example, for SLC NAND Flash, ECC can correct single-bit errors; for MLC NAND Flash, ECC can correct multiple-bit errors.1.2 Write BalancingThe file system should implement a write balancing mechanism to ensure that all storage units of NAND Flash experience similar wear. This not only extends the lifespan of NAND Flash but also improves overall data reliability. By reasonably distributing write operations, we can avoid premature damage to certain storage units.Common write balancing algorithms include Wear Leveling and Garbage Collection. Wear Leveling dynamically adjusts the write locations of data to ensure an even distribution of usage across all storage units; Garbage Collection recycles and reuses erased blocks to reduce invalid write operations.2. Application Design OptimizationIn application design, the main goal is to reduce the number and frequency of writes to the memory. NAND Flash has a limited number of erase cycles, and erase operations are performed at the block level. Once the erase count of a block reaches its limit, that block will fail entirely, leading to the loss of all data in that block and causing unpredictable failures. If this bad area happens to be where the NAND partition stores file indexes, then all files in that physical partition may exhibit errors, such as garbled file names, missing files, or incomplete files.2.1 Strategies to Reduce Write Counts
- Data Caching
Implement data caching at the application layer to reduce direct write operations to NAND Flash. For example, frequently updated data can be temporarily stored in RAM and written to NAND Flash in batches periodically. This can reduce write counts and extend the lifespan of NAND Flash.
- Logging
Implement a logging mechanism to record changes to critical data in a log file instead of writing directly to the main data file. This can reduce the number of writes to the main data file, extending its lifespan. Log files can be processed in batches during system idle times to ensure data integrity and consistency.
- Data Compression
Compress data written to NAND Flash to reduce the actual amount of data written, thereby decreasing write counts. Data compression not only reduces write counts but also saves storage space and improves storage efficiency.
ZLG Zhiyuan Electronics’ SolutionsZLG Zhiyuan Electronics fully considers the reliability of embedded data storage when designing core boards and industrial control board products. We provide comprehensive designs and solutions in component selection, circuit design, and system drivers. If you purchase our products, as long as you pay attention to application programming, your data reliability should not encounter major issues.

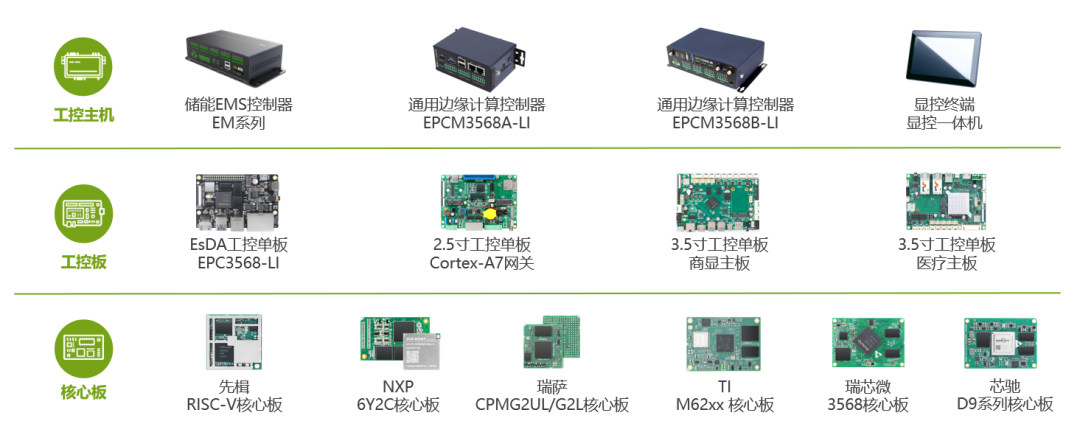

Figure 1: ZLG Zhiyuan Electronics Edge Technology ProductsSo far, we have introduced four aspects of embedded data storage reliability, including device selection, circuit design, system drivers, and application design. The cooperation of hardware and software is key to ensuring data reliability. If you have other suggestions and ideas regarding embedded data reliability, feel free to leave a comment for discussion.
 |

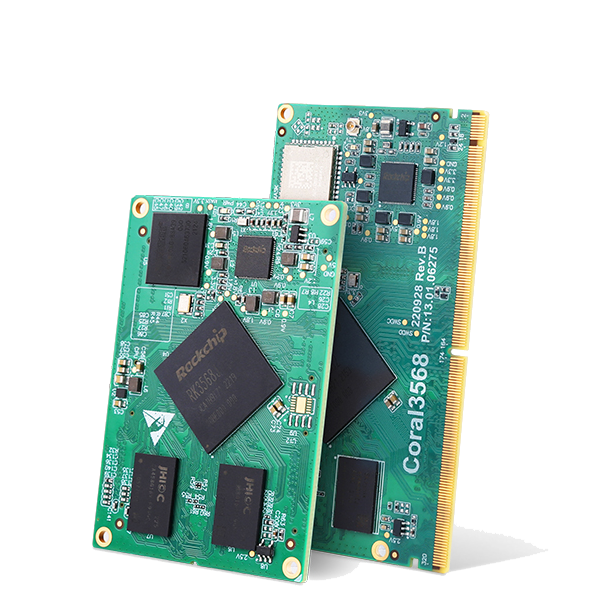

3568 Series Core Board |
