ESP32 MicroPython UART Testing

1. Key Points of UART Hardware Resources and Configuration

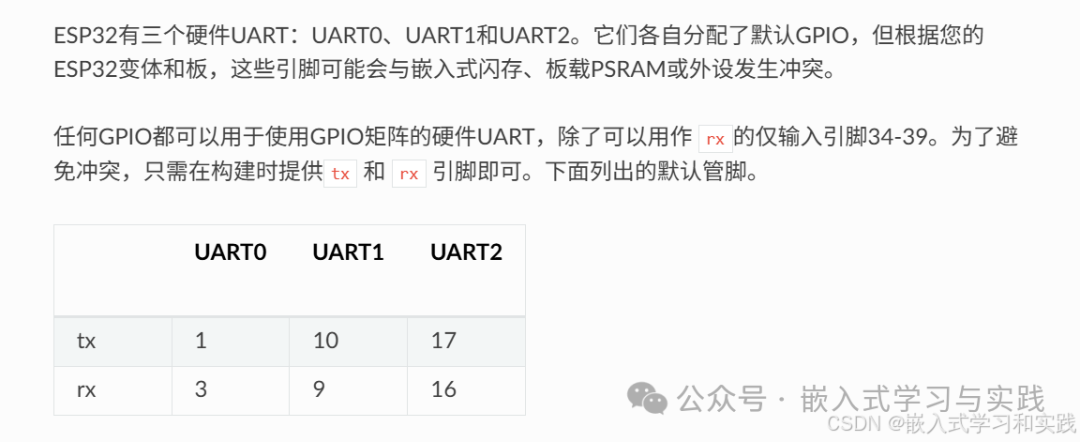

1. UART Resources of ESP32ESP32 supports 3 UART controllers (UART0, UART1, UART2), but actual availability is limited by pin conflicts:

• UART0: Default for REPL debugging (flashing and serial monitoring), using GPIO1 (TX), GPIO3 (RX)
• UART1: Some development boards connect to external Flash/SD cards (conflicts should be avoided), default GPIO9 (TX), GPIO10 (RX)
• UART2: Recommended for use, can freely map pins

from machine import UART
uart = UART(2, baudrate=115200, tx=17, rx=16) # Map UART2 to GPIO16 (RX), GPIO17 (TX)

2. Detailed Explanation of Core Functions

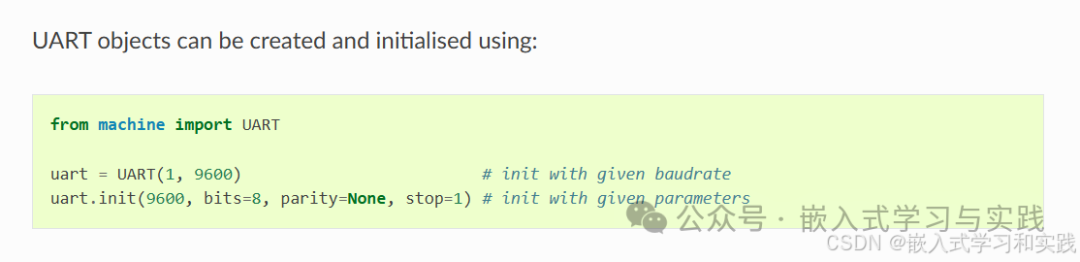

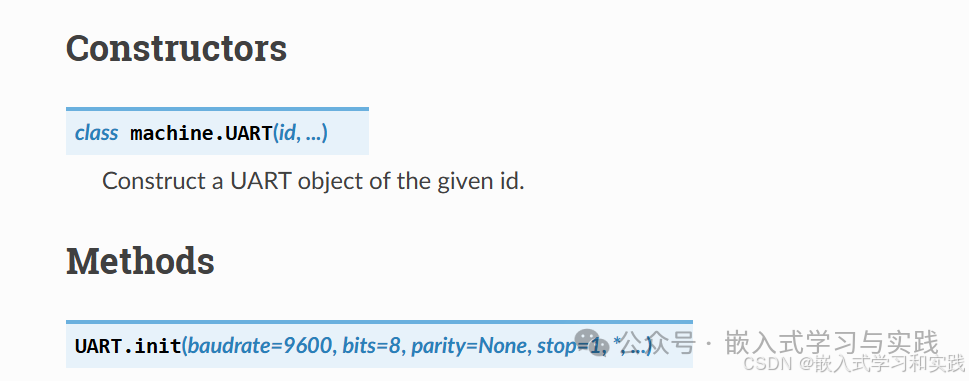

1. Constructor

<span>UART(id, baudrate, bits, parity, rx, tx, stop, timeout)</span>

Function Introduction

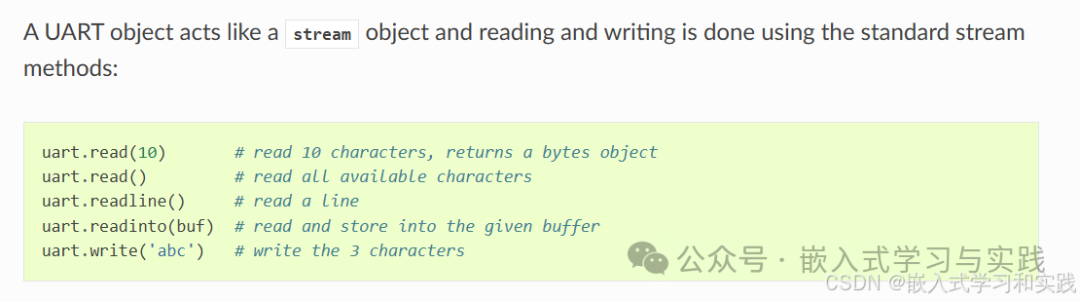

2. Data Read and Write Methods

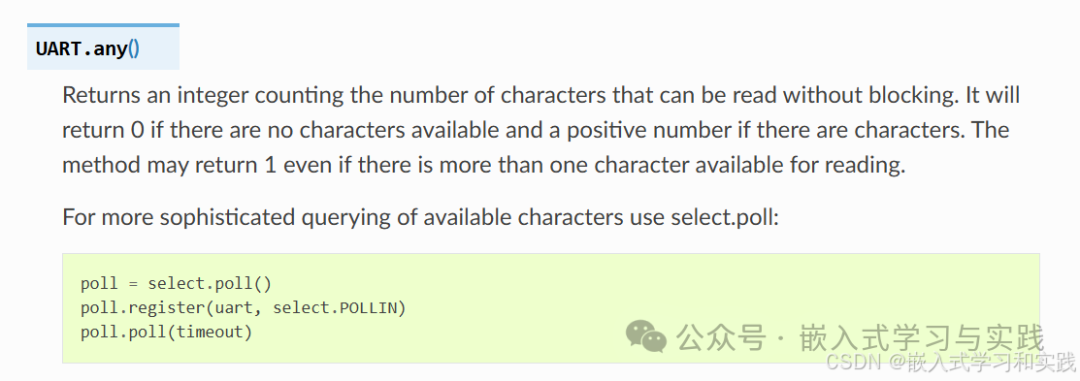

<span>uart.any()</span>: Returns an integer that counts the number of characters that can be read without blocking. If no characters are available, it returns 0; if there are characters, it returns a positive number. Even if multiple characters are available, this method may return 1.

3. Test Code Example

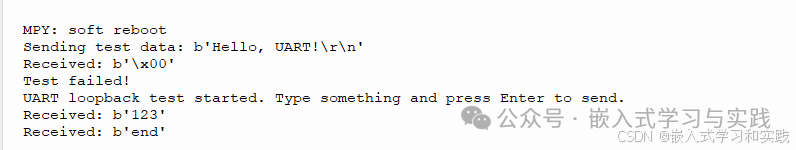

1. Testing

from machine import UART, Pin
import time

# Initialize UART communication interface
# Use UART2 (ESP32 supports UART0/1/2)
# Set baud rate to 115200 (bit rate for data transmission speed)
# Specify GPIO16 as the send pin (TX), GPIO17 as the receive pin (RX)
uart = UART(2, baudrate=115200, tx=16, rx=17)

# Loopback test function: send back the received data as is
def echo_test():
    print("UART loopback test started. Type something and press Enter to send.")
    while True:
        # Check if there is data to read
        if uart.any():
            # Read all available byte data
            data = uart.read()
            # Print the received data in REPL (for debugging)
            print(f"Received: {data}")
            # Send the received data back (loopback function)
            uart.write(data)
            if data.decode() == "end":
                break;
        # Short delay to avoid high CPU usage
        time.sleep(0.1)

# Automatic test function: send preset data and verify reception, short-circuit for send/receive

def auto_test():
    # Define test data (byte type)
    test_data = b'Hello, UART!\r\n'
    # Display the sent test data in REPL
    print(f"Sending test data: {test_data}")
    # Send test data via UART
    uart.write(test_data)

    # Wait enough time for data transmission and return (0.5 seconds)
    time.sleep(0.5)

    # Check if there is response data
    if uart.any():
        # Read response data
        received = uart.read()
        # Display the received data in REPL
        print(f"Received: {received}")
        # Verify if the received data matches the sent data
        if received == test_data:
            print("Test passed!")  # Test success message
        else:
            print("Test failed!")  # Test failure message
    else:
        print("No response received!")  # No response message

# Execute automatic test (run once at program startup)
auto_test()

# Start loopback test (enter infinite loop after automatic test)
echo_test()

Wiring Instructions: Connect GPIO16 and GPIO17 of the ESP32 with Dupont wires.

2. Reading Modbus RTU Devices (Temperature and Humidity Sensor)

from machine import UART
import ustruct  # Structure parsing library for parsing binary data

# Initialize UART2 interface, connected to RS485 module
# Baud rate 9600 (matching the sensor)
# TX pin GPIO16 (sending data)
# RX pin GPIO17 (receiving data)
uart = UART(2, baudrate=9600, tx=16, rx=17)

# Modbus RTU protocol request frame
# [Slave address, Function code, Start register address high byte, Start register address low byte, Register count high byte, Register count low byte, CRC check low byte, CRC check high byte]
modbus_cmd = bytes([0x02, 0x03, 0x00, 0x00, 0x00, 0x02, 0xC4, 0x38])

# Function to read temperature and humidity sensor data
def read_sensor():
    uart.write(modbus_cmd)  # Send Modbus request
    utime.sleep_ms(200)  # Wait for sensor response (200 milliseconds)

    # Check if enough bytes are received (complete response at least 7 bytes)
    if uart.any() >= 7:
        res = uart.read(7)  # Read 7 bytes of response data

        # Parse temperature value (register 0)
        # res[3:5] is temperature data (2 bytes) temperature value at index 3-4
        # '>h' indicates big-endian signed short (16 bits)
        # Dividing by 10.0 because the sensor precision is 0.1°C
        temp = ustruct.unpack('>h', res[3:5])[0] / 10.0

        # Parse humidity value (register 1)
        # res[5:7] is humidity data (2 bytes) humidity value at index 5-6
        hum = ustruct.unpack('>h', res[5:7])[0] / 10.0

        return temp, hum  # Return temperature and humidity tuple
    return None  # Return None if insufficient data received

# Main loop: read sensor data every 2 seconds
while True:
    result = read_sensor()  # Call read function
    if result:  # If successfully read data
        # Format output temperature and humidity values
        print(f"Temperature: {result[0]}°C, Humidity: {result[1]}%")
    utime.sleep(2)  # Wait 2 seconds before reading again

4. Common Problem Solutions

1. Incomplete data reception (single character not string)Reason:<span>read()</span><span> defaults to reading 1 byte.</span><strong><span>Solution</span></strong><span>: Use </span><code><span>read(n)</span><span> to specify length or </span><code><span>readline()</span><span> to read a line:</span>

   data = uart.readline()  # Read a whole line


2. UART resource conflict error

   E (214129) uart: UART driver already installed


   Solution: Call <span>uart.deinit()</span><span> to release resources before reusing.</span>

3. End character recognition failureReason: Serial screen requires binary end character.Correct usage:

   uart.write(b"n0.val=100\xff\xff\xff")  # Correct: binary send
   uart.write("n0.val=100\xff\xff\xff")  # Incorrect: text escape invalid


4. Pin conflict suggestions

• Avoid using UART0 (debug occupied)
• Default pins GPIO9/10 of UART1 may connect to Flash, recommended to remap:

  uart = UART(1, tx=17, rx=16)  # Remap to GPIO16/17


• Flow control: RTS/CTS must be enabled when setting <span>rtx</span> and <span>cts</span> parameters
• Large data volume: Increase <span>timeout</span> or use <span>readinto()</span><span> to avoid data loss</span>
• Multiple devices: RS485 requires enabling pin control for send/receive direction (requires additional GPIO)
