Sometimes you can see such statements online:
“Do you feel your car’s power is weak? Just tune the ECU or get an external computer to significantly enhance the power.”
“Only a fool buys a high-power car; buy a low-power one and tune the ECU to make it high-power.”
Today, we will explain in the simplest terms what ECU tuning and external computers are, and whether the only difference between low-power and high-power versions of the same engine is just a program!
What is ECU?
The full name of ECU has two meanings: one is Engine Control Unit, and the other is Electronic Control Unit. What we usually refer to as ECU is the Engine Control Unit (引擎控制单元). It is an electronic control unit specifically used to control the engine’s fuel mixture ratio, ignition timing, and speed performance. “Tuning the ECU” means adjusting the ECU to enhance vehicle power, clean emissions, and improve fuel combustion efficiency, and it is also referred to as ECM (Engine Control Module).

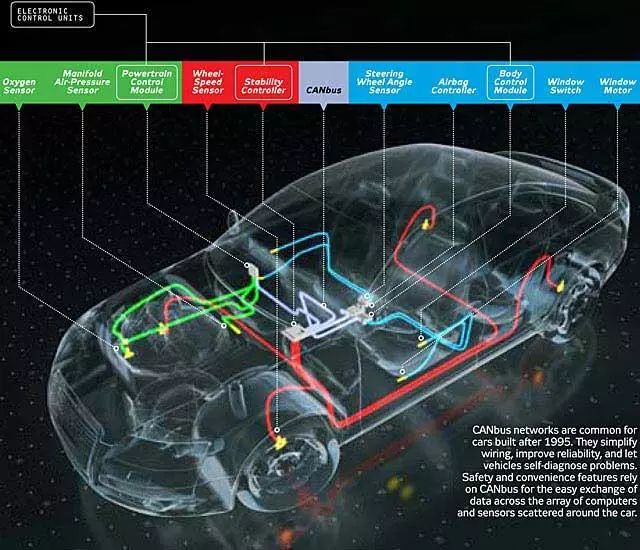

The Electronic Control Unit (电控单元) includes multiple subordinate electronic control units, including the engine control module, transmission control module, brake control module, etc. What we usually refer to as ECU is one type of Electronic Control Unit.
In summary, all actions of the engine are commanded by the ECU.
What is ECU Tuning?
The ECU has a ROM (Read-Only Memory) that stores various identification and instruction programs. When the engine sensors inform the ECU of the throttle opening, crankshaft speed, oxygen content, etc., in the form of electrical signals, the ROM automatically compares the electrical signals with the existing programs to issue commands that direct the engine’s behavior.

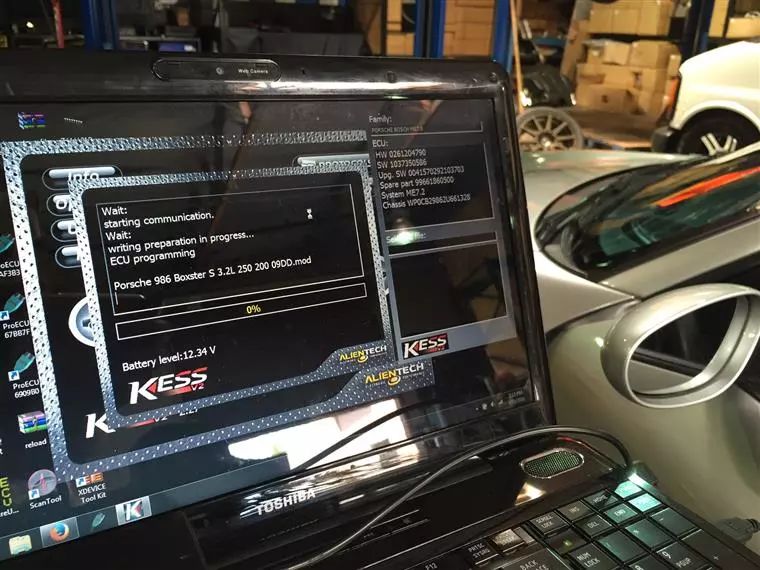

Tuning the ECU essentially rewrites the programs in the ROM, altering its operational rules to generate different commands for the engine.
What is an External Computer?
In simple terms, an external computer intercepts the signals that would originally be sent to the ECU, modifies them, and then sends them to the ECU for execution. This means that with an external computer, the commands are no longer issued solely by the ECU.
There are typically two types of external computers: replacement and deception types.
1. Complete replacement. All ECU modules, sensors, injectors, and other sensors and actuators are completely replaced. This external method has the strongest adaptability and can modify nearly all engines in conjunction with software, allowing for many adjustable parameters.
2. ECU replacement. This replacement targets specific engine models, utilizing existing sensors and actuators while replacing the factory ECU module.
3. Deceptive type. This modifies the output of specific sensors or the input of specific actuators through simulation or digital circuits. Products sold online, like throttle accelerators, are the simplest examples of external computers, which work by altering the throttle signal to achieve acceleration. For instance, if the throttle is only pressed one-third, it sends a signal to the ECU as if the throttle were fully pressed, resulting in a much stronger power than when pressed one-third; however, if you press deeper, you will find no change.
Which is Better: External Computer or ECU Tuning?
Due to the manufacturer’s layers of encryption, it is not easy to rewrite the ECU, which is why external computers exist. If we only consider the aspect of changing engine performance, external computers are certainly not as good as ECU tuning. However, external computers still have many advantages over ECU tuning: for example, they are easier to restore to factory settings, do not affect factory warranties, have lower technical barriers, and are more universally applicable.
Of course, the drawbacks are: the performance change is not as significant as ECU tuning; it cannot remove speed limits and cannot accommodate too many hardware modifications.
The advantages of ECU tuning: besides being able to significantly enhance power output under the original mechanical conditions, it can also achieve greater power performance through hardware modifications.
The disadvantages of ECU tuning: firstly, the factory warranty is void; secondly, after tuning the ECU, some mechanical components may need to change because upgrading the performance may exceed the vehicle’s tolerance, potentially damaging the original hardware and affecting safety; fuel quality also needs to be upgraded, as tuning the ECU will inevitably advance the ignition timing to achieve optimal ignition angles.
Back to the question, which is better? There is no better option, only the more suitable one. External computers are more suitable for consumers who are relatively conservative and only want to make light modifications to improve power; whereas ECU tuning is suitable for enthusiasts who enjoy heavy modifications. Lastly, whether it’s an external computer or ECU tuning, both can harm the engine’s lifespan, unless it’s an ECU tuning kit or performance package launched by the manufacturer.
Is the Only Difference Between High-Power and Low-Power Versions of the Same Engine Just ECU Tuning?
Even if the low-power and high-power versions of a model only differ by ECU tuning, these two models will have differences not only in power performance but also in other technological configurations and mechanical setups. For example, in the Audi A4L, the high-power version has a four-wheel drive system, while the top-spec low-power version is only front-wheel drive.
Furthermore, the high and low power versions of the same model may not only differ by ECU tuning; there may also be differences in some engine components, especially for models with significant horsepower differences. For instance, the original BMW 320 and 328, while both using the N20B20 engine, have noticeable differences in many components like the radiator and intercooler, and the shape of the engine pistons is also different.
(Source: 12-cylinder automobile)
