According to a report by Electronic Enthusiasts (by Li Wanwan), Rockchip recently stated that the AIoT market will continue to thrive in the first half of 2025, due to the demand for AI applications on the edge, with the company’s flagship product RK3588 and the newer RK3576 leading the AIoT product lines to maintain rapid growth, especially in key areas such as automotive electronics, industrial applications, machine vision, and various types of robotics. RK3588 and RK3576 are two processors launched by Rockchip in the embedded systems and smart devices field, which have become the preferred choice for many developers and enterprises due to their excellent performance and rich feature set.
RK3588
RK3588 is a high-performance, low-power general-purpose SoC (System on Chip) that uses advanced 8nm process technology, designed for high-end embedded devices, edge computing, AIoT (Artificial Intelligence of Things), and other fields.

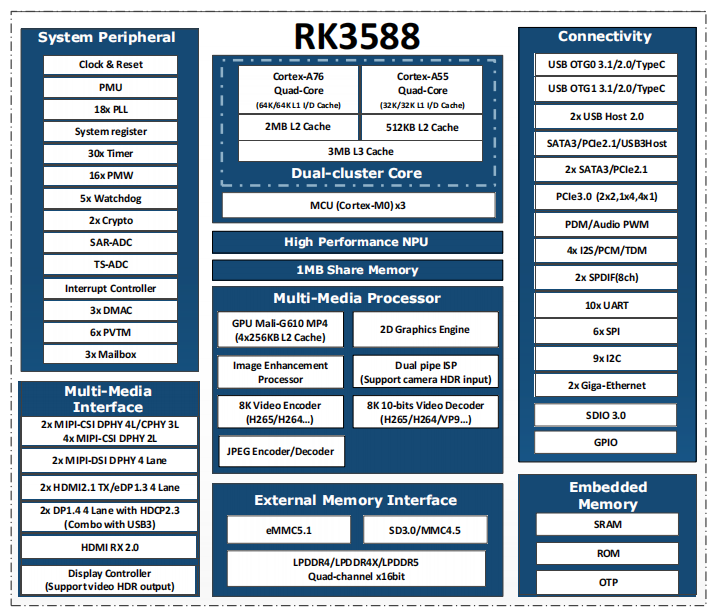

Figure: RK3588 Functional Block DiagramRK3588 integrates an octa-core CPU architecture with four Cortex-A76 cores and four Cortex-A55 cores, with clock frequencies reaching up to 2.4GHz and 1.8GHz, respectively. This big.LITTLE architecture design achieves a perfect balance between performance and energy efficiency, enabling RK3588 to handle complex computations and multitasking scenarios smoothly. Whether processing high-definition video, running large applications, or performing multitasking operations, RK3588 provides excellent performance support.The built-in Mali-G610MP4 GPU supports graphics API standards such as OpenGLES3.2, Vulkan1.2, and OpenCL2.2, efficiently handling 3D graphics rendering and high-definition video playback. Its powerful graphics processing capability makes RK3588 excel in graphics-intensive applications such as gaming, virtual reality, and augmented reality.RK3588 features a dedicated NPU (Neural Processing Unit) with 6 TOPS of computing power, supporting INT4/INT8/INT16 mixed operations, and is compatible with mainstream deep learning frameworks such as TensorFlow, PyTorch, and Caffe. This feature gives RK3588 a significant advantage in AI applications, enabling it to easily handle complex machine learning tasks such as image recognition and speech processing.RK3588 supports 8K@60fps H.265/H.264/VP9 video decoding and 8K@30fps H.264/H.265 video encoding, while also featuring a high-quality JPEG codec and a dedicated image preprocessor. Its built-in ISP (Image Signal Processor) supports HDR, 3A, 3DNR, and other algorithm accelerators, further enhancing the quality and efficiency of image processing.

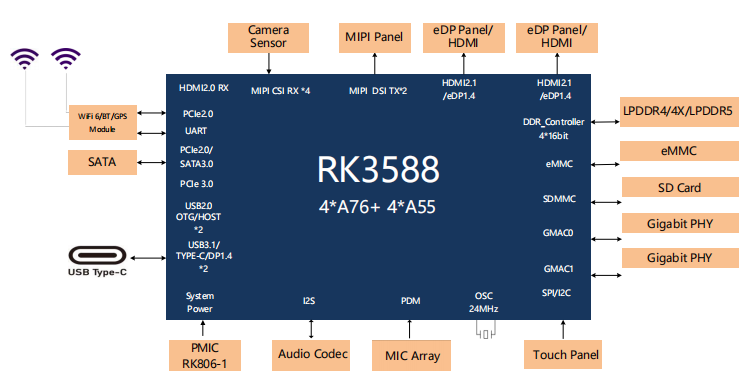

Figure: RK3588 Typical Application DiagramRK3588 offers a rich variety of interface types, including PCIe3.0, USB3.1, SATA3.0, HDMI2.1, eDP1.3, etc., supporting multi-screen display and high-speed data transfer. Additionally, it supports LPDDR4 / LPDDR4X / LPDDR5 memory and eMMC5.1 / UFS3.1 storage, providing developers with flexible system configuration options.
RK3576
RK3576 is a high-performance, low-power SoC processor, also aimed at ARM PCs, edge computing devices, and personal mobile internet devices.

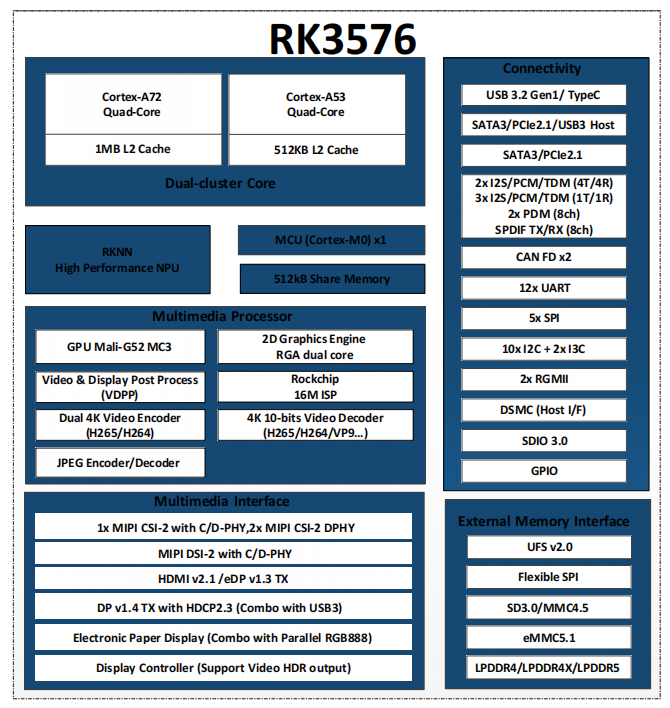

Figure: RK3576 Functional Block DiagramRK3576 adopts an octa-core CPU design with four Cortex-A72 cores and four Cortex-A53 cores, with a clock frequency of up to 2.2GHz. This architecture design effectively reduces power consumption while maintaining high performance, making RK3576 excel in long-term operation and complex task processing.The built-in Mali-G52MC3 GPU supports graphics API standards such as OpenGLES1.1/2.0/3.2, OpenCL2.1, and Vulkan1.2, enabling smooth handling of 3D rendering and visualization tasks.Additionally, RK3576 integrates a 6 TOPS NPU unit, supporting various deep learning frameworks and custom operator development, providing strong computational support for AI applications.RK3576 supports 4K@120fps H.265/H.264/AV1/VP9/AVS2 video decoding and 4K@60fps H.264/H.265 video encoding, while also featuring a high-quality JPEG codec and a 16MP ISP (Image Signal Processor). Its built-in various algorithm accelerators such as HDR, 3A, 3DNR, etc., further enhance the quality and efficiency of video processing.RK3576 supports multiple display outputs, including HDMI2.1, eDP1.3, MIPI DSI, etc., with a maximum output of 4K@120Hz. Additionally, it provides a rich set of audio interfaces such as I2S/TDM/PCM, SPDIF TX/RX, etc., to meet the connection needs of various audio devices.

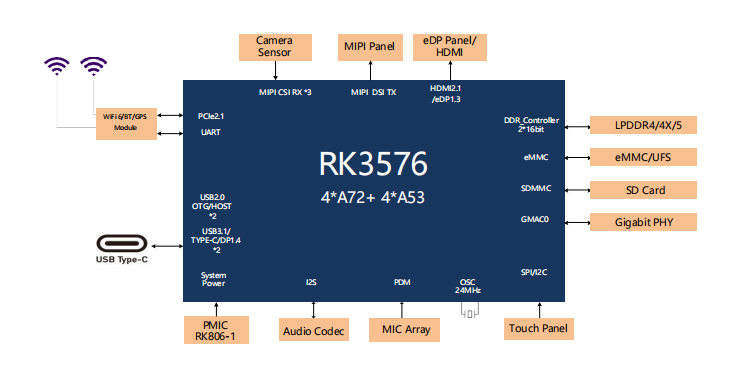

Figure: RK3576 Typical Application DiagramRK3576 also supports various high-speed interfaces such as PCIe2.1/SATA3.0, USB3.0, facilitating peripheral expansion and storage upgrades for developers. Additionally, it integrates ARM TrustZone security extensions and Secure Boot functionality, providing reliable security assurance for the system.
Conclusion
As two high-performance SoC processors launched by Rockchip, RK3588 and RK3576 excel in CPU performance, GPU performance, NPU computing power, multimedia processing capabilities, and interface expandability. RK3588, with its 8nm process technology and powerful AI computing power, occupies a leading position in high-end embedded devices and the AIoT field; while RK3576, with its efficient CPU architecture and comprehensive multimedia processing capabilities, demonstrates strong competitiveness in edge computing devices and personal mobile internet devices.
