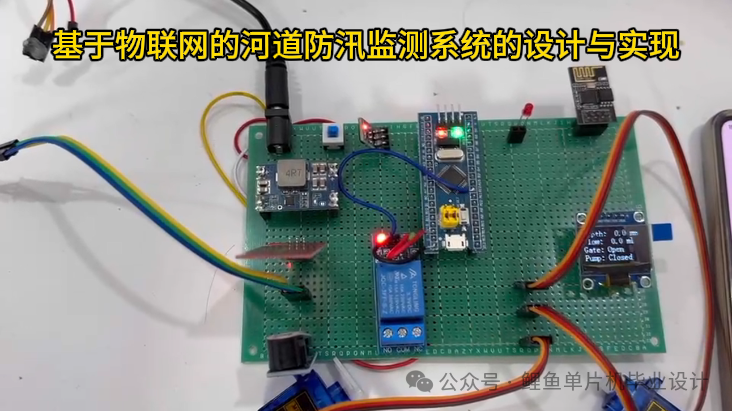

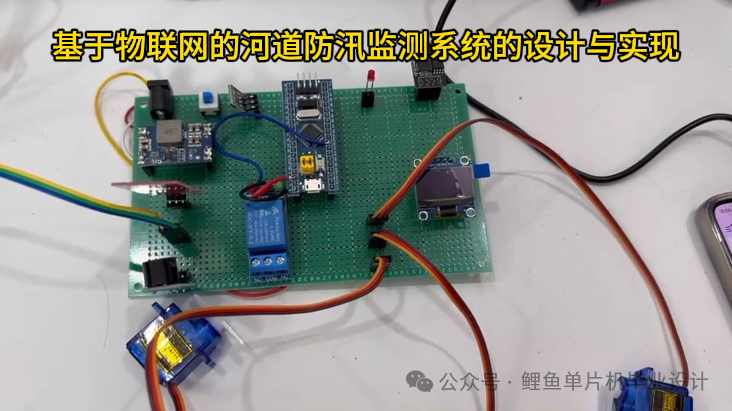

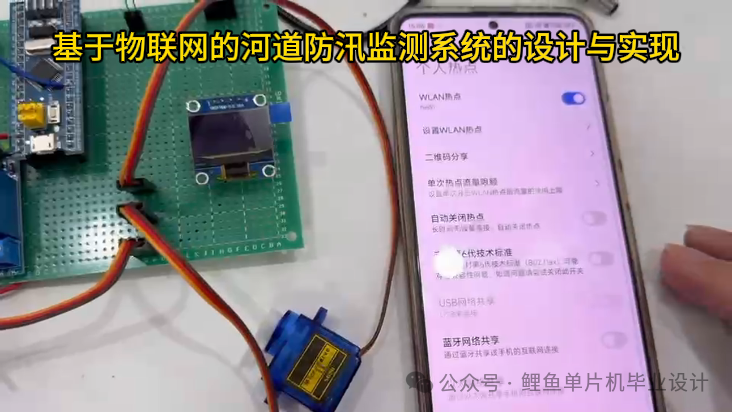

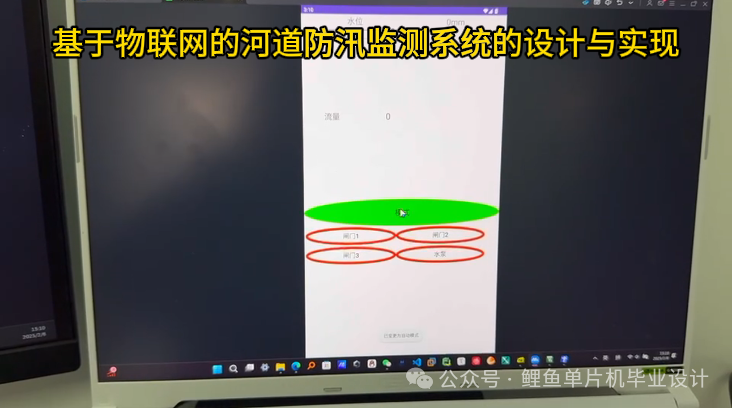

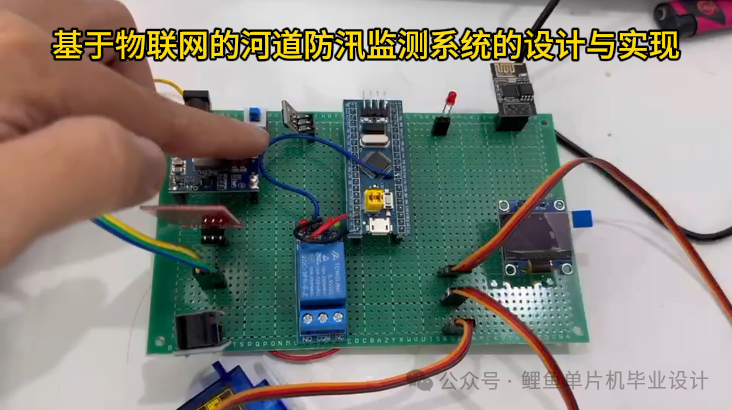

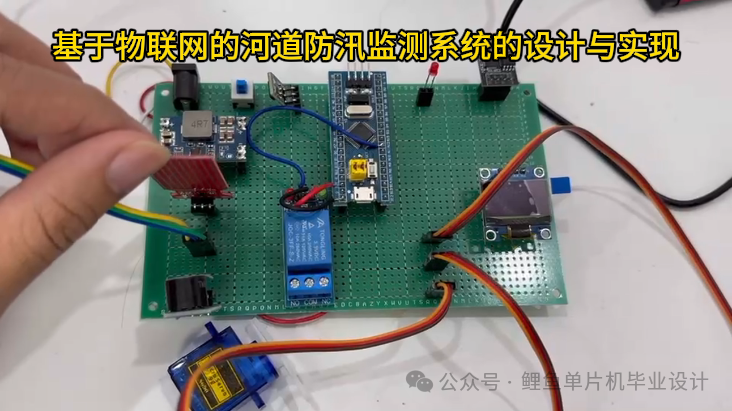

01 Practical DemonstrationImage Display:
02 Control System for Smart Fire Rescue VehicleFunction Design:
1. Water Level Monitoring: The water level sensor monitors the dam water level, and if the level is too high, a buzzer alarm is triggered.
2. Gate Control: If the water level is too high, a servo is activated to open the gate.
3. Intelligent Pump Regulation: When the water level is too low, the pump activates to raise the water level.
4. Flow Detection: Monitors the reservoir flow, and if the flow is too high, an LED alarm light is activated.
5. Screen Monitoring: Water level and flow data are displayed in real-time on the OLED screen.
6. Remote Monitoring: A mobile app displays data and allows remote setting of water level thresholds, gate control, and water storage.
7. Automated Flood Release: Three gates are set; if the flow is too fast or the water level is too high, all three gates open. As the flow rate decreases, one gate closes at a time, and when the flow rate is zero, all gates close.

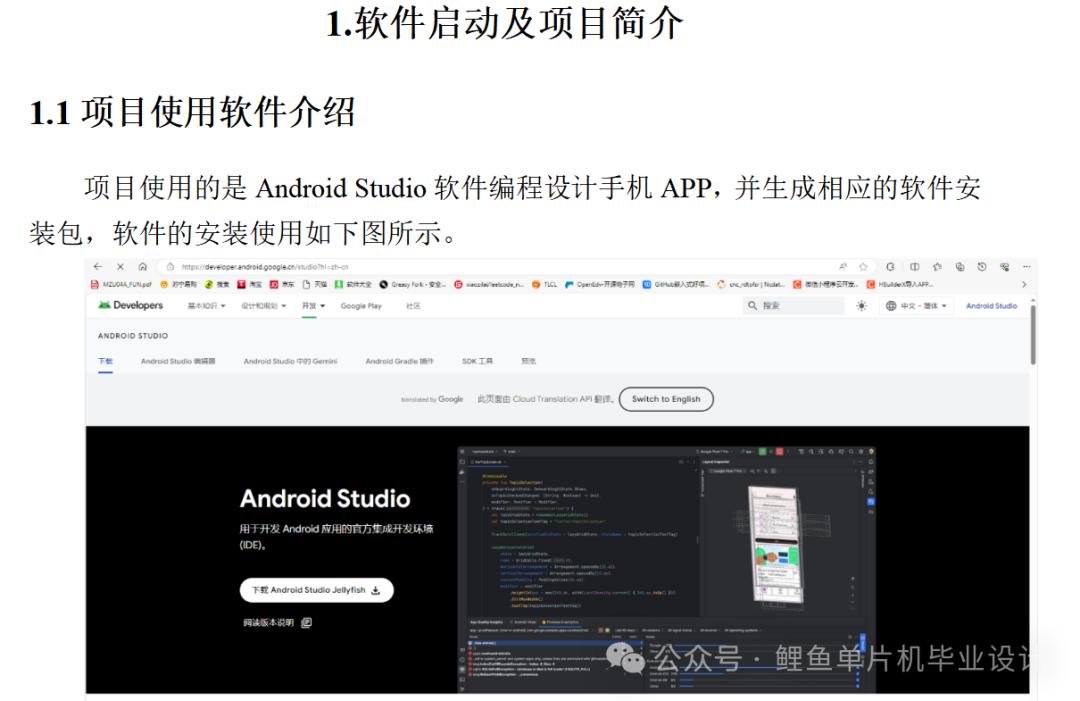

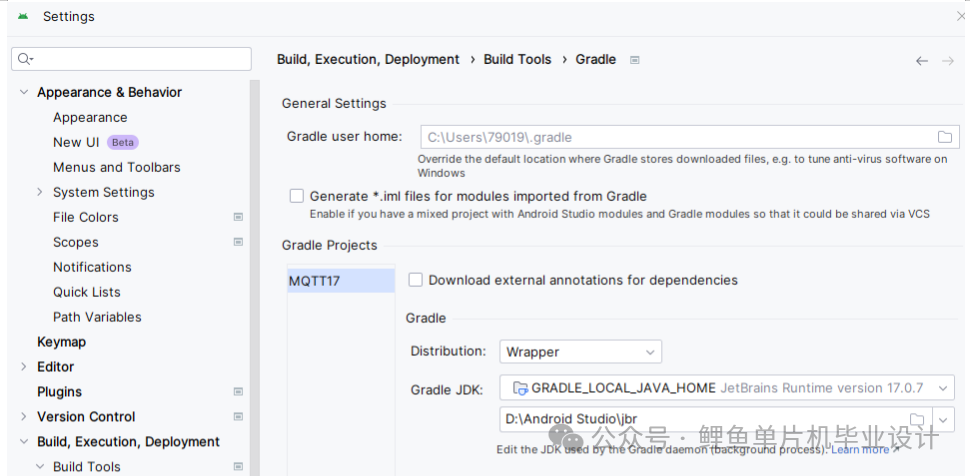

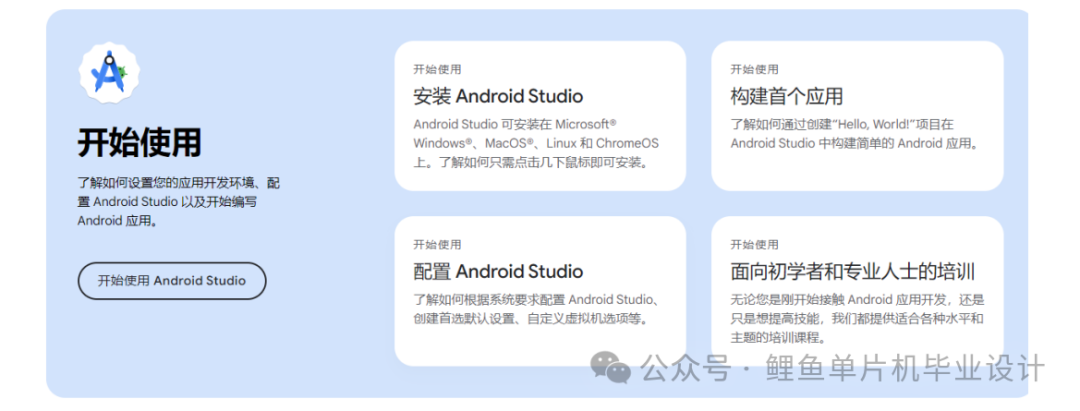

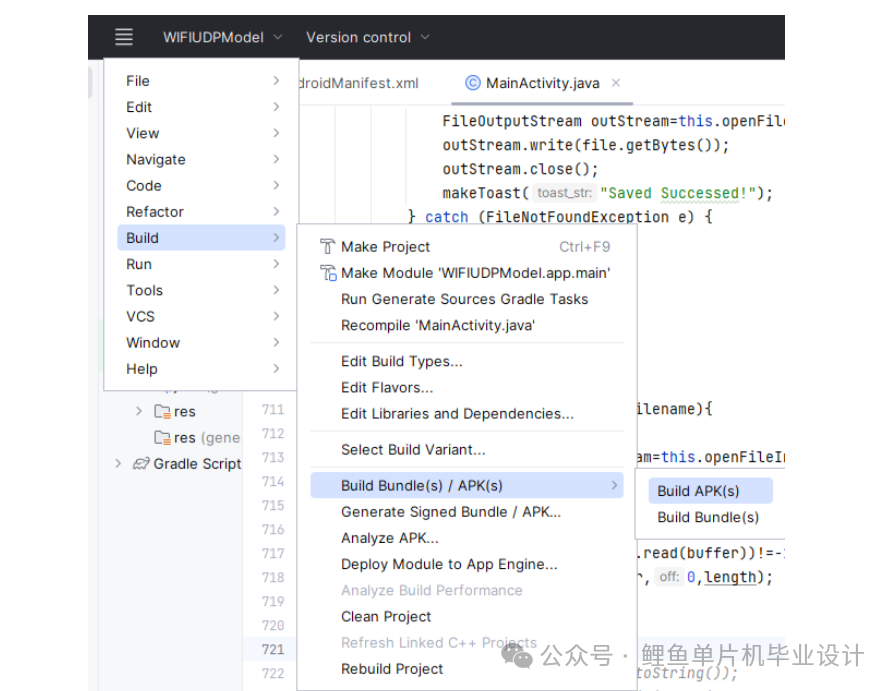

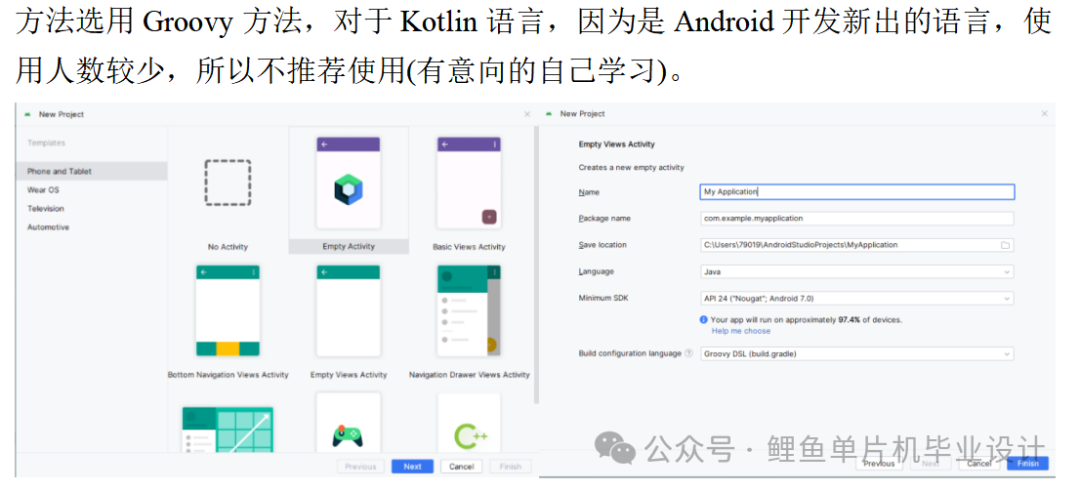

03 Software Startup and Project Overview

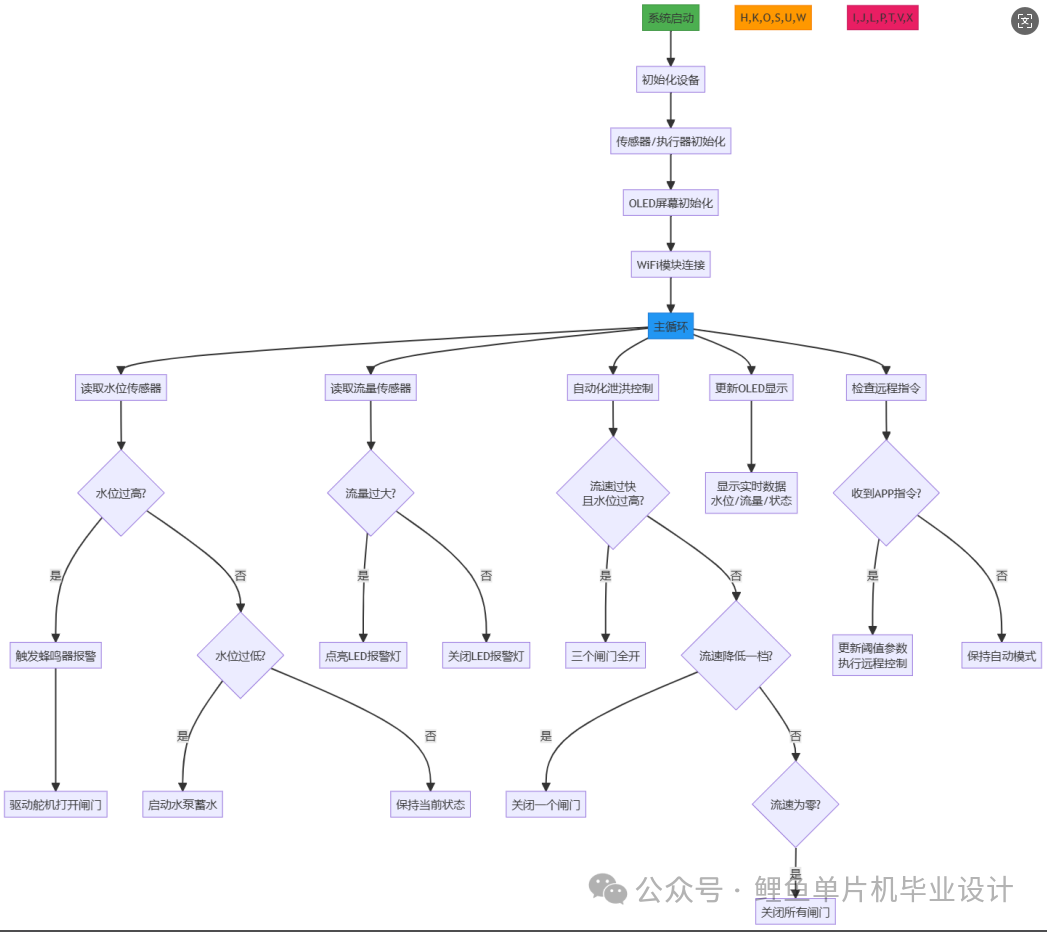

04 Software Design Flowchart

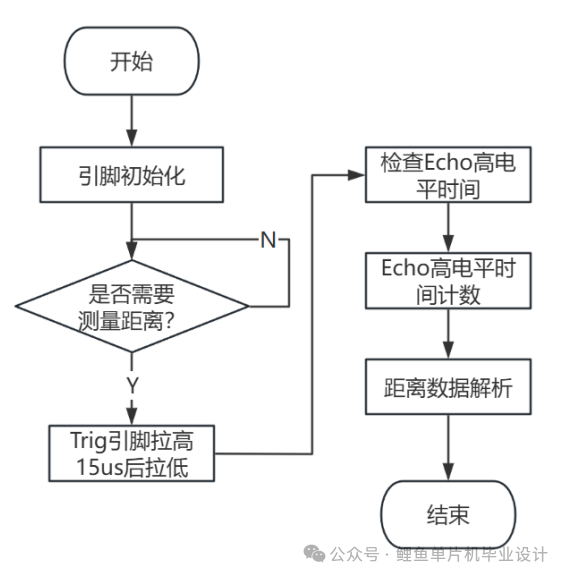

05 Sensor Data Collection Flowchart
06 Mobile WiFi Connection Flowchart

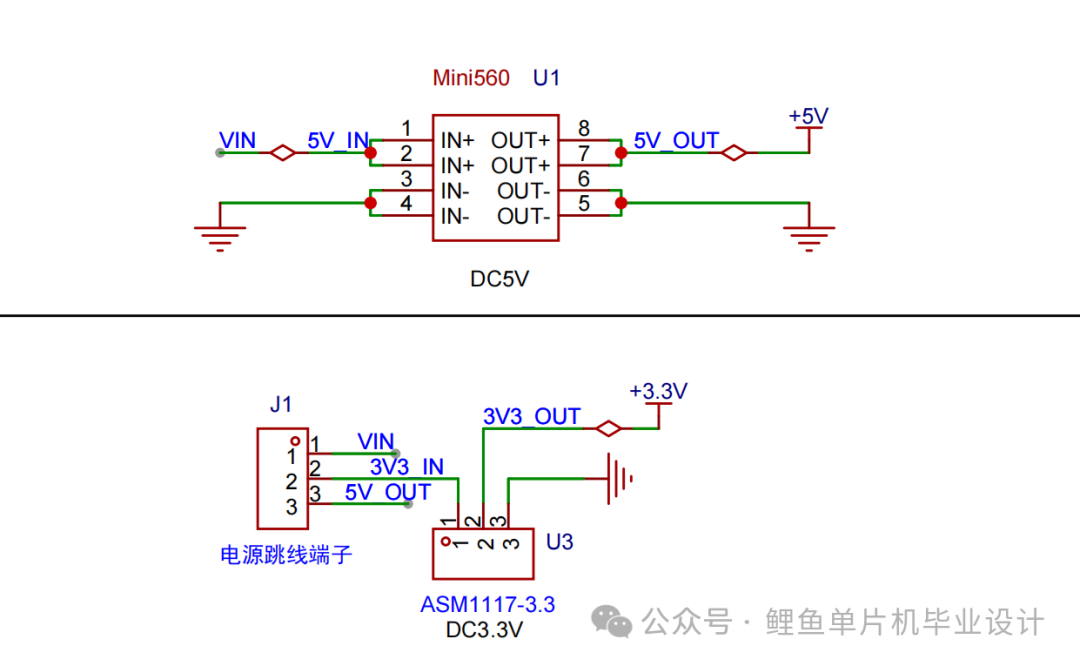

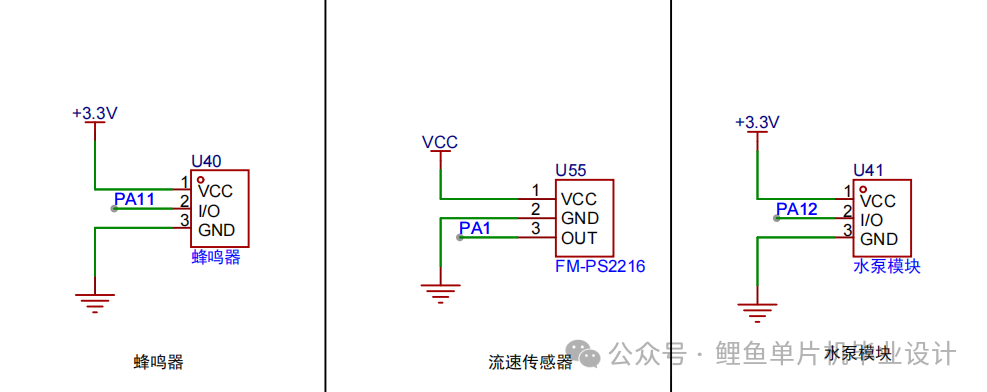

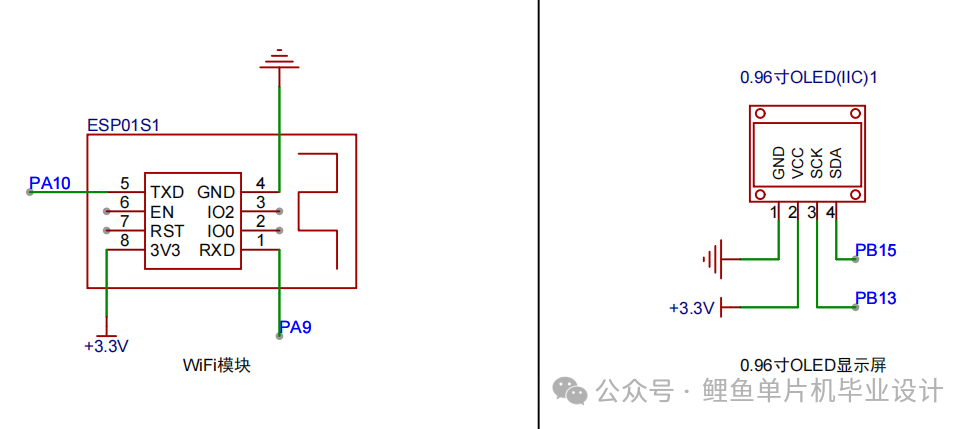

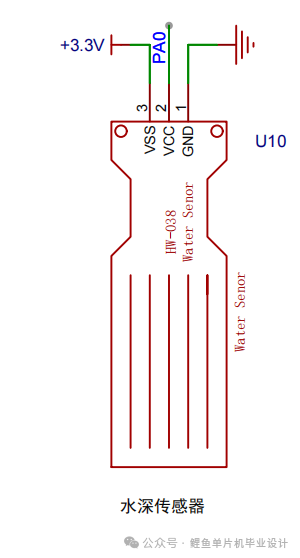

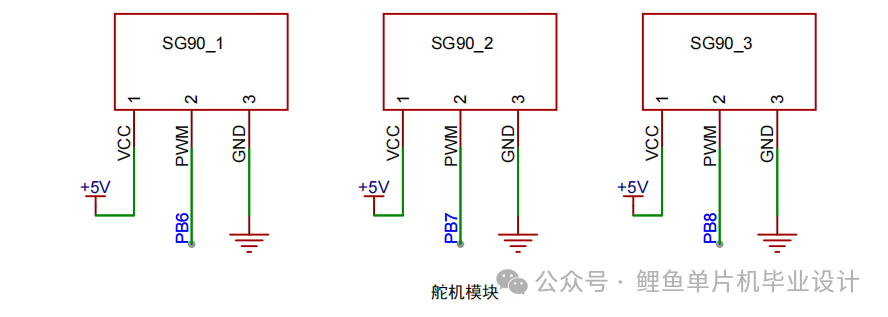

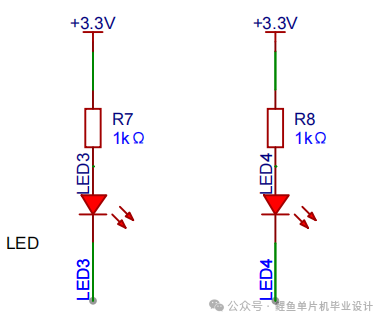

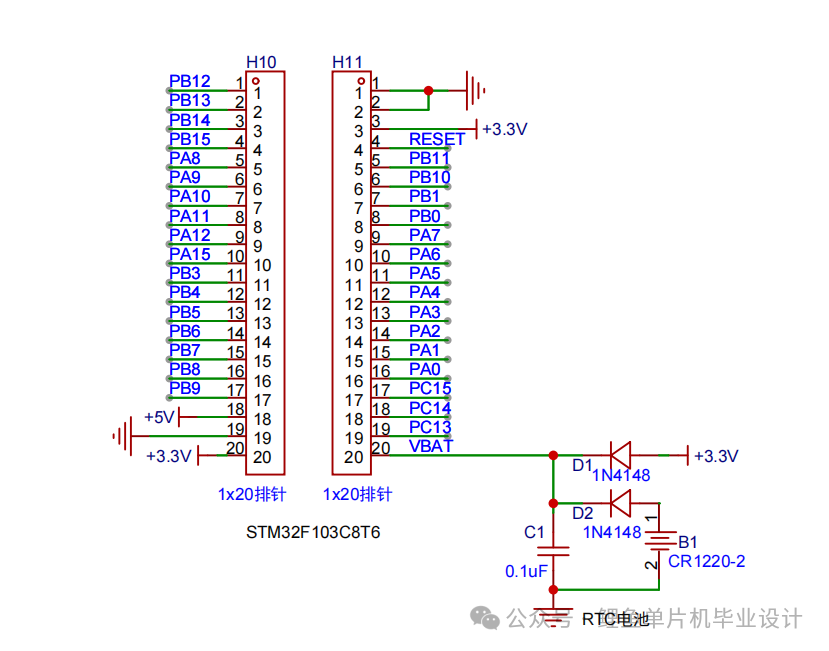

07 Schematic Diagram Display

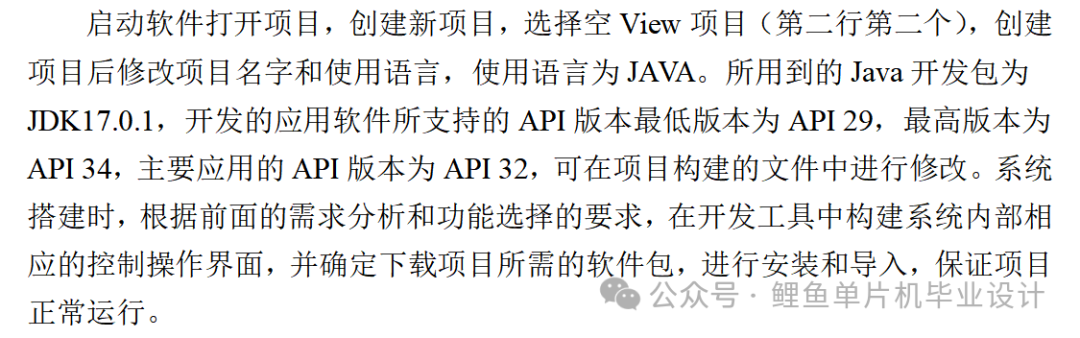

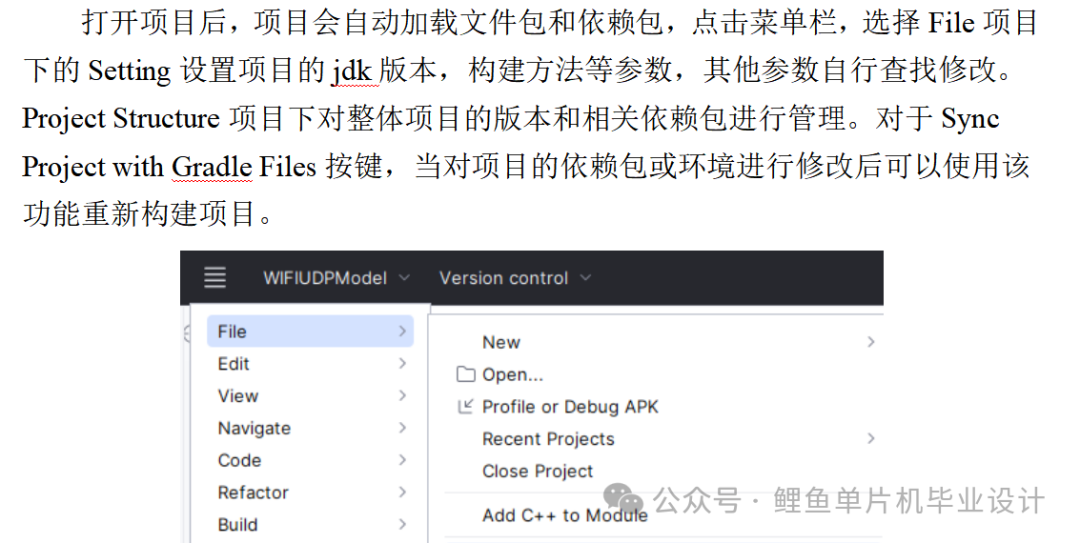

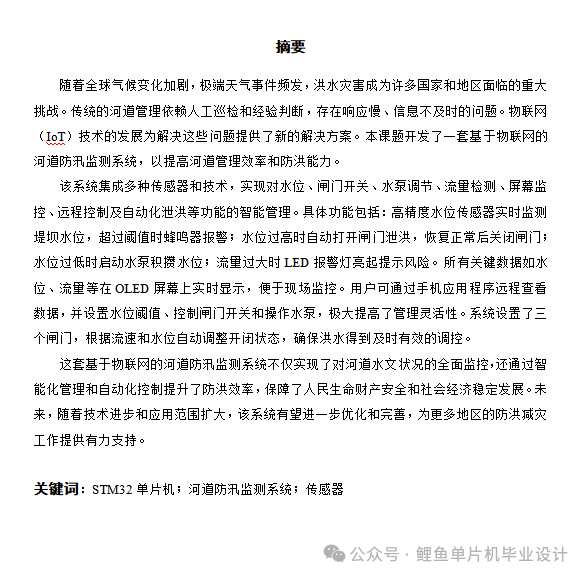

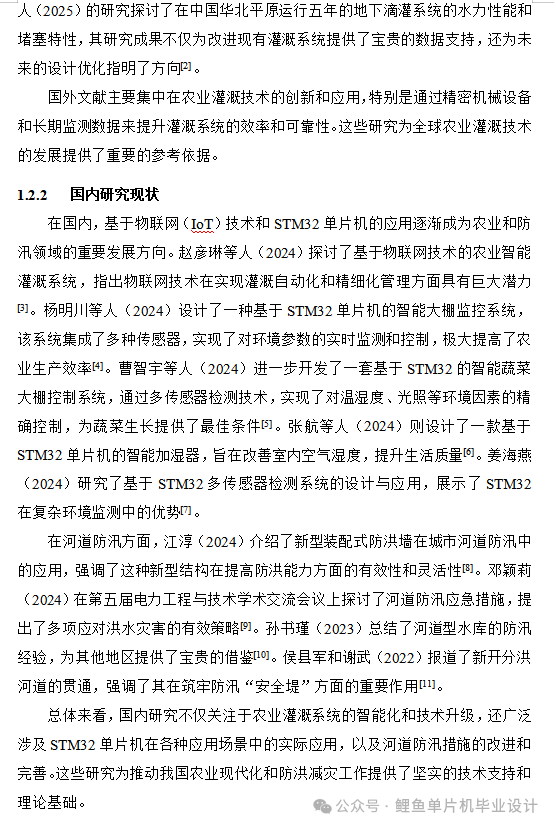

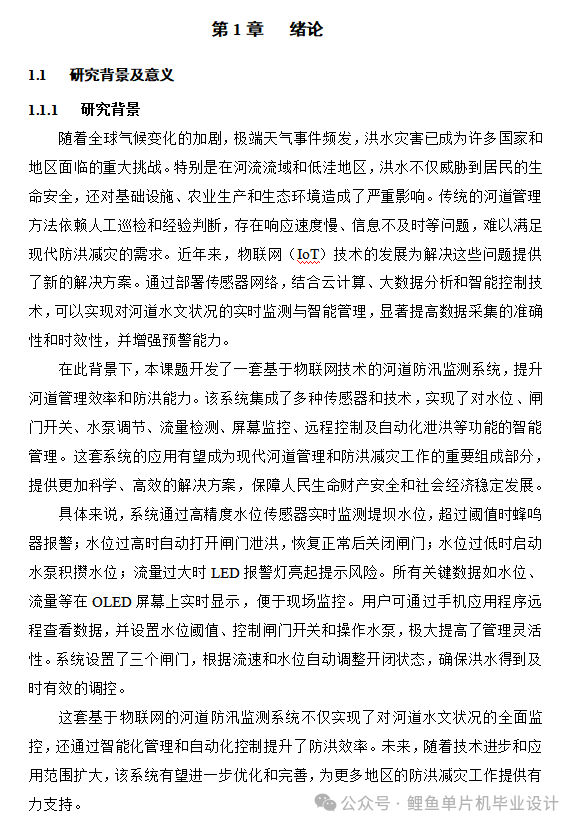

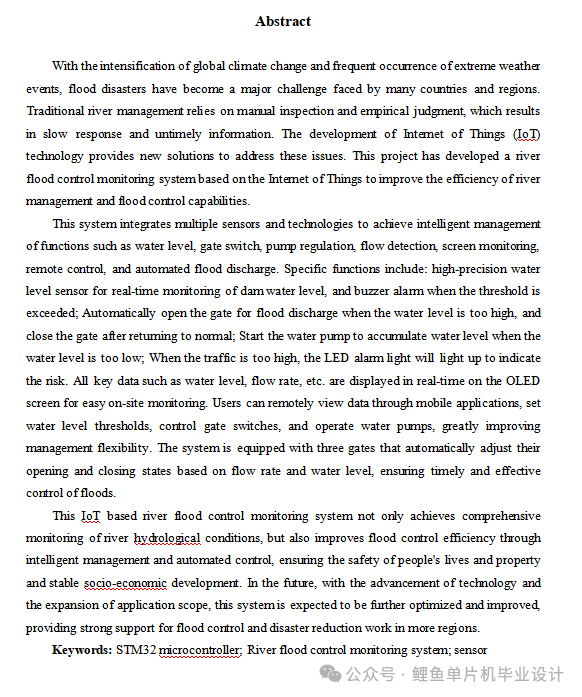

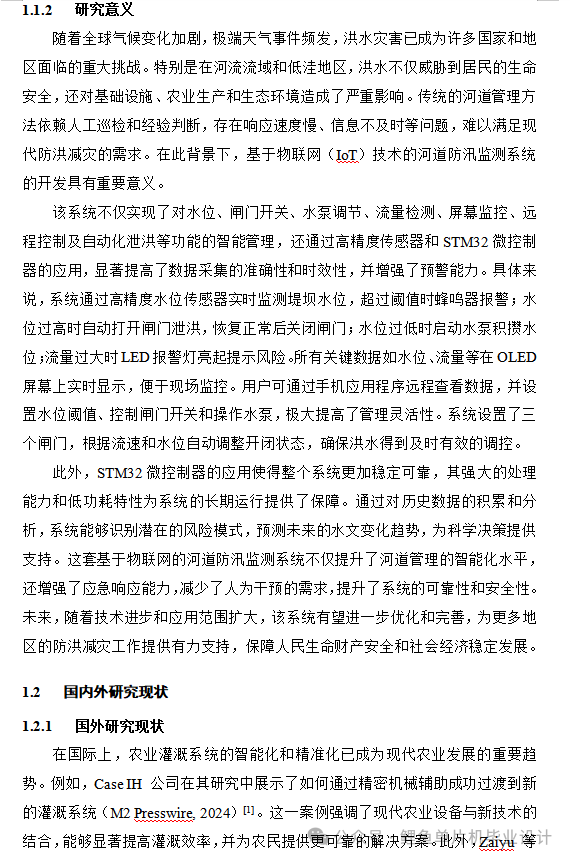

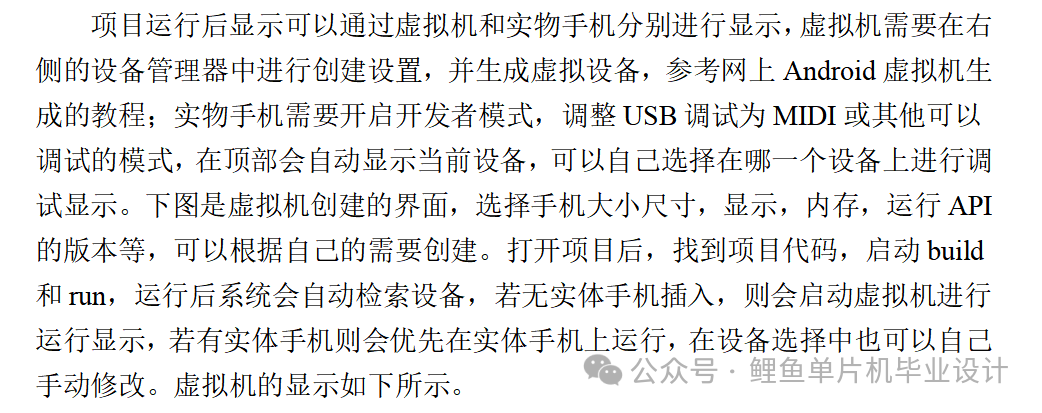

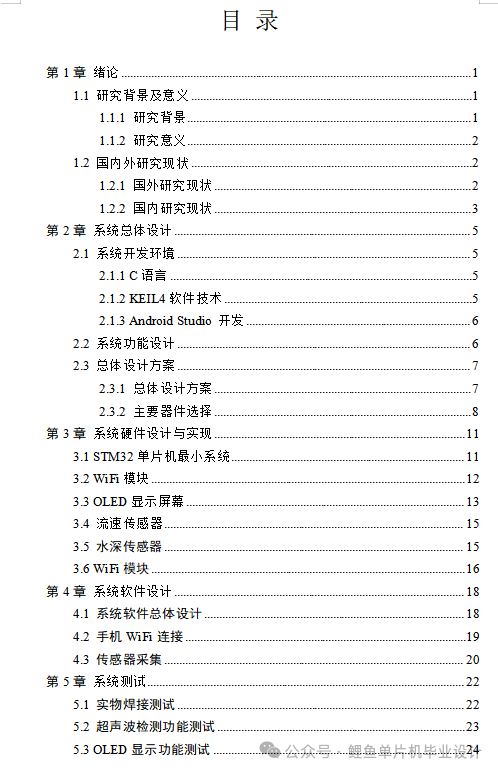

08 Project Document Screenshots
