Comprehensive Analysis of Arduino UNO Hardware: The Hardcore Secrets of a Maker Community EvergreenWhy has one board been popular for 15 years? Dissecting the classic to unlock the underlying logic of the Internet of Things!
🌠 Introduction
In the world of makers, there is a blue circuit board—it appears on the desks in Tsinghua University laboratories, hidden in geeky robot vehicles, and even flies into space to monitor satellite data.It is the Arduino UNO, the “king of electronic building blocks” with global sales exceeding ten million.Today, we will open its shell and interpret this classic design from a hardcore perspective!
🔍 1. Dissection of UNO Hardware: Small but Complete

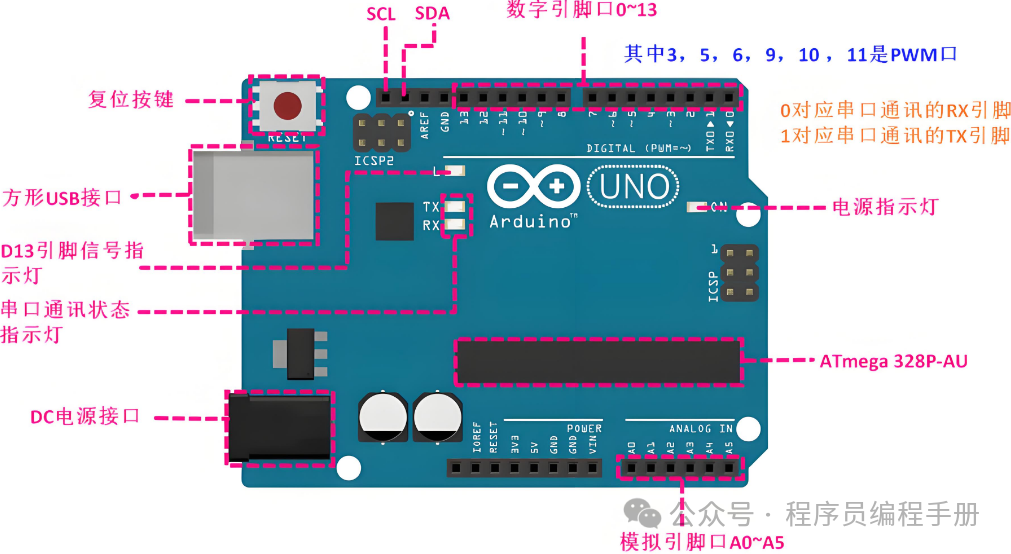

(Physical image: Schematic diagram of the UNO main board with key components labeled)
1. Core Brain: ATmega328P
- Computing Power16MHz clock speed, 32KB storage (equivalent to 1980s personal computers)
- Power Consumption5V power supply, only 0.1mA current in sleep mode (a single battery lasts half a year)
- Soul CodeOnboard Bootloader, eliminating the hassle of external programmers
2. Input and Output Interfaces
- 14 Digital I/O Ports6 support PWM (adjustable light brightness/motor speed)
- 6 Analog Input PortsRead continuous signals such as temperature and light (10-bit accuracy)
- Special InterfacesUART (serial communication), SPI (connect display), I2C (connect multiple sensors)
3. Expansion Design
- Power SystemSupports USB power supply, 7-12V DC input, 5V/3.3V dual output
- Replaceable ChipDIP packaged microcontroller, if the chip is burnt out? Just replace it with a new one to revive it!
- CompatibilityShield expansion boards can be stacked (WiFi, motor drivers, GPS can be added with one click)
🚀 2. Why has UNO become the “Entry-Level Artifact”?
1. Reverse Polarity Protection Design
- Plug in the sensor backwards? Self-resetting fuse automatically cuts off power protection
- Short circuit caused by error code? Restart to recover, say goodbye to “board destruction”
2. Plug-and-Play Ecosystem
- Gravity Series Sensors3Pin interface foolproof design, no soldering required
- 3D Printed BracketsDownload and use from the open-source model website Thingiverse
3. Cost-Performance Ceiling
- Domestic replica version only ¥25 (price of bubble tea), original version ¥80 (including official technical certification)
- Compared to Raspberry Pi: No operating system required, runs in 1 second after power on
🎮 3. Three High-Energy Uses of UNO
1. IoT Hub
- Pair with ESP8266 module to upload temperature and humidity data to Alibaba Cloud
- Control relays remotely via mobile app to switch the air conditioning at home
2. Mini Game Console
- Using a 0.96-inch OLED screen + button module, recreate “Snake” and “Flappy Bird”
- 3D printed shell, instantly transforms into a childhood GameBoy
3. Industrial Applications
- Connect to PLC via Modbus protocol to monitor factory equipment status
- Opto-isolation protection, directly control 24V solenoid valves
🔧 4. Hardware Pitfall Guide
❗ Common Issues for Beginners
- Programming FailureCheck if the COM port is selected correctly and if the driver is installed
- No Response from SensorConfirm voltage compatibility (some modules require 3.3V power supply)
- Not Enough Pins: Use 74HC595 chip to expand I/O ports
⚡ Hardware Upgrade Solutions
- High Speed RequirementsSwitch to Arduino Giga (480MHz clock speed + 32-bit core)
- Wireless ProjectsSwitch to ESP32 development board (with built-in Bluetooth/WiFi dual mode)
📚 5. UNO Toolbox for Senior Engineers
- Debugging Tools
- Logic Analyzer (captures I2C signal waveforms)
- Multimeter (quickly troubleshoot short circuits/loose connections)
- Efficiency Plugins
- PlatformIO (VS Code as a replacement for the official IDE)
- Fritzing (one-click generation of circuit wiring diagrams)
**✨ Conclusion**
The legend of Arduino UNO stems from its extreme pursuit of “simplicity”—no octa-core processors, no 4K displays, yet it connects the physical world with the digital future using the most basic interfaces.Just as its name “UNO” (Italian for “one”) implies:From the first board, everyone can become a creator of the world.
