C Language Example | Implementing a Simple Command Line

Embedded system development often requires command line functionality, such as the uboot command line.

The command line can increase the flexibility of program execution, making it easier for us to debug programs and significantly improve our development efficiency.

This article teaches you how to implement a simple command line module through a simple example,

which can be easily ported to your own C projects.

For the complete source code, see the end of the article.

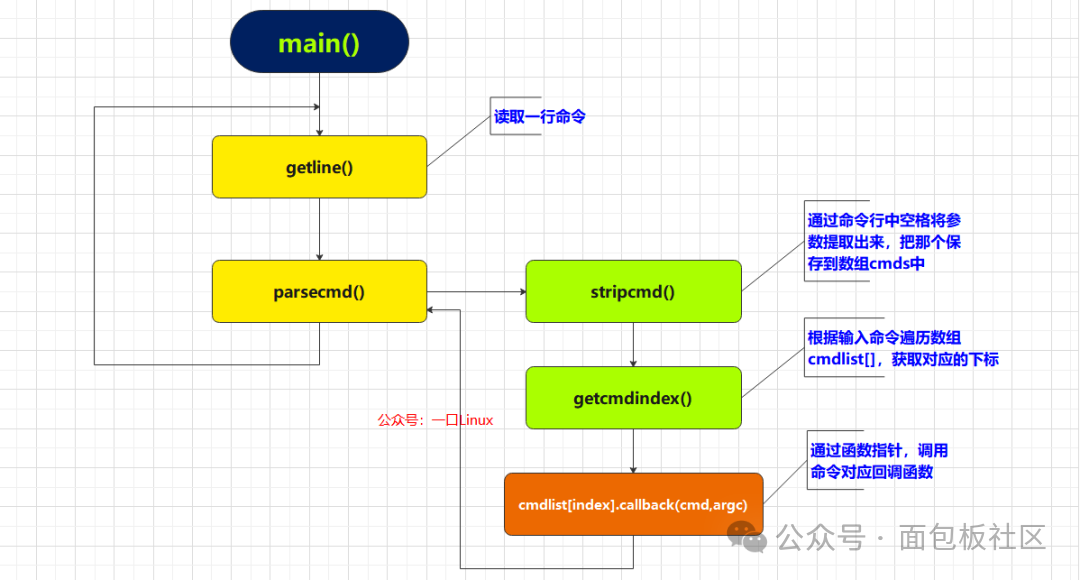

1. Design Philosophy

C Language Example | Implementing a Simple Command Line

2. Implementation

1. Structure

We use a structure struct _cmdnum to maintain the command-related information supported by the module.

typedef void (* CMDFUNC)(char [][256],int argc);
typedef struct _cmdnum{
    char *cmd;
    int index;
    int paramcount;
    CMDFUNC callback;
    char *info;
}CMDNUM,*PCMDNUM;

Member	Meaning
char *cmd	Command name
int index	Command index
int paramcount	Number of command parameters
CMDFUNC callback	Callback function corresponding to the command

2. Supported Commands

This example adds 4 commands:

Function	Number of Parameters	Callback Function
help	Displays all command information	0	showhelp()
exit	Exits the current process	0	quit()
test	Prints all parameter information, for testing	3	test()
send	Converts the input hexadecimal string into a hexadecimal integer and stores it in an array	MAX_PARAM_NUM	send()

Defined as follows:

CMDNUM cmdlist[] =
{
    {"help",1,0,showhelp},
    {"exit",2,0,quit},
    {"test",3,3,test},
    {"send",4,MAX_PARAM_NUM,send},
};

3. Related Functions

1. getline()

#include <stdio.h>
ssize_t getline(char **lineptr, size_t *n, FILE *stream);

Reads a line of data from the file stream stream, saving the result to *lineptr, including the terminating null character and newline character.

2. parsecmd()

void parsecmd(char *s)

Parses the command line content, mainly implemented through the functions stripcmd/getcmdindex.

stripcmd

int stripcmd(char *s,char cmds[][256])

Utilizes the library function strtok to separate the parameters in the command line s by spaces, extracts the parameters, and stores them in the two-dimensional array **char cmds[256]**.

getcmdindex

int  getcmdindex(char *name)

Traverses the array cmdlist[] using the command name name to obtain the array index.

4. Core Code

CMDNUM cmdlist[] =
{
    {"help",1,0,showhelp,"show all cmd info"},
    {"exit",2,0,quit,"quit application"},
    {"test",3,3,test,"[param...]print params"},
    {"send",3,MAX_PARAM_NUM,senddata,"[xx...]converts data from sting to hex and store to buf"},
};

void parsecmd(char *s)
{
char cmd[MAX_PARAM_NUM][256];
int argc = 0;
int index = -1;

 argc = stripcmd(s,cmd);

//printf("argc=%d\n",argc);
 index=getcmdindex(cmd[0]);
if(index == -1)
 {
if(argc>0)
  {
   cprintf(RED,"\tNo such command \n");
  }
return;
 }
elseif(argc>0)
 {
  cmdlist[index].callback(cmd,argc);
 }
}

UINT8 hex2char(UINT8 ch)
{
if ((ch >= '0') && (ch <= '9')) {return ch - '0';}
if ((ch >= 'a') && (ch <= 'f')) {return ch - 'a' + 10;}
if ((ch >= 'A') && (ch <= 'F')) {return ch - 'A' + 10;}
return (UINT8)0xff;
}

UCHAR stringToByte(char* str)
{
 UCHAR bytes = 0;

if(strlen(str)==1)
 {
  bytes= 0 << 4 | hex2char(str[0]);
 }else
 {
  bytes= hex2char(str[0]) << 4 | hex2char(str[1]);
 }

return bytes;
}
//7e 01 02 01 00 07 07 01 00 00 00 c6 51 2a 7e

void senddata(char argv[][256],int argc)
{
int i = 0;
int len = 0;
 UCHAR buf[256] = {0};

if(argc < 2)
 {
return;
 }
for(i=1;i<argc;i++)
 {
   buf[i-1] = stringToByte(argv[i]);
 }
cprintf(GREEN,"\n  buf:");
for(i=0;i<argc-1;i++)
 {
  cprintf(GREEN,"%02x ",buf[i]);
 }
putchar('\n');

}
void test(char argv[][256],int argc)
{
int i = 0;

for(i=0;i<argc;i++)
 {
  cprintf(YEL,"\targv[%d]:%s\n",i,argv[i]);
 }

return;
}
void showsysinfo(void)
{
cprintf(D_GREEN_H,"---------------yikoulinux cmdline demo-----------\n");
}
void quit(char cmd[][256],int argc)
{
cprintf(RED_H,"exit to system \n");
    exit(0);
}

void showhelp(char cmd[][256],int argc)
{
int i = 0;

for(i=0;i<sizeof(cmdlist)/sizeof(CMDNUM);i++)
 {
    cprintf(GREEN_H,"\t%s",cmdlist[i].cmd);
  cprintf(YEL_H,"\t%s\n",cmdlist[i].info);
 }
return ;
}

int main(int argc, char* argv[])
{
    char *line;
    int ret = 0;
size_t len_line = 0;

    showsysinfo();

while(1)
 {
  fflush( stdin );
  cprintf(D_GREEN_H,DEV_NAME"# ");

  ret = getline(&line, &len_line, stdin);
if(ret == -1)
  {
   break;
  }
  parsecmd(line);
free(line);
  line = NULL;
 }

    return0;
}

3. Testing

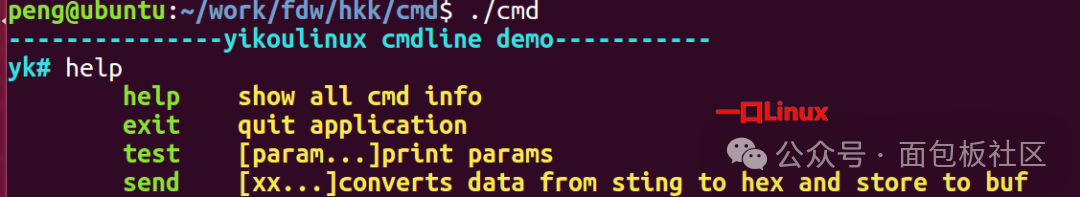

1. help

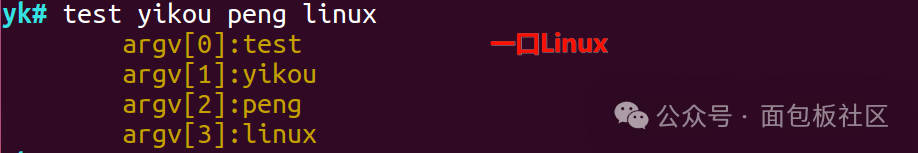

2. test

3. send

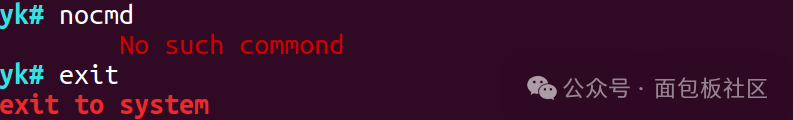

4. exit
