A crucial aspect of automotive development—revealing the secrets of calibration!

What is Automotive Calibration Technology? Engineers set and adjust thousands of parameters in the vehicle’s ECU through a series of experiments, tests, and data optimization to ensure that all systems of the vehicle achieve optimal performance, efficiency, environmental friendliness, and comfort.

The different calibration styles of various manufacturers provide users with unique driving experiences.

1 Calibration and Measurement

Automotive calibration mainly includes two categories: configuration calibration and parameter calibration.

1.1 Configuration Calibration

As automobiles become increasingly popular, especially with the rise of new energy vehicles, they are becoming more similar to consumer electronics like smartphones. The same model typically has different configurations, allowing consumers to choose their preferred vehicle based on the different functions offered by these configurations. For OEM manufacturers, changes in configuration mean modifications to the software engineering. One model configuration corresponds to a set of engineering that is prone to errors and difficult to maintain. Therefore, generally, a model only has one set of engineering, and functions are controlled through calibration to achieve the purpose of turning features on and off and differentiating configurations. The configuration package obtained after calibration can be rewritten after successfully burning the ECU software, thus completing the entire ECU software update.

1.2 Parameter Calibration

Moreover, calibration can not only be used to differentiating configurations but also to tune the parameters of the entire vehicle. Many parameters in the vehicle’s ECU are influenced by various uncontrollable factors such as environment, temperature, and design structure. Tuning them to their optimal state usually requires a large number of experiments to support it.

• • Key Calibration: The detection range of the vehicle for the key is a significant calibration item, which needs to ensure no dead angles inside the vehicle while complying with regulations, approximately 1 to 2 meters outside the vehicle.
• • Window Calibration: The timely opening and closing of windows are closely related to personal safety. For example, parameters such as the maximum and minimum travel of the windows need to be calibrated by OEM manufacturers.
• • Range Calibration: Each model is designed with different fuel consumption based on the differences in engines and other components. The actual fuel consumption/range is calibrated through numerous test runs by engineers.
• • Light Calibration: Modern vehicles are equipped with automatic lighting, and the illumination range of automatic lights is a significant calibration item. For instance, regulations require different illumination distances for the main and auxiliary headlights.

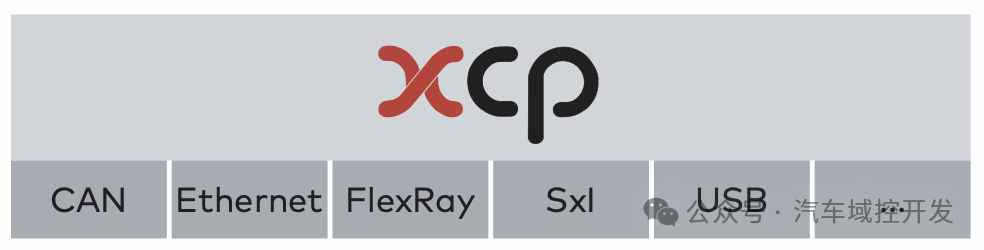

Image from VECTOR

For the CAN bus, the internal workings of the ECU are a black box. To modify parameters, communication with the ECU must be established, and the CCP/XCP protocol provides a standardized communication method for ECU manufacturers.
