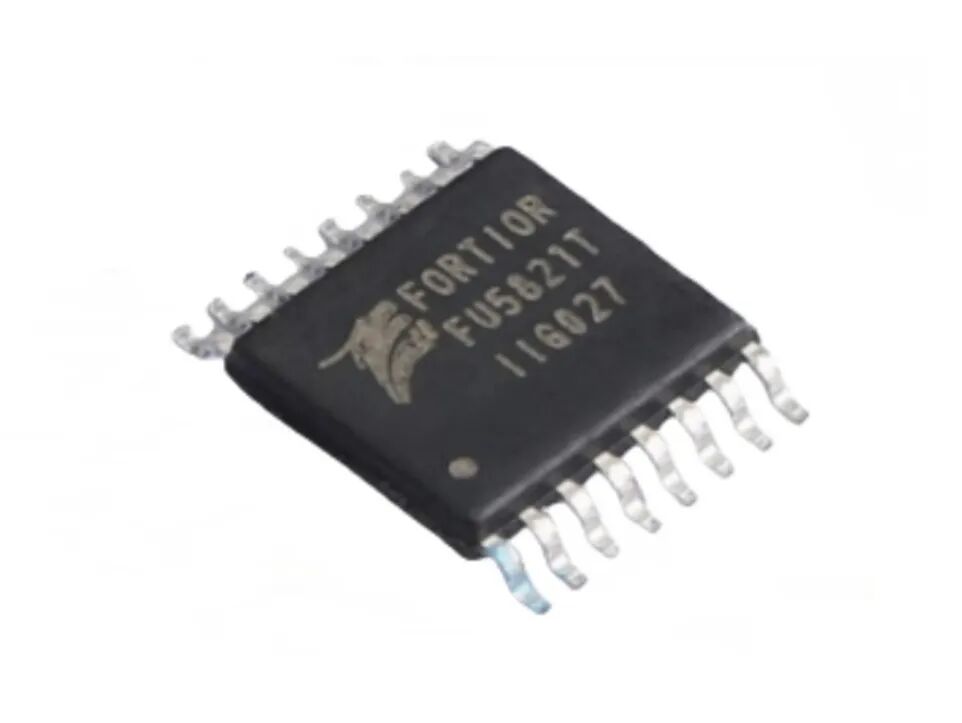

As a leader in the chip programming field, ACROVIEW announced the expansion of its compatible chip model list with the release of its new programming software. The newly added model includes the FU5821T motor driver chip from Fortior Tech. Currently, this chip has been supported by the ACROVIEW universal programming platform AP8000.

The FU5821T is a dedicated chip for driving single-phase brushless DC motors, integrating a Motor Control Engine (ME) and an 8051 core. The ME integrates a Smart Engine module, capable of performing high-speed motor calculations independently; the 8051 core is used for parameter configuration and routine task processing, allowing dual-core parallel operation to achieve various high-performance motor control, suitable for square wave/sine wave drive control of Hall single-phase BLDC motors.

Features

• Supply Voltage: 5~28V

• Dual-core: 8051 core and ME

• Instruction cycle mostly 1 or 2 system clock cycles

• 6kB Flash ROM, with CRC check function, supports program self-programming and code protection

• 256 bytes IRAM, 256 bytes XRAM

• ME: Single-phase motor control engine

• 15 interrupt sources, configurable to 4 priority levels

• GPIO

– 8 GPIOs

• Timers

– Timer1: Square wave drive timing control, supports automatic commutation, soft switching, current limiting, and stall detection

– Timer2/Timer3/Timer4: PWM output, input PWM duty cycle and period detection. Timer3 supports 48MHz input mode

– Systick timer

– RTC timer

• Communication Interface

– 1

– 1 UART, supports reverse input, reverse output mode, supports single-wire mode

• Analog Peripherals

– 10-bit ADC, 2μs conversion time, reference voltage VDD5

– Number of ADC channels

– 6 channels

– Built-in VCC voltage sampling channel

– 3 groups of analog comparator groups (5 comparators)

– DAC

– 1 channel 6-bit, for current limiting protection

– 1 channel 4-bit, for overcurrent protection

• Drive Type: 2P2N Pre-driver output

• BLDC control supports automatic commutation, current limiting, supports Hall, BEMF detection

• Oscillator

– Built-in 24MHz high-speed RC oscillator

– Built-in 32.8kHz low-speed RC oscillator

• WDT

• LVD

• TSD

• Two-wire FICE protocol provides online simulation capabilities

Applications

• Hall single-phase brushless DC motors

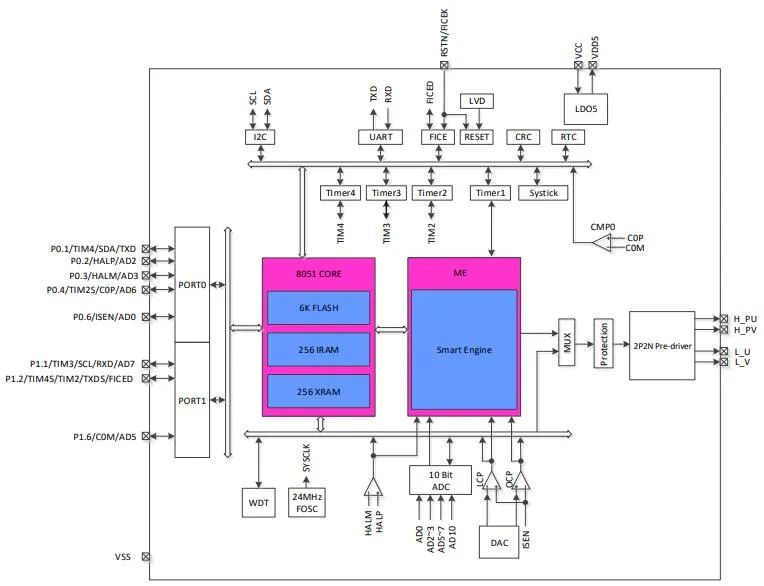

Functional Block Diagram

With a strong technical foundation, ACROVIEW’s self-developed AP8000 universal programmer is regarded as a benchmark-level programming solution in the industry. This device supports flexible one-to-one and one-to-eight configurations, while providing both online and offline working modes. It has also developed dedicated programming solutions for eMMC and UFS storage chips, fully meeting the bare chip offline programming and on-board programming needs of Fortior Tech’s entire series of chips. The AP8000 consists of three core modules: host, baseboard, and adapter, and this modular design endows it with excellent compatibility and expandability. As a universal programming platform, the AP8000 can adapt to various programmable chips on the market and, due to its stable and efficient performance, has become the core component of ACROVIEW’s automated IPS5800S programming system, efficiently handling large-scale chip programming tasks to meet mass production needs.

The AP8000 host features flexible connectivity options and is equipped with USB and NET interfaces, allowing for easy networking of multiple programmers. Through the networking function, users can easily achieve synchronized control of multiple programmers, efficiently conducting parallel programming operations. In terms of safety, the host is equipped with an intelligent safety protection circuit that can monitor the chip placement status and circuit connection in real-time. If it detects abnormal conditions such as chip reverse insertion or short circuits, it will immediately trigger a power-off protection mechanism, fully safeguarding the safe operation of the chip and programmer. The host is equipped with a high-speed FPGA chip, significantly enhancing data transmission and processing efficiency, ensuring a smooth and efficient programming process. To enhance user convenience, the back of the host is equipped with an SD card slot, allowing users to store project files generated on the PC to the SD card and insert it into the slot. They can then complete file selection and loading for programming operations through the physical buttons on the programmer, achieving independent operation without a PC. This design not only reduces dependence on computer hardware configurations but also simplifies the setup process of the working environment, significantly enhancing operational flexibility.

In terms of expandability and compatibility, the AP8000 adopts a modular design of baseboard and adapter board, effectively extending the functional boundaries of the host. Currently, this device has achieved support for products from all major semiconductor manufacturers, covering well-known brands such as MXIC, ABLIC, Geehy, NAVINFO, and Silan. It supports a wide range of device types, including NAND, NOR, MCU, CPLD, FPGA, EMMC, etc., and is fully compatible with various industry-standard file formats such as Intel Hex, Motorola S, Binary, and POF, providing users with a one-stop, all-scenario chip programming solution.

Company Introduction

About Fortior Tech: Fortior Tech, established in 2010, is a professional semiconductor company specializing in motor driver chips, dedicated to providing high-quality driver and control chips for various motor systems, as well as consulting services in motor technology. The application fields of the chips provided cover industrial equipment, motion control, power tools, consumer electronics, intelligent robotics, IT, and communication drive control fields.

About ACROVIEW: ACROVIEW is a national-level specialized and innovative “little giant” enterprise engaged in the research, development, production, and sales of semiconductor chip testing and programming equipment. The company is committed to empowering the entire industry chain customers, including Fabless, IDM, OSAT, wafer fabs, and end-device enterprises, through innovative semiconductor testing technologies and solutions. ACROVIEW’s pioneering fully automated aging testing ABI (Auto Burn-In) system greatly enhances the aging testing efficiency of customer chips and reduces the Per DUT testing cost. It also provides customers with equipment products and solutions for various stages from PSV, CP, FT, BI, SLT, to programming. We perfectly integrate the leading advantages of product technology, system-level expertise, and a globally laid-out R&D and sales service network to create value for customers to gain a competitive edge in the market.
