A Step-by-Step Guide to DIY WiFi Robot Design by an Engineer

After more than ten days of crazy shopping, assembling, debugging, disassembling, reassembling, and debugging again, my WiFi Robot has finally made its debut!! Tears of joy! Below is a brief description of the production process, which also serves as a record for myself.

A Step-by-Step Guide to DIY WiFi Robot Design by an Engineer

The solution I used is the WiFi car scheme from the igee forum, with a ready-made driver board and control program… However, I have now realized that while using ready-made components is convenient, the expansion capabilities are quite limited. My next step is to buy an Arduino board to research and reassemble the car, and write my own programs.

The WiFi Robot, as the name suggests, is a robot controlled via WiFi. Compared to ordinary remote-controlled cars, its advantage is that the remote control signal can cover a wide range, and it can also be controlled remotely over the Internet, which opens up many new applications, such as video surveillance, etc. As a beginner, the robot’s appearance and functionality are still quite rough, so please don’t laugh at it, experts!

1. Preparation Work

Here is a list of parts:

Acrylic chassis ×1: 65 RMB

igee car driver board with 5110 screen ×1: 150 RMB

Ultrasonic sensor ×1: 40 RMB

DB120-B1 wireless router ×1: 45 RMB

301 chip camera ×5: The first one I bought for 10 RMB got its wire broken and couldn’t be soldered, so it was discarded. The second one I bought for 10 RMB also broke… The third time I bought three, each for 5 RMB. They are all working fine now. Total: 35 RMB.

Wide-angle lens ×1: 5.3 RMB

Huiseng M995 servo ×2: 70 RMB

Servo gimbal bracket ×1: 32 RMB

Stepper motor kit ×4: 144 RMB

12V 4800mAh lithium battery: 87 RMB

Dupont wires, screws, nuts, and other miscellaneous parts… Total: 673.3 RMB

Since this is my first time making a robot, I had almost no tools. Just buying a soldering iron, hot glue gun, electric drill, and multimeter cost me quite a bit. Including various other expenses, I spent over 1200 RMB. That’s more than a month’s living expenses gone…

2. Here is my working environment

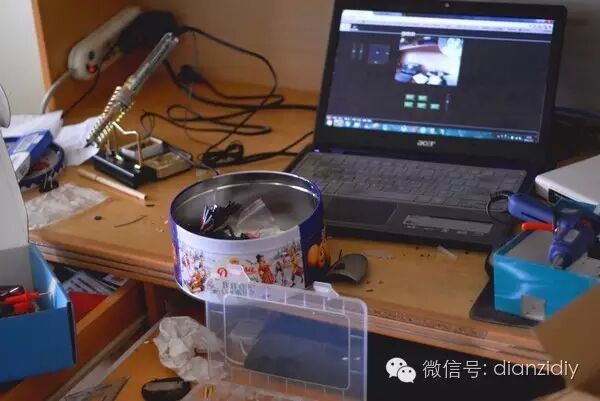

The dormitory conditions are quite simple… The computer screen shows the robot control interface.

A Step-by-Step Guide to DIY WiFi Robot Design by an Engineer

Before I bought the acrylic chassis and electric drill, my car was using a cardboard box as a chassis. Although cardboard is easy to work with, it is too soft, causing the car to often veer off course. Additionally, due to the improper wheelbase, after adding the servo gimbal, the increased weight caused too much turning resistance, making the car almost unable to turn.

I forgot to take a photo before disassembling, so I had to piece it together after disassembly. You can still vaguely see the shadow of the original car.

Acrylic sheets are very cheap and easy to process, and you can easily make your own chassis without buying a finished board. However, the downside is that they are not as sturdy and flashy as aluminum sheets, and cracks can occur when screwing in. If you choose aluminum for the chassis, you might consider using aluminum boxes or angle aluminum, which can also make a very good chassis with simple processing.

3. Officially Starting Work!

First, install the motor brackets on the chassis. Drill holes in suitable places and install the motor brackets. Be careful not to make the hole diameter too small, as forcing screws can cause the acrylic to crack. Also, when drilling, use a center punch or similar tool to avoid misalignment.

If you are making a custom chassis, you need to consider the wheelbase. I made a four-wheel drive car, and turning left or right relies on reversing the wheels on either side, so a too wide wheelbase can cause excessive turning resistance.

Secure the driver board at the front. You might consider using copper pillars to elevate the board for easier wire routing.

Install the stepper motors and solder the control wires. Before soldering, tin the wire ends with some rosin to make it easier. Additionally, the servo power supply part of this driver board uses an L7805 ($0.1250), which generates a lot of heat during operation. I fixed it to the aluminum motor bracket with screws to help dissipate heat; using a metal chassis would improve this even more.

The 5110 screen was originally fixed to the board. To make it easier to view, I used Dupont wires to extend it.



On the back of the second layer of the chassis, I fixed the battery. I originally wanted to make a drawer for easy removal, but I couldn’t find suitable materials, so I ended up using tape and rubber bands to secure it, and installed a boat switch on the side of the chassis to control the power to the driver board.

At the front of the car, I installed the ultrasonic sensor. I fixed it with hot glue, but the effect is not very good, so I plan to modify it. Be careful not to let it extend beyond the chassis to avoid damage when the car hits a wall.

On the second layer, I installed the router circuit board. The DB120 router is actually a telecom-customized router modem with ADSL functionality, so it is relatively large and exceeds the width of the chassis. I had no choice but to drill two holes in the unoccupied areas of the circuit board and secure it to the chassis with copper pillars. After installation, I found that a row of indicator lights on the router could serve as the car’s headlights, which is quite nice.

On the third layer, I installed a 2-degree-of-freedom camera gimbal. The downside of this installation is obvious: heavy components like the servo and battery are concentrated at the rear of the car, making it prone to tipping over. However, due to space and wire length constraints, it was not suitable to install the camera elsewhere, so I had to balance the center of gravity by adding weight at the front of the car.

I used a very ugly camera housing, so I left the circuit board exposed. This means I had to secure the USB cable with hot glue to prevent it from being pulled out when the camera turns.

I fixed the 5110 screen to the chassis for easy viewing of operational information. The current program can display temperature and the distance to obstacles in front.



I plugged the camera into the USB port of the router, connected the servo control wires to the driver board, and connected the TTL line between the router and the driver board. The car is now taking shape.

Secure the router antenna. The built-in antenna of the DB120 is too small, and I doubt the signal quality will be good. My next step is to buy a radar-type directional antenna to install, which would look cooler, haha. However, it seems that remote-controlled devices like this car are not suitable for directional antennas, so for now, I can only dream about it.

4. Completed!!

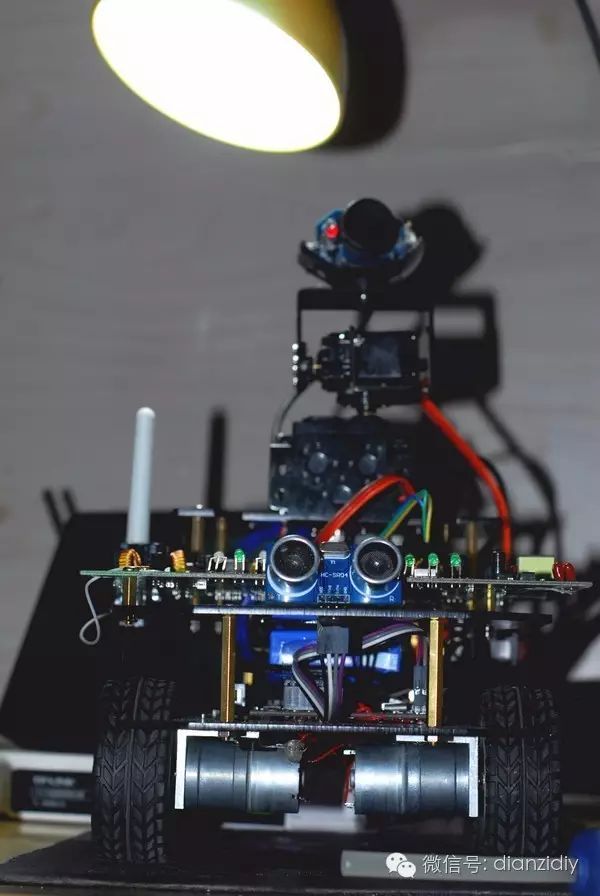

The car is assembled!! It looks quite nice, haha.

A Step-by-Step Guide to DIY WiFi Robot Design by an Engineer

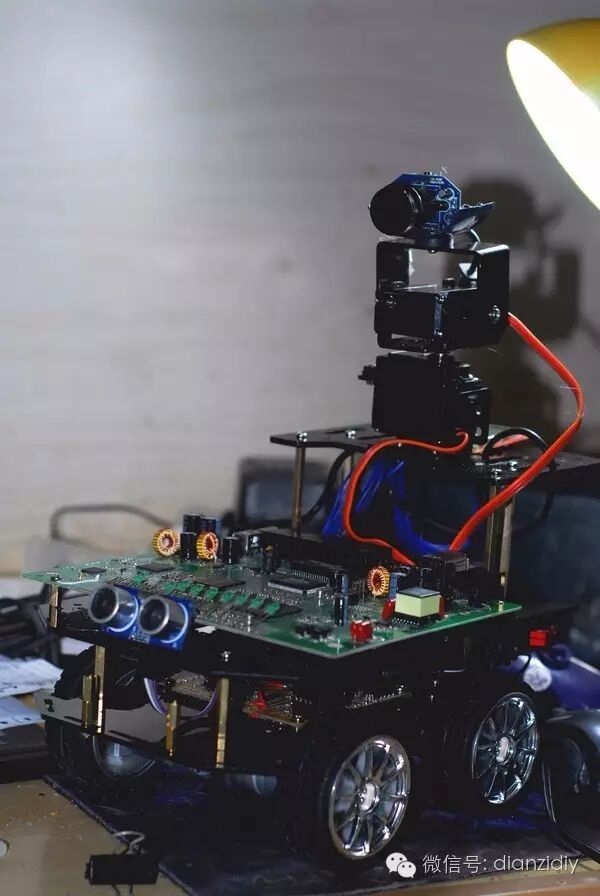

From this angle, it looks somewhat like a “robot”.

 A Step-by-Step Guide to DIY WiFi Robot Design by an Engineer



Next, I will flash the router with OpenWRT and install the WiFi Robot program, setting it to client mode to connect to the primary router for control. There are detailed tutorials on this part on the igee forum, so I won’t elaborate further.

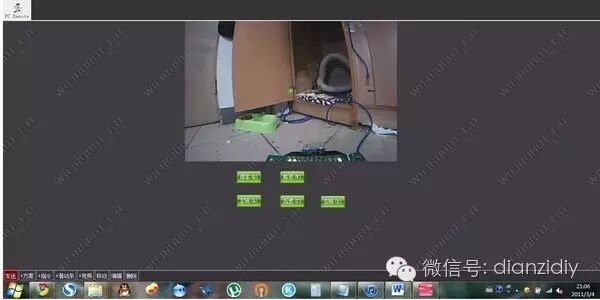

This is the control interface of the car~

  A Step-by-Step Guide to DIY WiFi Robot Design by an Engineer

Since there was no need for programming or circuit design work, this car was relatively quick to make, taking about a week in total, including waiting for deliveries.

Currently, the main purpose of this car is just to play with my cat, but the real joy of creating a cool-looking WiFi robot with my own hands is what truly makes it cool, isn’t it?
