The LCD (Liquid Crystal Display) technology is continuously evolving, now encompassing various shapes and sizes, each designed to meet specific application needs. This guide explores four unique LCD screen shapes—circular, triangular, bar, and square—and details their respective characteristics, manufacturing considerations, and primary applications across industries.

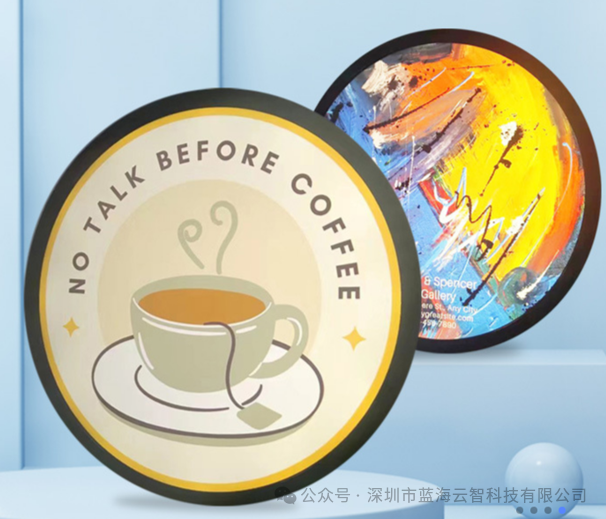

1. Circular LCD Screens
Overview:
Circular LCD displays break away from traditional rectangular layouts, offering unique aesthetic and functional advantages. These screens require specialized manufacturing processes to radially arrange pixels while maintaining image integrity.
Technical Features
– Aspect Ratio: Typically 1:1 (based on diameter)
– Resolution Challenges: Pixel mapping requires custom controllers
– Viewing Angle: 160-178° (comparable to standard LCDs)
– Touch Options: Available in capacitive or resistive touch versions
Main Applications
1. Wearable Technology
– Smartwatches (e.g., Samsung Galaxy Watch, Garmin series)
– Fitness trackers with circular displays
– Medical monitoring devices
2. Automotive Interfaces
– Digital dashboards
– Central console displays
– Rearview camera displays
3. Industrial Equipment
– Process control instruments
– Machine status indicators
– Testing and measurement devices
4. Consumer Electronics
– Smart home controllers
– Kitchen appliance interfaces
– High-end audio equipment displays
Advantages
– Ergonomically designed for wrist-worn devices
– Saves dashboard application space
– Provides unique visual appeal for product differentiation
Limitations
– Production costs are higher than standard shapes
– Limited content optimization for circular screens
– Reduced usable area compared to rectangular screens

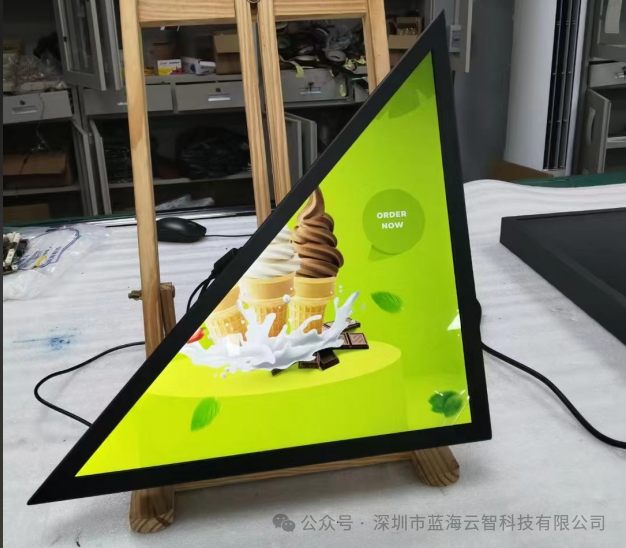

2. Triangular LCD Screens
Overview
Triangular LCDs represent a niche market that is steadily growing, providing solutions for space-constrained or geometrically specific applications. These displays require careful pixel arrangement to maintain image quality across angles.
Technical Features
– Aspect Ratio: Varies based on triangle type (equilateral, isosceles, etc.)
– Pixel Density: Typically 200-300 PPI
– Viewing Angle: 150-170°
– Customization: Offers various triangular configurations
Main Applications
1. In-vehicle Displays
– Tilted dashboard information panels
– Heads-up display components
– Mirror-integrated screens
2. Industrial Control Systems
– Equipment status indicators
– Warning system displays
– Compact monitoring interfaces
3. Digital Signage
– Architectural video walls
– Interactive self-service terminal elements
– Art installations
4. Specialized Equipment
– Aviation instruments
– Medical imaging devices
– Military display systems
Advantages
– Ideal for unconventional spaces
– Enhances visual impact in design applications
– Increases information segmentation potential
Limitations
– Significant development costs
– Limited supplier availability
– Content adaptation challenges

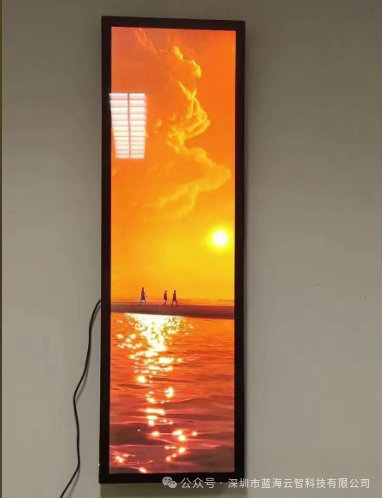

3. Bar LCD Screens
Overview
Bar LCD displays feature a slender rectangular shape, making them ideal for information display in limited spaces. These screens are commonly used in scenarios prioritizing horizontal or vertical information flow.
Technical Features
– Aspect Ratio: Ranges from 4:1 to 16:1
– Orientation: Available in horizontal or vertical configurations
– Brightness: Outdoor visibility typically ranges from 300-1000 nits
– Touch Options: Resistive touch commonly used for industrial applications
Main Applications
1. Transportation Systems
– Arrival displays for buses and trains
– Airport information boards
– Highway information signs
2. Retail Environments
– Electronic shelf labels
– Digital price tags
– Promotional signage
3. Industrial Applications
– Production line monitoring
– Equipment status displays
– Process control indicators
4. Consumer Electronics
– Appliance control panels
– Audio equipment displays
– Fitness equipment interfaces
Advantages
– Very suitable for scrolling or sequential information display
– Space-saving design
– High visibility in public spaces
Limitations
– Limited vertical resolution in horizontal format
– Multimedia functionality is restricted
– Potential readability issues at extreme angles

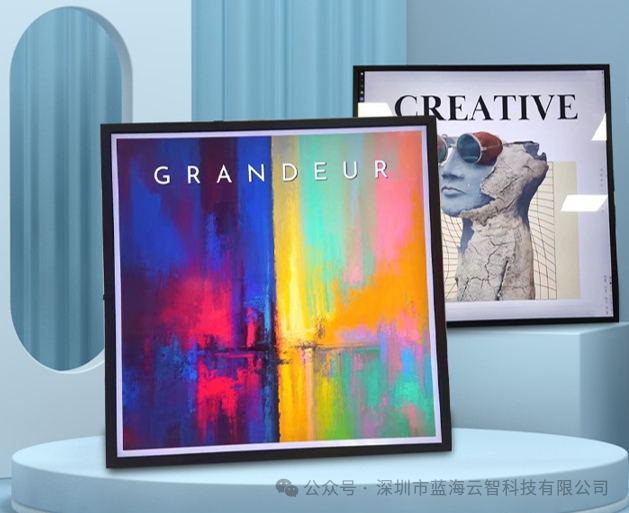

4. Square LCD Screens
Overview
Square LCD screens maintain a balanced aspect ratio, making them suitable for a variety of applications. Due to their compatibility with most content formats, this format remains an industry standard for many electronic devices.
Technical Features
– Aspect Ratio: Standard 1:1 (other ratios available)
– Resolution Options: Ranging from QVGA to 4K
– Viewing Angle: Up to 178°
– Technology Variants: IPS, TN, VA, and OLED options
Main Applications
1. Mobile Devices
– Smartphone auxiliary displays
– Tablet interfaces
– Portable gaming systems
2. Point of Sale Systems
– Cash register displays
– Self-service terminals
– Payment terminals
3. Medical Devices
– Patient monitoring screens
– Diagnostic imaging displays
– Surgical equipment interfaces
4. Industrial Control
– Machine operation panels
– Testing equipment displays
– Process monitoring screens
Advantages
– Universal content compatibility
– Low manufacturing costs
– Wide selection of suppliers
– Mature design standards
Limitations
– Space efficiency is not as good as specialized shapes
– Limited differentiation potential
– Not optimally suited for all application spaces
Selection Considerations
When choosing an LCD screen shape, consider the following factors:
1. Space Constraints: Special spaces may require circular or triangular displays
2. Content Type: Text-heavy applications tend to favor bar displays; multimedia content is better suited for square displays
3. User Interface: Touch requirements may dictate the choice of screen shape
4. Budget Considerations: Custom shapes will increase development and production costs
5. Environmental Conditions: Outdoor use may favor certain shapes
Future Trends
– Increasing adoption of circular screens in IoT devices
– Development of flexible triangular displays for foldable applications
– High-resolution bar screens suitable for premium signage
– Continuous evolution of square screens with increasing aspect ratio flexibility
This overview comprehensively outlines how each LCD screen shape meets different market needs, with specific choices depending on application requirements, budget considerations, and design goals.
