What does PLC mean?

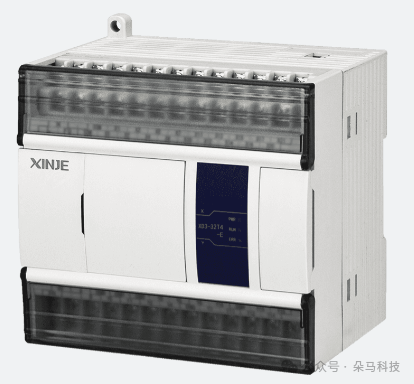

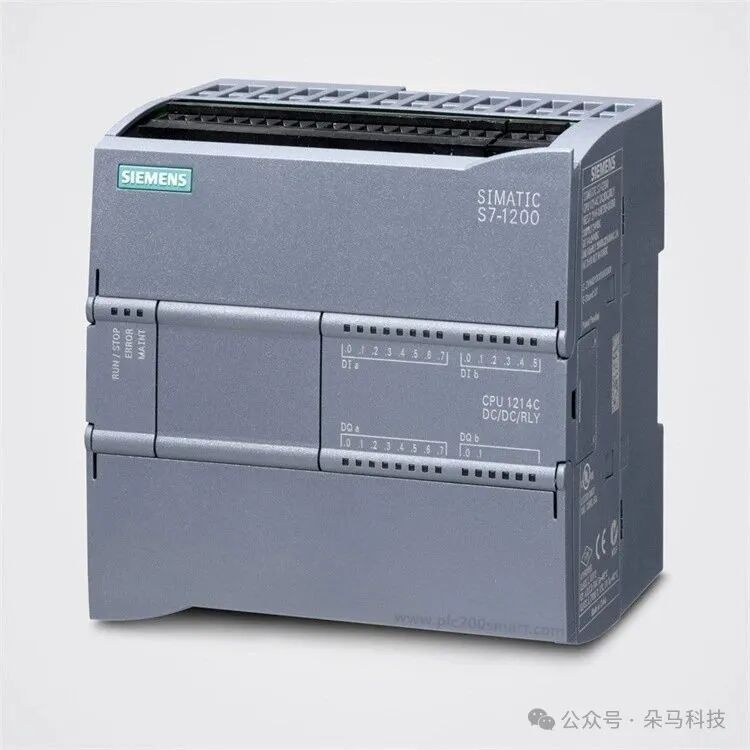

PLC (Programmable Logic Controller) 可编程逻辑控制器 is a computer control system specifically designed for industrial automation. It consists of one or more digital computer modules that interact with external devices such as sensors and actuators through input and output modules. The core function of a PLC is to control and coordinate industrial processes through a series of logical and arithmetic operations based on pre-written programs.
What are the application fields of PLC?
1.Industrial Automation: One of the most common and important application fields of PLC is industrial automation. Almost all modern industrial processes rely on PLCs for automated control. In this field, PLCs are used to control and monitor various machinery, production lines, and factory operations. PLCs can process signals from sensors and actuators, allowing process parameters to be automatically adjusted, improving production efficiency and reducing human error.
2.Manufacturing: PLCs are widely used in the manufacturing industry. They can be used to control and monitor various types of manufacturing equipment, such as machine tools, injection molding machines, and mixers. PLCs can precisely control parameters such as speed, position, temperature, and pressure, ensuring the stability and consistency of product quality. PLCs can also automate manufacturing processes, improving production efficiency and reducing costs.
3.Building Automation: PLCs play an important role in building automation. They can be used to control and monitor internal devices and systems in buildings, such as lighting, air conditioning, and security systems. By using PLCs, energy consumption in buildings can be effectively controlled, improving energy efficiency. Additionally, PLCs can integrate various functions within buildings, providing a more convenient and intelligent user experience.
4.Transportation:
PLCs also play an important role in the transportation sector. They can be used to control and monitor traffic lights, elevators, and subway platform doors. Through precise control by PLCs, the safety and efficiency of transportation systems can be ensured. Additionally, PLCs can be used in intelligent transportation systems, such as toll stations, vehicle recognition, and monitoring, to provide smarter and more convenient transportation solutions.
5.Energy Management:
In the energy sector, PLCs are widely used in energy distribution and monitoring systems. They can help control the operation of equipment such as power grids, power plants, and substations, as well as monitor energy production and consumption. By using PLCs, energy systems can achieve more efficient energy utilization and management, reducing energy waste.
6.Other Application Fields:
In addition to the above fields, PLCs are also widely used in water treatment, environmental monitoring, food processing, medical equipment, logistics, and warehousing. The programmability and flexibility of PLCs make them ideal control solutions for various complex systems.
What is the working principle of PLC?
●Working Principle of Input Module:
The input module of a PLC is responsible for receiving signals from external devices and converting them into digital signals for processing. These external devices can be sensors, switches, buttons, etc., used to detect and monitor various parameters and states in industrial processes.
The input module typically includes signal conditioning circuits and sampling circuits. The signal conditioning circuit is responsible for converting analog signals from external devices into digital signals so that the PLC can process them. The sampling circuit is responsible for sampling and filtering the input signals, ensuring the stability and reliability of the input signals.
Once the input signals are processed, they are sent to the PLC’s central processing unit (CPU) for further processing.
●Working Principle of CPU:
The CPU of a PLC is the core of the entire system, responsible for executing pre-written program instructions, performing logical judgments and calculations. The CPU consists of a processor, memory, and other auxiliary circuits.
When input signals are sent to the CPU, it performs logical operations based on the pre-written program. PLCs support various programming languages, such as Ladder Diagram, Structured Text, or Function Block Diagram, allowing users to choose the appropriate programming language based on actual needs.
During program execution, the CPU compares, judges, and calculates the input signals to derive corresponding logical results. These results can be switch states, count values, timer values, alarm conditions, etc.
●Working Principle of Output Module:
Once the CPU calculates the logical results, it generates corresponding output signals and sends them to the output module. The output module is responsible for converting digital signals into control signals to drive various actuators and external devices. These external devices can be motors, valves, lights, or displays.
The output module typically includes driver circuits and isolation circuits. The driver circuit is responsible for amplifying and driving the output signals, ensuring that actuators can be driven smoothly. The isolation circuit is used to isolate the output signals from the PLC system, protecting the PLC system from interference and damage.
Through the output module, the PLC can send control signals to external devices, achieving automated control of industrial processes.
●Importance of the Program:
In the working principle of a PLC, the program plays a crucial role. By writing program instructions, various aspects of industrial processes can be defined and controlled. The program includes logical judgments of input signals, calculation formulas, time delays, alarm conditions, etc.
Writing PLC programs requires logical thinking and design based on specific needs and control objectives. The program should accurately reflect the control logic of the actual process and be readable and maintainable.
To write PLC programs, a certain level of electrical and automation control knowledge is required. Additionally, familiarity with PLC programming languages and function blocks is necessary. Common PLC programming languages include Ladder Diagram, Structured Text, and Function Block Diagram.
When writing programs, it is important to consider the processing of input signals, logical judgments, and output control. For example, when a certain input signal meets specific conditions, it triggers the corresponding output control signal to drive the actuator to operate.
Additionally, the program can include counters, timers, and alarm functions. Through counters, counting and statistics of specific events can be achieved; through timers, time control and delays of operations can be implemented; through alarm functions, abnormal situations can be detected and responded to in a timely manner, ensuring safety and reliability.
