For embedded systems, if there is no RTOS running, the main function main() in program development needs to use some mechanism to keep running happily forever, it has no endpoint. If you want to exit from the main function, what happens specifically is determined by the C language compiler used.

1. Introduction to the Problem

Today, I saw an interesting question in the microcontroller LED module definition function. The questioner was conducting a basic C51 programming experiment and wrote a simple C51 program as follows:

#include <REGX51.H>

void test(num) {
    switch(num) {
        case 1: P2_0=0; P2_1=0;
            break;
    }
}

void main(void) {
    test(1);
}

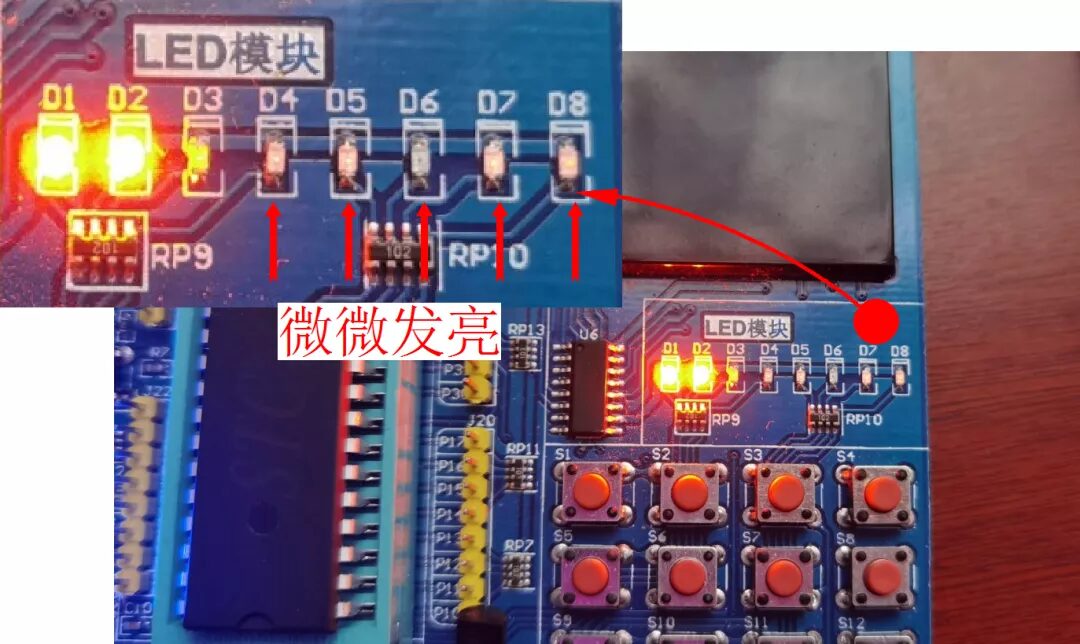

After the program executes, it can be seen that two LEDs on the experimental board are lit, while the other six are surprisingly dimly lit.

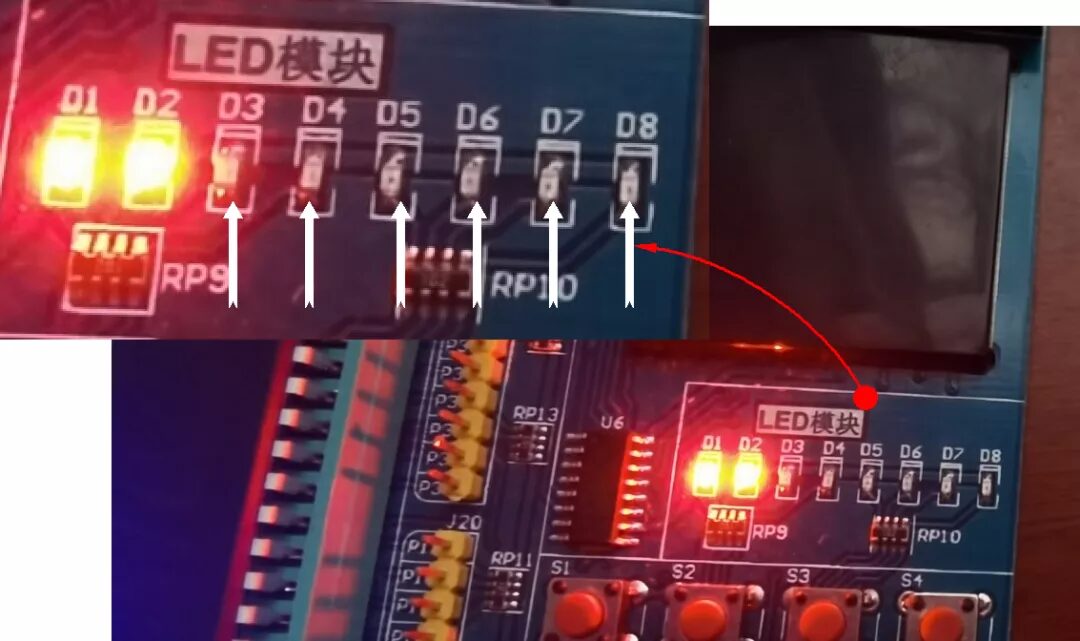

If an infinite loop is added in the main program: while(1);, then the “dimly lit” phenomenon on the circuit board will no longer appear.

#include <REGX51.H>

void test(num) {
    switch(num) {
        case 1: P2_0=0; P2_1=0;
            break;
    }
}

void main(void) {
    test(1);
    while(1);
}

The difference between the two situations above is that in the second program, the main loop main() function never exits, while in the first program, the main() function exits. It seems that the dimly lit LEDs are related to what the microcontroller does after the main function exits.

So there remains a question: For ordinary embedded systems, after the main() function exits in C language programming, where does the program go?

2. Where Does the Program Go?

From the code written by the questioner, it can be seen that he is a C51 enthusiast using the C51 compiler, happily experimenting on a C51 development board. He initially did not install the convention of embedded program development, using an infinite loop in the main program void main(void) to keep the program controlled within the main function, which led to the confusing results in the previous experiment.

“

Note: He is a bold and meticulous person, and his observations are quite careful.

”

2.1 The Beginning of Creation

For C language programming, all user programs start from the main() function. The task of opening the world for user programs is done by a small piece of Pangu code STARTUP.A51.

The execution flow of the 8051 microcontroller program (managed by STARTUP.A51 for the execution of the main function)

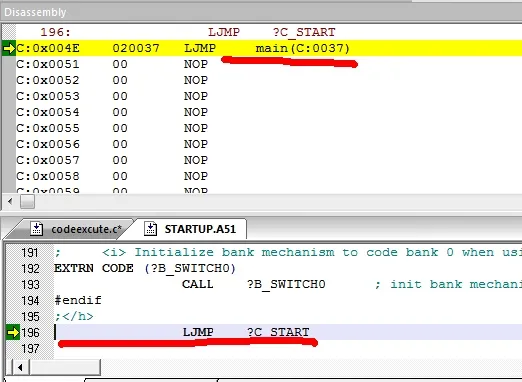

Below is an excerpt from the STARTUP.A51 code, where Pangu does some preparatory work (initializing global variables, stack pointer) after the microcontroller RESET, and then directly jumps to:<span>?C_START</span>

 NAME    ?C_STARTUP

?C_C51STARTUP   SEGMENT   CODE
?STACK          SEGMENT   IDATA

                RSEG    ?STACK
                DS      1

                EXTRN CODE (?C_START)
                PUBLIC  ?C_STARTUP

                CSEG    AT      0
?C_STARTUP:     LJMP    STARTUP1

                RSEG    ?C_C51STARTUP

STARTUP1:

IF IDATALEN <> 0
                MOV     R0,#IDATALEN - 1
                CLR     A
IDATALOOP:      MOV     @R0,A
                DJNZ    R0,IDATALOOP
ENDIF

IF XDATALEN <> 0
                MOV     DPTR,#XDATASTART
                MOV     R7,#LOW (XDATALEN)
  IF (LOW (XDATALEN)) <> 0
                MOV     R6,#(HIGH (XDATALEN)) +1
  ELSE
                MOV     R6,#HIGH (XDATALEN)
  ENDIF
                CLR     A
XDATALOOP:      MOVX    @DPTR,A
                INC     DPTR
                DJNZ    R7,XDATALOOP
                DJNZ    R6,XDATALOOP
ENDIF

IF PPAGEENABLE <> 0
                MOV     PPAGE_SFR,#PPAGE
ENDIF

IF PDATALEN <> 0
                MOV     R0,#LOW (PDATASTART)
                MOV     R7,#LOW (PDATALEN)
                CLR     A
PDATALOOP:      MOVX    @R0,A
                INC     R0
                DJNZ    R7,PDATALOOP
ENDIF

IF IBPSTACK <> 0
EXTRN DATA (?C_IBP)

                MOV     ?C_IBP,#LOW IBPSTACKTOP
ENDIF

IF XBPSTACK <> 0
EXTRN DATA (?C_XBP)

                MOV     ?C_XBP,#HIGH XBPSTACKTOP
                MOV     ?C_XBP+1,#LOW XBPSTACKTOP
ENDIF

IF PBPSTACK <> 0
EXTRN DATA (?C_PBP)
                MOV     ?C_PBP,#LOW PBPSTACKTOP
ENDIF

                MOV     SP,#?STACK-1
                LJMP    ?C_START

                END

The above code has also been gradually debugged and verified in the blog post about the execution flow of the 8051 microcontroller program (STARTUP.A51):

2.2 The End of the World

Since entering the main() function is a long jump, the main function will not normally return to the startup program STARTUP.A51, so where does the program go?

In the blog post about the while(1) problem in microcontroller C language, the author examined the last moments of the main function for the KEIL compiler and the MAPLAB compiler through disassembly.

Keil Compiler

At the end of the main function, the program adds the following few lines of code:

MOV R0, #0x7F
CLR A
MOV @R0, A
DJNZ R0, (3)
MOV SP, #0x0C
LJMP main

These few statements, the first four, clear the first 128 addresses of the microcontroller’s memory, the fifth defines the stack, and the sixth jumps the program back to the first line of the main function for execution.

MAPLAB Compiler

Tracking the PIC microcontroller language program, it was found that the last statement of the main() function is reset, which means that the microcontroller directly resets, a reset statement added by the MAPLAB compiler based on the characteristics of the PIC microcontroller.

Conclusion

For embedded systems, if there is no RTOS running, the main function (main()) in program development needs to use some mechanism to keep running happily forever, it has no endpoint. If you want to exit from the main function, what happens specifically is determined by the C language compiler used.
