What Does an Embedded Development Engineer Do?

What Does an Embedded Development Engineer Do?

The “Brain Surgeons” of Trillion-Device Industries

🚀 The Ubiquitous Invisible Battlefield: Your smartphone executes 3 billion instructions per second, smart cars have 100 million lines of code, and aircraft engine sensors operate stably at -50°C—all thanks to embedded systems!💡 Industry Explosive Growth:

• Over 4.3 billion IoT devices globally (Statista 2024), **the talent gap in embedded systems grows by an average of 37% annually** (BOSS Zhipin data)
• Major companies like Huawei, DJI, and Tesla are offering competitive salaries,with fresh graduates earning up to 450,000 CNY annually (in chip-related fields).

1. Role Decoding: Embedded Development ≠ “Code Monkey”, but a Soft-Hard Integrated “Alchemist”

1. Three Core Battlefields

• Writing smart home control logic in C++
• Deploying edge AI inference using Python (TensorFlow Lite Micro)
• Designing low-power solutions (waking devices from μA sleep mode).

• Writing Linux kernel drivers (character devices → block devices → network devices)
• Porting RTOS (FreeRTOS/ThreadX scheduler trimming)
• Debugging BootLoader (modifying UBoot startup parameters)

• Mastering MCU/ARM/DSP chips (STM32 series is fundamental)
• Understanding schematics/PCB layouts (Altium Designer is essential)
• Hand-soldering circuit boards (using oscilloscopes to measure timing, multimeters to catch leakage current)

• Hardware Layer:
• Driver Layer:
• Application Layer:

The “Dimensional Wall” Between Embedded and Traditional Software Development

Comparison Dimension	Embedded Development	Application Software Development
Development Environment	Often requires soldering/oscilloscopes/simulators	Just a keyboard + IDE
Code Constraints	ROM ≤ 512KB, RAM ≤ 128KB is common	Frequently requests several GB of memory
Debugging Method	Using JTAG for step-by-step tracking, observing register value changes	Setting breakpoints + log output
Consequences of Fatal Errors	Device smoking/aircraft crashing/heart pacemaker stopping	App crashes, just restart

Salary Tier Overview

• Bronze (0-2 years): 8K-15K,PCB design + sensor debugging
• Silver (3-5 years): 20K-35K,Independently completing vehicle ECU development
• King (5+ years): 40K-80K,Leading chip architecture design/military-grade systems

2. Skill Tree Overview: From Soldering Iron to AI’s Nine-Tier Cultivation

1. Basic Hardware Skills—The “Mother Tongue” of the Electronic World

• Using a 555 timer to create a breathing light
• Using STM32 to drive an OLED screen to display ECG waveforms.

• Circuit simulation: Multisim/Proteus (saving you from soldering the wrong resistor)
• PCB design: Altium Designer (four-layer board impedance matching is a watershed)

• Essential Tools:
• Classic Experiments:

Code Domain—The “Dark Forest Rule” of C Language

• Implementing multitasking scheduling in an environment without an operating system
• Optimizing FFT algorithm speed using assembly.

• Memory management: Preventing wild pointers (using Valgrind to catch memory leaks)
• Bit manipulation: Using bit fields to compress data structures (saving 1 Byte is a victory)
• Interrupt service functions: Quick in and out, no delays (otherwise the system crashes)

• Survival Skills:
• Hell-Level Challenges:

System-Level Thinking—The “Conductor” of Soft-Hard Collaboration

• Device Tree (DTS) configuration for GPIO pins
• Cross-compilation (generating ARM executable files on x86 computers).

• Task priority inversion (solving with mutex priority inheritance)
• Dynamic memory pool allocation (avoiding fragmentation that leads to system crashes)

• Core Concepts of RTOS:
• The Essence of Linux Embedded Systems:

Cutting-Edge Extensions—The “Science Fiction” of Embedded Systems Becomes Reality

• Custom AI acceleration instructions based on the Hummingbird E203 core
• Generating hardware description code using Chisel language.

• Deploying YOLO object detection on Raspberry Pi (OpenCV + Docker dual buffer)
• Implementing voice wake word recognition using TensorFlow Lite

• AIoT Integration:
• The RISC-V Revolution:

3. Industry Overview: Which Fields Are Desperately “Hiring”?

1. Smart Cars—An Era Where Code is More Important Than Gasoline

• ECU development under the AUTOSAR architecture (Vector toolchain is the threshold)
• CAN bus fault diagnosis (using CANoe to capture and analyze data frames).

• Autonomous driving domain controllers (NVIDIA Orin chip development)
• In-vehicle Ethernet (TSN time-sensitive networking)

• Battlefield:
• Key Technologies:

Industry 4.0—The “Digital Neurons” in the Steel Jungle

• Proficient in EtherCAT real-time Ethernet protocol
• Familiar with OPC UA unified architecture.

• PLC control of robotic arm trajectory planning (CoDeSys programming)
• Industrial gateway protocol conversion (Modbus → MQTT for cloud)

• Typical Cases:
• High Salary Secrets:

Consumer Electronics—From Smartwatches to the Metaverse Gateway

• Developing SLAM positioning algorithms for AR glasses
• Building a wearable device ecosystem using Zephyr OS.

• Low-power design (ensuring TWS earbuds last 24 hours)
• Sensor fusion (using gyroscopes + accelerometers for gesture recognition)

• Hot Product Genes:
• Advanced Pathways:

4. Pitfall Guide: Blood and Tears Experience from a 10-Year Veteran

1. Newbie Self-Sabotage Awards

• ❌ Blindly pursuing “high-performance chips” but can’t even light up an LED
• ❌ Calling printf in interrupt service functions (system freezes immediately)
• ❌ Forgetting to add a watchdog (device crashes at customer site, flying overnight to fix it).

Learning Path Anti-Anxiety Strategy

• Leading automotive-grade projects (ISO 26262 functional safety certification)
• Researching heterogeneous computing (CPU + FPGA + AI accelerator collaboration).

• Mastering Linux driver development (“Linux Device Drivers” is a must-read bible)
• Participating in open-source projects (like contributing code to Apache NuttX RTOS)

• Mastering STM32 + FreeRTOS (Zhongdian Atom/Wildfire development boards)
• Writing a temperature and humidity monitor with a menu system in C

• First Year:
• Third Year:
• Fifth Year:

Interview Death Question Solutions

• Method 1: Insert a magic number (0xDEADBEEF) in memory, periodically check if it has been tampered with
• Method 2: Use MPU (Memory Protection Unit) to set stack boundaries
• Method 3: Static code analysis (GCC’s -fstack-usage option).

• Question: “How to detect stack overflow?”
• Perfect Answer:

5. A Brief History of the Future: Will Embedded Engineers Be Replaced by AI?

• Crises: ChatGPT can write basic driver code, but…
• Opportunities:
• Locating hardware faults on-site (smelling burnt capacitors)
• Code optimization in extreme environments (-40°C needs power saving, 120°C needs frequency reduction)
• Cross-disciplinary system architecture design (understanding mechanical transmission is essential for writing good motor control algorithms).
• Capabilities That AI Cannot Replace:
• Ultimate Form:
• Running neural networks on microcontrollers using TinyML
• Automatically generating RTL code using AI (ChatGPT writing Verilog is just the beginning).
• The Symbiosis of Embedded Systems and AI:

Conclusion: Expanding Frontiers at the Boundary of Physical and Digital

Embedded engineers arethe only ones who can touch both bits and atoms, needing to write code as elegantly as software engineers while soldering circuits as calmly as hardware engineers.

🎯 Action Checklist:

1. Disassemble your Bluetooth earbuds and try to capture the communication protocol with a logic analyzer
2. Create a “Smart Home Hub” project on GitHub (using ESP32 + Home Assistant)
3. Join the RT-Thread community and participate in the rise of domestic operating systems

🌟 Bonus:

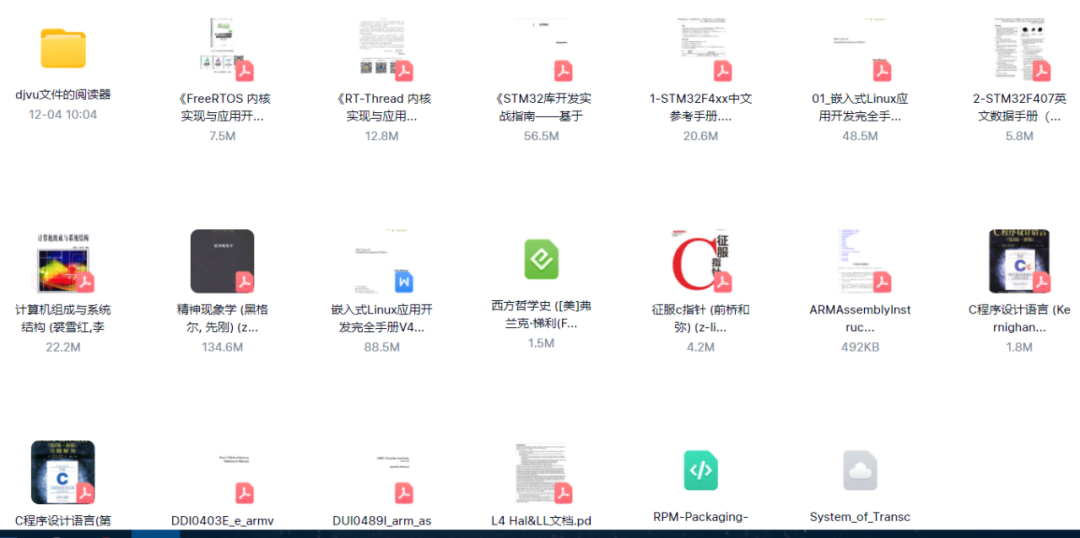

(Technical book/tool list PDF at the end of the article, follow the public account and reply “Embedded Books” to obtain)
