Introduction
In serial communication applications, we often use receive and transmit interrupts, which most of you are familiar with. There is a very useful interrupt that may be overlooked, which is the bus IDLE interrupt. When a frame of data transmission ends, the bus will maintain a high level state, at which point the MCU’s IDLE interrupt can be triggered. In this article, we will introduce how to use this interrupt to receive variable length serial data. By using this interrupt, we can eliminate a lot of judgment actions used to detect whether data transmission is complete.
Experimental Environment
-
STM32F411RE-NUCLEO
-
STM32CubeMX
Bus State Analysis
The following figure shows the waveform captured when sending 0xAA 0x55. From the figure, we can see that before and after sending this frame, the data line is in an IDLE state. In this frame, there is no IDLE state between bytes, which means there will be no accidental triggering of the IDLE interrupt.
Receiving Variable Length Data
The project created this time is based on the HAL library. In the native HAL library, IDLE interrupt handling is not integrated. Therefore, in the method we introduce in this article, some library files need to be modified to achieve this.
Using STM32CubeMX to Generate Experimental Project
The configuration of the project is shown in the following figure:

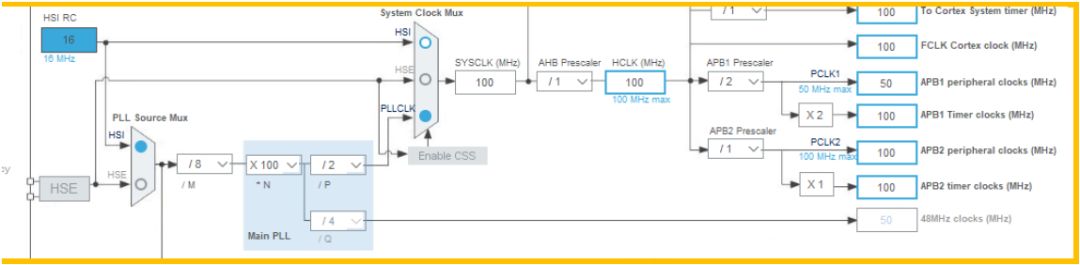

1. System always configured to 100MHz

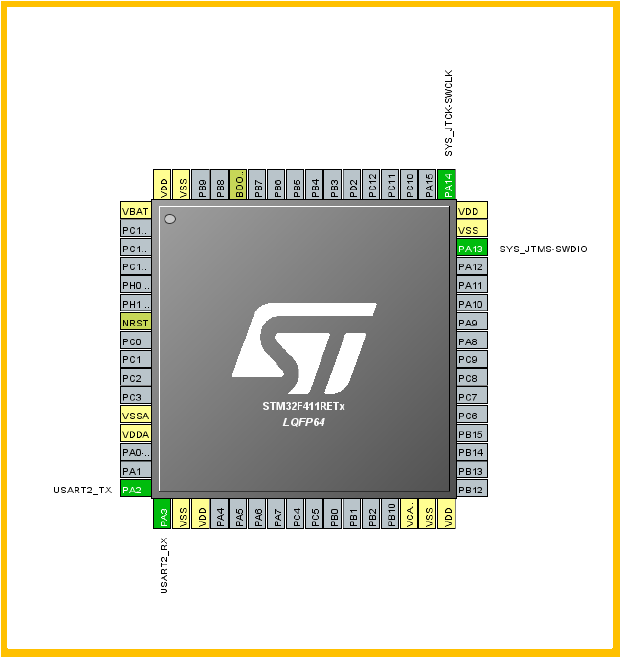

2. Configure USART2 as Asynchronous, pin configuration as PA2, PA3.

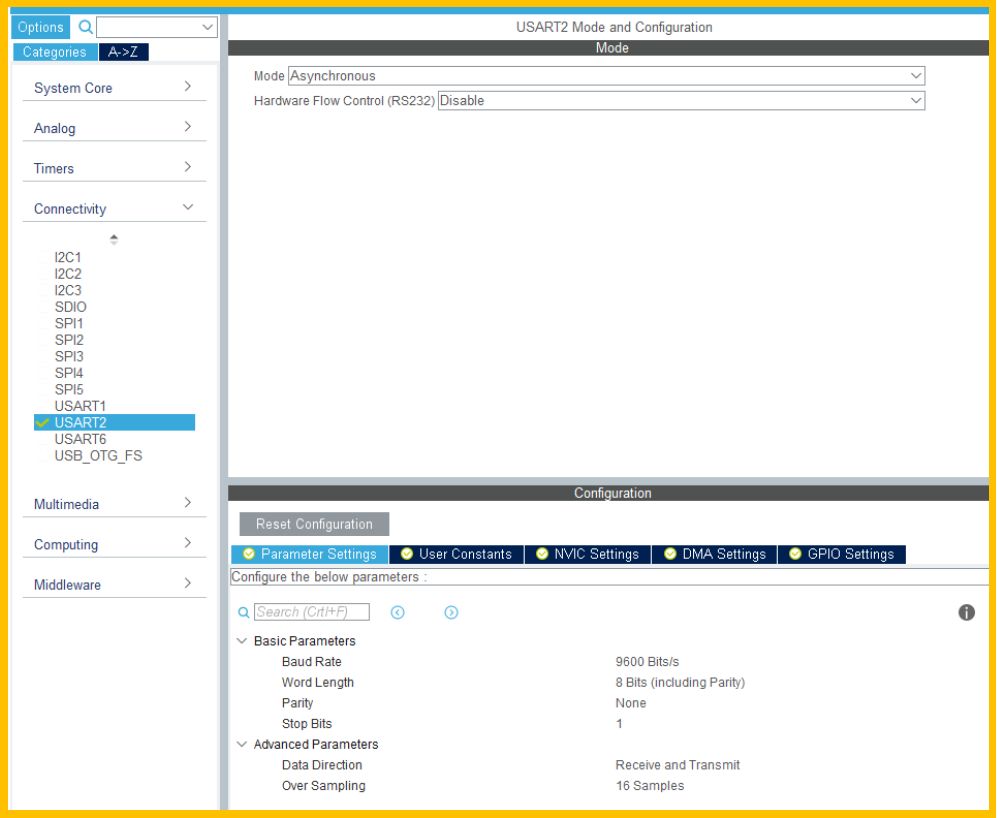

3. USART2 parameters: 9600Bits/s, 8bits, None, 1Stop
To facilitate printing the received information, some modifications need to be made to the generated project to map the print function.

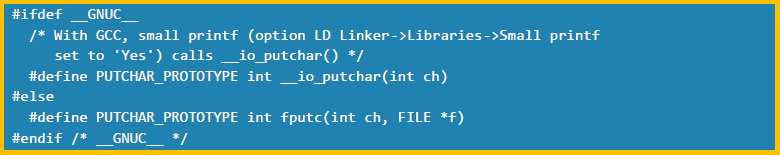

main.c – Declaration

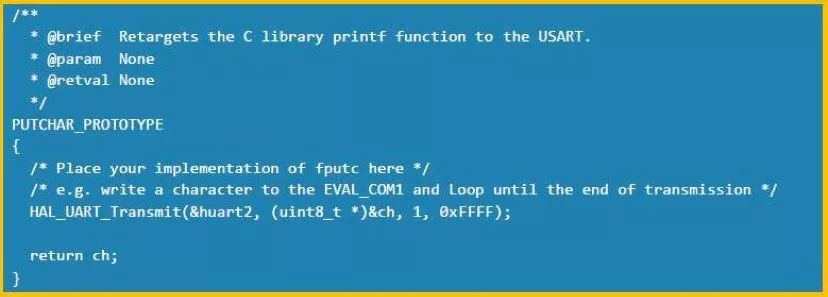

main.c – Code
Modifying Project Code

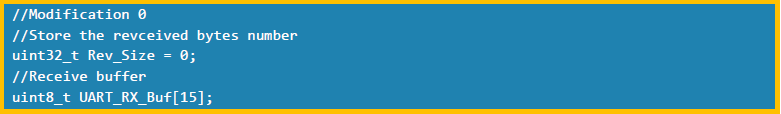

Adding Receive Buffer
main.c
stm32f4xx_hal_uart.c
Enabling IDLE Interrupt in Receive Function
stm32f4xx_hal_uart.c HAL_UART_Receive_DMA() function

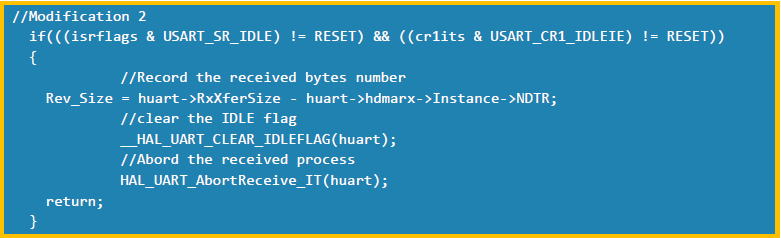

Handling IDLE Interrupt
stm32f4xx_hal_uart.c HAL_UART_IRQHandler() function

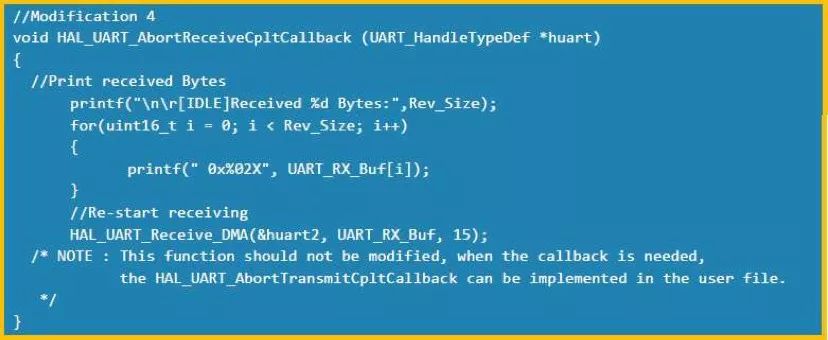

Receiving Completion Handling (IDLE Triggered, One Frame of Data Transmission Completed)
stm32f4xx_hal_uart.c HAL_UART_AbortReceive_IT() function
main.c
Enabling Reception
main.c
Experimental Results

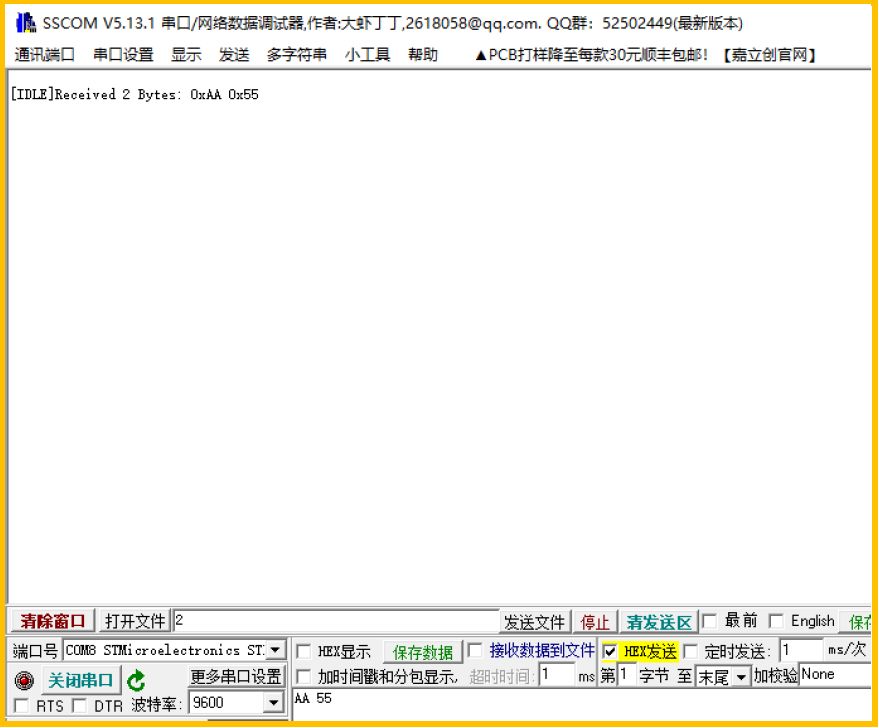

Using a serial debugging port, data is sent through the virtual serial port of STLINK, and the MCU will return how many bytes of data were received and print the received data. The following figure shows the experimental results of sending 0xAA 0x55.
Conclusion
The IDLE interrupt, which indicates the bus idle state, can significantly reduce the workload of code program design when used appropriately. This is just a simple demonstration to inspire others; in actual applications, I hope everyone can flexibly use it to meet their needs.
