Introduction

The MQTT topic is essentially a UTF-8 encoded string that serves as the basis for message routing in the MQTT protocol. MQTT topics are similar to URL paths, using slashes (/) for hierarchical separation:

chat/room/1test/10/temperaturetest/+/temperaturetest/#

To avoid ambiguity and ensure clarity, it is generally not recommended for topics to start or end with a /, such as /chat or chat/.

MQTT topics do not need to be created in advance. MQTT clients automatically create topics when subscribing or publishing, so developers do not need to worry about creating topics or manually deleting them.

1. Topic Wildcards

MQTT topic wildcards include single-level wildcard + and multi-level wildcard #, primarily used for clients to subscribe to multiple topics at once.

1.1 Single-Level Wildcards

The plus sign (“+”) is a wildcard used for matching a single topic level. When using a single-level wildcard, it must occupy the entire level, for example:

+ validtest/+ validtest/+/temperature validtest+ invalid (does not occupy the entire level)

If a client subscribes to the topic test/+/temperature, it will receive messages from the following topics:

test/1/temperaturetest/2/temperature...test/n/temperature

However, it will not match the following topic:

test/temperaturetest/bedroom/1/temperature

1.2 Multi-Level Wildcards

The hash symbol (“#”) is a wildcard used to match any level in the topic hierarchy. The multi-level wildcard indicates its parent and any number of child levels. When using a multi-level wildcard, it must occupy the entire level and must be the last character of the topic, for example:

# valid, matches all topics test/# valid test/bedroom# invalid (does not occupy the entire level) test/#/temperature invalid (not the last character of the topic)

If a client subscribes to the topic test/#, it will receive messages from the following topic:

testtest/temperaturetest/1/temperature

2. System Topics

Topics that start with $SYS/ are system topics, primarily used to obtain the operational status of the MQTT server, message statistics, client online/offline events, and other data. Currently, the MQTT protocol does not explicitly define a standard for $SYS/ topics, but most MQTT servers adhere to this standard recommendation.

For example, the EMQX server supports obtaining cluster status through the following topics:

Topic Description

Topic	Description
$SYS/brokers	EMQX Cluster Node List
$SYS/brokers/[email protected]/version	EMQX Version
$SYS/brokers/[email protected]/uptime	EMQX Uptime
$SYS/brokers/[email protected]/datetime	EMQX System Time

EMQX also supports rich system topics for client online/offline events, traffic in/out, message sending/receiving, system monitoring, etc. Users can subscribe to the $SYS/# topic to receive all system topic messages.

System topic documentation: https://docs.emqx.com/zh/emqx/v5.0/observability/mqtt-system-topics.html#%E5%AE%A2%E6%88%B7%E7%AB%AF%E4%B8%8A%E4%B8%8B%E7%BA%BF%E4%BA%8B%E4%BB%B6

For example, to subscribe to client online/offline event topics:

$SYS/brokers/[email protected]/clients/+/connected                # Subscribe to client online topic $SYS/brokers/[email protected]/clients/+/disconnected                # Subscribe to client offline topic

3. Testing System Topics with MQTTX

3.1 Enable Access Permissions

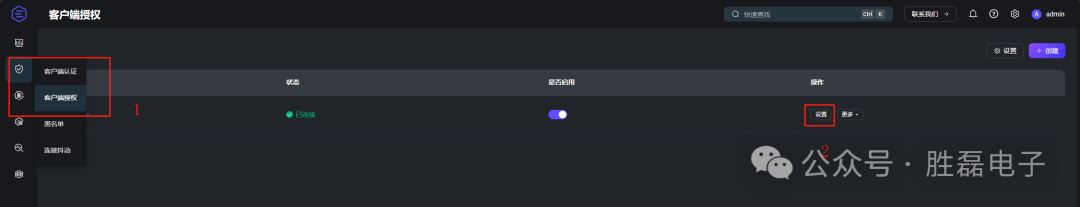

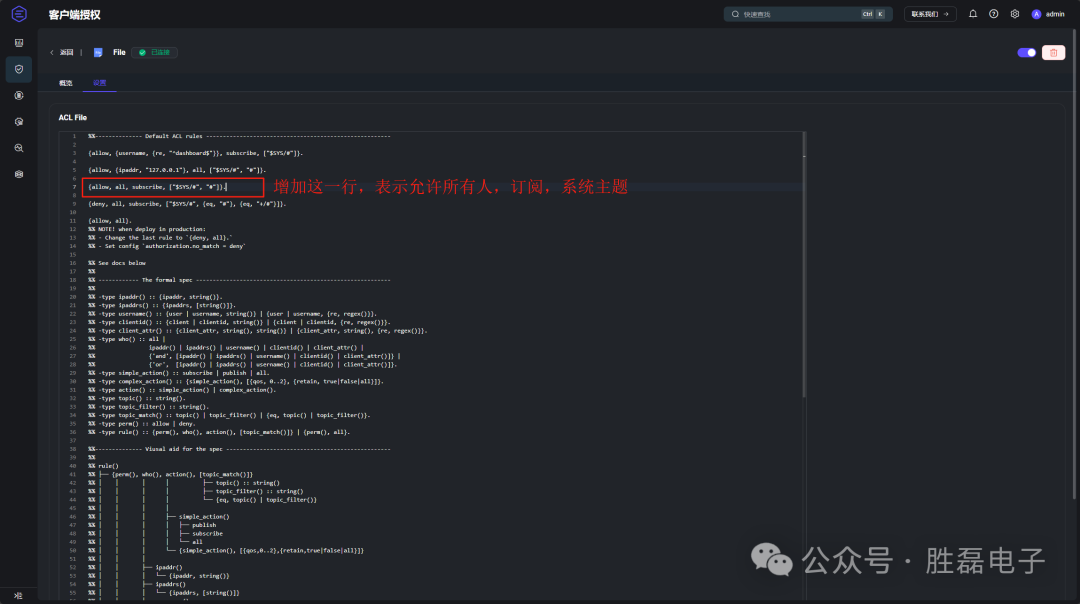

Note: Listening to system topics requires enabling the corresponding access permissions on the broker side.

Step 1:

Step 2:

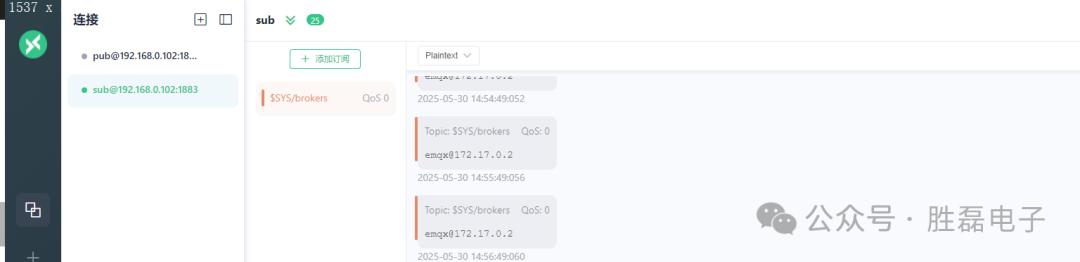

3.2 EMQX Cluster Node List

172.17.0.2: The Docker container IP address of the EMQX Broker.

1. View Docker Containers

docker ps -a

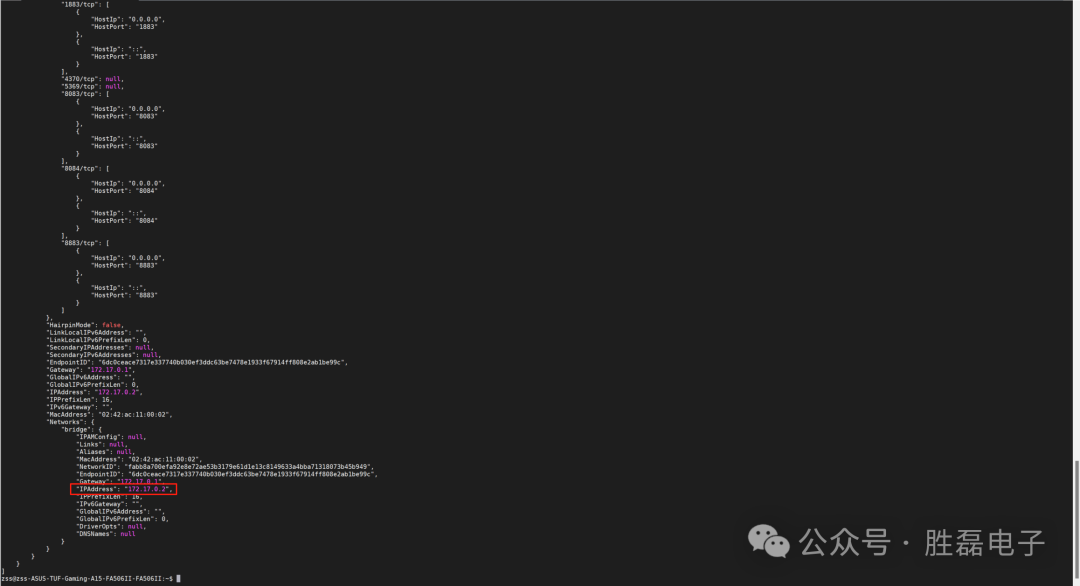

2. View Docker Information

docker inspect emqx-enterprise

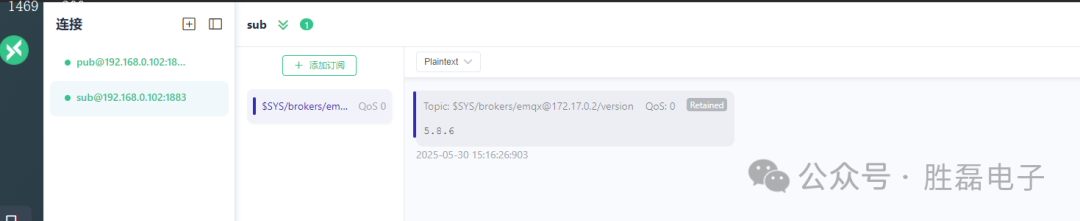

3. Subscribe to EMQX Version Topic

$SYS/brokers/[email protected]/version

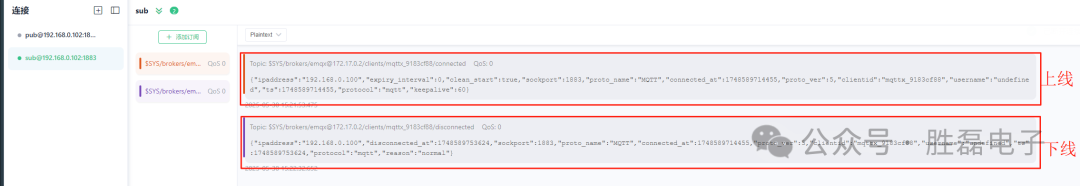

4. Subscribe to Online/Offline Topics

$SYS/brokers/[email protected]/clients/+/connected                # Subscribe to client online topic $SYS/brokers/[email protected]/clients/+/disconnected            # Subscribe to client offline topic

Here, “+” indicates listening to any client.

Conclusion

In summary, this article introduced the system topics of MQTT and provided demonstrations.
