Understanding Automotive Engine ECU

If the engine is likened to the “heart” of the car, then the “brain” of the car should be the ECU. What is the ECU? How does the ECU work? This article provides a detailed analysis.

What is the ECU? ECU has two full names, namely Engine Control Unit and Electronic Control Unit. It is not difficult to see that the former refers to “engine control unit” while the latter refers to “electronic control unit”. These are two concepts that are easily confused, and today we will mainly analyze the “Engine Control Unit”.

The Emergence of ECU

Before 1967, the fuel supply system of gasoline engines was based on carburetors, which is completely different from today’s fuel injection engine principles. The carburetor uses the pressure difference before and after the throttle to draw fuel, which not only cannot accurately control the fuel supply amount but also restricts the improvement of vehicle power and environmental performance. Companies like Bosch developed electronic fuel injection systems, with the earliest BOSCH fuel injection system being D-Jetronic, followed by K-Jetronic and L-Jetronic. After the intervention of electronic technology, BOSCH developed several electronic management fuel injection systems, among which KE-Jetronic is the fuel injection technology widely used today. Although different companies have different product names, they are structurally similar.

The working characteristic of the fuel injection system is “quantitative and timed” fuel injection. How much fuel the engine needs and when it should be injected are directly related to engine speed, airflow, and various other parameters such as water temperature and oil pressure. How to process so many parameters and issue injection commands to the injection system? This requires the intervention of the engine control unit, and thus the ECU was born.

Working Principle of ECU

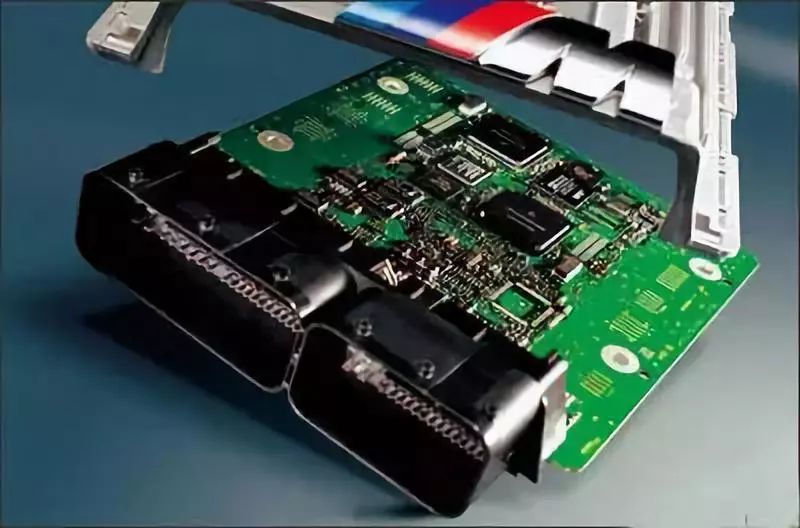

Like a regular microcontroller, the ECU is composed of a microprocessor, memory, input/output interfaces, analog-to-digital converters, and integrated circuits for shaping and driving. The role of the ECU is to calculate the vehicle’s operating conditions through various sensors, thereby controlling multiple parameters of the engine such as ignition, air-fuel ratio, idle speed, and exhaust gas recirculation. It operates at temperatures ranging from -40 to 80 degrees and can withstand significant vibrations, so the probability of ECU damage is very low. Additionally, the ECU has self-diagnosis and protection functions; when the system fails, it can automatically record fault codes in memory and adopt protective measures by reading alternative programs from the inherent program to maintain engine operation, allowing the vehicle to reach the repair shop.

How does the ECU work? Simply put, it is a command process akin to a general’s command: “think,” “command,” and ultimately “confirm.”

The “scouting” is done by sensors, which are responsible for “scouting” the entire engine. There are dozens of sensors on an engine, both large and small. The throttle position sensor, crankshaft speed sensor, oxygen sensor, crankshaft position sensor, camshaft position sensor, intake temperature sensor, water temperature sensor, and knock sensor are the basic sensors in a car engine. Sensors are ubiquitous; they collect relevant information and transmit it to the ECU in the form of electrical signals. After being converted to digital signals by the analog-to-digital converter (A/D), the ECU processes the data to determine the current operating state of the engine. This is the “thinking” process of the ECU.

What is the standard for the “thinking” process? Computers do not have thoughts; what they need is a program stored in ROM. This is akin to software; when data is transmitted to the ECU, the existing data in the ROM program is compared with the collected signals to derive adjustment methods. This set of programs is the soul of the ECU, and its writing is based on a large amount of experimental data, often requiring bench tests and road tests to establish. Generally, the practice of tuners modifying the ECU program involves rewriting or revising the ROM program to change the ECU’s calculation criteria.

Let’s take a deeper look at this process:

The amount of fuel supplied is calculated by the duration of fuel injection time from the injector. The fuel computer (ECU) calculates the required fuel injection time based on airflow, engine speed, and various compensatory signals provided by sensors, using the originally set fuel supply program, which can be represented graphically.

The fuel injection time calculated by the ECU is the sum of “basic injection time,” “compensatory injection time,” and “ineffective injection time,” measured in microseconds (ms), where 1ms = 0.001 seconds. The amount of gasoline injected by the injector per unit time is determined by the size of the injector’s diameter and the injection pressure.

1. Basic Injection Time

Basic injection time is determined by the intake volume (referring to weight here) and engine speed. When you step on the accelerator pedal, you control the opening angle of the throttle; the larger the opening, the greater the intake volume. The fuel computer compares the intake volume measured by the airflow meter and the current engine speed with the pre-set fuel supply program to calculate the required fuel supply amount and the corresponding injection time.

2. Compensatory Injection Time

Compensatory injection, commonly referred to as “acceleration,” is determined by various sensors that detect the engine’s current operating state and load. After sending the signals to the computer (ECU), it calculates the necessary additional fuel supply to maintain stable and smooth engine operation. The setting of the compensatory injection program is a complex task and varies from vehicle to vehicle.

Generally, the compensatory injection program includes the following items: cold start compensation, warm-up compensation, idle restart compensation, high-temperature compensation, acceleration compensation, high-speed/high-load compensation, theoretical air-fuel ratio feedback compensation, and cut-off control.

3. Ineffective Injection Time

The delay time from when the injector coil is energized to full fuel injection is called “opening delay,” while the delay time from when the coil is de-energized to complete cessation of injection is called “closing delay.”

Since the opening delay time is greater than the closing delay time, the actual fuel supply will be less than required. The difference between the opening delay time and the closing delay time is termed “ineffective injection time.” To obtain the correct fuel supply, the ineffective injection time must be included; in other words, after calculating the fuel supply amount, the volume of fuel injected must be adjusted by adding the ineffective injection time to match the desired supply. Thus, ineffective injection time can also be seen as part of compensatory injection.

Of course, the ECU is not static; another function of the memory is akin to an airplane’s “black box,” capable of recording driving data. Many ECUs have a “learning” capability; under normal circumstances, the memory continuously records your driving data, forming the ECU’s learning program to provide optimal control states adapted to your driving habits. This program is also called an adaptive program. However, because it is stored in memory, similar to error codes, once the battery is disconnected and power is lost, all data will be lost. The ECU can continuously learn the driver’s driving style from the recorded data in memory, making it more user-friendly. Of course, if a fault occurs, information can also be retrieved from memory to support repairs.

After completing the “thinking,” the next step for the ECU is to “command.” The components controlled by the ECU include the injectors, which adjust the amount and timing of fuel injection, while the fuel pump is responsible for supplying fuel; the ignition controller and ignition coil also operate under the control of the ECU. After this, the ECU needs to receive data again to confirm the completion of a closed-loop control.

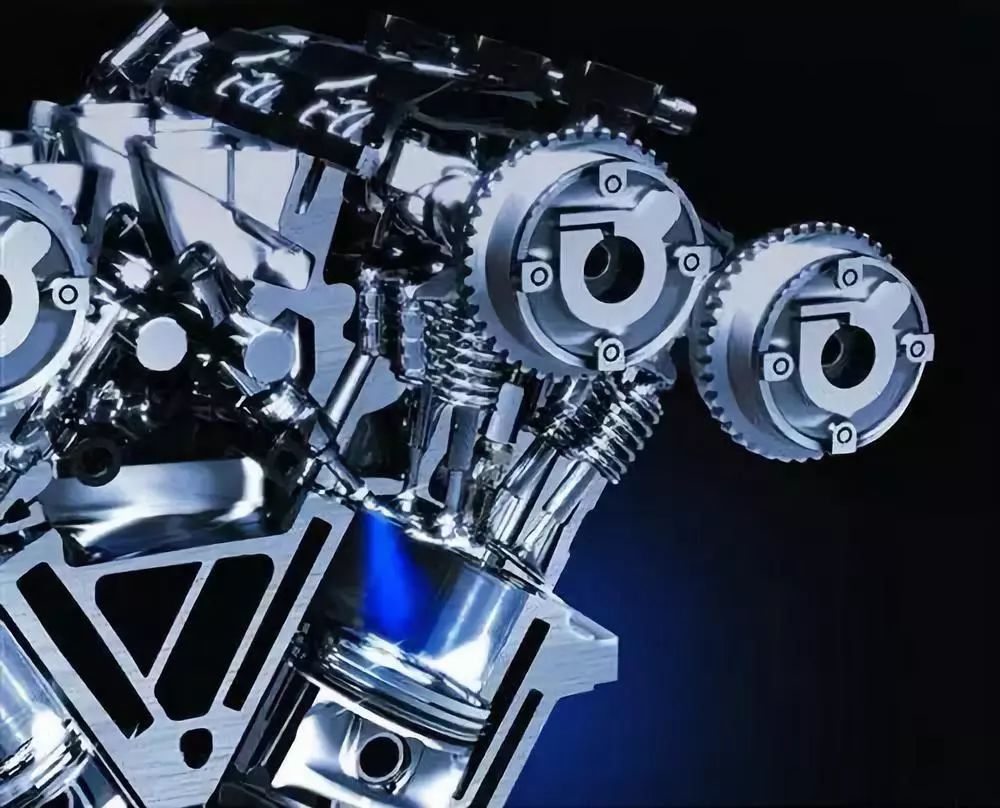

With the advancement of automotive technology today, the ECU is taking on more and more responsibilities. Technologies like i-VTEC, which involve variable valve timing, require additional camshaft position sensors, and the ECU performs calculations to adjust the camshaft phase. Especially in systems like BMW’s Double-VANOS, which requires continuous variable valve timing, the ECU must perform precise calculations to control its phase and valve lift. Currently, in some mid to high-end cars, ECUs are not only applied to engines but can also be found in many other areas. For example, anti-lock braking systems, four-wheel drive systems, active suspension systems, airbag systems, and automatic transmissions all require separate control systems. More and more ECUs are appearing in cars, and the many devices added to vehicles require ECU management. The traditional “Engine Control Unit” can no longer meet the demands of the times and has become a module of the overall control system of the vehicle. Therefore, today we prefer to refer to the ECU as the “Electrical Control Unit,” that is, the electronic control system. As the automation and electronicization of cars increase, the number of ECUs will continue to rise, and the wiring will become increasingly complex. To simplify circuits and reduce costs, the information transfer between multiple ECUs in a car will adopt a technology called multiplex communication network technology, forming a network system of ECUs, which is the CAN data bus.

ECU Upgrades

1. Feasibility of ECU Modification

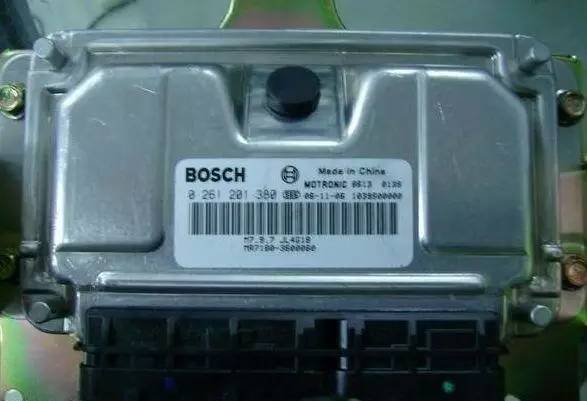

ECU manufacturers are all international multinational companies, such as BOSCH, SIEMENS, MM, etc. Their products are sold worldwide. Due to differences in gasoline quality, temperature, atmospheric pressure, humidity, and engine types in different countries, the ECU program software settings must meet the conditions of each country. Modern cars must adapt to various weather and environmental conditions (such as high altitudes, deserts, severe cold, and poor-quality gasoline) and different driver requirements, while also ensuring that they can operate smoothly and meet strict exhaust emission and fuel consumption standards in these complex situations. Therefore, in most cases, the original ECU program is an optimal compromise that meets numerous conditions, preventing it from being out of sync. Thus, it retains much room for modification. Additionally, when car manufacturers calibrate engine parameters, they generally consider the engine’s ability to operate normally even in the most adverse conditions or when not maintained for long periods. This means that manufacturers always set engine output conservatively, so as long as the owner ensures regular maintenance, they can significantly increase output by recalibrating engine parameters for an extraordinary driving experience.

Taking the air-fuel ratio (AFR) as an example, the factory programmer may adjust the AFR to be leaner under certain driving conditions (such as during steady-speed driving) to reduce fuel consumption, in order to pass some countries’ fuel consumption testing standards. The AFR is often set at around 1:14.7 at other times, as this ratio best meets exhaust standards. However, for most engines, the maximum power output occurs within a range of richer mixtures (more fuel, less air). Similarly, to broaden the fuel adaptability of the vehicle (due to different fuel grades in different regions), the factory-set ignition advance angle generally accommodates lower-grade fuels (the engine outputs different power at different ignition advance angles). This means that the current ignition advance angle of your engine may not be optimal for the fuel grade you are using. If the original program can be modified toward performance, it can increase horsepower by around 5-8%, and some turbocharged vehicles can achieve up to 15% gains.

2. Methods of ECU Modification

ECU chip modification: When manufacturers design an engine, they burn the originally set fuel supply program onto the ROM. This program is usually a compromise between fuel consumption, pollution, and smooth operation, and is unchangeable. Since it cannot be altered, changing the fuel supply program requires using a different mode of ROM. Typically, professional modification shops will provide chips for various models. During modification, the original computer chip must be removed (the original factory fuel computer’s ROM is usually soldered directly onto the circuit board), and an IC socket must be soldered on (this makes future replacements easier), after which the modified chip can be inserted. The resulting fuel supply program remains fixed; it merely corrects the original program, with one crucial aspect being the ability to delay or even cancel the cut-off control time within the compensatory injection program.

It is essential to note that each modified chip has its set applicable conditions (the level of modification), and the chip must be selected based on the condition of your vehicle to achieve the best results; otherwise, it may have adverse effects. The selection of chips should only be done in consultation with experienced modification shops. One chip corresponds to one fuel supply program; clever readers may wonder: what if two or three chips are installed? Indeed, some modification shops in the past have installed two or three different fuel supply mode chips on the same circuit board, allowing the driver to switch between the desired fuel supply modes using an external switch, just like switching between the P, E, and S modes of an automatic transmission to meet different driving needs.

ECU computer programming: This is a more professional aspect of ECU system modification, and the most familiar in the domestic modification community is HALTEC computers. Through this computer, owners can set the optimal fuel supply program according to their engine’s modification level, in conjunction with air-fuel ratio meter measurements, adjusting the basic injection program and various compensatory injection programs using a laptop. Its most significant difference from chip modification, and its greatest advantage, is that if the engine undergoes further modifications and the original fuel supply program becomes unsuitable, the issue can be resolved immediately through program adjustments. After computer programming, the original fuel supply program becomes obsolete, but higher-level computers can retain all the functions of the original sensors. In other words, all fuel supply compensatory programs can operate normally and can be adjusted without sacrificing smooth operation and practicality for high performance.

The most significant difficulty in modifying a programmable ECU is not installation but rather the setting and optimization of the fuel supply program. This often requires experience and instruments, with continuous testing needed to achieve satisfactory results. Currently, modification shops typically select a basic model as a foundation and gradually adjust through actual operation and testing until satisfied.

3. Common Issues in ECU Modification

Unlike other mechanical systems, the functions and working principles of the ECU are “invisible.” Moreover, most automotive repair shops, even 4S dealerships, do not understand or cannot repair ECU-related issues, which creates an aura of mystery around the ECU. Let’s discuss some common issues during the ECU flashing process.

1) Use Original ECU or a Newer ECU

For general civilian modifications, I personally prefer using the original ECU for modification. The original ECU is highly functional, and its program is developed through long-term data accumulation and countless tests by manufacturer engineers, ensuring it can protect the engine under any circumstances without generating fault codes or warning lights. It will not cause conflicts with other systems like ABS, traction control, and anti-theft systems, nor will it delete essential functions from the vehicle. On the other hand, the modification cost is relatively low.

2) Degree of ECU Modification and Calibration Style

From a performance modification perspective, ECU modification is an indispensable step. The ECU can help the engine achieve optimal mechanical function, but it cannot exceed the limits originally allowed by the design. For instance, when professional racing teams develop racing engines, they first design the camshaft, pistons, connecting rods, etc., determining the engine’s compression ratio and maximum RPM before considering the ECU. Without a powerful engine, even the most capable ECU is futile. Therefore, regarding ECU program calibration, unless it is for racing applications, the focus is not solely on maximizing horsepower at full throttle. More attention is generally given to the acceleration capability and throttle response of the car at low to mid RPMs, as civilian vehicles rarely operate at full throttle and maximum RPM. Thus, the emphasis is on achieving smooth and progressive horsepower and torque curves, ensuring that drivers find the throttle exceptionally responsive and powerful. The maximum horsepower figure may attract attention in promotions, but in real-world conditions, no one enjoys driving a car with poor acceleration smoothness. Therefore, for modified street vehicles, there is no need to reach the performance levels of racing cars. A more accurate understanding should be whether such modification products can improve power output while ensuring vehicle safety without sacrificing practicality, including smoothness during startup, mid-high RPM extension, and acceleration capability. Meanwhile, dynamometer test data and curve trends, as well as the owner’s actual sensory experience, play crucial roles in verifying the quality of the product and modification effects!

3) Will ECU Upgrades Affect Vehicle Lifespan and Safety?

Many people may question whether ECU upgrades will affect vehicle lifespan and safety. In fact, there is no need to worry; flashing the ECU merely optimizes the vehicle’s driving computer data comprehensively, rather than pursuing a single indicator’s improvement by fully unleashing the engine’s capabilities. The optimization is based on ensuring longevity, economy, and safety, preserving a safe operating margin for the vehicle while providing the engine with a comfortable operating environment. However, in another scenario, due to cost and technical levels, some car enthusiasts may resort to installing components commonly referred to as “secondary intake” or “fuel augmentation” to increase the amount of fuel and air entering the engine. These components often bypass original sensors or alter sensor voltages to “deceive” the ECU, changing the air-fuel ratio without the ECU’s knowledge, thereby improving power performance under certain conditions. This incomplete modification approach can lead to adverse effects and even safety issues, while the proper ECU modification method, though more costly, can avoid many negative side effects.

4) Differences in ECU Settings Between Street Cars and Racing Cars

ECU settings are generally divided into two types: street cars and racing cars. For racing cars, since the fuel, venue, and driver are predetermined, the computer settings focus on how to respond to changing weather, temperature, and other environmental factors. In contrast, street cars are much more complex, with no limitations on driving time and varying fuel types, even if high-quality fuel is used. Compared to racing cars, street car modifications must consider safety factors, so the computer settings must retain some flexibility. After comprehensively considering the driver’s style and vehicle characteristics, the settings can be adjusted. Moreover, even under identical conditions with the same vehicle, variations can occur, so using the same data for settings may not yield the best results.

5) Points to Note When Flashing the ECU

Many car owners focus solely on horsepower figures, neglecting torque, which is a common situation. In reality, modifying a vehicle should not be a blind pursuit of horsepower; before modification, one should clearly understand the vehicle’s intended use and the owner’s driving habits.

For modification shops, when modifying the ECU, it is advisable not to focus solely on fuel injection timing but also to pay attention to whether fuel supply is sufficient. It is also important to consider the timing of ignition, as the ignition timing advance angle is crucial. Additionally, any hardware added to the vehicle must be understood in terms of its characteristics, so that the ECU modifications can be effectively coordinated for optimal performance.

Furthermore, if the engine uses a high-angle camshaft, it complicates the programming process as it alters the timing of valve openings and closings, necessitating even more precise calculations and adjustments. The ability to fully leverage the performance of modified components is entirely dependent on the ECU’s adjustments, but altering engine characteristics through ECU data changes is a challenging task.

Future Trends in Automotive Control

Let’s count how many systems need control systems. Automatic transmissions, ABS systems, in-car entertainment systems, four-wheel drive torque distribution systems, active suspension systems, airbag + seatbelt systems, etc. So many systems have their own sensors and processors, performing separate calculations without interfering with each other… However, the automatic transmission and engine need to cooperate; for example, the shifting process requires the engine to reduce power, and full throttle requires the transmission to downshift… In various states, both need to share a plethora of data, such as the engine’s crankshaft speed. Establishing a new set of sensors for the automatic transmission would waste costs and is impractical. The best approach is for the transmission and engine ECUs to share data, giving rise to an information network system between ECUs—the CAN data bus. This same CAN data bus is also adopted in electronic chassis devices; for instance, the four-wheel drive torque distribution system and ABS share many chassis sensor parameters.

The development of the CAN data bus will inevitably integrate all control systems into one. There is a saying that future ECUs will become powerful computer systems that integrate all components that require management, including the engine, automatic transmission, ABS system, in-car entertainment system, four-wheel drive torque distribution system, active suspension system, airbag + seatbelt systems, etc. We will be able to enjoy the car’s entertainment system, play PC games, receive GPS signals, and even a cup holder will be under the ECU’s management.

An even more interesting notion is that future ECUs might establish an open interactive software system, much like the Windows operating system, upon which a plethora of engine management systems, transmission management systems, ABS systems, etc., can be installed. At that time, the engine “ECU” management system will merely be a software that can be updated in real-time; you could choose version 1.1 or version 2.0. Of course, you would also need to install a firewall to prevent hackers from intruding.
