The teardown of the actual device reveals that the micro design will provide designers who continuously pursue industry-leading design solutions with a “different” good design scheme, enabling quick application and bringing design value.

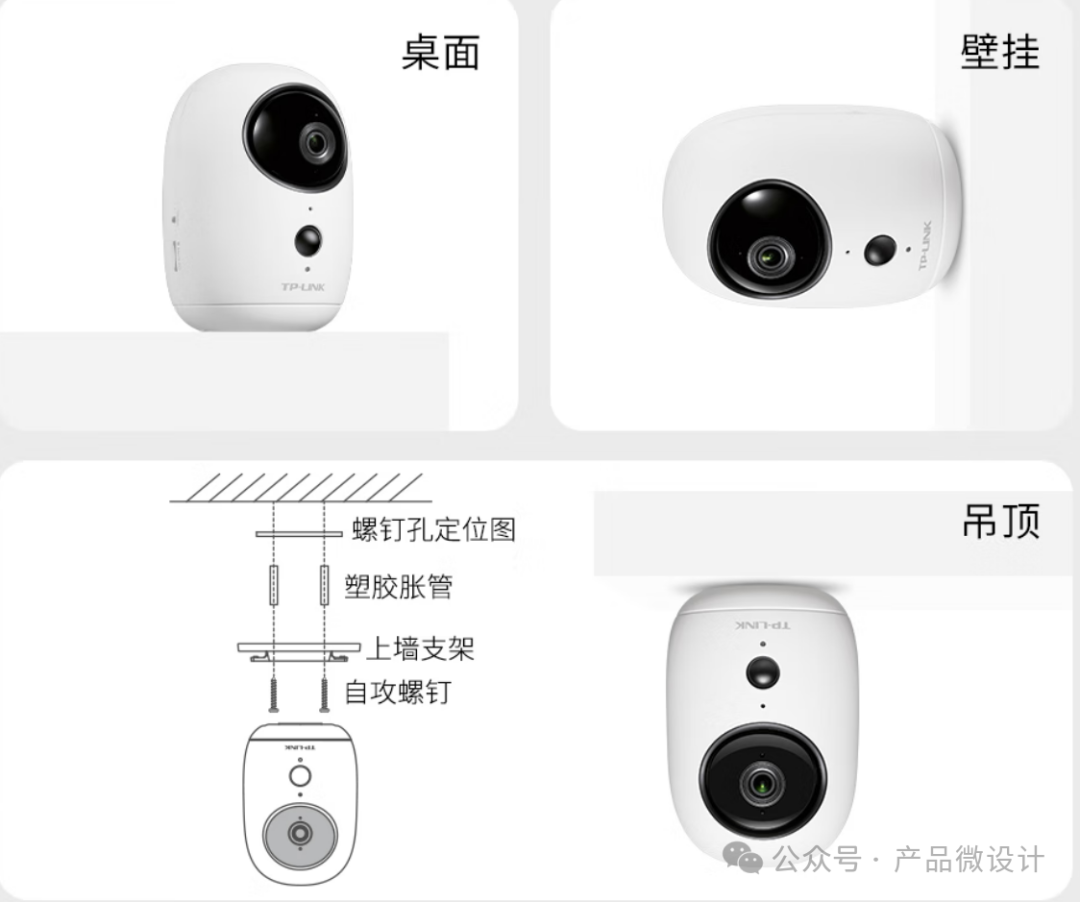

01—【Overall Presentation Information】

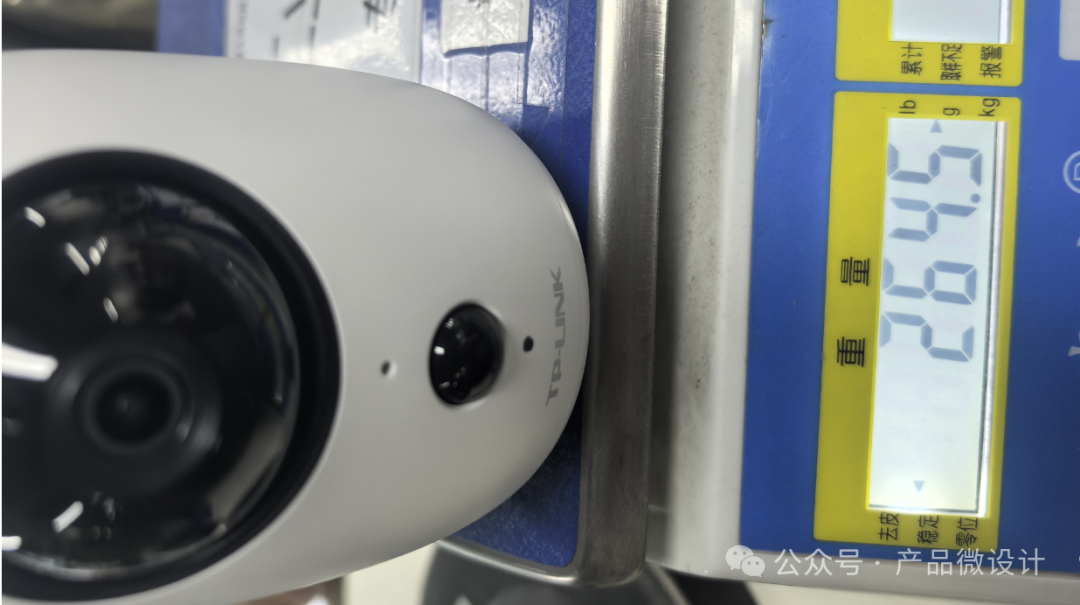

Product dimensions: L73XW81XH105mmProduct weight: 264.5g

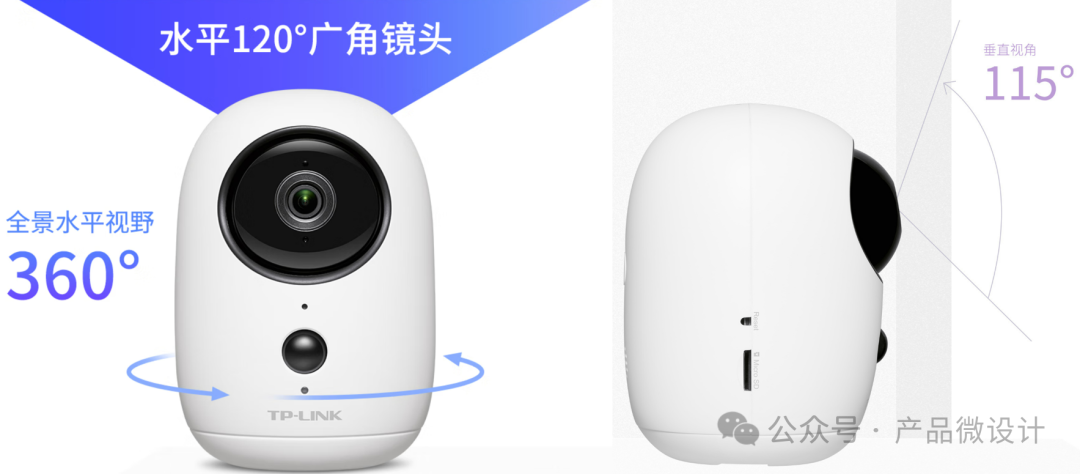

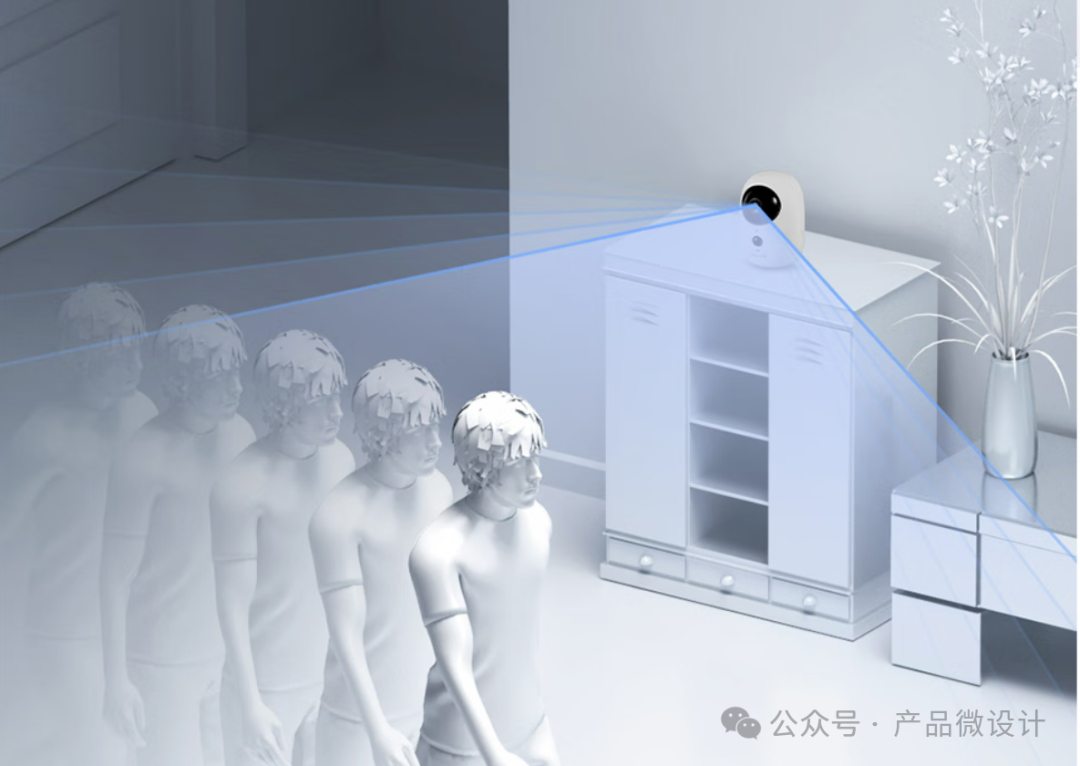

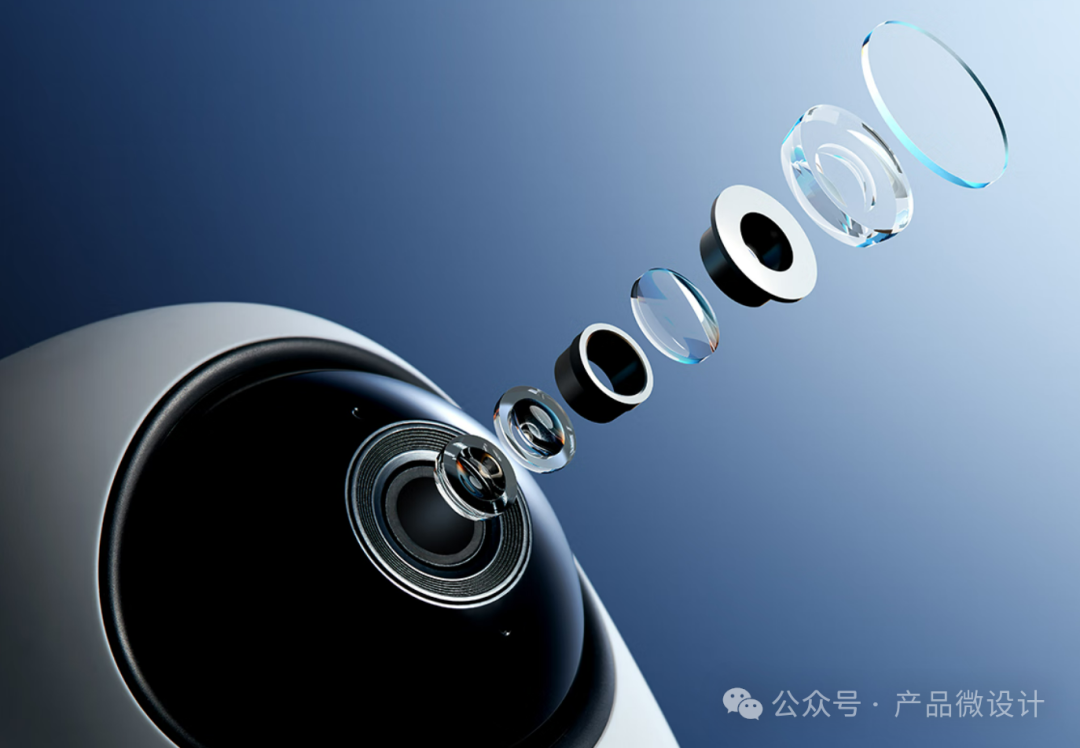

Product interface: DC（5V 1.5A），RESET，TF CARD，Battery switchProduct rotation angle: Uses a 120-degree wide-angle lens, horizontal viewing angle 360°, vertical viewing angle 115°
Product anti-slip treatment: Achieved with two gray silicone foot pads.
Product certification information: Product name and model, manufacturer, and QR code are all implemented with stickers.
02—【True Face of Lushan】

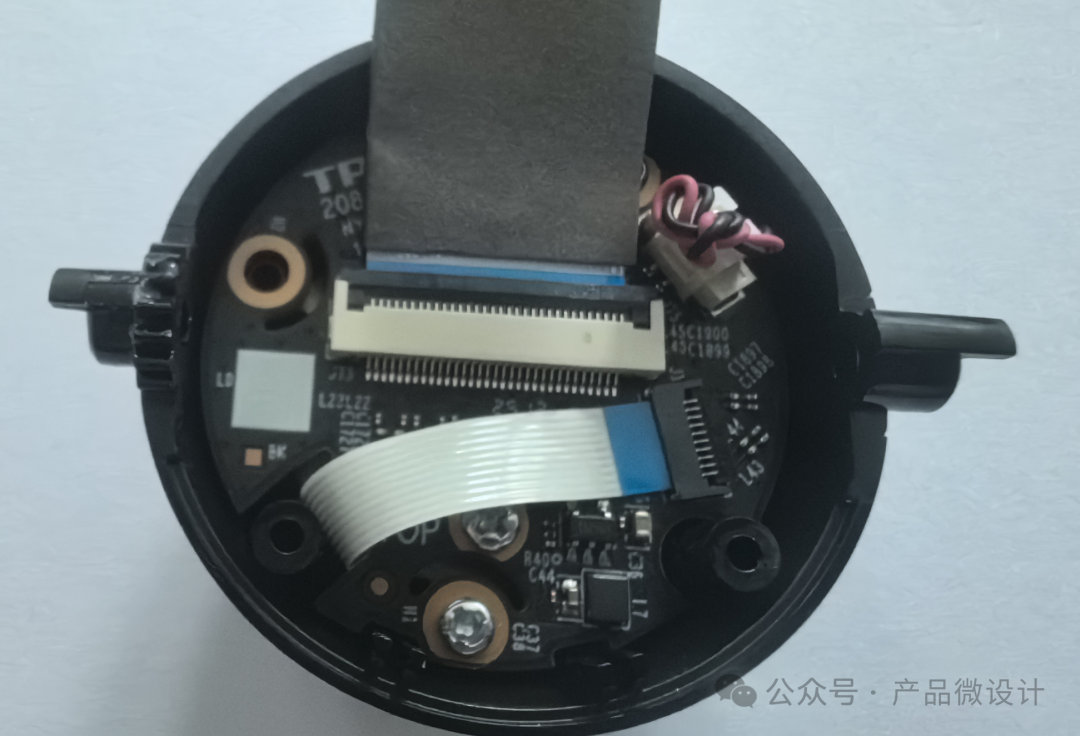

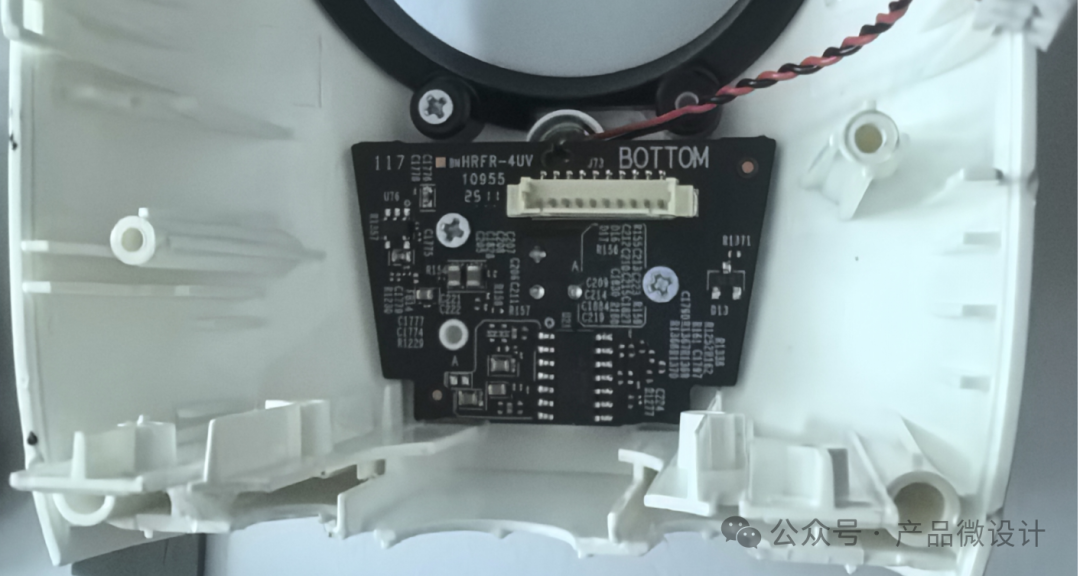

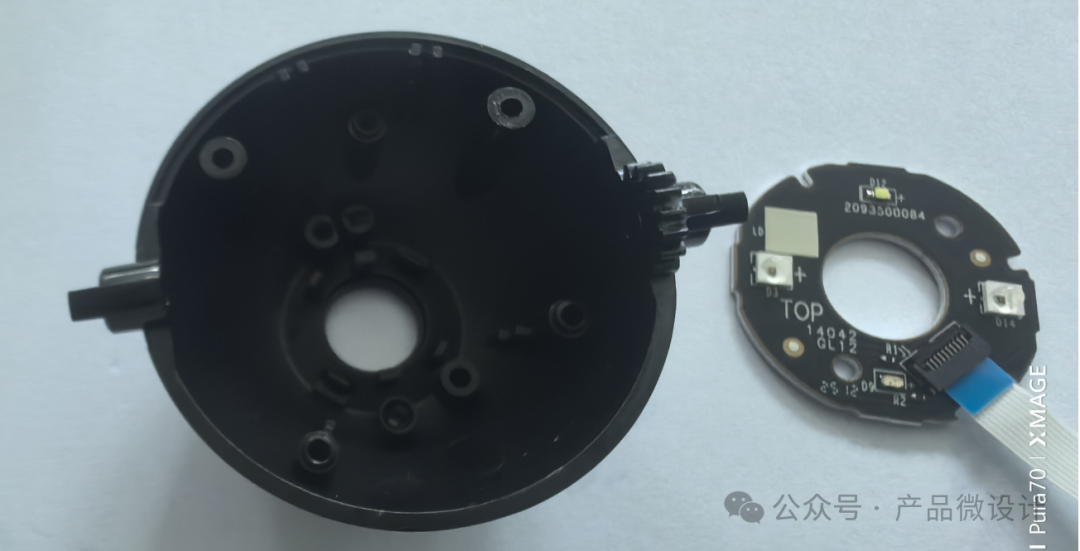

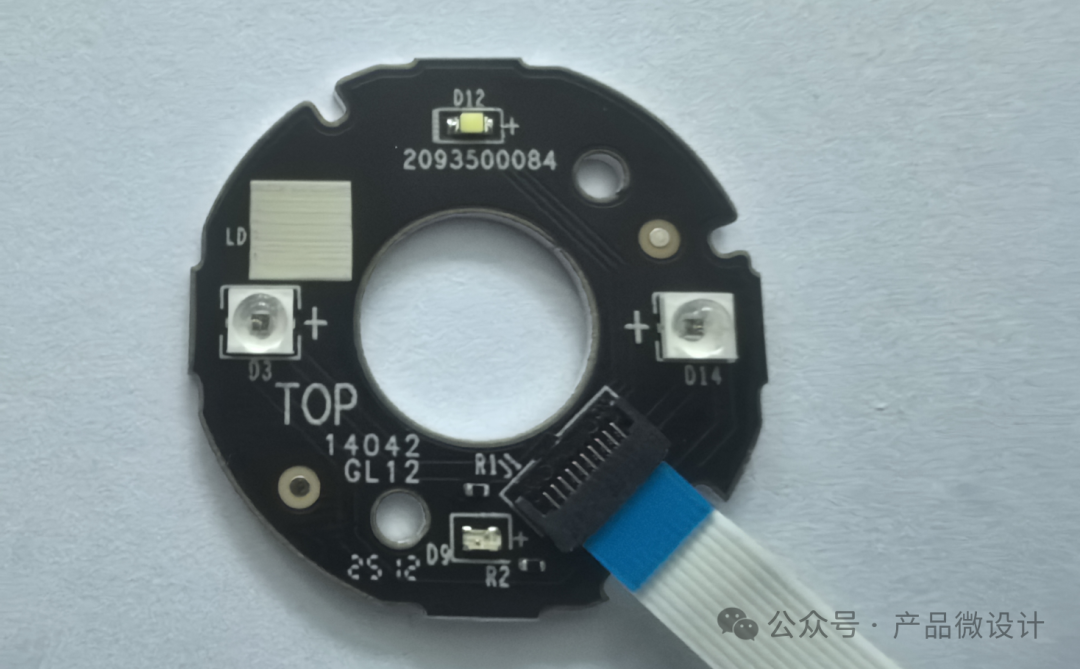

Product night vision enhancement: Infrared light enhancement uses two surface-mounted infrared LEDs distributed on the left and right +透红外PC lens; white light enhancement uses one surface-mounted white LED + directly opened lens, connected to the SENSOR board via a 10PIN FFC.

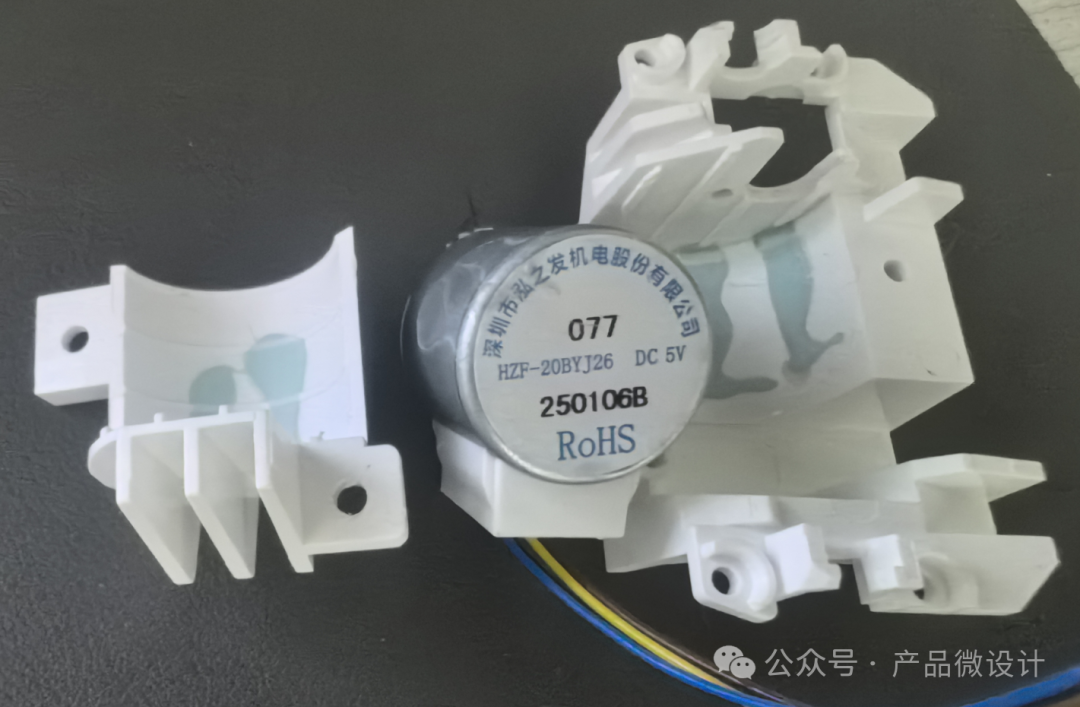

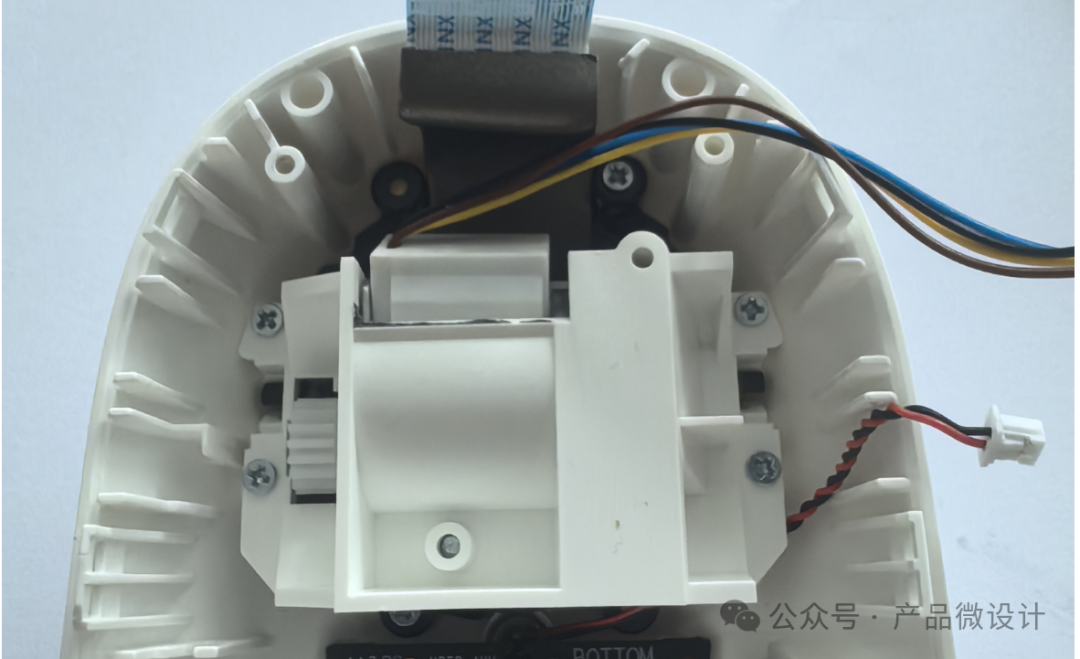

Product vertical rotation: The vertical motor is fixed with two plastic brackets + two screws to form a module, which is then fixed to the front shell of the body. The motor shaft has a small gear + the side has a gear that matches the ball head front shell. The motor shaft rotation drives the ball head to achieve vertical rotation along the product body trajectory. The motor manufacturer is Shenzhen Hongzhifa’s HZF-20BYJ26, DC 5V specification.

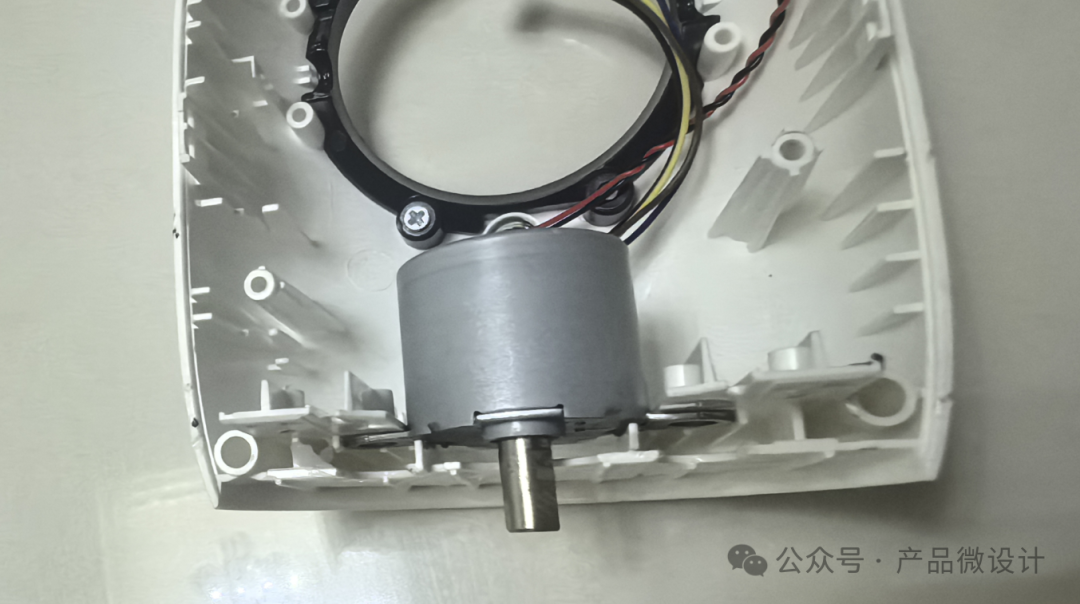

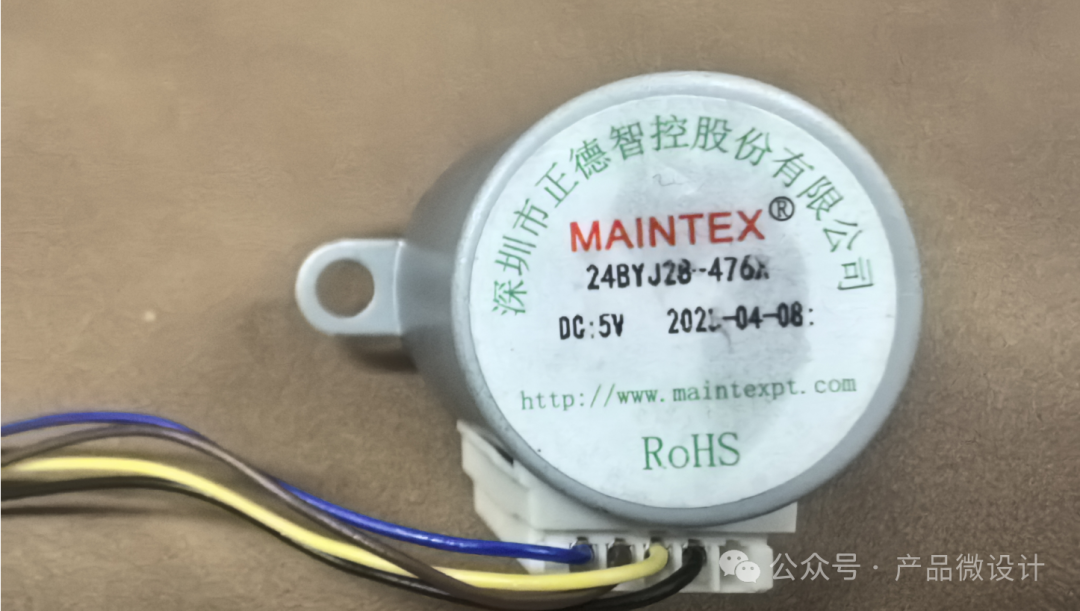

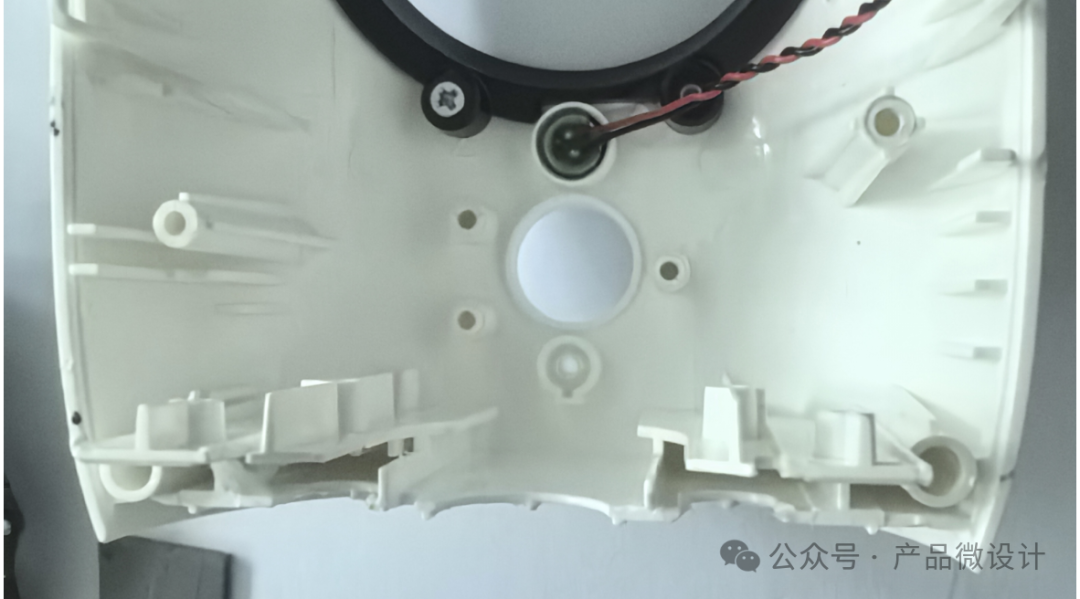

Product horizontal rotation: The horizontal motor is fixed on the front shell of the body, and its track-type rotation shaft is directly inserted into the bottom cover and fixed with machine screws, allowing the motor shaft to drive the entire body to achieve horizontal rotation. The motor manufacturer is Shenzhen Zhengde Zhikong’s 24BYJ28, DC 5V specification.
Product heat dissipation: Achieved through the main chip.

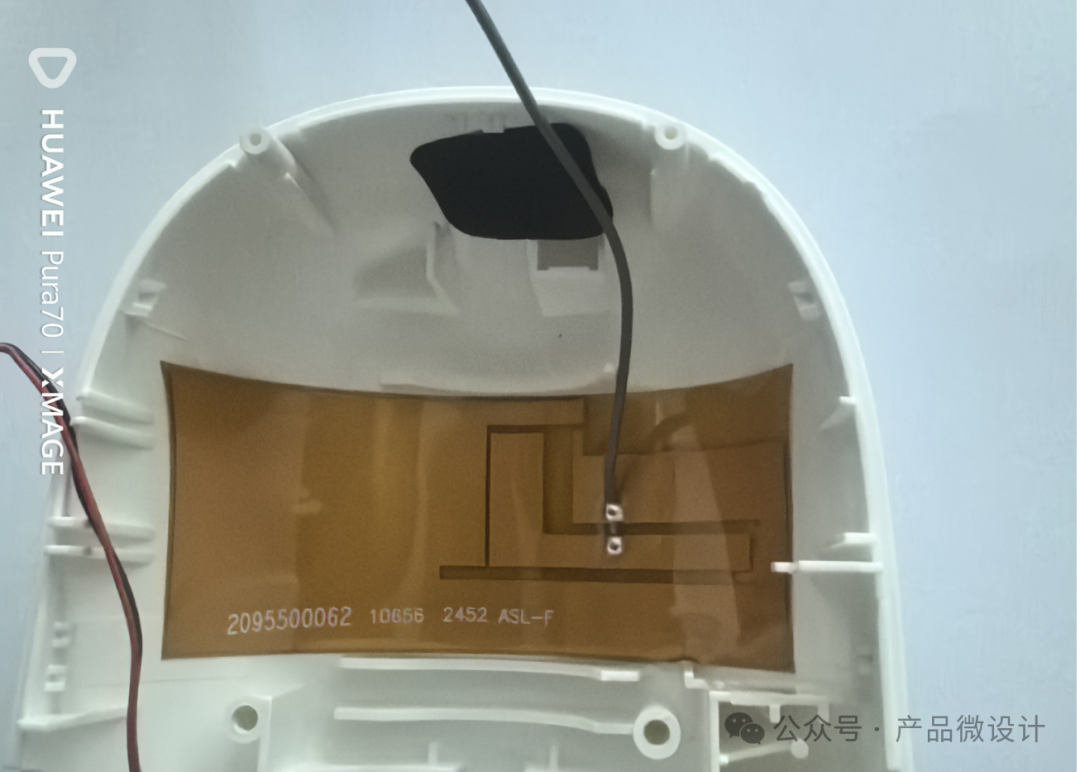

Product antenna: The FPC antenna is attached to the back cover of the body using 3M adhesive, and connected to the mainboard via a feed line.

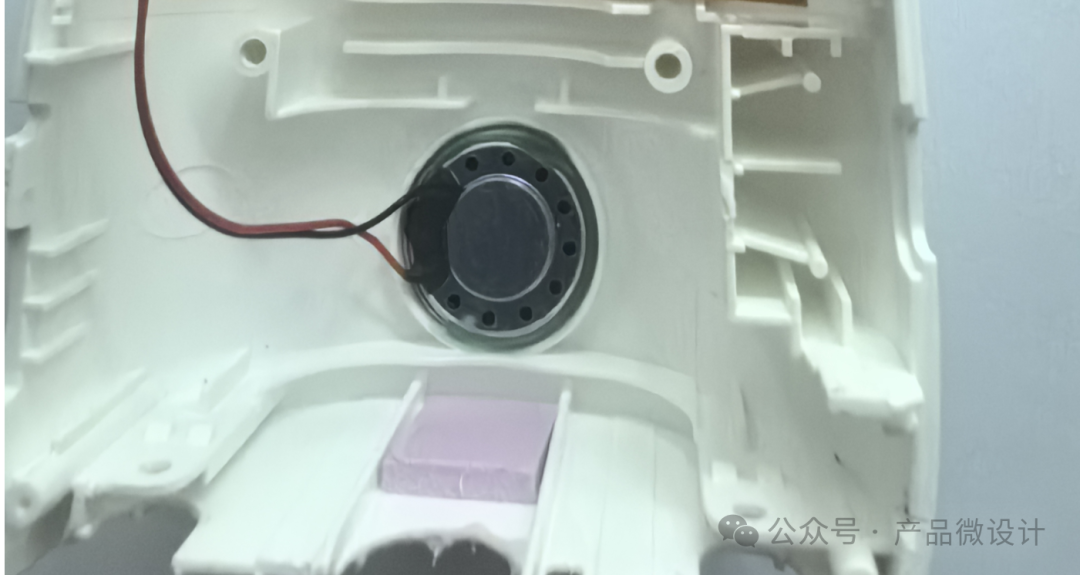

Product audio: The MIC is designed in the front shell of the body, sealed and fixed by glue; the speaker is designed on the back shell of the body, with a specification of 20MM; the fixing method is sealed with glue, and the two are distributed in opposite directions at 180 degrees.
Product battery: Uses one 21700 specification lithium battery with a capacity of 4960mAh, fixed inside the plastic back cover with black foam adhesive and plastic brackets. The nominal voltage of the lithium battery is generally 3.7V (4.2V when fully charged, 3.0V when discharged), and the manufacturer is Shenzhen Guihang Electronics Co., Ltd.

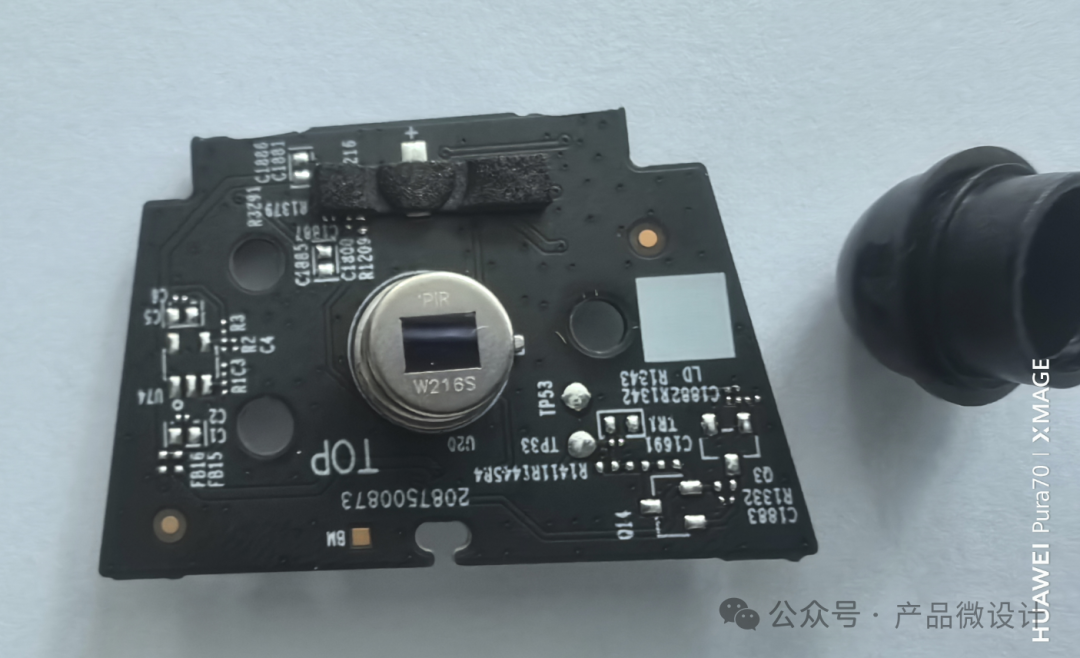

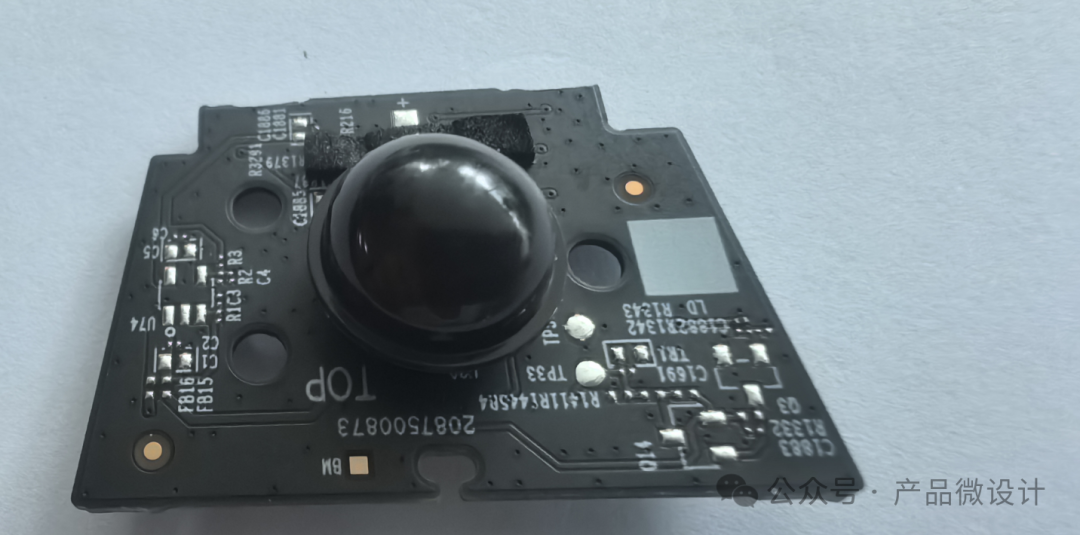

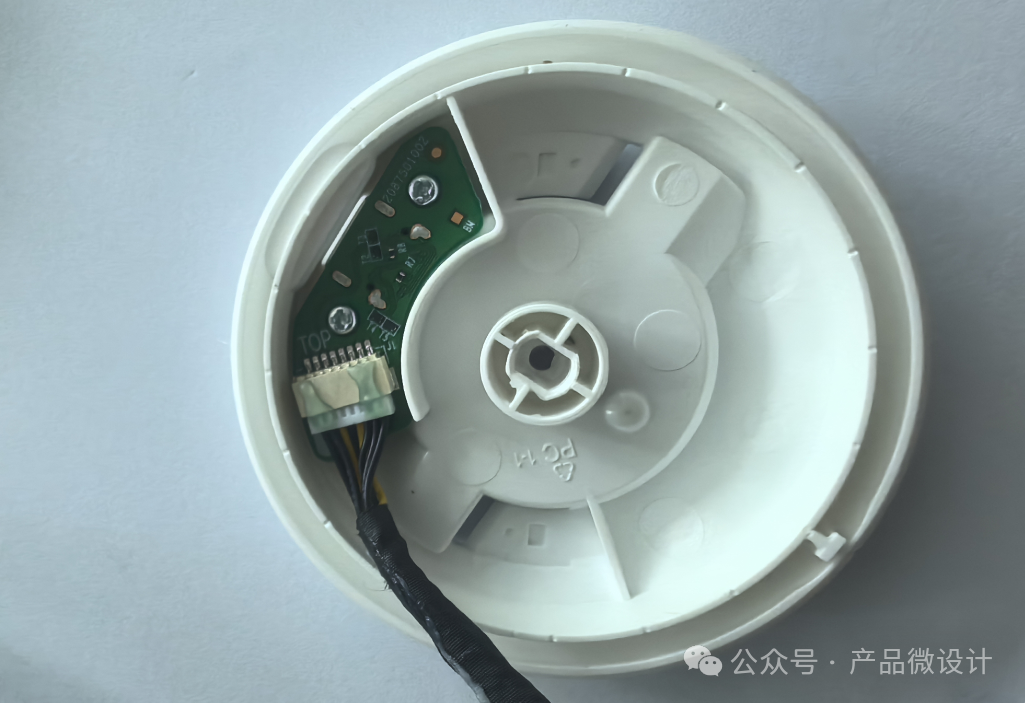

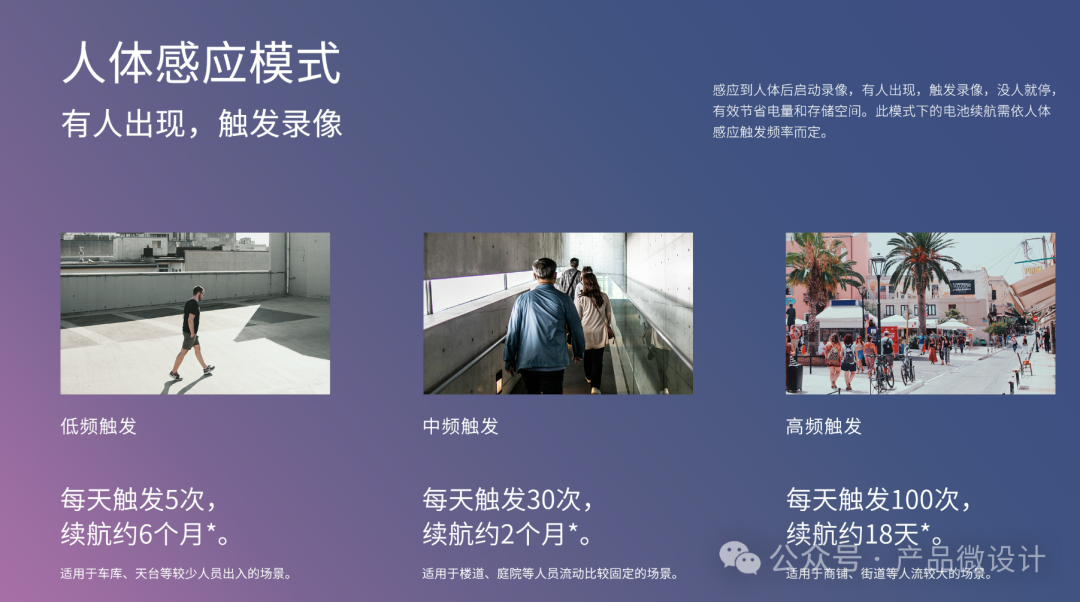

Pyroelectric sensor from XXX manufacturer, model W216S, used for human detection, automatically starts recording.

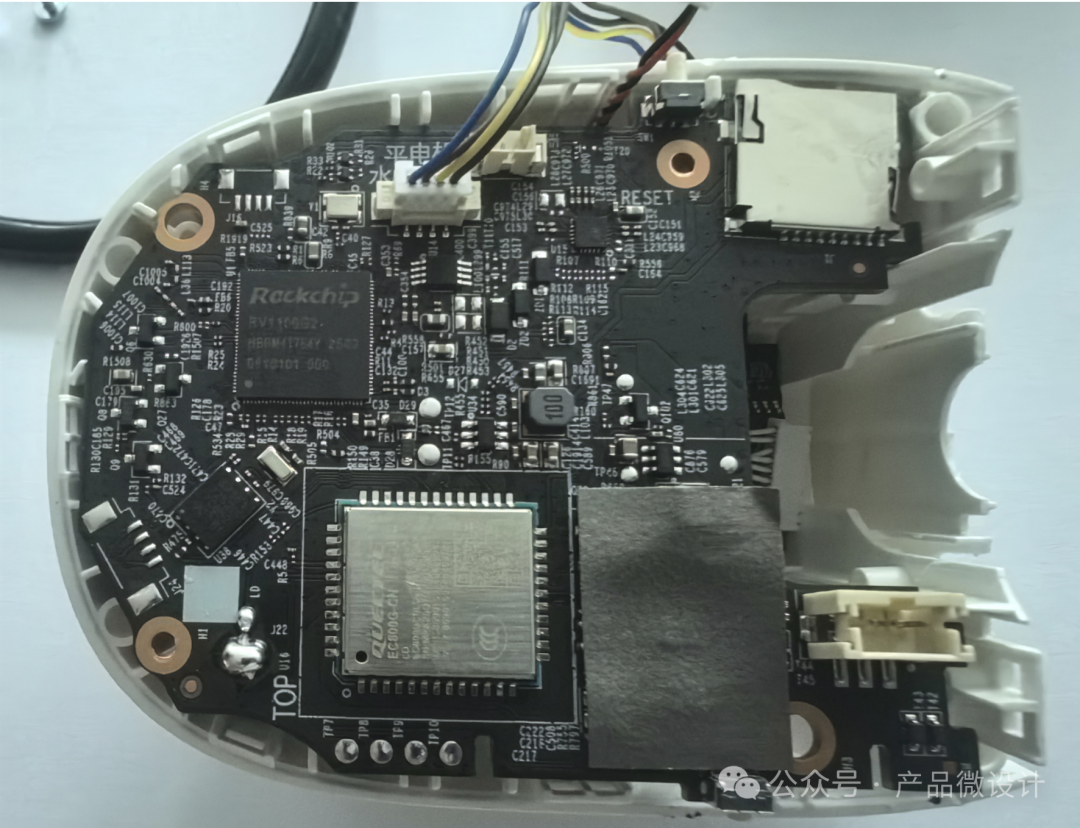

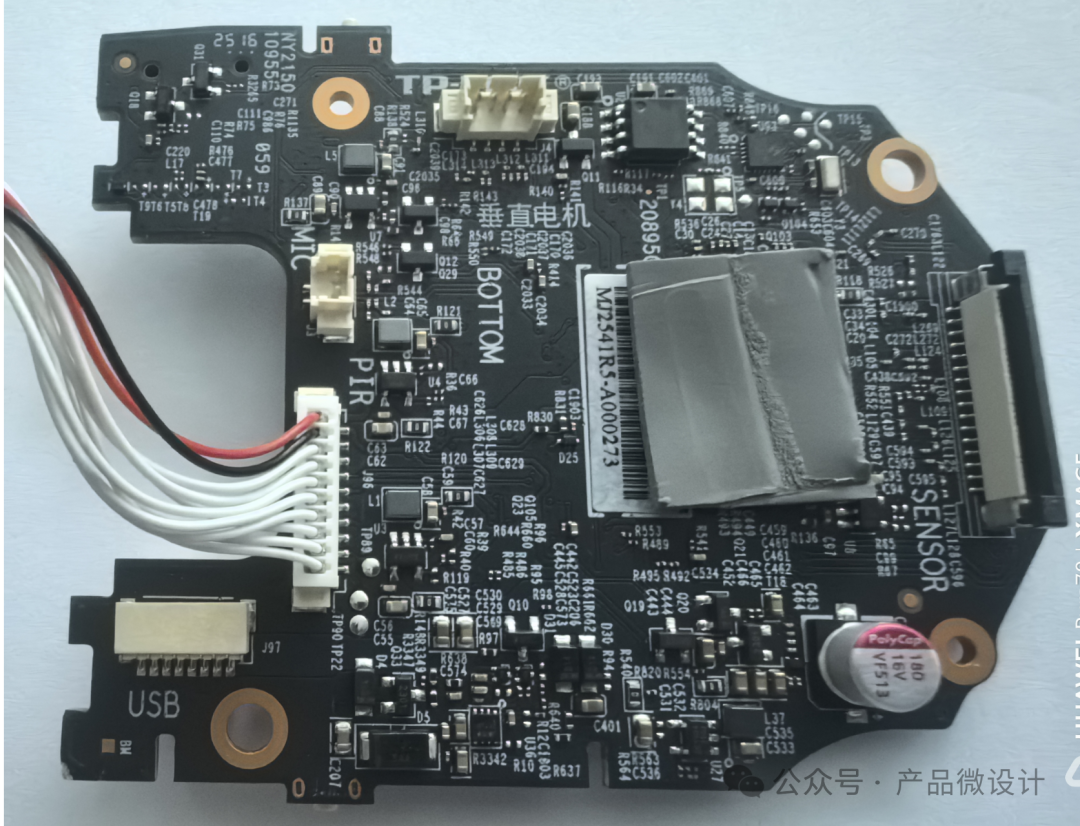

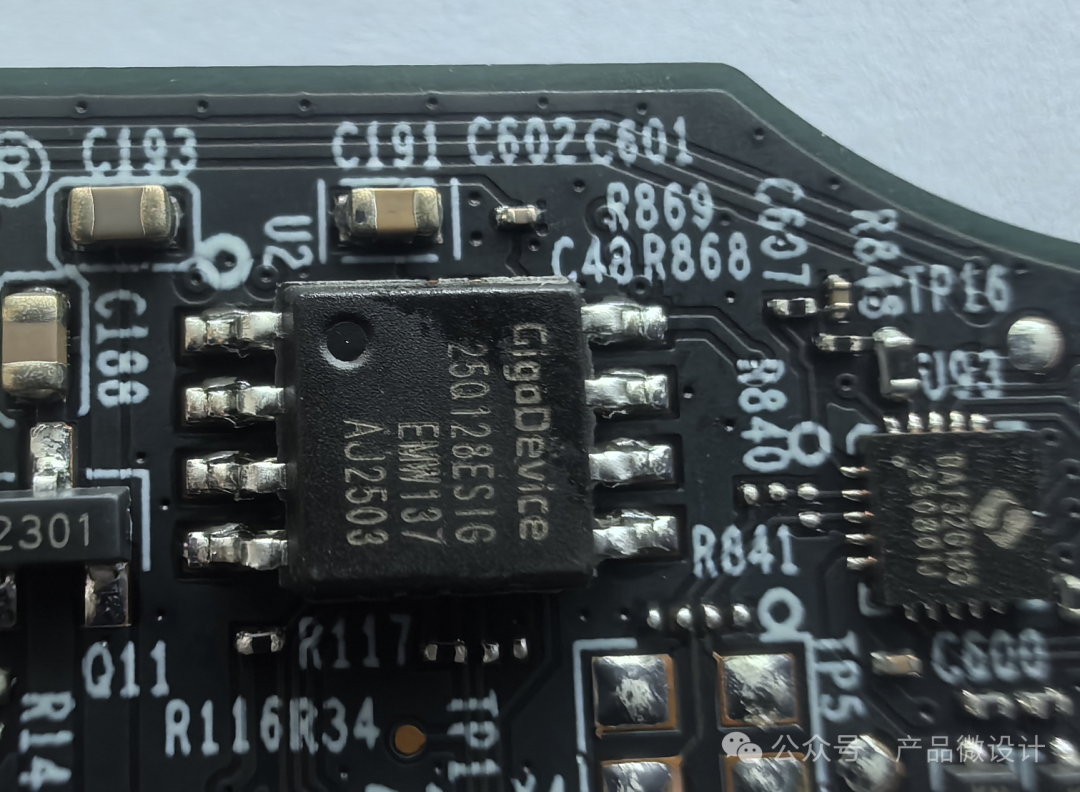

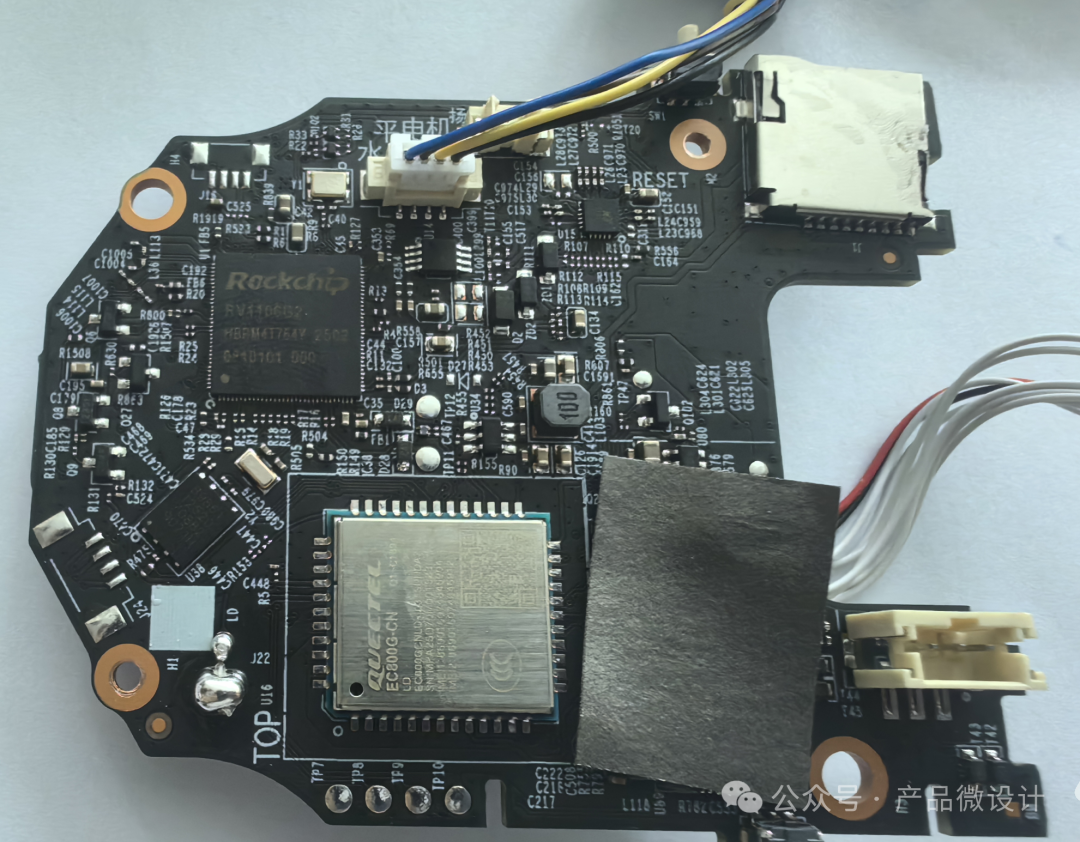

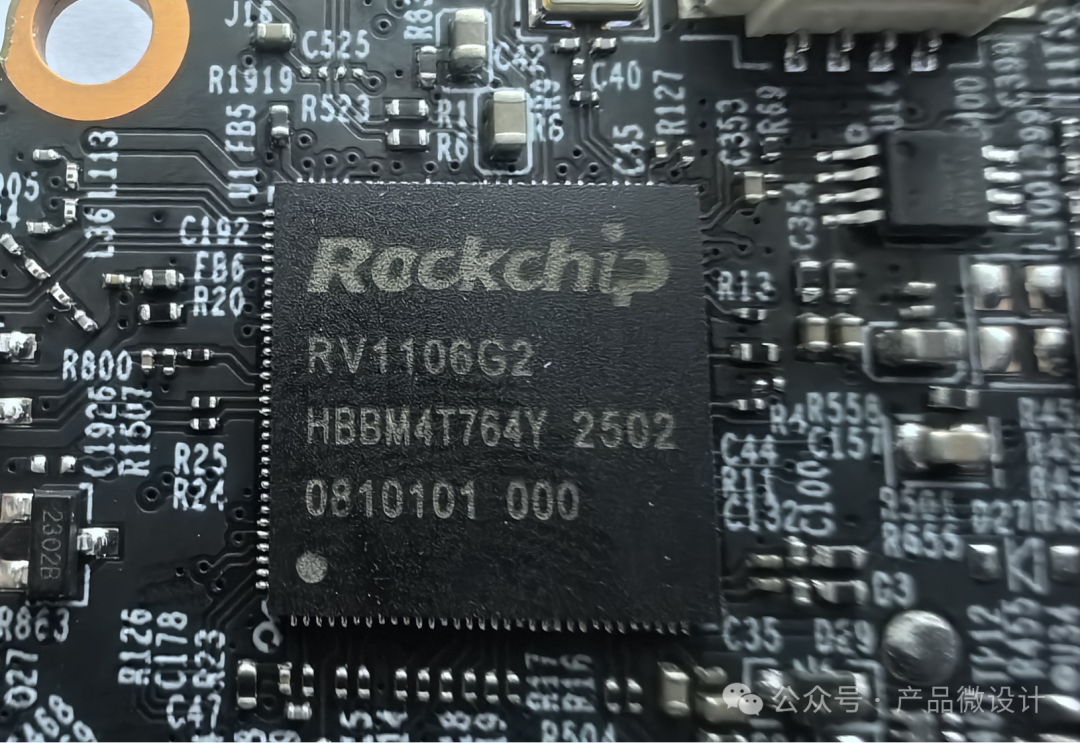

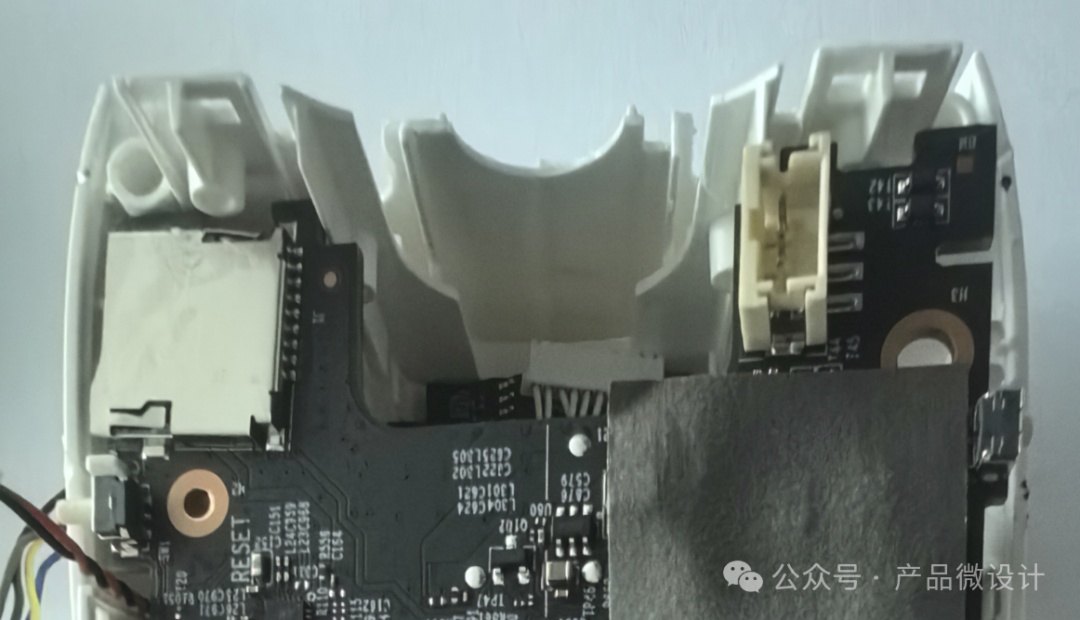

Product hardware: The main chip is Rockchip RV1106BG2, headquartered in Fuzhou, the internal memory is from GigaDevice, headquartered in Beijing, model GD25LQ128ESIG, with a capacity of 16MB, using SOP8 packaging; The 4G module is from Shanghai Ebyte’s EC800G-CN, EC800G-CN is an LTE Cat 1 bis wireless communication module launched by Ebyte, supporting a maximum downlink rate of 10 Mbps and a maximum uplink rate of 5 Mbps, with ultra-high cost performance; it is also compatible with Ebyte’s LTE Standard EC800E-CN, EC800N-CN, EC800M-CN modules to meet the application needs of different industry products.

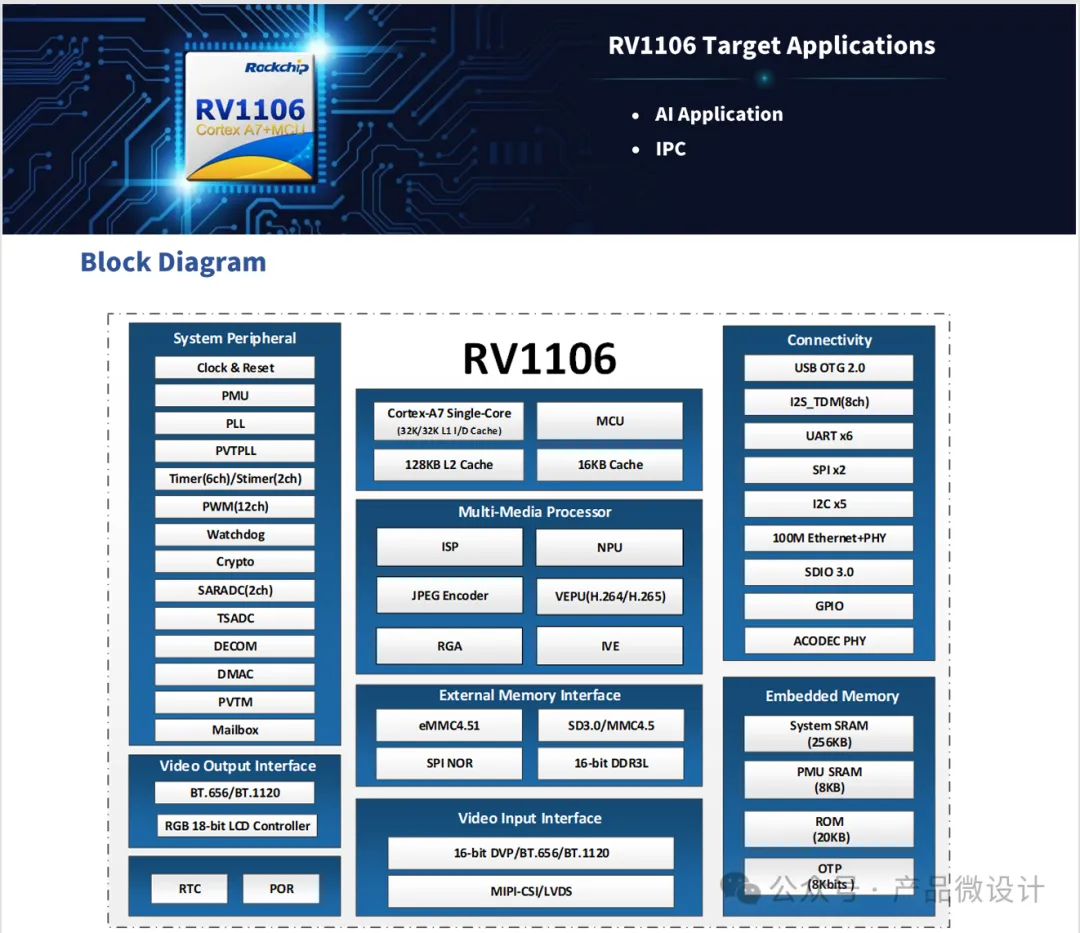

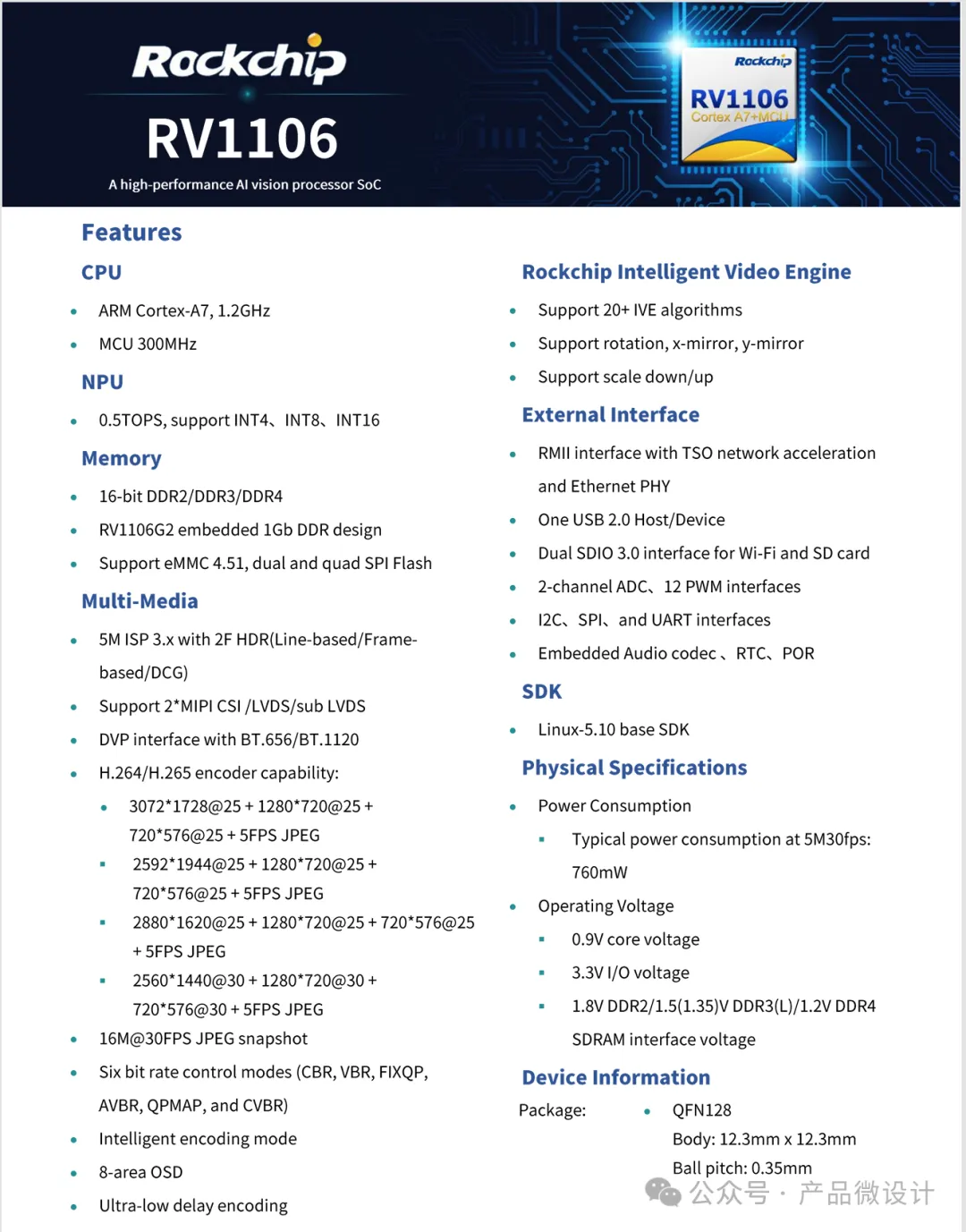

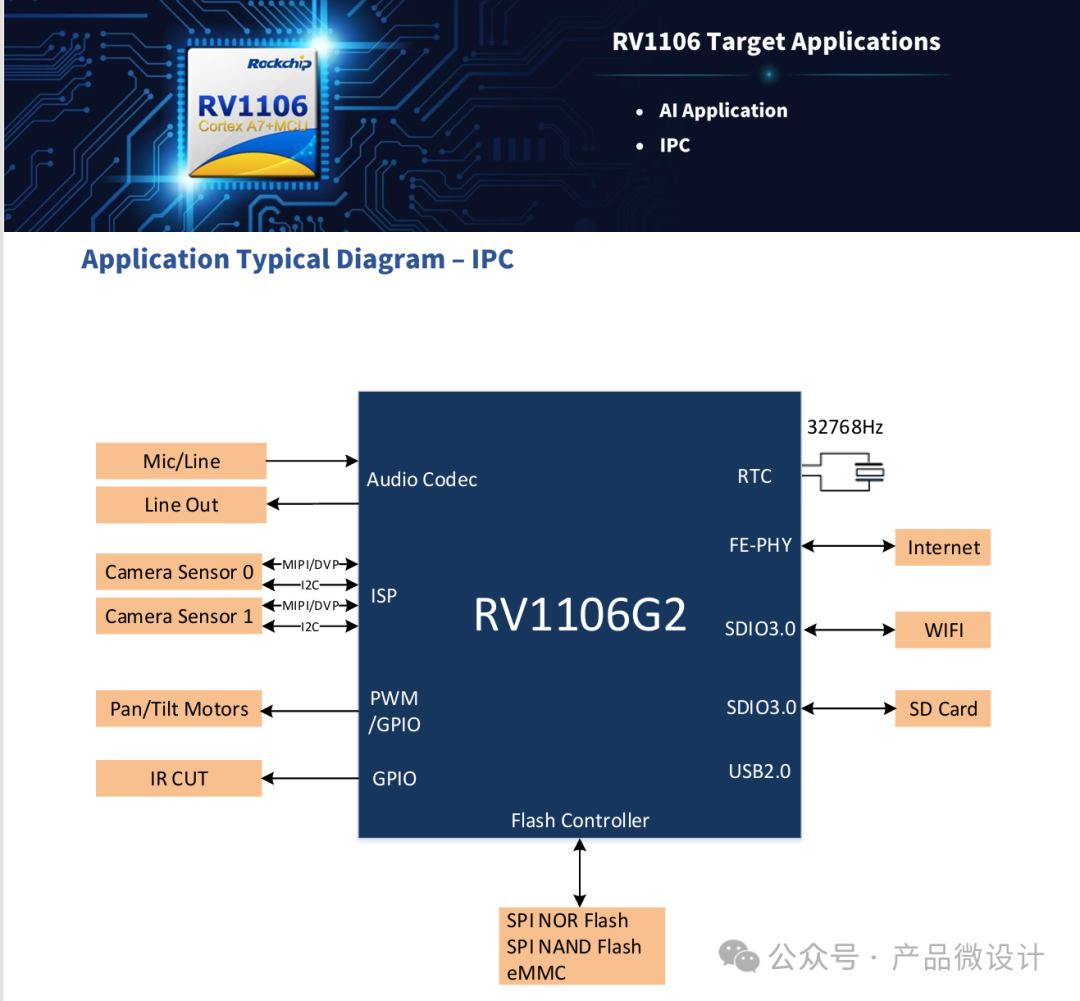

RV1106B is a highly integrated visual processing SoC designed for IPC, especially suitable for AI-related applications. It is based on a single-core ARM Cortex-A7 32-bit core, integrating NEON and FPU. The built-in NPU supports INT8 mixed operations, with a computing power of up to 0.5TOPs.RV1106B introduces a new generation of fully hardware maximum 5-megapixel ISP sensor, supporting MIPI CSI interface, allowing users to build a system that receives video data from two LSCs, performing 3DNR, 2DNR, sharpening, dehazing, gamma correction, etc. (Image Signal Processing). It implements many algorithm accelerators, such as HDR, 3A, used in conjunction with two cameras. The video encoder embedded in RV1106B supports H.265/H.264 video encoding and also supports multi-stream encoding. With this feature, higher resolution video can be encoded from the camera and stored in local memory while transmitting another low-resolution video to cloud storage.
03—【Discover Micro Design】
1: A recommended design scheme for a vertical rotation mechanism in a very small space.
Design reference:

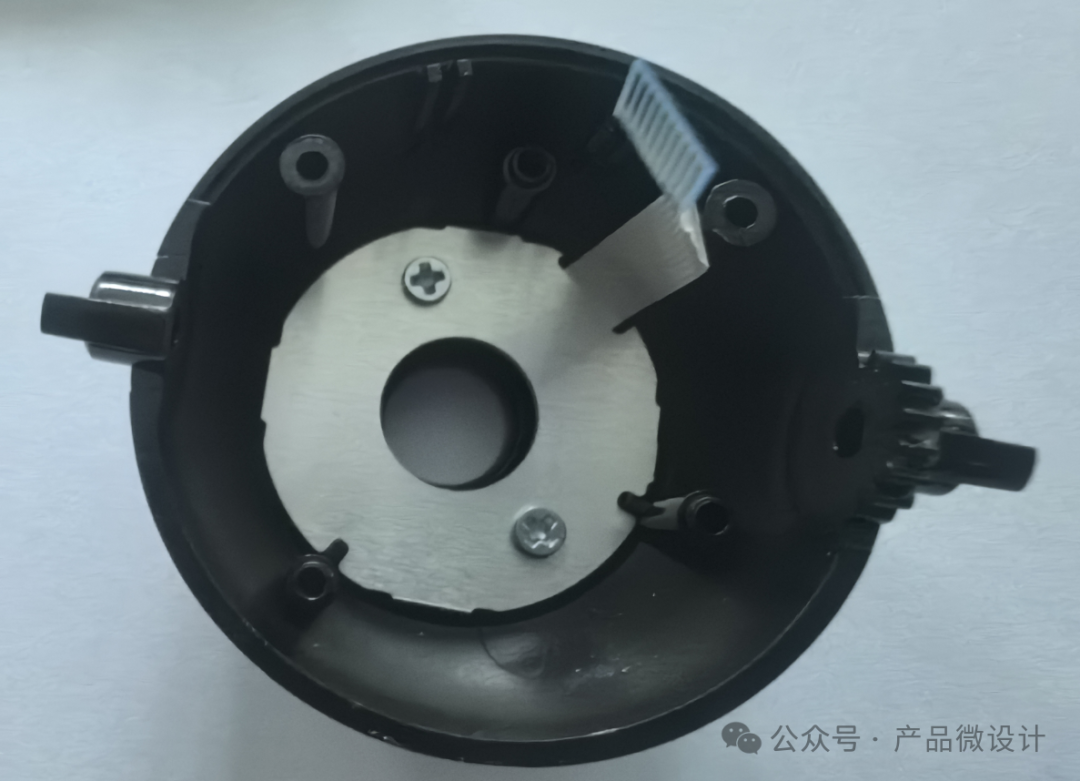

Fixed design for the driving motor: The 20 specification motor is limited and fixed using a plastic bracket, while the motor shaft has a small gear mechanism and is fixed to the front shell with four screws.Shell matching design: The black plastic front shell side is designed with matching serrations; when the small gear driven by the motor rotates, it drives the ball head shell for overall vertical movement.
Effective benefits:
Achieved a stacked design under the premise of insufficient space for the ball head, completing the vertical movement of the ball head.
