ChaoMing: UTW Series – A Masterpiece of Craftsmanship, Channel Best-Seller
Introduction: In 2017, innovation occurred in every aspect of the small pitch LED display industry. Whether from a technological or application perspective, the ultimate goal is to enhance user experience; this diversified and differentiated advantage has become the focus of current and future industry competition. Here, Projection Times has gathered the top ten star products of 2017 worth paying attention to, to share with the industry:
ChaoMing UTW Series
——A Masterpiece of Craftsmanship, Channel Best-Seller
The UTW series is a small pitch LED product launched by ChaoMing for control rooms, conference rooms, and the indoor professional display market, combining economic practicality with high quality. It not only continues the classic design concept of ChaoMing’s first small pitch LED screen, the UTV series, but also adopts a design size of 480*480mm, optimizing the innovative structural design to provide customers with a higher cost-performance ratio and more reliable high-definition display needs. It retains the UTV series’ technologies such as low brightness with high gray levels, high refresh rates, automatic brightness adaptation to the environment, ultra-wide viewing angles, and fanless silent operation. Additionally, the UTW features an intelligent calibration system that quickly aligns the module’s color with the entire screen when replacing modules. The die-cast aluminum material makes the UTW lighter while ensuring higher protection.
◎High Precision
The high-quality die-cast aluminum cabinet (480*480mm) is processed with CNC precision, ensuring high-precision seamless splicing, with flatness and seam less than 0.2mm.
◎Low Brightness High Gray
The UTW further innovates the “low brightness high gray” technology pioneered by the UTV, increasing the gray level at low brightness by 2 bits, with a maximum refresh rate of over 3840Hz, enriching the display’s layering and enhancing color vibrancy.
◎High Stability
All heat-generating components are directly attached to the cabinet body, ensuring uniform heat dissipation and more stable product operation.
◎High Intelligence
Calibration coefficients are stored on the module, and when a new module is replaced, the display automatically activates the calibration coefficients for the new module. The highly integrated intelligent module supports automatic calibration, making operation simpler.
Review:
The UTW series guarantees economic practicality while not forgetting the craftsmanship of high quality, creating a product that balances performance and price for ChaoMing, which quickly became a channel best-seller after its launch, accelerating ChaoMing’s brand building in the mid-to-low-end market. This undoubtedly contributes to the further standardization of the mid-to-low-end market and plays a role in accelerating industry reshuffling and increasing market concentration.
LianJian: V0.8 HD Small Pitch – Ultimate Aesthetics, Extreme Experience

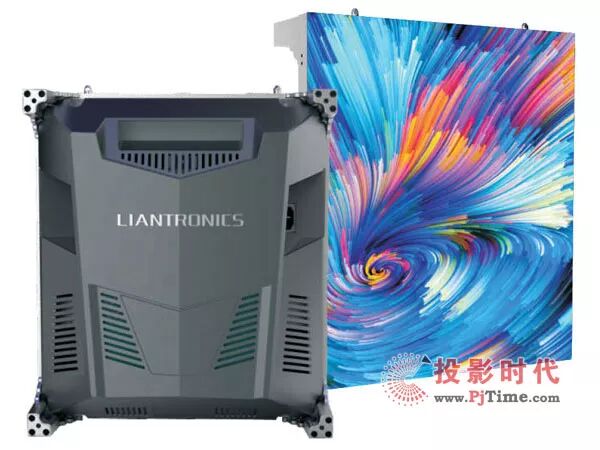

LianJian V0.8 HD Small Pitch
——Ultimate Aesthetics, Extreme Experience
◎Super Exquisite
Seamless, ultra-wide viewing angles, uniform brightness and color without color deviation.
Broadcast-grade color gamut, intelligent adjustable color temperature.
Moderate brightness, no fatigue during long viewing.
Ultra-high refresh display, fast frame switching, eliminating ghosting and trailing.
Display units are flexible and compact, allowing for flat, curved, and smooth splicing.
V-SPWM low brightness high gray lossless technology solves industry challenges, standing out among peers.
V-Smooth precision control technology ensures the screen is flat and seamless.
◎Super Quiet
V-Structure’s new structural design effectively controls temperature rise, ensuring stable operation.
DC low-voltage power supply, natural heat dissipation, fanless, zero noise operation.
High heat dissipation panel processing technology, fast heat dissipation, longer lifespan.
◎Super Economical
Faults require maintenance of only a single LED pixel per module, low maintenance costs, and fast speed.
The innovative high-power centralized power supply design has low loss and ultra-high conversion efficiency, saving 30% energy.
For various space-constrained locations, it occupies less installation space compared to DLP.
With advanced process design layout and material selection, the average lifespan of small pitch screens can reach 6-8 years.
◎Super Stable
V-Stable high-reliability power supply technology, redundant N+1 backup mode, communication-grade power supply, ensuring no power interruption.
Dual signal hot backup, automatic switching in case of faults, ensuring stable and reliable images.
◎Super Safe
Strong and weak current isolation, display units have no strong current, supporting hot-swappable repairs without shutting down the screen, ensuring safety and speed.
Encrypted anti-hacker technology prevents malicious signal interruption and input, ensuring security.
Review:
The LianJian V0.8 ultra-clear LED display screen, independently developed and designed by LianJian, has achieved a breakthrough of 1mm. More importantly, with strong manufacturing capabilities, LianJian has achieved mass production of the V0.8. This is of milestone significance for the industry, making small pitch LED screens comparable in clarity to LCD or DLP, undoubtedly accelerating the entry of small pitch into high-end indoor applications.
AlTai: King Series – Dual Backup, Never Black Screen

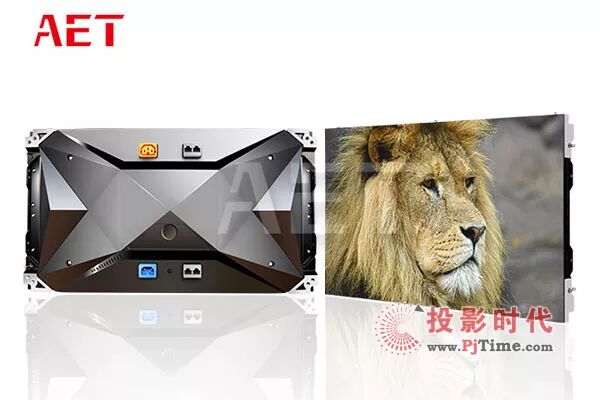

AlTai King Series
——Dual Backup, Never Black Screen
◎Dual Backup, Never Black Screen

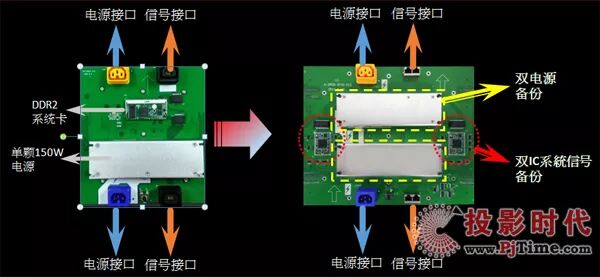

Utilizing an integrated structure with a transfer board, it contains 2 system chips and 2 AC-DC power supplies, creating a robust dual-chip integration that ensures double power longevity and stable signal transmission. If one power or signal fails during use, the backup power and signal will instantly take over, achieving the “never black screen” effect.
◎High Reliability
Equipped with multiple industry-leading technologies and designs, such as high-end small pitch dedicated constant current driver IC design, 16:9 standard display module size, 1.5×1.5mm LED particles, high saturation, high-density lamp boards, and 3840 high refresh rates, ensuring clear details in high-definition images without ripples. Structurally, it contains 4 display modules and 1 transfer board, using patented stable square aviation connectors, with wireless hard connections inside the board, further enhancing the reliability of the equipment.
◎ It can seamlessly connect with user-standard resolution devices at high definition, ensuring accurate color reproduction with low brightness high gray and high color saturation, especially avoiding color deviation errors in fields like meteorology. It supports color gamut space transformation, compensating for white balance matching between cameras and computers, avoiding serious color deviation in high-end conference portraits.
◎ The industry’s first magnetic column bracket design, combining magnetic suction and fixed screw design, achieves seamless splicing, featuring easy and quick installation, with ultra-light and ultra-thin cabinets that meet the diverse installation flexibility needs of high-end indoor users.
Review:
In high-end indoor application fields such as broadcasting, meteorology, and security, high reliability has become a key selection criterion for display devices, and “never black screen” is the ultimate demand for such high-end applications. Through clever designs such as no receiving card, no wiring, dual power supplies, and loop designs, the operational stability of small pitch LED screens is maximized. The launch of the King series has become a sharp sword for AlTai, a new brand, to penetrate the high-end market.
CaiYiDa: Qilin Armor Series – The World’s First Front Installation and Maintenance

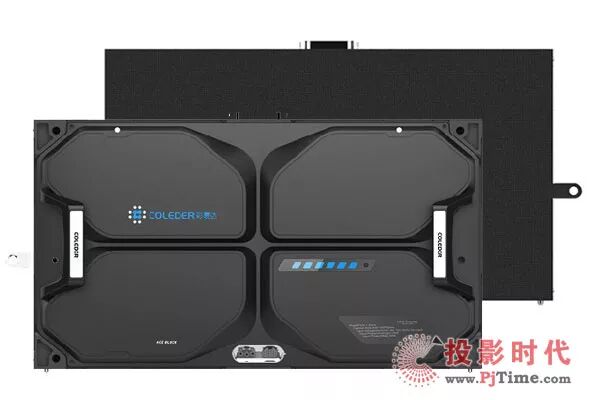

CaiYiDa Qilin Armor (ACE BLOCK) Series
——The World’s First Front Installation and Maintenance
The world’s first front installation and maintenance small pitch LED display.
◎ Saves 80% space compared to similar products.
◎ Wireless connection with zero faults, maintenance-free.
◎ Dual input and dual backup for signal and power, ensuring 7*24 hour reliability.
The CaiYiDa Qilin Armor (ACE BLOCK) series products, with their seamless splicing, free resolution combinations, and low brightness high gray capabilities, adapt to various high-definition image displays and are widely used in control rooms and visual big data comprehensive analysis display systems. Wireless connections, plug-and-play interfaces, and more stable power signals make the product faster and more convenient to use. The front installation and maintenance LED display saves up to 80% space compared to similar products, and installation and maintenance are also faster and more convenient.
Review:
Projects in control centers, conference rooms, etc., not only demand larger sizes for display devices but also have extremely high requirements for deployment and maintenance convenience and flexibility. The innovative front installation and maintenance design of the CaiYiDa Qilin Armor series helps maximize space utilization, making small pitch LEDs an ideal choice for such applications.

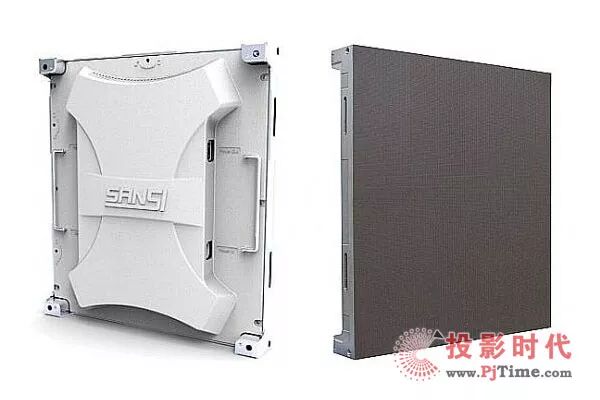

SanSi: VT Series – Aerospace Quality, Trustworthy
SanSi VT Series
——Aerospace Quality, Trustworthy
The SanSi VT series small pitch LED display adopts a 16:9 cabinet design, allowing seamless splicing between cabinets, unrestricted by area, and capable of playing high-definition video sources freely. Additionally, the SanSi VT series small pitch has the following features:
◎ Extremely high refresh rate, smooth and coherent images;
◎ Excellent gray levels at low brightness, with rich and realistic image layers;
◎ Ultra-large and ultra-wide viewing angles, with a larger visible range, ensuring clear and realistic images from any angle;
◎ Equipped with unique image enhancement technology, effectively improving image clarity, with high-speed images remaining smooth without ghosting;
◎ Equipped with gamma correction technology, integrating CPU on the module, enabling point-by-point brightness and color correction technology;
◎ Capable of achieving 3D interaction, integrating 3D, touch screen, and motion-sensing game functions, meeting entertainment and interactivity needs;
◎ Features intelligent brightness adjustment, automatically regulating image brightness based on external light conditions, enhancing viewing comfort, and saving energy.
In addition to the above product features, the SanSi VT series small pitch LED display eliminates redundant structural designs, with internal wiring free from traditional signal flat cables, enhancing reliability and simplicity; internal components adopt a transparent architecture, making it lighter and more effective in heat dissipation; the cabinet uses a multi-core processor architecture, providing stronger and more stable processing capabilities; the entire small pitch system employs a silent design, ensuring safe and comfortable use. The entire VT series small pitch is easy to install and disassemble, allowing for quick on-site operation without the need for professionals, and has passed national CCC certification, with EMC radiation meeting national standards, ensuring quality, safety, and reliability.
Review:
The Shanghai SanSi VT series small pitch LED display is known for its “aerospace quality,” with all components from display units, processors, display control software to backend processing systems being independently developed and produced. Through its unique image processing system, low bandwidth usage, and lossless image processing transmission, it can perfectly report flight data, aircraft positions, and real-time image displays. Additionally, the SanSi control system adopts a distributed architecture and hot backup solutions, allowing for regional fault isolation, preventing widespread failure, and ensuring the small pitch LED display operates flawlessly during long-term, uninterrupted use. For this reason, it has been applied in multiple satellite launch centers such as Xichang in Sichuan, Jiuquan in Gansu, and Wenchang in Hainan.
Voury: Micro Pitch Black Pearl Series – High Definition Seamless, Front and Rear Maintenance
Voury Micro Pitch Black Pearl Series
——High Definition Seamless, Front and Rear Maintenance
◎ First and foremost is safety; Voury LED displays use low-voltage DC power supply, making them very safe to use without causing safety hazards.
◎ Extremely long lifespan; the normal lifespan of Voury micro pitch LED displays is 80,000 to 100,000 hours, working 24 hours a day, their lifespan is nearly 10 years, several times that of traditional displays. This has been verified by countless customers.
◎ In today’s world, where energy conservation is emphasized, Voury has significantly improved energy-saving wiring and packaging in the design of driver chips, using high-brightness LEDs and constant current low voltage technologies, resulting in noticeable energy-saving effects.
◎ To enhance the environmental characteristics of LEDs, Voury uses environmentally friendly materials in its display components, which are recyclable and do not cause pollution or damage to the environment due to extensive use.
◎ High contrast and good color saturation; Voury LED displays use high-brightness chips, thus possessing the advantages of LED light-emitting elements, with pure, soft, and glare-free light. They can be used to enhance image quality and also serve lighting purposes.
◎ Low heat generation; the light-emitting elements of Voury LED displays are LEDs, with a low power of generally 0.04 to 0.08W, resulting in low heat generation. If there is any heat, it is normal as some heat is generated during electrical operation. To address heat issues, Voury is gradually improving heat management to significantly reduce the heat generated during LED display operation.
Review:
The Black Pearl series micro pitch LED display units are Voury’s flagship products defining the micro pitch LED display control system, combining excellent display effects with relatively moderate costs. As technology and industry standards continue to improve, micro pitch LED displays will achieve ultra-clear display effects and stable performance, and the product line will inevitably move towards smaller pitch displays. Voury has been committed to the research, development, and production of smaller pitch products, positioning itself well in the micro pitch field.
Weichuang: VLED COB Small Pitch Splicing Display Unit – Surface Light Source, High Reliability
Weichuang VLED COB Small Pitch Splicing Display Unit
——Surface Light Source, High Reliability
◎High-Density Integrated Packaging Technology
High reliability design: COB displays use chip-on-board technology, eliminating the traditional LED technology’s bracket concept, without electroplating, reflow soldering, or surface mounting processes, greatly enhancing the stability of LED displays. The finished product’s defect rate is less than one-tenth of traditional SMD packaging technology.
Surface light source optical design: COB displays achieve the transition from “point” light sources to “surface” light sources through overall glue encapsulation and high fill factor optical design, resulting in more uniform images without light spots.
Using matte coating technology significantly improves the contrast of the display, greatly eliminating the SMD display’s pixelated appearance, making image displays softer, effectively reducing light intensity radiation, eliminating moiré patterns and glare, and reducing harm to viewers’ retinas. This is beneficial for close-range and long-duration viewing, minimizing visual fatigue.
◎Three-Proof Design
COB displays use panel encapsulation technology, with no exposed lamp legs, resulting in a smooth, seamless surface that is wear-resistant, easy to clean, and features waterproof, dustproof, and anti-static functions, with a front waterproof rating of IP54.
Review:
Since last year, COB packaging has sparked strong interest and heated discussions in the small pitch LED display field. The COB support camp, represented by Weichuang, has brought more possibilities to the small pitch LED technology route and has driven reverse innovation upstream in the LED screen industry, undoubtedly having a significant impact on the overall development of the industry.

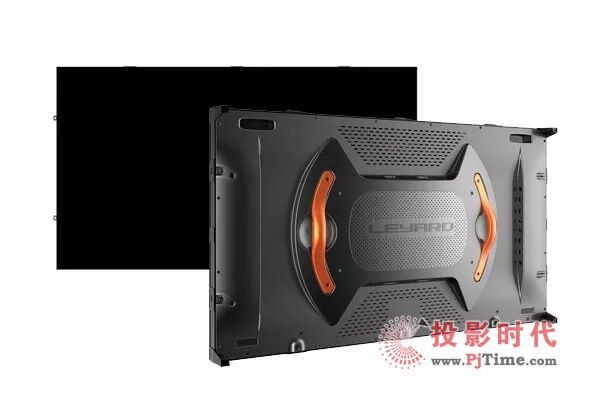

Liard: TWA Series – Lightweight, Flexible, Energy-Saving, and Environmentally Friendly
Liard TWA Series
——Lightweight, Flexible, Energy-Saving, and Environmentally Friendly
Breaking the traditional concept of cumbersome assembly and inadequate aesthetics in large screens, the assembly is lightweight and flexible, achieving true seamless splicing technology, with 0.9mm and 0.7mm ultra-micro pitches presenting ultra-high-definition realistic images. While focusing on display quality, it also features energy-saving and environmentally friendly characteristics, using high-efficiency PFC power supplies to ensure low-energy consumption for high-definition displays. It is widely used in dispatch command control centers in transportation, electricity, energy, military, security, and education.
Review:
The TWA series boasts advanced image processing technology and excellent image quality, with a new generation of chip processing technology, envisioning a comprehensive upgrade. Its unique modular splicing easily resolves the challenges of large-size televisions entering households. It is evident that Liard possesses the strength and determination to meet the high-end civilian market’s diverse choices and demands for large-size televisions.
Aoto: CLD Commercial Display Giant Screen – Ultra Small Pitch, Ultra High Contrast

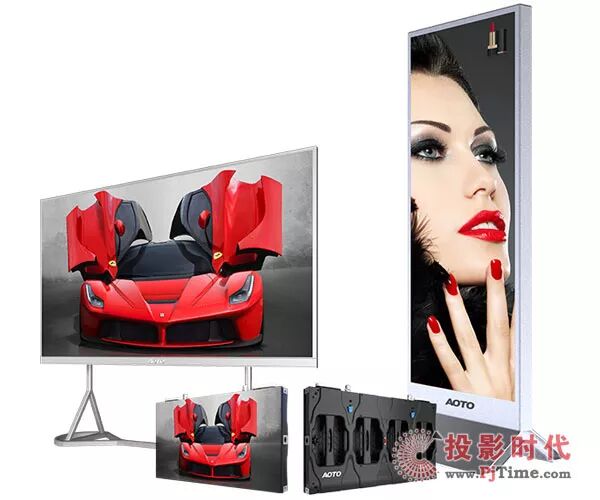

Aoto CLD Commercial Display Giant Screen
——Ultra Small Pitch, Ultra High Contrast
CLD (Commercial LED Display) is a high-expandability display product tailored by Aoto for commercial display applications, used in high-end retail, traffic information, command centers, conference centers, and broadcasting centers. CLD offers impressive, detailed, and realistic ultra-large display images with ultra-small pixel pitches and ultra-high contrast. Its unique display system can combine any display unit, allowing for customized expansion of different sizes based on application scenarios and settings, achieving seamless splicing for an ultra-high-definition giant display experience, restoring an infinite “view.” Coupled with Aoto’s unique 8K control system and HDR, 10-bit color processing technologies, it delivers an immersive visual effect that surpasses imagination, conveying the perfect brand connotation and providing an integrated liberation solution for the commercial display field.
The three main applications of Aoto CLD shape its leading position in commercial display:
◎CLD Whole Machine, 16:9 standard display ratio, paired with universal video interfaces, providing a stable performance display system with exquisite images for government and enterprise conference rooms.
◎CLD Advertising Machine, integrated structural design, complete built-in control system, a movable integrated advertising display solution, making it the best choice for the high-end retail industry.
◎CLD Video Wall, providing an overall seamless splicing ultra-large display screen, allowing all details and data to be fully visible.
Review:
The CLD series features diverse application forms, equipped with Aoto’s independently developed 8K control system and control software, forming an advanced large-screen commercial display solution that meets diverse applications, serving as a sharp sword for Aoto’s entry into high-end applications and showcasing more possibilities for the diversified application of small pitch LEDs in the industry.
Qipu: Leopard Series – Front Maintenance, Dual Backup

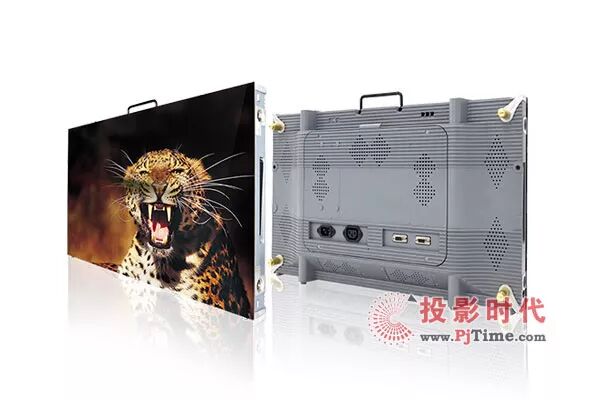

Qipu Leopard Series
——Front Maintenance, Dual Backup
◎Magnetic Suction Structure, Convenient Front Maintenance
The Leopard is the world’s first truly front-maintenance small pitch LED product. Maintenance tools magnetically attach to the module, allowing for horizontal pulling and removal in three seconds, making it convenient and quick. Any module, power supply, or receiving card can be maintained from the front.
Front Installation Design, No Maintenance Channel Required
The entire cabinet can be front-installed, with a front-maintenance wall-mounted LED small pitch solution that does not require a maintenance channel, allowing the LED display to be installed flush against the wall.
Magnetic Suction Module, Quick Installation
The module adopts a magnetic suction structure, allowing for quick removal and installation from the cabinet, five times faster than general cabinet installations on the market.
Wall-Mounted Installation, Perfectly Replacing LCD
Wall-mounted fixed installation directly uses the old structure, perfectly replacing LCDs, saving time, effort, and worry. The 16:9 perfect ratio allows four cabinets to form a 55-inch display, directly using the original LCD video source.
Dual Backup, Work More Securely
Dual backup for power, system cards, and aviation connectors, using dual signal inputs, automatically detecting signal integrity. If one power supply fails, the other signal automatically intervenes, ensuring the LED display operates normally.
Die-Cast Aluminum Cabinet, Ultimate Precision
Ultimate precision, die-cast aluminum cabinet, perfectly seamless, with alignment grooves and positioning pins for fail-safe operation.
Application Fields
P1.2 indoor small pitch LED displays are used in auditoriums, conference rooms, banquets, lobbies, exhibitions, transportation, broadcasting studios, command monitoring, and other venues.
Review:
The Qipu Leopard is a representative work of front maintenance, optimizing design to achieve extreme convenience in installation and maintenance, adding leverage to the competition between small pitch LEDs and LCDs in the commercial display field.
