In our past technical practices, we have discussed how to achieve containerized deployment of the OpenStack cloud platform using the Kolla-Ansible tool. Now, with the dual demands of enterprise users for operational experience and system resilience, this article will integrate the new Skyline component into the Kolla-Ansible toolchain.

Skyline, as the next-generation dashboard for OpenStack, features a more modern web design, optimizing user experience and enhancing functionality. This article also integrates high availability configuration for Kolla-Ansible, making OpenStack more secure and reliable.

1. Environment Preparation

1.1 Role Planning

Node Name	IP Address	Role
controller1	ens192: 192.168.1.1 ens224:	Control Node, Network Node, Deployment Node
controller2	ens192: 192.168.1.2 ens224:	Control Node, Network Node
controller3	ens192: 192.168.1.3 ens224:	Control Node, Network Node
compute1	ens192: 192.168.1.4 ens224:	Compute Node

1.2 Environment Preparation

Network Card Configuration

cat > /etc/sysconfig/network-scripts/ifcfg-ens224 <<EOF
NAME=ens224
DEVICE=ens224
TYPE=Ethernet
ONBOOT="yes"
BOOTPROTO="none"
EOF
# Reload ens34 network card device
nmcli con reload && nmcli con up ens224

Set Hostname

hostnamectl set-hostname controller1 && bash
hostnamectl set-hostname controller2 && bash
hostnamectl set-hostname controller3 && bash

Configure Cluster SSH Trust Relationship

ssh-keygen
ssh-copy-id 192.168.1.1
ssh-copy-id 192.168.1.2
ssh-copy-id 192.168.1.3

Kernel Parameter Optimization

echo 'modprobe br_netfilter' >> /etc/rc.d/rc.local
chmod 755 /etc/rc.d/rc.local
modprobe br_netfilter
echo 'net.ipv4.ip_forward = 1' >> /etc/sysctl.conf
echo 'net.bridge.bridge-nf-call-iptables=1' >> /etc/sysctl.conf
echo 'net.bridge.bridge-nf-call-ip6tables=1'  >>/etc/sysctl.conf
sysctl -p

2. Deploy Kolla Ansible

Install Dependencies

yum install -y python-devel libffi-devel gcc openssl-devel libselinux-python python2-pip  python-pbr epel-release ansible

Configure Aliyun pip source

mkdir ~/.pip
cat > ~/.pip/pip.conf << EOF
[global]
trusted-host=mirrors.aliyun.com
index-url=https://mirrors.aliyun.com/pypi/simple/
EOF

Install Kolla-Ansible

OpenStack and Kolla version correspondence:

https://releases.openstack.org/teams/kolla.html

pip install setuptools==22.0.5
pip install pip==20.3.4
pip install wheel
pip install kolla-ansible==9.1.0 --ignore-installed PyYAML

mkdir -p /etc/kolla
chown $USER:$USER /etc/kolla
cp -r /usr/share/kolla-ansible/etc_examples/kolla/* /etc/kolla
cp /usr/share/kolla-ansible/ansible/inventory/* .
cat << EOF | sed -i '/^\[defaults\]$/ r /dev/stdin' /etc/ansible/ansible.cfg
host_key_checking=False
pipelining=True
forks=100
EOF

Configure Host Inventory File Based on Deployment Scenario

[root@controller1 ~]# cat multinode
# These initial groups are the only groups required to be modified.
# The additional groups are for more control of the environment.
[control]
# These hostname must be resolvable from your deployment host
controller1
controller2
controller3
# The above can also be specified as follows:
#control[01:03]     ansible_user=kolla
# The network nodes are where your l3-agent and loadbalancers will run
# This can be the same as a host in the control group
[network]
controller1
controller2
controller3
[compute]
compute1
[monitoring]
controller1
controller2
controller3
# When compute nodes and control nodes use different interfaces,
# you need to comment out "api_interface" and other interfaces from the globals.yml
# and specify like below:
#compute01 neutron_external_interface=eth0 api_interface=em1 storage_interface=em1 tunnel_interface=em1
[storage]
[deployment]
localhost       ansible_connection=local...

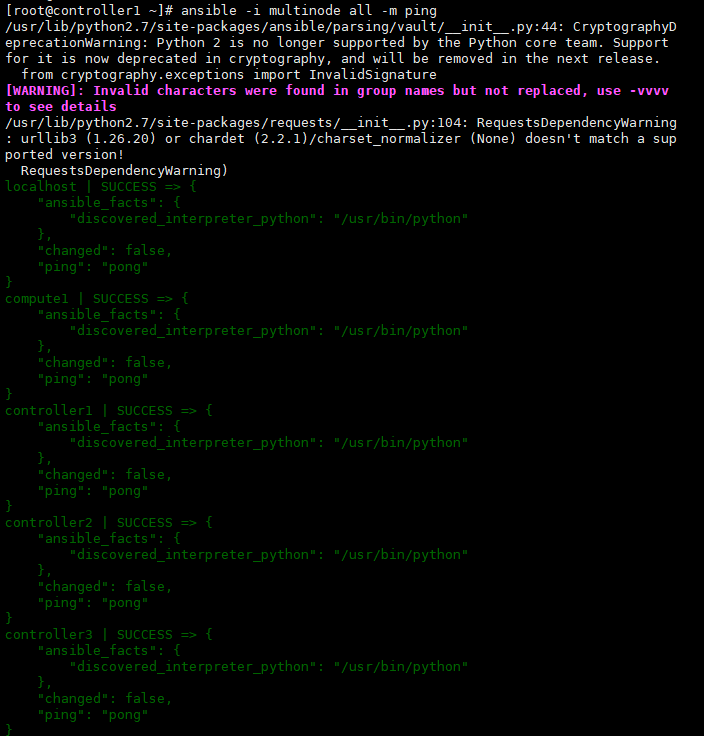

Check if inventory configuration is correct

ansible -i multinode all -m ping

Generate Kolla Passwords

kolla-genpwd
# Modify keystone_admin_password to customize, it will be used when logging into the dashboard
sed -i 's#keystone_admin_password:.*#keystone_admin_password: kolla#g' /etc/kolla/passwords.yml
cat /etc/kolla/passwords.yml | grep keystone_admin_password

Configure global.yml

[root@controller1 ~]# cat /etc/kolla/globals.yml | grep -v '^#'| grep -v '^$'
---
kolla_internal_vip_address: "192.168.1.100"
network_interface: "ens192"
kolla_external_vip_interface: "{{ network_interface }}"
api_interface: "{{ network_interface }}"
storage_interface: "{{ network_interface }}"
cluster_interface: "{{ network_interface }}"
swift_storage_interface: "{{ storage_interface }}"
swift_replication_interface: "{{ swift_storage_interface }}"
tunnel_interface: "{{ network_interface }}"
dns_interface: "{{ network_interface }}"
neutron_external_interface: "ens224"
neutron_plugin_agent: "openvswitch"
keepalived_virtual_router_id: "66"
kolla_base_distro: "centos"
kolla_install_type: "source"
openstack_release: "train"
enable_neutron_provider_networks: "yes"
docker_registry: "kolla-register.ssturing.com"
docker_namespace: "kolla"
enable_grafana: "yes"
enable_prometheus: "yes"
enable_neutron_vpnaas: "yes"
enable_neutron_fwaas: "yes"
enable_neutron_qos: "yes"
enable_neutron_agent_ha: "yes"
# Parameter description:
kolla_internal_vip_address: Virtual IP (VIP) for high availability of control nodes, used for OpenStack API service high availability
keepalived_virtual_router_id: Virtual router ID for Keepalived, used for VIP heartbeat detection
enable_neutron_agent_ha: Enable Neutron Agent high availability to prevent single point of failure in network services
openstack_release: Specify the OpenStack version to be deployed as Train
neutron_plugin_agent: Use Open vSwitch as the underlying network plugin for Neutron
enable_neutron_provider_networks: Support Provider Networks (e.g., VLAN, Flat networks)
enable_neutron_vpnaas, enable_neutron_fwaas, enable_neutron_qos: Enable advanced features such as VPN as a service, firewall as a service, and quality of service
enable_grafana, enable_prometheus: Integrate Grafana and Prometheus for monitoring visualization
docker_registry: Specify the private Docker image repository address for pulling Kolla images
docker_namespace: Namespace for the Docker image repository

Deploy OpenStack

# Pre-configuration, install docker, docker sdk, disable firewall, configure time synchronization, etc.
kolla-ansible -i ./multinode bootstrap-servers
# Pre-deployment environment check, may report docker version errors, can be ignored
kolla-ansible -i ./multinode prechecks
# Pull images, this step can be omitted, it will automatically pull by default
kolla-ansible -i ./multinode pull
# Execute actual deployment, pull images, run corresponding component containers
kolla-ansible -i ./multinode deploy
# Generate openrc file
kolla-ansible post-deploy

OpenStack Client

docker run -d --name client \
  --restart always \
  -v /etc/kolla/admin-openrc.sh:/admin-openrc.sh:ro \
  -v /usr/share/kolla-ansible/init-runonce:/init-runonce:rw \
  kolla-register.ssturing.com/kolla/centos-binary-openstack-base:train sleep infinity

Skyline

skyline.yaml template file:

https://docs.openstack.org/skyline-apiserver/latest/configuration/settings.html#configuration-settings

docker exec -it client bash
source /admin-openrc.sh
openstack service list
openstack user create --domain default --password-prompt skyline
User Password: # Custom password here
skyline
Repeat User Password: # Custom password here
skyline
openstack role add --project service --user skyline admin
# View database password
cat /etc/kolla/passwords.yml | grep ^database
docker exec -it  mariadb  bash  # Operate MariaDB
[(none)]> CREATE DATABASE IF NOT EXISTS skyline DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON skyline.* TO 'skyline'@'localhost' IDENTIFIED BY 'skyline';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON skyline.* TO 'skyline'@'%'  IDENTIFIED BY 'skyline';
mkdir -p /etc/skyline /var/log/skyline /var/lib/skyline /var/log/nginx /etc/skyline/policy
vim /etc/skyline/skyline.yaml and modify the corresponding lines...
database_url: mysql://root:[email protected]:3306/skyline
debug: true
log_dir: /var/log/skyline
prometheus_endpoint: http://192.168.1.100:9091
keystone_url: http://192.168.1.100:5000/v3/
system_project: service
system_user_password: 'skyline'...
If you see the following log information, it indicates that the bootstrap server initialization was successful
[root@controller1 ~]# docker run -d --name skyline_bootstrap -e KOLLA_BOOTSTRAP="" -v /etc/skyline/skyline.yaml:/etc/skyline/skyline.yaml -v /var/log:/var/log --net=host kolla-register.ssturing.com/99cloud/skyline:latest
706c39c1eb7194581d1093e7f413057ee59b547c681c0d138530b7657922c810
[root@controller1 ~]# docker logs skyline_bootstrap
+ echo '/usr/local/bin/gunicorn -c /etc/skyline/gunicorn.py skyline_apiserver.main:app'
+ mapfile -t CMD
+ tail /run_command
+ xargs -n 1
+ [[ -n 0 ]]
+ cd /opt/skyline_apiserver/
+ make db_sync
alembic -c skyline_apiserver/db/alembic/alembic.ini upgrade head
2025-05-28 03:52:51.542 | INFO     | alembic.runtime.migration:__init__:205 - Context impl MySQLImpl.
2025-05-28 03:52:51.542 | INFO     | alembic.runtime.migration:__init__:208 - Will assume non-transactional DDL.
2025-05-28 03:52:51.550 | INFO     | alembic.runtime.migration:run_migrations:619 - Running upgrade  -> 000, init
+ exit 0
docker rm -f skyline_bootstrap
docker run -d --name skyline --restart=always -v /etc/skyline/skyline.yaml:/etc/skyline/skyline.yaml -v /var/log:/var/log --net=host kolla-register.ssturing.com/99cloud/skyline:latest

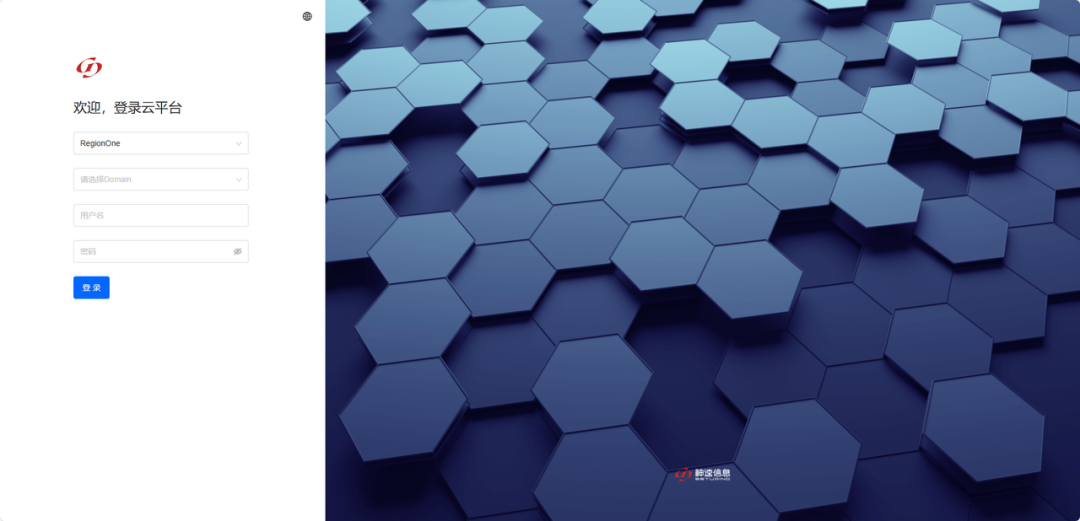

Access Skyline

Address: http://192.168.1.100:9999

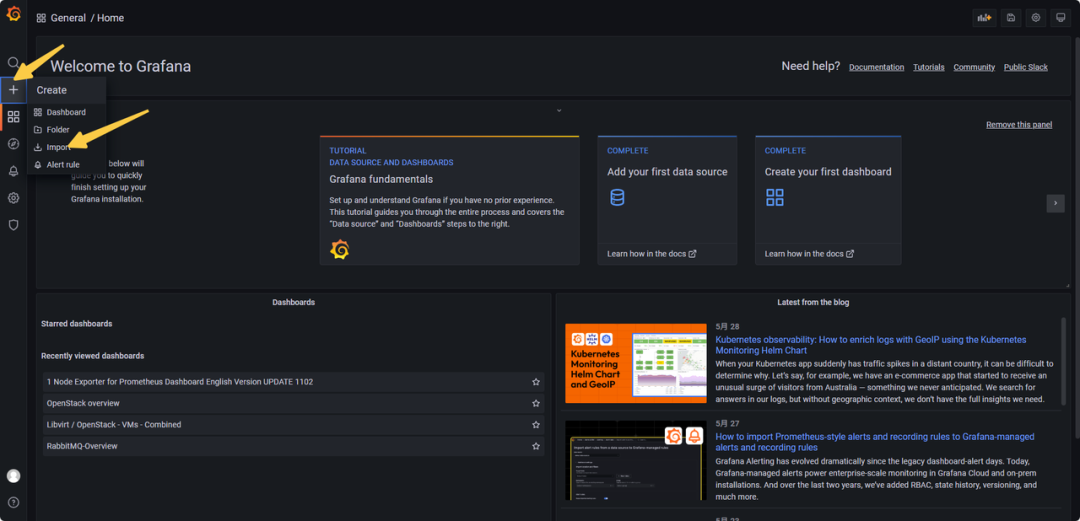

Grafana

Address: http://192.168.1.100:3000

Username: admin

Password: cat /etc/kolla/passwords.yml | grep ^grafana_admin

Visit https://grafana.com/grafana/dashboards to find corresponding dashboard templates, such as OpenStack Dashboard: 21085

For more information on OpenStack optimization deployment tools, please follow this public account for future updates.
