1. Hardware

4G Module: Hezhao Air780EMain Control: NUC980

Main Control Pin: Using USB1

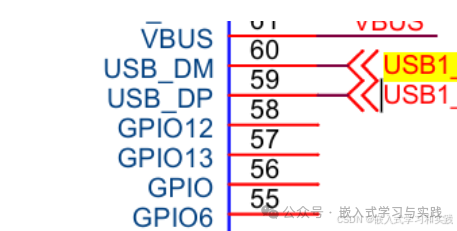

4G Module Pins:

2. 4G Module

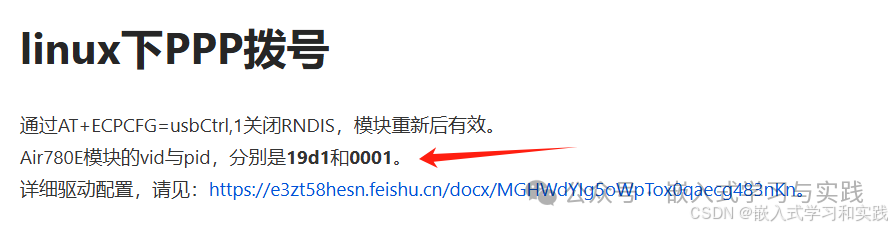

The VID and PID of the 780ER module are 19d1 and 0001 respectively.

3. Kernel Driver Configuration

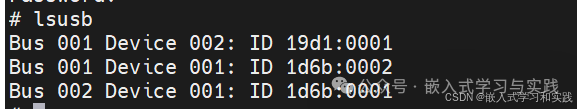

Before adding the USB driver, check the original development board’s USB information.

3.1 Driver Modification

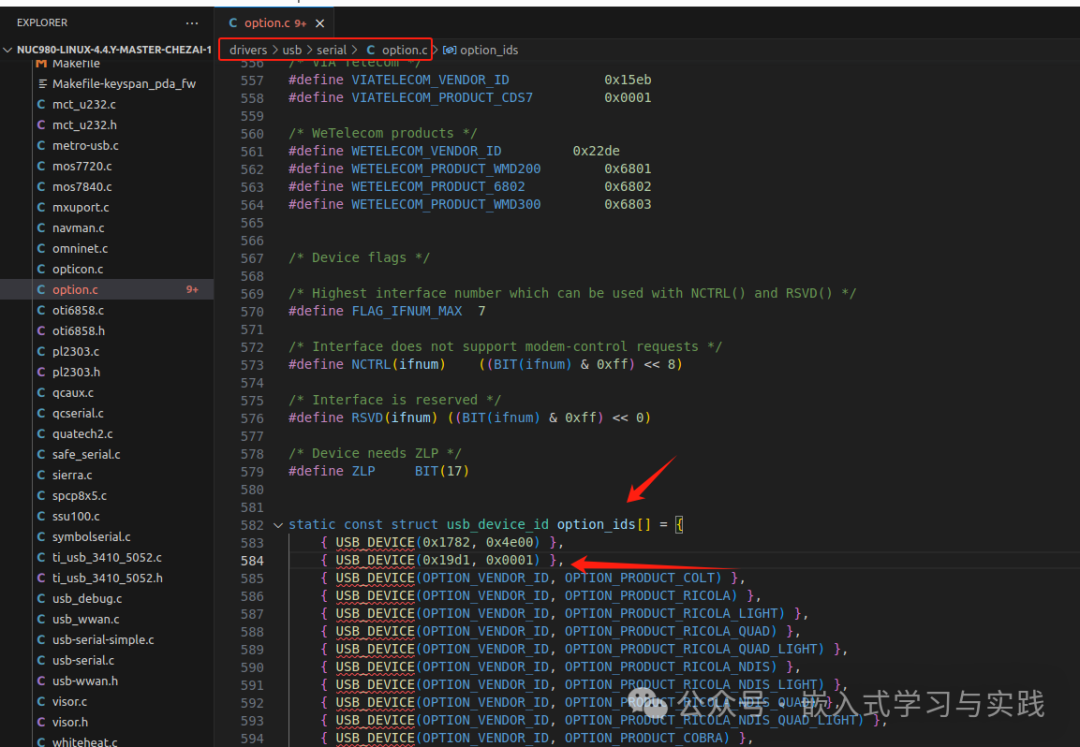

Add VID and PIDTo modify the driver for the Air780E under Linux, you need to add the corresponding Vendor ID and Product ID.Open the filedrivers/usb/serial/option.c in the Linux kernel and add the following information:

static const struct usb_device_id option_ids[] = {
	{ USB_DEVICE(0x1782, 0x4e00) },//Air720U
	{ USB_DEVICE(0x19d1, 0x0001) },//Air780E
	....
};

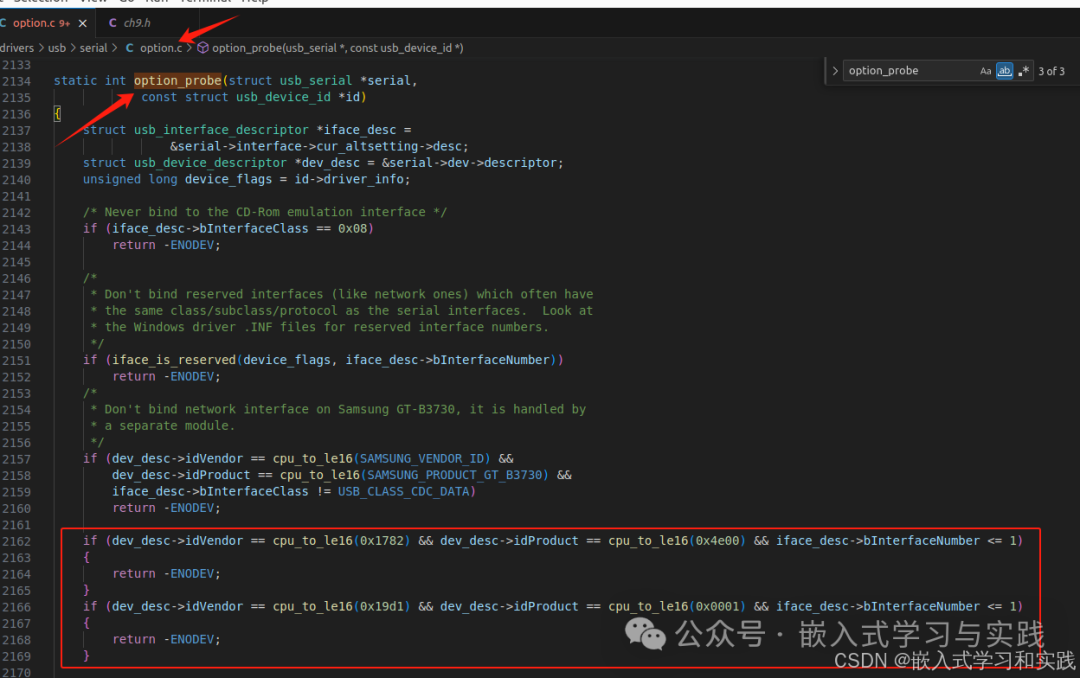

static int option_probe(struct usb_serial *serial, const struct usb_device_id *id) {
	....
	if (dev_desc->idVendor == cpu_to_le16(0x1782) && dev_desc->idProduct == cpu_to_le16(0x4e00) && iface_desc->bInterfaceNumber <= 1) {
		return -ENODEV;
	}
	if (dev_desc->idVendor == cpu_to_le16(0x19d1) && dev_desc->idProduct == cpu_to_le16(0x0001) && iface_desc->bInterfaceNumber <= 1) {
		return -ENODEV;
	}
	....
}

Save the changes.

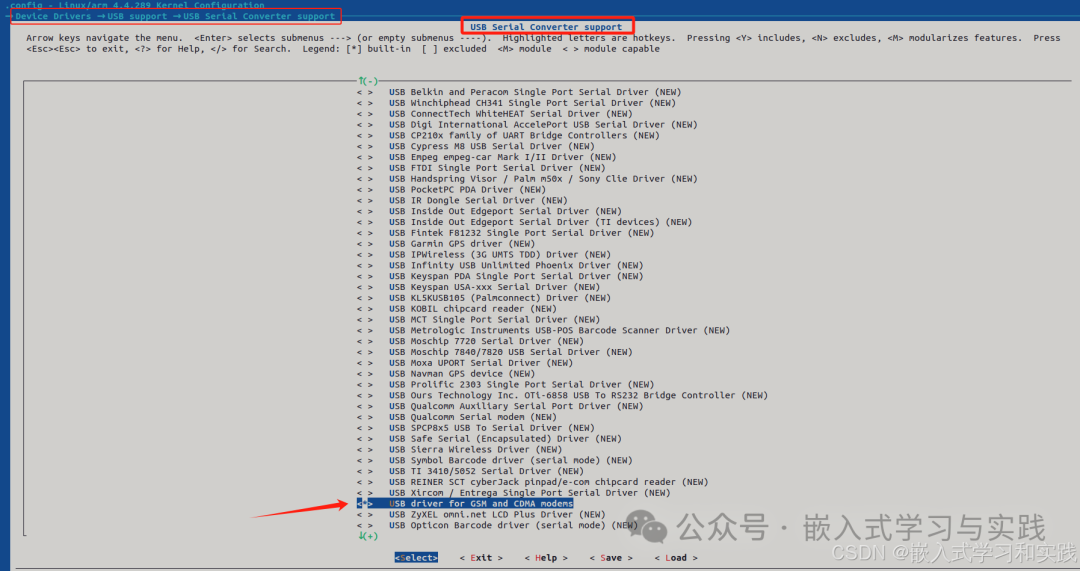

Kernel Configuration

make menuconfig

Compile

make
make uImage

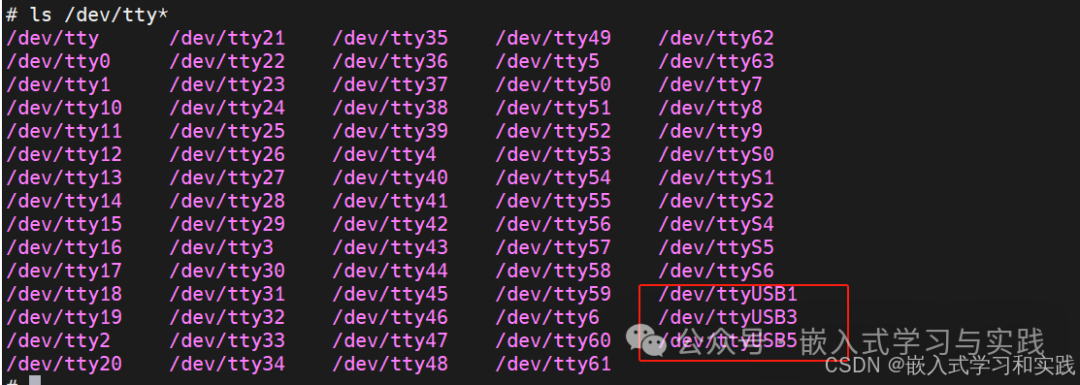

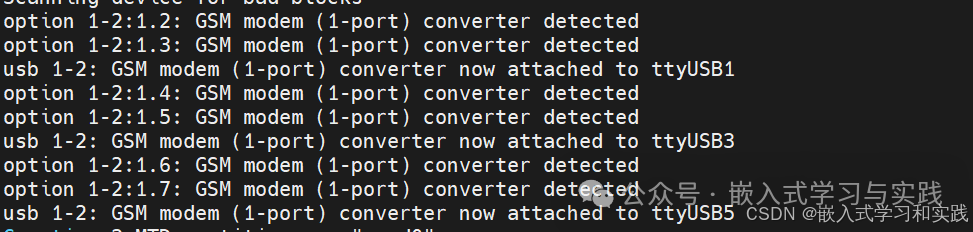

Download the generated image to the development board, power off, and restart the device.During the boot process, the prompts will appear:After entering the system, use the command to check:

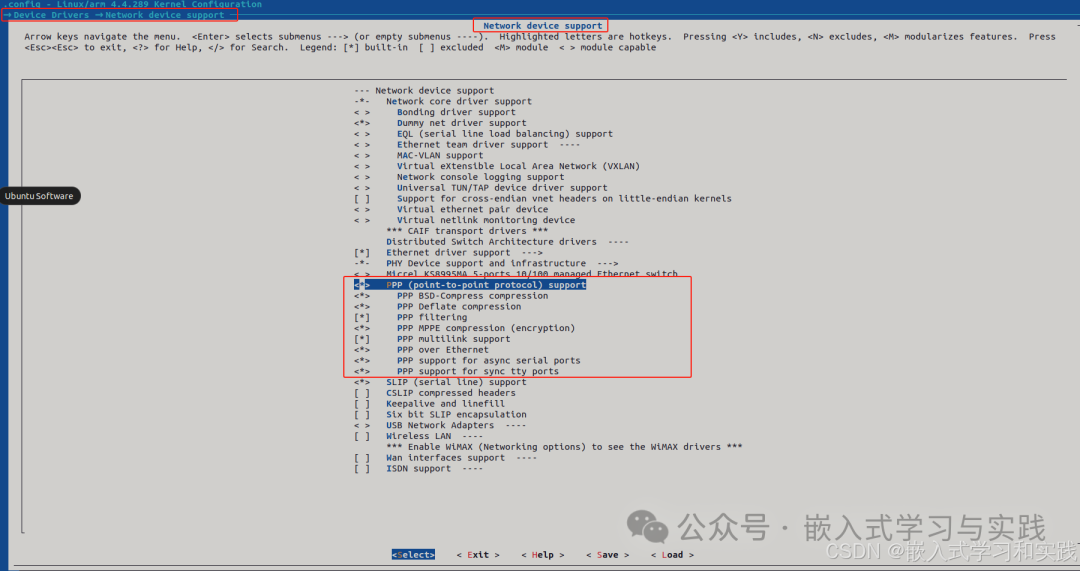

3.2 Compile PPP

Link: Arm Linux Compile PPP Software Package – 4G Module Network Test

https://mp.weixin.qq.com/s/rugnhlPNb8cU2UBy5RN0GA

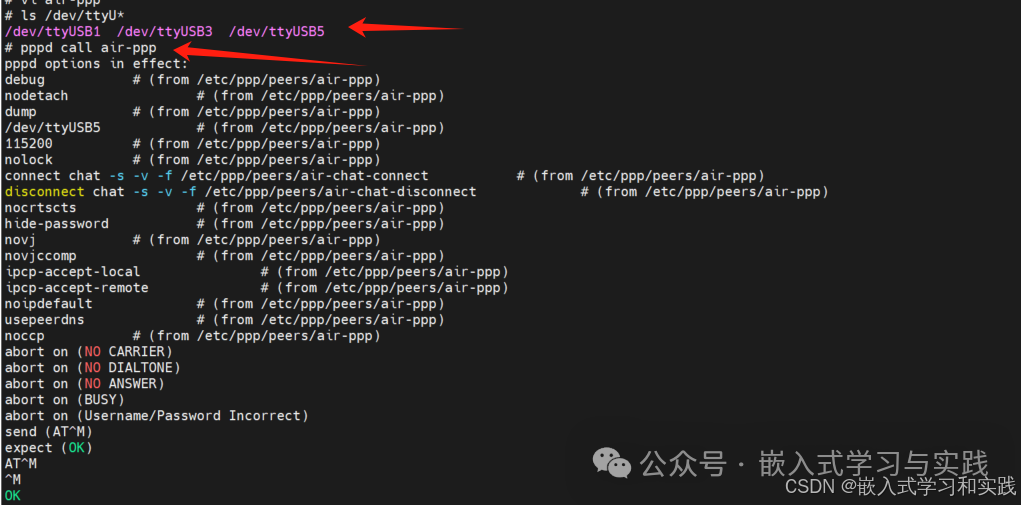

4. Testing

TestingDial-up successful.

Note:After downloading the generated image to the development board, make sure to power off and restart the device.

Reference: Air780ER USB Internet Access Quick Start
