In the SPI tolerance settings, differential volume and area tolerances are established for different component types (such as R/C, IC, BGA, Chip, etc.), primarily based on the following core principles:
1. Component Structure and Soldering Characteristics
●
R/C Components (Resistors/Capacitors):
○
Simple structure, small pad size, and high precision requirements for solder volume.
○
Volume tolerance set at 160%/60% (USL/LSL): Allows for a certain redundancy in solder volume to accommodate automated placement deviations, but the upper limit strictly prevents bridging.
○
Area tolerance 150%/60%: Ensures even pad coverage to avoid cold solder joints.
●
IC Components (Integrated Circuits):
○
Dense pins require precise solder paste coverage on pads.
○
Volume tolerance 150%/60%: Balances pin spacing to prevent excessive solder paste leading to short circuits.
○
Area tolerance 140%/60%: Prioritizes ensuring coverage at the edges of pads to reduce open circuit risks.
●
BGA Components (Ball Grid Array):
○
Solder joints are hidden beneath the package and rely on solder balls for self-alignment.
○
Volume/Area tolerance both set at 150%/60%: Strictly controls solder volume to ensure consistent solder ball height after reflow, avoiding cold solder joints or collapse.
○
Focus on monitoring area tolerance to ensure solder paste pattern integrity and prevent misalignment leading to soldering failures.
2. Functional Reliability and Defect Risks
●
Critical Components (e.g., BGA, high pin count ICs):
○
Directly affect product functionality, requiring stricter tolerances (e.g., BGA area USL 150%) to reduce misjudgment and ensure soldering reliability.
●
General Components (e.g., R/C):
○
Single function allows for appropriate relaxation of tolerances (e.g., volume LSL 60%) to improve inspection efficiency, tolerating slight solder volume deviations.
3. Manufacturing Processes and Equipment Capabilities
●
Placement Accuracy:
○
For high-accuracy placement lines, tolerances can be tightened (e.g., IC volume USL 150%); conversely, they can be relaxed to reduce false positives.
●
SPI Equipment Resolution:
○
Optimize volume tolerances for small components (e.g., Chip) using the equipment’s high-precision detection capabilities; for large components (e.g., BGA), combine area tolerances to monitor overall printing quality.
4. Industry Experience and Quality Objectives
●
Refer to IPC Standards (e.g., solder paste printing volume deviation recommendation ±20%) as a benchmark.
●
Combine historical defect data (e.g., the proportion of excess solder leading to short circuits, and insufficient solder leading to cold solder joints) to dynamically adjust thresholds.
●
For example, setting the R/C volume LSL to 60% instead of the theoretical value of 50% is based on the experience that slight insufficient solder can still meet soldering strength in actual production.
5. Quality and Efficiency Balance Strategies
●
Priority Rules: Volume is prioritized for monitoring (reflecting actual solder volume), with area as a secondary measure (ensuring printing shape), to avoid misjudgment based on a single dimension.
●
Dynamic Optimization: For example, allowing a relaxed area tolerance for Chip components (150%/60%) to permit slight deviations to improve detection pass rates, while still strictly controlling critical areas.
6. Correlation Explanation of SPI Detection Parameters and Tolerance Settings
SPI detection parameters (such as volume, area, offset, height, edge clarity, bridging, etc.) are closely related to tolerance settings, directly affecting defect determination and production efficiency. The specific correlations are as follows:
1. Volume Tolerance
●
Related Factors:
○
The amount of solder paste directly affects soldering strength and reliability.
○
Excessive volume may lead to bridging or solder balls, while insufficient volume may lead to cold solder joints.
●
Basis for Tolerance Setting:
○
Component Type: High-reliability components like BGA require strict control (e.g., ±15%), while general components (e.g., R/C) can be relaxed to ±20%.
○
Process Capability: If the printer’s accuracy is high (e.g., CPK≥1.33), tolerances can be tightened; otherwise, they need to be relaxed.
○
Defect Risks: If historical data indicates a high proportion of insufficient solder leading to cold solder joints, the lower limit tolerance can be appropriately increased (e.g., from 50% to 60%).
●
SPI Parameter Interaction: Volume detection must be combined with area and height parameters to avoid misjudgment based on a single dimension (e.g., volume meets standards but height is insufficient).
2. Area Tolerance
●
Related Factors:
○
Reflects the uniformity of solder paste coverage on pads, affecting the soldering contact area.
○
Insufficient area may lead to open circuits, while excessive area may cause bridging.
●
Basis for Tolerance Setting:
○
Pad Design: High-density components (e.g., IC) require strict area tolerances (e.g., ±10%) to prevent pin-to-pin short circuits.
○
Printing Process: When the template opening design accuracy is high, area tolerances can be tightened; if there is edge blurriness, they need to be relaxed.
●
SPI Parameter Interaction: Area detection is often combined with offset and edge clarity, for example, if the area meets standards but the offset exceeds limits, it is still deemed a defect.
3. Offset (Position) Tolerance
●
Related Factors:
○
The deviation in solder paste printing position directly affects placement accuracy, leading to component misalignment and poor soldering.
●
Basis for Tolerance Setting:
○
Component Size: Small components (e.g., 0201) require strict offset tolerances (e.g., ≤0.1mm), while larger components can be relaxed.
○
Placement Equipment Accuracy: If the placement machine’s accuracy is high (e.g., ±0.05mm), offset tolerances can be tightened.
●
SPI Parameter Interaction: Offset detection must be combined with volume and area; for example, if the offset exceeds limits but the solder volume meets standards, it still needs to be deemed a defect.
4. Height Tolerance
●
Related Factors:
○
The consistency of solder paste thickness affects the shape of solder joints after reflow; excessive thickness may lead to solder balls, while insufficient thickness may lead to cold solder joints.
●
Basis for Tolerance Setting:
○
Component Type: BGA requires strict height control (e.g., ±20μm) to ensure solder ball coplanarity.
○
Template Thickness: Thin templates (e.g., 0.1mm) require tighter height tolerances, while thicker templates can be relaxed.
●
SPI Parameter Interaction: Height detection is often combined with volume; for example, if the height meets standards but the volume is insufficient, it is deemed a solder deficiency.

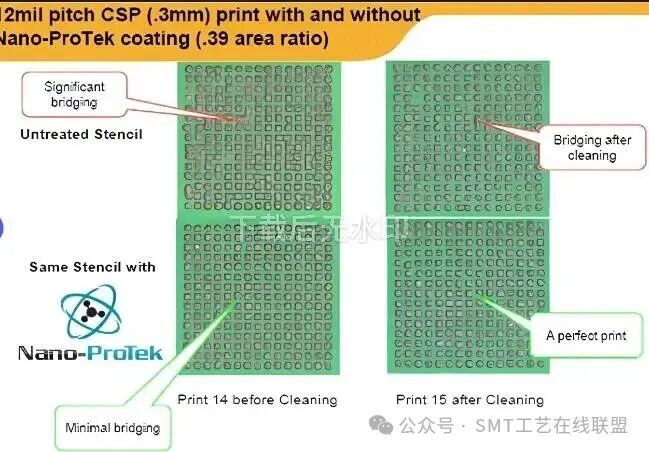

5. Edge Clarity and Bridging
●
Related Factors:
○
Blurry edges may lead to solder paste diffusion or bridging risks, affecting electrical isolation.
●
Basis for Tolerance Setting:
○
Pin Spacing: Fine-pitch components (e.g., 0.5mm pitch) require strict edge clarity thresholds (e.g., gray scale gradient ≥20%).
○
Solder Paste Type: High-viscosity solder paste tends to pull tips, requiring increased edge detection sensitivity.
●
SPI Parameter Interaction: Edge detection is linked to bridging thresholds; for example, if edges are blurry and spacing is insufficient, bridging risk is prioritized.
6. Voids and Dents
●
Related Factors:
○
Voids within solder paste or surface dents affect soldering integrity, leading to thermal stress concentration.
●
Basis for Tolerance Setting:
○
Process Stability: If the printing process fluctuates significantly (e.g., humidity affecting solder paste flow), the void detection threshold needs to be increased.
○
Product Reliability Requirements: High-reliability fields such as automotive electronics require strict void area ratios (e.g., ≤5%).
●
SPI Parameter Interaction: Void detection must be combined with volume and area to avoid overall judgment failure due to local defects.
7. Dynamic Adjustment and Closed-Loop Optimization
●
Threshold Adjustments Under Process Parameter Fluctuations:
○
For example, when increased printing speed leads to larger volume deviations, dynamically relax the volume tolerance to ±12% while also increasing the edge clarity threshold.
●
SPC and AI Interaction:
○
Utilize Statistical Process Control (SPC) to analyze the range of process parameter fluctuations and automatically adjust upper/lower tolerance limits (e.g., μ±3σ).
○
Introduce AI algorithms to compensate for detection deviations caused by equipment aging or environmental changes in real-time.
●
Quality and Efficiency Balance:
○
Optimize thresholds based on trial production data; for example, parameters with high false positive rates can be relaxed, while critical defect parameters should be tightened.
Conclusion: Differential tolerance settings integrate component characteristics, soldering risks, process capabilities, and quality costs. Through experimental validation and data closed-loop optimization, product quality is ensured while maximizing detection efficiency, reducing false positives and overkill. The correlation between SPI parameters and tolerance settings requires continuous dynamic adjustments to ensure thresholds meet both process capabilities and reliability requirements.
Supplementary Notes
●
The Coupling Relationship Between SPI Detection Parameters and Process Parameters:
○
Process parameters such as printing speed, squeegee pressure, and template thickness directly affect SPI detection parameters (e.g., volume, area, height), requiring the establishment of parameter-threshold mapping tables through DOE experiments.
●
Threshold Layered Management:
○
Set different tolerance levels based on product grades (e.g., consumer electronics, automotive electronics); for example, automotive electronics require volume tolerances of ±8% and offsets of ≤10μm.
●
Risk Warning Mechanism:
○
When process parameters (e.g., pressure, speed) deviate from the set range, automatically trigger dynamic threshold adjustments and alarms; for example, if pressure exceeds ±20%, relax volume tolerance to ±15%.
Conclusion: SPI tolerance settings must be based on component characteristics and process capabilities, combined with real-time detection data and historical defect analysis, to dynamically optimize the threshold ranges of each detection parameter, achieving the best balance between quality and efficiency.
Notes:
1.
Supplementary content analyzes the correlation between detection parameters and tolerances, dynamic adjustments, and process coupling from various perspectives;
2.
Emphasizes that threshold settings must be combined with specific process scenarios and provides quantitative suggestions to enhance practical guidance;
3.
New sections on dynamic adjustments and closed-loop optimization are added to adapt to smart manufacturing needs.
Further refinement of parameter-threshold models can be based on actual production line equipment capabilities, product types, and process windows.
