The simulation of drone swarm flight replicates the dynamic process of multiple drones flying in coordination through a software platform, covering core aspects such as single-drone dynamics modeling, group communication interaction, cooperative control strategies, and environmental disturbance simulation. Its value lies not only in validating the effectiveness of group control algorithms (such as formation maintenance and task allocation) but also in avoiding collision risks and hardware wear issues in physical experiments, providing safe and efficient testing and optimization solutions for actual drone swarm operations (such as formation performances, collaborative mapping, and emergency rescue). Especially when combined with the previously studied motor dynamics characteristics of quadcopters, the simulation process must accurately map details such as motor speed response and torque output to ensure that the simulation results are highly consistent with real flight scenarios.

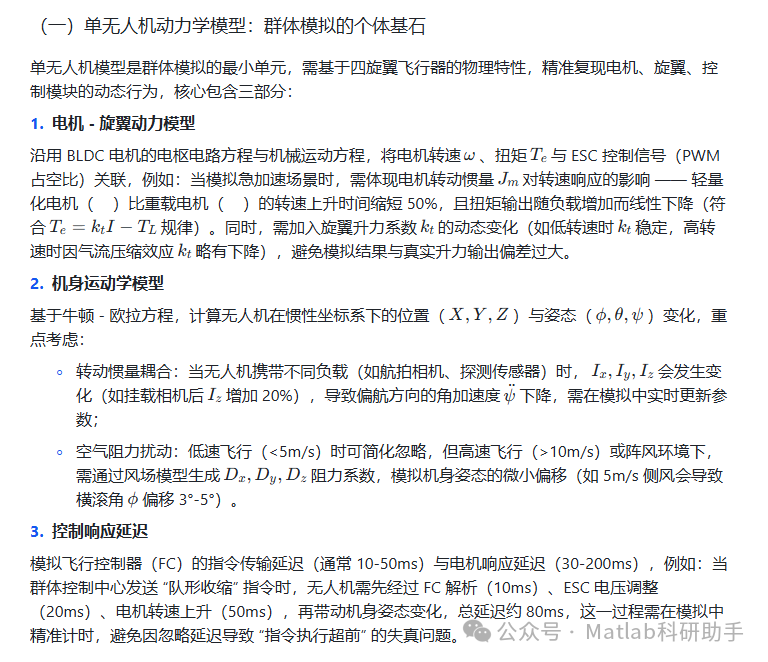

1. Core Elements of Drone Swarm Flight Simulation

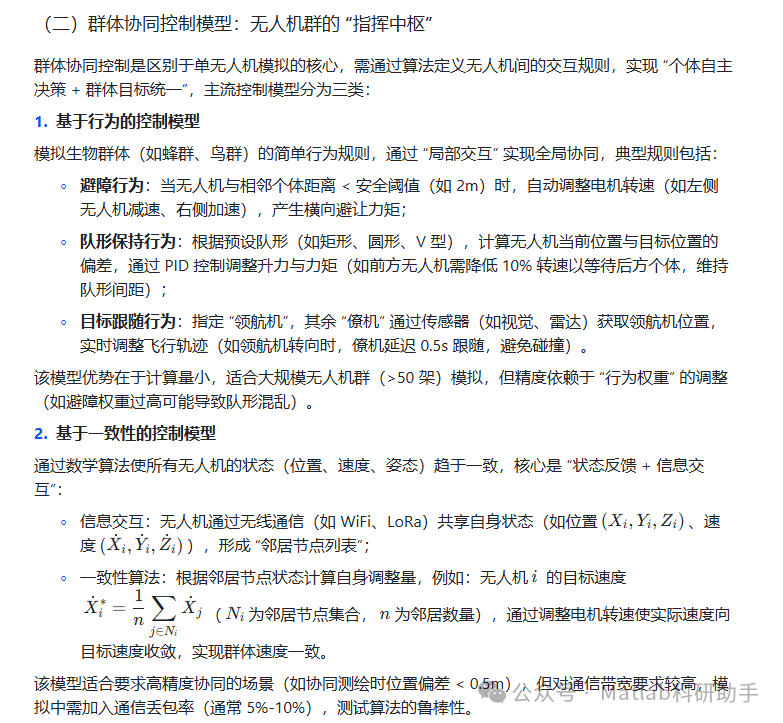

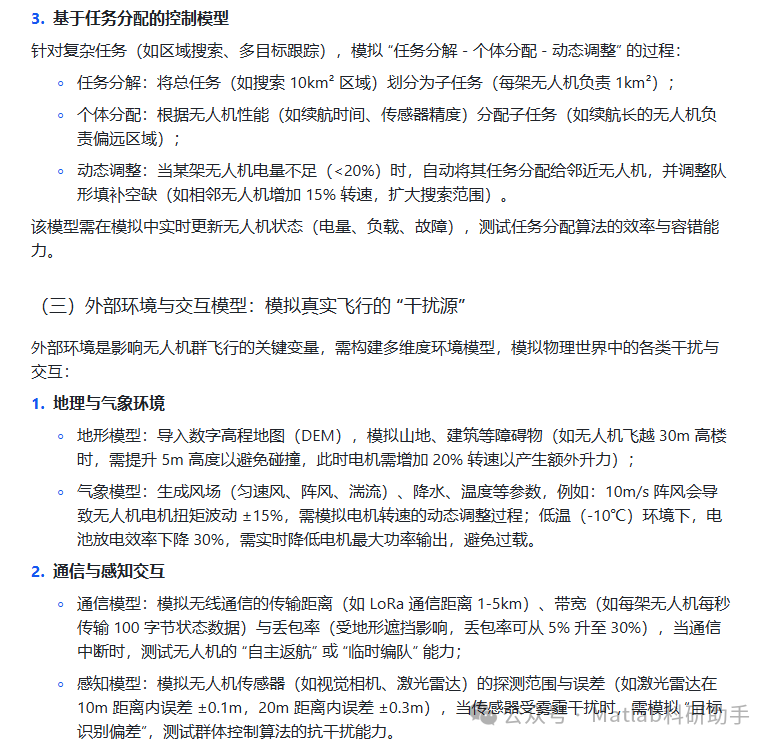

The accuracy of drone swarm flight simulation depends on the refined modeling of three major elements: “individual dynamics,” “group cooperation rules,” and “external environmental interference.” Together, they form the foundational framework of the simulation system:
2. Technical Architecture of Drone Swarm Flight Simulation

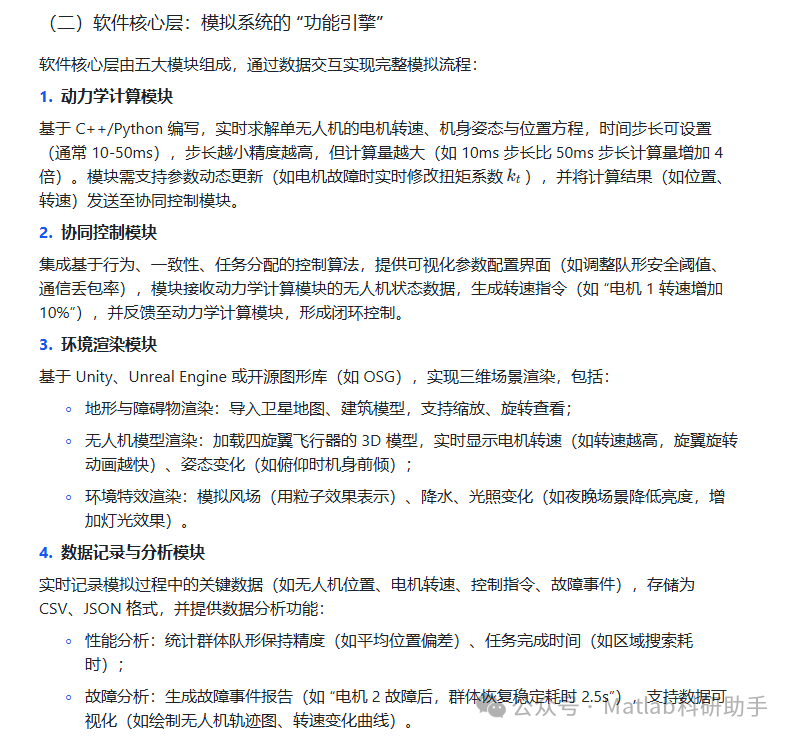

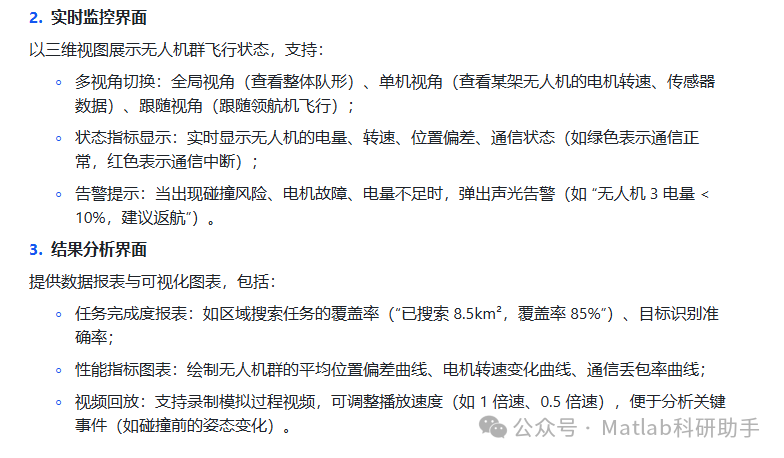

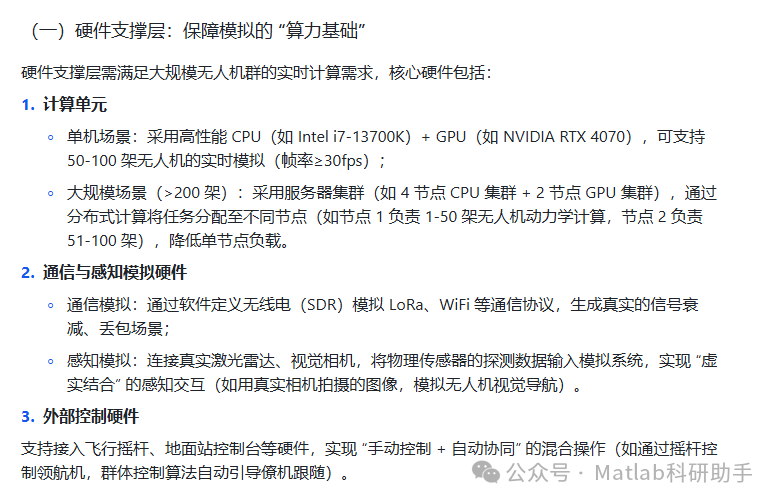

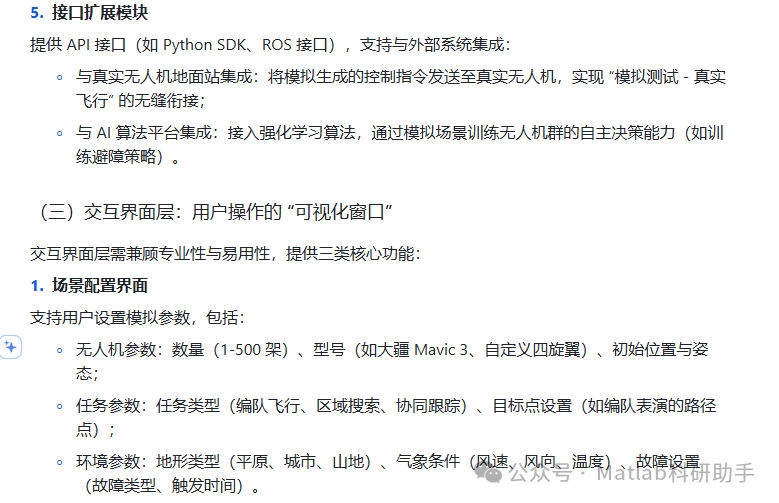

The drone swarm flight simulation system must be implemented through a three-layer architecture of “hardware support – software modules – interactive interface,” with each layer working in coordination to ensure the real-time performance, accuracy, and operability of the simulation:
3. Typical Scenarios and Applications of Drone Swarm Flight Simulation
Drone swarm flight simulation has been widely applied in research, industry, and emergency fields, with significant differences in the demands for simulation accuracy and functionality across different scenarios. Below are three typical scenarios:
(1) Formation Performance Simulation: Validating Visual Effects and Safety
Formation performance is the most intuitive application scenario for drone swarms (such as National Day celebrations, commercial performances), and the simulation must focus on:
- Formation Switching Accuracy
Simulating the switching process of the drone swarm between different formations (such as text, graphics) to validate the smoothness and accuracy of formation switching (e.g., stroke error of the text “China” < 0.5m). For example: when switching from “circle” to “pentagram,” the cooperative control algorithm must calculate the target position for each drone, generate speed commands, and the simulation must record the switching time (e.g., 3-5s) and position deviation (e.g., average deviation < 0.3m) to ensure clear visual effects during the actual performance.

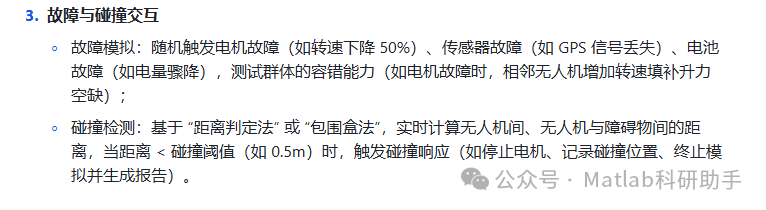

- Collision Risk Avoidance
Simulating high-density formations (e.g., drone spacing of 1-2m) to test the effectiveness of obstacle avoidance algorithms. For example: randomly setting one drone to “suddenly decrease speed,” the simulation must observe whether adjacent drones can adjust their trajectories within 0.5s to avoid collision (e.g., the right drone increases speed by 5%, the left drone decreases speed by 5%, creating lateral avoidance distance).
- Battery and Endurance Management
Simulating the complete process of formation performance (e.g., takeoff – formation display – landing), recording the battery consumption of each drone (e.g., 30% battery consumption for a 10-minute performance), ensuring all drones can safely return home, avoiding “emergency landings” due to insufficient battery.
(2) Collaborative Mapping Simulation: Enhancing Data Collection Efficiency and Accuracy
In geographic mapping and disaster assessment scenarios, drone swarms need to collaboratively complete large-scale data collection, and the simulation must focus on:
- Area Coverage and Data Overlap Rate
Simulating the grid coverage of the target area by the drone swarm, validating the overlap rate of mapping data (e.g., overlapping 15%-20% of the mapping area of adjacent drones, ensuring no gaps in data stitching). For example: 10 drones collaboratively mapping a 10km² area, the simulation must calculate the flight paths of each drone, recording the completion time (e.g., 30 minutes) and overlap rate (e.g., average overlap rate of 18%), optimizing the path planning algorithm.
- Sensor Data Fusion
Simulating the collaborative operation of different types of sensors (such as optical cameras, LiDAR, thermal imaging devices) to validate data fusion accuracy.

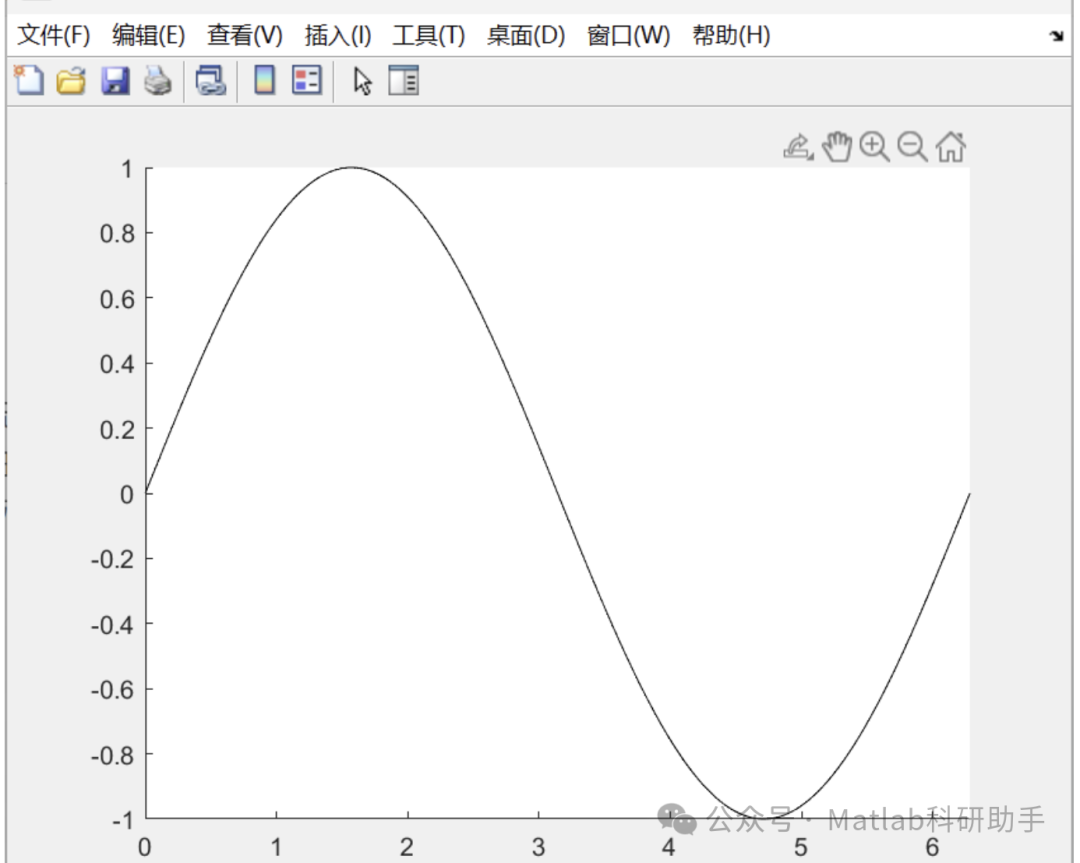

⛳️ Operation Results
