Built-in 128MB DDR3L SDRAM reduces system costs and supports 30fps video/animation and camera display at resolutions up to 1280×800.
May 19, 2025, Beijing, China – Global semiconductor solution provider Renesas Electronics (TSE: 6723) today announced the launch of a new high-performance microprocessor (MPU) – RZ/A3M, based on the RTOS-based RZ/A series, to meet the growing demand for advanced human-machine interface (HMI) systems. The new RZ/A3M MPU is equipped with large-capacity SDRAM, SRAM, and support for RTOS, facilitating seamless execution of complex tasks and real-time graphics display. The RZ/A3M can drive video and camera output on large LCD panels with resolutions up to 1280×800, fully meeting the display requirements of next-generation home appliances, industrial and office automation equipment, healthcare devices, and building control systems.
Similar to the existing RZ/A3UL, the RZ/A3M features a 64-bit Arm® Cortex®-A55 core with a maximum operating frequency of 1GHz and an on-chip SRAM capacity of 128KB. By integrating high-speed 128MB DDR3L-SDRAM in a single system-in-package (SiP), this product eliminates the complex task of designing high-speed signal interfaces to connect external memory.
Renesas RZ/A3M HMI MPU with built-in 128MB DDR3L, supporting RTOS
Reducing system costs with built-in memory and simplified PCB design
The design of the RZ/A3M aims to reduce system costs and accelerate the development process. It supports external NAND and NOR flash memory via QSPI for data and code storage. Large-capacity NAND flash, used in conjunction with drivers, provides a cost-effective option for memory expansion. Additionally, the RZ/A3M’s BGA package features a unique pin layout, with two main rows located at the outer edge, simplifying PCB routing and enabling low-cost, double-sided printed circuit board designs, significantly saving costs and time. The built-in memory reduces wiring complexity and minimizes layout constraints, thereby simplifying PCB design.
Daryl Khoo, Vice President of the Embedded Processing Marketing Division at Renesas, stated: “I am excited to see the launch of the RZ/A3M. This is the first RZ series product with built-in large-capacity memory, designed to achieve high-performance video/animation HMI functionality while maintaining a low overall system cost. Furthermore, we are committed to providing a highly responsive user experience, delivering high-quality real-time graphics display, balancing design convenience and cost-effectiveness, and helping customers quickly build advanced HMI solutions.”
Comprehensive Development Environment
Renesas offers a comprehensive HMI development environment, including a Flexible Software Package (FSP), evaluation kits, development tools, and sample software. GUI solutions from partner companies such as LVGL, Crank, SquareLine Studio, and Envox will be compatible with the RZ/A3M, promoting rapid HMI graphics development.
Key Features of RZ/A3M
Arm Cortex-A55 CPU with a maximum operating frequency of 1GHz
128KB SRAM with error correction capability, built-in 128MB DDR3L SDRAM
Graphics capabilities: LCD controller supporting resolutions up to 1280×800 (WXGA), parallel RGB and MIPI-DSI (4-channel) interfaces, 2D graphics rendering engine
Peripheral functions: QSPI interface for serial NOR/NAND flash, SPI, I2C, SDHI, USB2.0, I2S, temperature sensor, timers
Package: 244-pin LFBGA, 17mm x 17mm, pin pitch 0.8mm
Renesas Comprehensive HMI Solutions
Renesas offers a wide range of human-machine interface (HMI) solutions, covering 32-bit RX and RA MCU product families to 64-bit RZ product families supporting 4K displays. The RTOS-based RZ/A series MPUs feature fast boot capabilities, with the new RZ/A3M providing high-performance HMI functionality while maintaining the same ease of use as MCUs thanks to its built-in large-capacity memory.

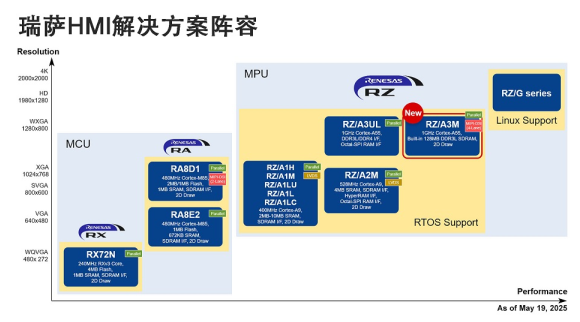

Renesas HMI Solutions Lineup
Successful Multi-HMI Product Portfolio
Renesas has launched a multi-HMI solution portfolio that combines the new RZ/A3M MPU with many compatible devices in its product lineup, bringing HMI functionality to home appliances. These “successful product combinations” are based on mutually compatible and seamlessly collaborating devices, featuring technically validated system architectures that provide optimized low-risk designs to accelerate time-to-market. Renesas has now introduced over 400 “successful product combinations” based on various products in its lineup, enabling customers to accelerate the design process and bring products to market faster. For more information, please visit: renesas.com/win.
Supply Information
The RZ/A3M is now in mass production, along with FSP, evaluation kits, and development tools. For more information, please visit: https://www.renesas.com/products/microcontrollers-microprocessors/rz-mpus/rza3m-powerful-1ghz-mpus-built-ddr3l-sdram-high-definition-hmi.
