The oscilloscope has always been Tektronix’s flagship product; the world’s first oscilloscope was invented by Tektronix. After more than 70 years of development, Tektronix has now become a leading company in the oscilloscope industry, with a comprehensive range of digital oscilloscopes, basic oscilloscopes, mixed domain oscilloscopes, and high-performance oscilloscopes.
With the development of semiconductor and electronic technologies, engineers are facing increasingly complex testing challenges. To address this, Tektronix conducted extensive surveys with engineers to understand the testing challenges and difficulties they encounter in contemporary designs. Combining this with their latest technology, they launched the new 3 Series and 4 Series oscilloscopes last year. Now, the next-generation 3 Series MDO oscilloscope has been upgraded again, with hot-selling oscilloscopes continuously enhanced,making the 1GHz spectrum analyzer function standard, and the 1GHz passive probe becoming standard for 1GHz oscilloscopes, doubling the overall performance of the testing system, covering high-speed bus signals, high-speed voltage ripple signals, and fast rise time testing of third-generation semiconductor GaN, making routine EMI testing and interference location no longer a hassle. Tektronix specially designed the 3 Series MDO oscilloscope for the IoT industry, particularly suitable for small and medium-sized enterprises and educational customers.

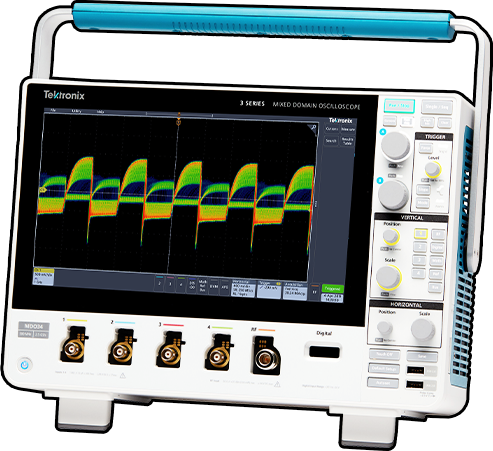

Experience high-definition large displays on a compact and portable oscilloscope. The award-winning touch interface turns your learning curve into a step function, and the unique built-in spectrum analysis function makes it very suitable for RF analysis. The 1GHz bandwidth model comes standard with 2 or 4 1GHz passive probes, doubling the overall performance of the 1GHz oscilloscope testing system,with rise times improved from 700ps to 350ps, allowing testing of signals at dozens or even hundreds of MHz high-speed signals.
Tektronix’s new generation of mid-range oscilloscopes, the 3/4/5/6 series, meets customers’ future changing needs. The strategic positioning of the 3 Series MDO upgrade is to provide the best experience for customers, enhancing the product value for small and medium-sized enterprises and educational customers, while also enhancing the product itself and the competitiveness of customer innovation. The real value for customers does not come from endlessly lowering product prices, but from bringing higher value to customers.
The 3 Series MDO mixed domain oscilloscope is an efficient debugging tool, offering better stability, more reliable performance, and high industry recognition. Whether you are a spectrum analyzer expert or a casual user, you can get the built-in spectrum analyzer to work immediately. Unlike other oscilloscopes that provide FFT ‘spectrum analysis’, the 3 Series has a true spectrum analyzer built-in.
This upgrade also includes 11 software features
Adding 5 performance improvements:
-
Automatic trigger saving/time actions (saving time for customers)
-
Added one-click automatic save all button (saving time for customers)
-
Multi-functional knob A/B adapted for waveform navigation (compatible with touch screen operation)
-
Supports LabView and IVI drivers (easy for user programming control)
-
Supports Kickstart (broader product compatibility)
Plus 6 new features:
-
Search and analysis speed significantly improved (up to 85% improvement)
-
Automatic test items increased from 4 to 8 (+1 power analysis test consistent with MDO4KC)
-
AFG option – added AM, FM modulation capabilities (especially for educational customers)
-
Spectrum analysis option – added RF peak search list summary (such as EMI testing)
-
Waveform saving report – added S/N and BW information (making reports easier)
-
Enhanced compatibility with TDS3K programming, making it easier to upgrade programs to the new 3 Series
Innovation knows no bounds, and the challenges faced by engineers continue to evolve. Tektronix drives continuous innovation and application refinement in oscilloscope technology. As a Trouble Shooter and Problem Solver, Tektronix is born for engineers, providing complete solutions with the new generation of mid-range oscilloscopes, suitable for every engineer. Its user interface sets a new standard in the industry, allowing faster and easier answers whether debugging serial buses or designing high-speed digital standards.
