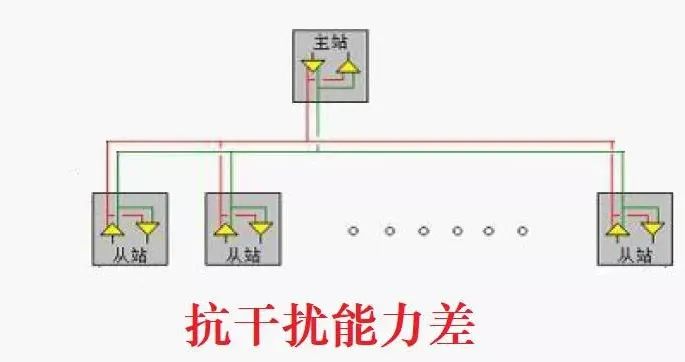

Connection Method 1: Not recommended, interference leads to continuous bugs.

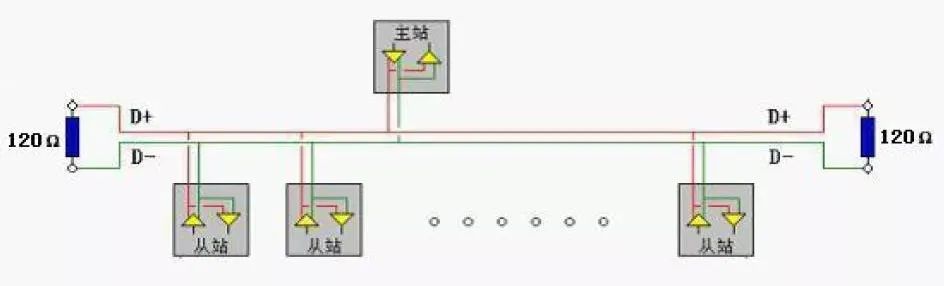

Solution 2: Connect the passive termination resistor as shown in the figure: recommended.

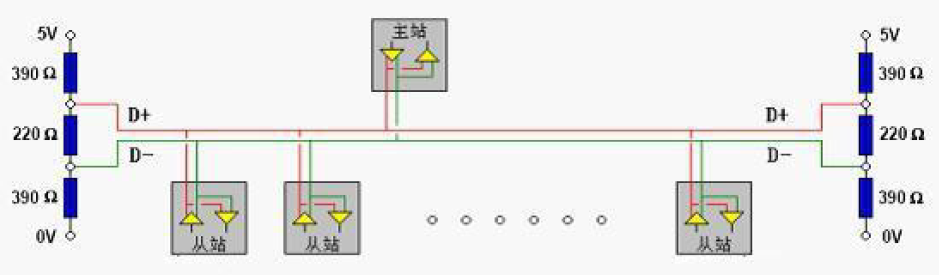

Connection Method 3: Connect 5V active termination resistor:
Incorrect Connection Method:

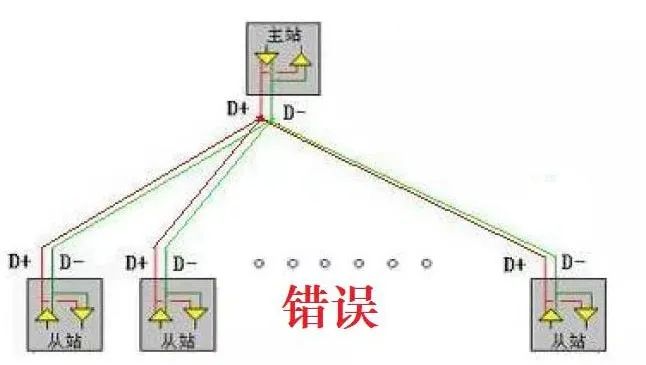

Error 1: The bus must be connected in a linear fashion, not in a star configuration.
Error 2: Missing termination resistors.
