MCoreDump – Embedded System Core Dump Component | Technical Collection

Open Source Repository Link:https://github.com/Rbb666/MCoreDump

Platforms verified for this component: Renesas RA6M3 (Cortex-M4), Renesas RA6M4 (Cortex-M33) are both operational, for more platforms please follow the open-source repository.

Table of Contents

Component Introduction

Main Features

Application Scenarios

Supported Architectures

System Architecture

Directory Structure

Configuration Options

Quick Start

API Reference

• Main Functions

• Detailed Explanation of Output Modes

Advanced Configuration

Debug Tool Usage

How to Adapt to New Architectures

Performance Characteristics

Troubleshooting

Contribution Guidelines

License

Component Introduction

MCoreDump (mini-coredump) is a core dump component designed specifically for embedded systems, capable of automatically generating standard ELF format core dump files during hard faults, assertion failures, or other exceptional conditions for offline debugging and fault analysis.

Main Features

• 🔧 ELF Format Compatibility: Generates standard ELF format core dump files, compatible with debugging tools such as GDB and objdump

• 💾 Multiple Output Modes: Supports serial output, memory buffer storage, and filesystem saving

• 🏗️ Multi-thread Support: Capable of capturing state information of all threads in a multi-threaded environment

• ⚡ Power Loss Retention: Data in memory mode can be retained after power loss and reboot (requires hardware support)

• 🛡️ Fault Safety: Uses static memory allocation to avoid dynamic memory usage during faults

• 📊 Complete State Capture: Includes complete system state such as registers, stack information, and memory data

Application Scenarios

• Embedded System Debugging: Locating hard faults, stack overflows, memory access errors, etc.

• Product Quality Assurance: Fault recording and analysis in production environments

• Firmware Development: Debugging and optimizing multi-threaded programs

• On-site Fault Analysis: Remote fault diagnosis after device deployment

Supported Architectures

• Armv7-M

• Armv8-M

System Architecture

MCoreDump Component Architecture┌─────────────────────────────────────────────────────────┐│                    User Layer API                            │├─────────────────────────────────────────────────────────┤│  mcd_faultdump() │   mcd_test   │  mcd_dump_filesystem  |├─────────────────────────────────────────────────────────┤│                    Core Engine Layer                             │├─────────────────────────────────────────────────────────┤│ mcd_mini_dump() │ mcd_multi_dump() │ mcd_gen_coredump() │├─────────────────────────────────────────────────────────┤│                    Output Adaptation Layer                             │├─────────────────────────────────────────────────────────┤│       Serial Output    │    Memory Buffer    │      Filesystem        │├─────────────────────────────────────────────────────────┤│                    Platform Abstraction Layer                             │├─────────────────────────────────────────────────────────┤│             RT-Thread Adaptation  │  Architecture Specific Code                │├─────────────────────────────────────────────────────────┤│                      Hardware                                │└─────────────────────────────────────────────────────────┘

Directory Structure

The MCoreDump component adopts a modular design:

MCoreDump/├── README.md                   # Component documentation├── Kconfig                     # Configuration option definitions├── SConscript                  # Build script│├── inc/                       # Header files directory│   ├── mcd_cfg.h              # Configuration file and OS abstraction layer│   ├── coredump.h             # Main API declarations│   └── mcd_elf_define.h       # ELF format definitions│├── src/                       # Source code directory│   ├── coredump.c             # Core dump generation engine│   ├── faultdump.c            # Fault handling and output management│   └── arm/                   # ARM architecture specific code│       ├── mcd_arm.c          # ARM architecture implementation (unified ARM32/64)│       └── mcd_arm_define.h   # ARM architecture definitions│├── arch/                      # Architecture abstraction layer│   ├── mcd_arch_interface.h   # Architecture interface definitions│   └── armv7m/                # ARM Cortex-M specific implementation│       ├── armv7m.c           # ARMv7-M register collection│       └── registers.h        # Register structure definitions│├── osal/                     # Operating system adaptation layer│   └── rtthread.c             # RT-Thread specific adaptation code│└── example/                   # Example code    └── mcd_example.c          # Usage examples and test commands

Directory Description

Core Module

• inc/ – Common header files

• mcd_cfg.h: Configuration management and OS abstraction, supports multi-OS compatibility

• coredump.h: Main API and data structure definitions

• mcd_elf_define.h: ELF file format related definitions

• src/ – Core implementation

• mcoredump.c: Core dump generation engine, handles ELF format output

• faultdump.c: Fault handling entry, manages multiple output modes

• arm/: ARM architecture specific implementation (unified management of ARM32/ARM64)

Architecture Support

• arch/ – Architecture abstraction layer

• mcd_arch_interface.h: Defines architecture-independent interfaces

• armv7m/: ARM Cortex-M (ARMv7-M) specific implementation

• Register definitions, exception handling, stack frame parsing

System Adaptation

• osal/ – Operating system adaptation layer

• rtthread.c: RT-Thread system thread management and memory operation adaptation

Example Code

• example/ – Usage examples

• Basic API usage demonstration

• MSH debug commands

• Fault trigger tests

Key File Descriptions

File	Function	Features
mcd_cfg.h	OS abstraction and configuration management	Supports multiple OS, unified API interface
mcoredump.c	Core ELF file generation	ELF format handling, memory layout
faultdump.c	Fault handling entry	Multiple output modes, user API
mcd_arm.c	ARM architecture implementation	Unified ARM32/64 support
armv7m.c	Cortex-M specific code	Register collection, exception handling
rtthread.c	RT-Thread adaptation	Thread information, system calls
mcd_example.c	Usage example	MSH commands, test cases

Configuration Options

Kconfig Configuration

Use the RTT ENV tool menuconfig to enter RT-Thread Components → tools packages → MCoreDump for configuration:

Configuration Item	Description	Default Value
PKG_USING_MCOREDUMP	Enable MCoreDump component	n
PKG_USING_MCOREDUMP_ARCH_ARMV7M	Support ARM Cortex-M architecture	y
PKG_MCOREDUMP_MEMORY_SIZE	Memory buffer size	8192 bytes
PKG_USING_MCOREDUMP_FILESYSTEM	Enable filesystem support	n
PKG_MCOREDUMP_FILESYSTEM_DIR	Filesystem save directory	“/sdcard”
PKG_MCOREDUMP_FILESYSTEM_PREFIX	File name prefix	” core_”
PKG_USING_MCOREDUMP_EXAMPLE	Enable example code	y

Memory Requirements

• Minimum RAM: Approximately 10KB (including buffer and code)

• Flash Usage: Approximately 15-20KB (depending on configuration)

Quick Start

Adaptation Work

GCC Toolchain

It is necessary to add the following code to the project’s linker script (the noinit section needs to be added before the bss section):

/* Section for persistent data that survives reset (no load, no init) */.noinit (NOLOAD) : ALIGN(4){    . = ALIGN(4);    __noinit_start__ = .;    *(.noinit)    *(.noinit.*)    . = ALIGN(4);    __noinit_end__ = .;} > RAM1__bss_start = .;.bss :{    ...} > RAM1__bss_end = .;

Keil Toolchain (ac5/ac6)

/* 0x2400 is the reserved memory space for coredump */RW_IRAM2 (0x20000000 + (0x00020000 - 0x2400)) UNINIT 0x2400  {    *(.bss.NoInit)}

CPU Exception Section

• For cortex-m3, please refer to the content of this PR for modifications:https://github.com/RT-Thread/rt-thread/pull/10619

• For cortex-m4, please refer to the content of this PR for modifications:https://github.com/RT-Thread/rt-thread/pull/10618

• For cortex-m33, please refer to the content of this PR for modifications:https://github.com/RT-Thread/rt-thread/pull/10624

1. Enable Component

Enable MCoreDump in the RT-Thread project through menuconfig:

# Update package indexpkgs --upgrade-force# Enter configuration menu menuconfig# Navigate to: RT-Thread online packages → tools packages → MCoreDump

2. Compile and Run

# Compile project scons# Flash to target board# Start system, MCoreDump will automatically initialize

3. Basic Usage

The system starts normally and will automatically print MCoreDump related information, including: core dump cache starting address, buffer size

Demonstration of the first startup without triggering an exception will display: “No valid coredump found in memory.”

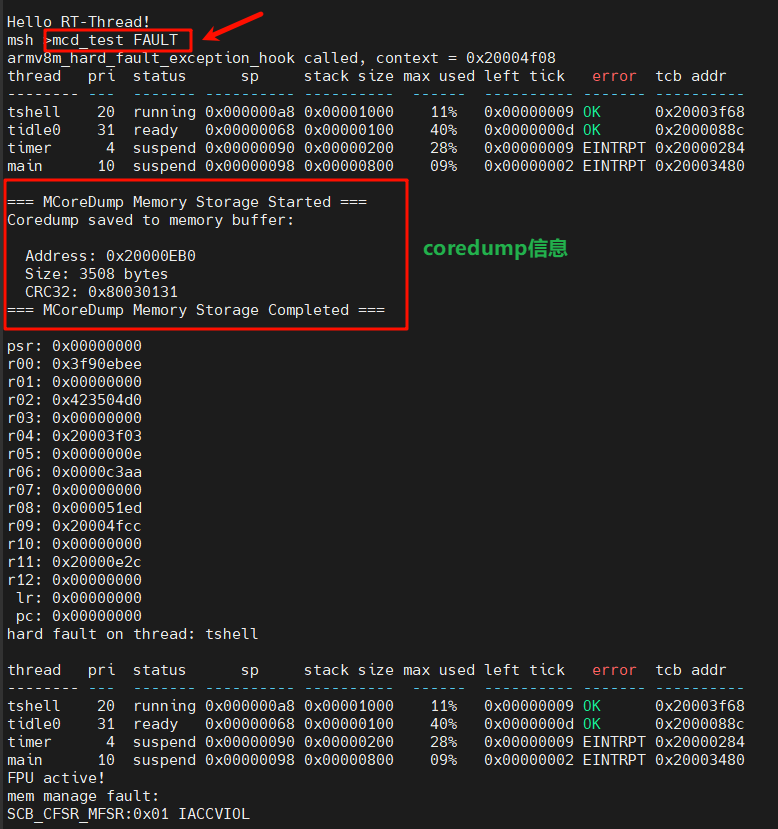

Manually input mcd_test FAULT to trigger an illegal address access exception and trigger a hardware fault, at this point, core dump information will be printed.

After the chip is reset, it will print “Use ‘mcd_dump_memory’ command to dump memory to terminal.”

Since the core dump cache area is defined in the noinit section, unless there is no hardware fault, it will normally be as shown in the figure below

At this point, you can enter mcd_dump_memory in the shell to print the core dump information.

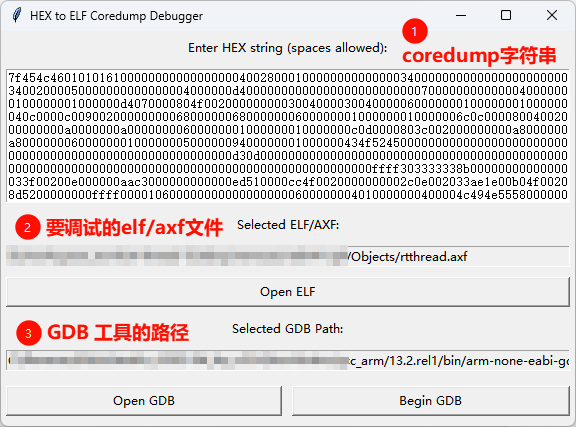

Tool Usage: Open the coredump.exe software under MCoreDump/tools, the following figure introduces the specific function field information:

Click the Begin GDB button to start GDB debugging:

API Reference

Main Functions

mcd_init() – Initialization function

void mcd_init(mcd_writeout_func_t func);

Function: Initializes the MCoreDump system, automatically detects FPU support

Parameters:

• func: Output callback function pointer for processing core dump data

FPU Detection:

• Automatic detection: Based on compiler macros __VFP_FP__ and __SOFTFP__

• Hardware FPU: Includes floating-point register information

• Software FPU: Only includes core register information

Example:

void my_output(uint8_t *data, int len){    // Process core dump data}mcd_init(my_output);  // Automatically detect FPU

mcd_faultdump()

int mcd_faultdump(mcd_output_mode_t output_mode);

Function: Generates core dump and outputs to the specified target

Parameters:

• output_mode: Output mode

• MCD_OUTPUT_SERIAL: Serial output

• MCD_OUTPUT_MEMORY: Memory buffer

• MCD_OUTPUT_FILESYSTEM: Filesystem

Return Value:

• MCD_OK: Success

• MCD_ERROR: Failure

mcd_check_memory_coredump()

rt_bool_t mcd_check_memory_coredump(void);

Function: Checks if there is a valid core dump in memory

Return Value:

• RT_TRUE: Valid core dump exists

• RT_FALSE: No valid core dump

mcd_print_memoryinfo()

void mcd_print_memoryinfo(void);

Function: Prints core dump memory information, usually called at startup

mcd_mini_dump() – Simplified core dump

void mcd_mini_dump(void);

Function: Generates a simplified core dump of the current thread

Features:

• Only includes current thread information

• Smaller file size, faster generation

• Suitable for quick fault analysis

mcd_multi_dump() – Complete core dump (including thread information)

void mcd_multi_dump(void);

Function: Generates a complete core dump including all threads

Features:

• Includes information of all system threads

• Provides a complete system snapshot

• Suitable for in-depth analysis

Size Calculation Functions

int32_t mcd_mini_dump_size(void);    // Get size of simplified core dumpint32_t mcd_multi_dump_size(void);   // Get size of complete core dump

Detailed Explanation of Output Modes

1. Serial Output Mode (MCD_OUTPUT_SERIAL)

// Directly output core dump to serialmcd_faultdump(MCD_OUTPUT_SERIAL);

Features:

• Real-time output, no additional storage space required

• Output in hexadecimal format, with CRC32 checksum

• Suitable for real-time debugging and analysis

Output Format:

coredump start : {7f454c46010101000000000000000000...} coredump endcrc32 : 12345678

Memory Buffer Mode (MCD_OUTPUT_MEMORY)

// Save to memory buffermcd_faultdump(MCD_OUTPUT_MEMORY);// Check and readif (mcd_check_memory_coredump()) {    mcd_dump_memory_to_serial();}

Features:

• Data persistently saved (power loss retention)

• Buffer size configurable

• Includes integrity check (CRC32)

• Suitable for on-site fault recording

3. Filesystem Mode (MCD_OUTPUT_FILESYSTEM)

// Save to filesystemmcd_faultdump(MCD_OUTPUT_FILESYSTEM);// Save from memory to filemcd_dump_filesystem();

Features:

• Generates standard ELF files

• Supports timestamp naming

• Can be analyzed with standard debugging tools

• Requires filesystem support

Advanced Configuration

Custom Output Function

void my_custom_output(uint8_t *data, int len){    // Custom data processing logic    // For example: network transmission, dedicated storage, etc.}

Memory Buffer Configuration

Set in rtconfig.h or through Kconfig:

#define PKG_MCOREDUMP_MEMORY_SIZE    (16 * 1024)  // 16KB buffer

Filesystem Path Configuration

#define PKG_MCOREDUMP_FILESYSTEM_DIR     "/data/coredump"#define PKG_MCOREDUMP_FILESYSTEM_PREFIX  "crash_"

Debug Tool Usage

Using GDB for Analysis

Get core dump content:

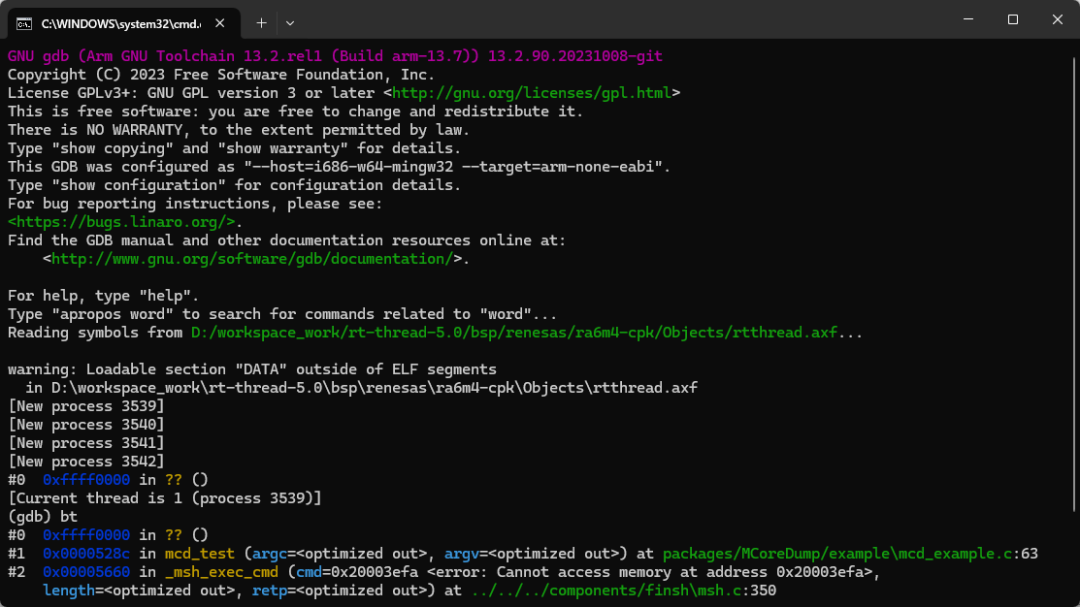

# Simulate exception situation:msh />mcd_test FAULTthread           pri  status      sp     stack size max used left tick   error  tcb addr---------------- ---  ------- ---------- ----------  ------  ---------- ------- ----------tshell            20  running 0x000000d40x00001000    13%   0x00000008 OK      0x20006e28mmcsd_detect      22  suspend 0x000000c40x00000800    51%   0x00000001 EINTRPT 0x20004d68tidle0            31  ready   0x0000008c0x00000400    16%   0x00000005 OK      0x20005878main              10  suspend 0x000000d40x00000800    56%   0x0000000c EINTRPT 0x20005fc0=== MCoreDump Memory Storage Started ===Coredump saved to memory buffer:  Address: 0x20000EF4  Size: 3644 bytes  CRC32: 0x86517DA7=== MCoreDump Memory Storage Completed ===# -------------------------------------Soft reset chip-------------------------------------  \ | /- RT -     Thread Operating System / | \     5.2.1 build Aug 19202513:50:552006 - 2024 Copyright by RT-Thread team=== MCoreDump Memory Check ===Memory buffer address: 0x20000EF4Buffer size: 8208 bytes*** COREDUMP FOUND IN MEMORY ***Data size: 3644 bytesUse 'mcd_dump_filesystem' command to save to file.Use 'mcd_dump_memory' command to dump memory to terminal.File counter: 0 (next file will be 0001)============================[I/SDIO] SD card capacity 31166976 KB.[I/SDIO] sd: switch to High Speed / SDR25 modefound part[0], begin: 1048576, size: 29.739GB[I/app.filesystem] SD card mount to '/sdcard'msh />msh />mcd_dump_filesystemCreating coredump file: /sdcard/core_0001.elfCoredump file opened successfully (fd: 3)Saving coredump from memory to file: /sdcard/core_0001.elfCoredump saved successfully to: /sdcard/core_0001.elfmsh />msh /sdcard>lsDirectory /sdcard:core_0001.elf       3736

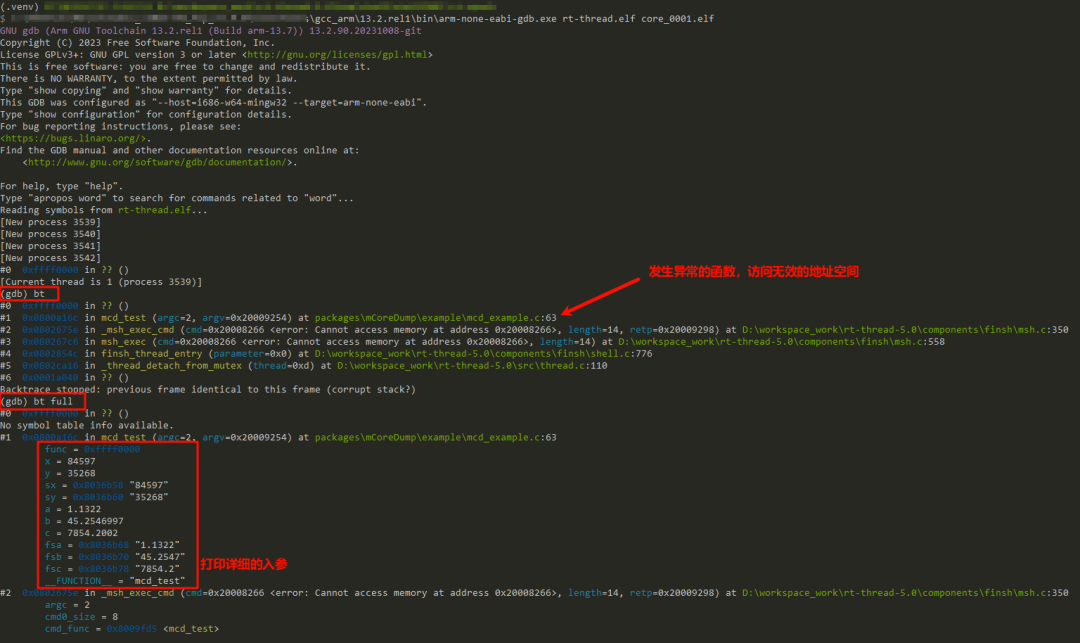

GDB Analysis (requires a higher version of gcc toolchain, tested >= 13.2):

# Start GDB + load coredumpD:\...\gcc_arm\13.2.rel1\bin\arm-none-eabi-gdb.exe rt-thread.elf core_0001.elf# View crash location(gdb) bt# View registers(gdb) info registers# View all registers(gdb) info registers all

View register contents:

View system thread information:

How to Adapt to New Architectures

Taking ARMV7-M as an example:

1. Implement rt_hw_exception_install passing the stack frame at the time of exception occurrence

2. Add architecture folder under packages\MCoreDump\arch, need to implement armv7m_hard_fault_exception_hook in armv7m.c,

3. Implement collect_registers_armv7m function in armv7m.c to assign values to the core dump structure members

4. Add arch_hard_fault_exception_hook declaration in packages\MCoreDump\osal\rtthread.c, call relationship: rtt_hard_fault_exception_hook—>arch_hard_fault_exception_hook

5. Implement mcd_get_regset: Write a snapshot of the current CPU’s core registers into the memory area pointed to by regset, saved in the agreed order

6. Implement mcd_multi_dump: Used to collect the current CPU register snapshot (core + optional FPU), then call RTOS related callbacks to collect multi-thread information, and finally generate core dump. The main difference from mcd_mini_dump is that mini only prepares single thread/minimal information, multi will collect multi-thread/RTOS information and then generate complete core dump

7. Implement the corresponding architecture stack frame (r0-r15, xpsr) in packages\MCoreDump\arch\armv7m\registers.h

Performance Characteristics

Metric	Value	Description
Single-thread core dump time	< 100ms	Excluding I/O time
Multi-thread core dump time	< 500ms	Depends on the number of threads
Memory usage	8-64KB	Configurable buffer size
Flash usage	15-20KB	Includes full functionality
Supported thread count	Unlimited	Limited by memory size

Troubleshooting

Q1: GDB reports “Core file format not supported”

Please use gdb-multiarch or a higher version of arm-none-eabi-gdb.

Q2: Console prints “Failed to create coredump file”

Please ensure the SD card is successfully mounted;

You can use the ls / command to confirm if the filesystem directory is visible.

Q3: System startup prompts “elm mount filesystem failed!”

The storage medium needs to be formatted to FAT32 format, you can enter mkfs -t elm sd0 command to format after system startup. After successful formatting, restart the system, the console will print elm file system initialized!

Note: Formatting will delete all files on the SD card, please use with caution!!!

Contribution Guidelines

Welcome ⭐ to support this project, and welcome to participate in the development and improvement of the MCoreDump component!

Development Environment

• RT-Thread Development Environment

• Cross-compilation Toolchain

License

This project is licensed under the Apache 2.0 License. See LICENSE file for details.

https://github.com/RT-Thread/rt-thread/blob/master/LICENSE
