Little_flash—— is the SPI Flash driver library for LuatOS, which mounts SPI Flash as an lfs file system, supports NAND/NOR Flash, and provides a unified API to simplify device storage expansion and driver development.
This article will take theAir780EHM core board as an example to share an application example of Little_flash.
Using the Air780EHM core board, the SPI Flash module is mounted as an lfs file system, and files in the lfs file system can be manipulated through file system-related interfaces to achieve reading, writing, deleting, and appending files.
This example is also applicable to the Air780EHV and Air780EGH series products.
1
Main Preparations
-

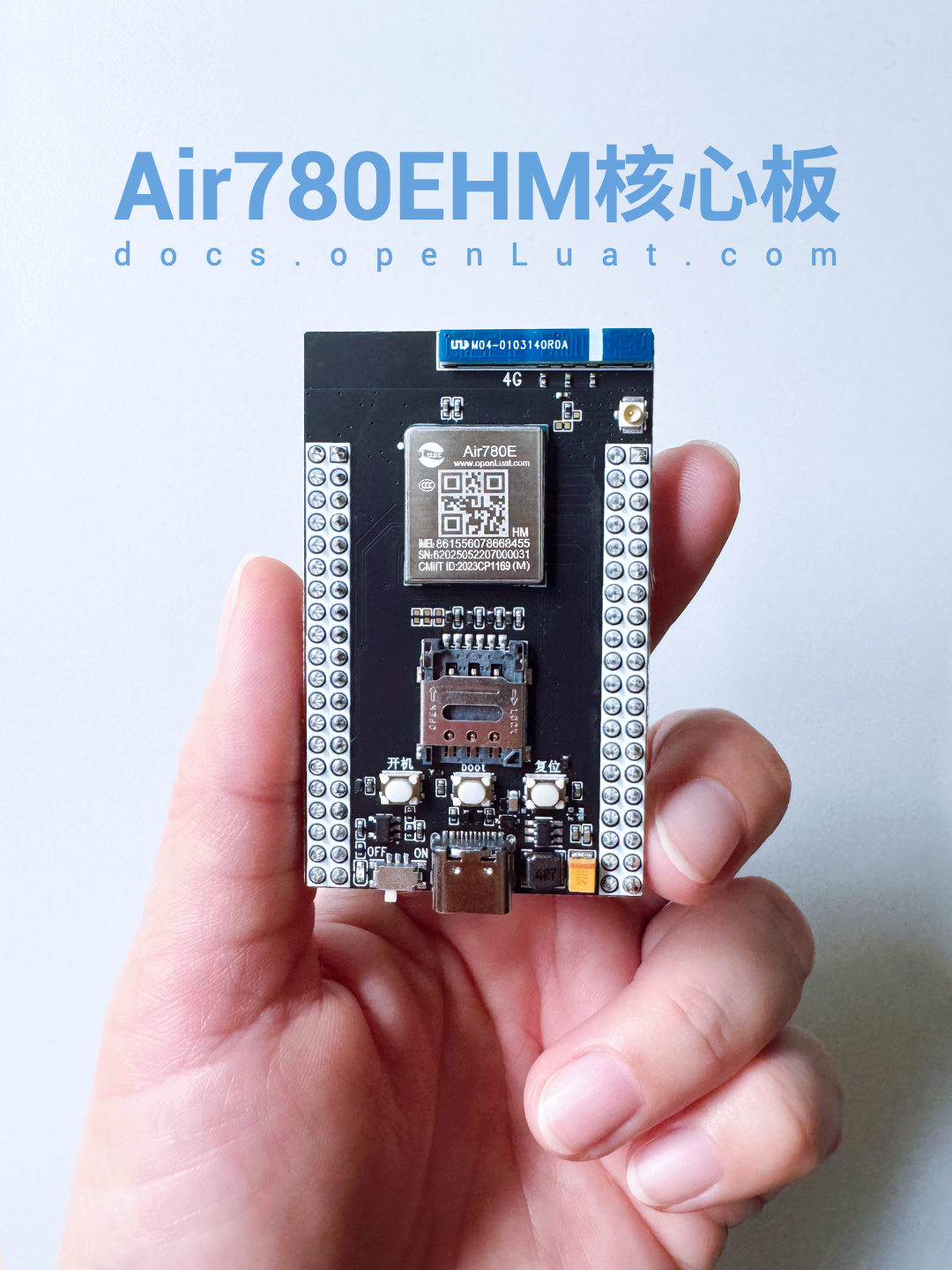

Air780EHM core board kit
-

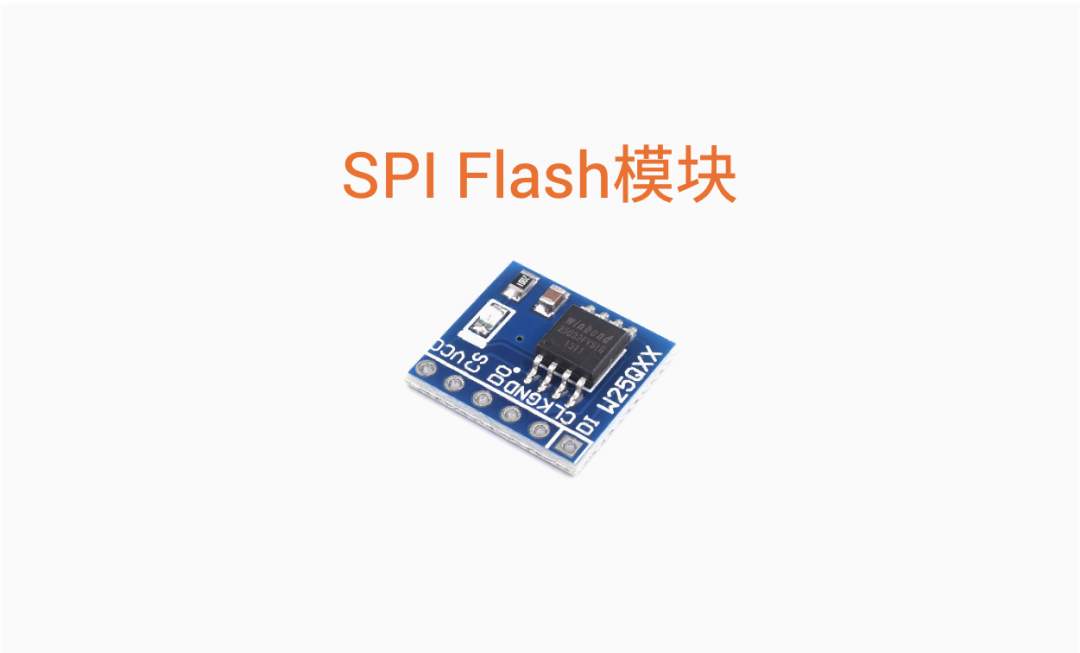

SPI Flash module (this article uses W25Q32)
-
Type-C USB data cable
-
PC with Windows 10 or above

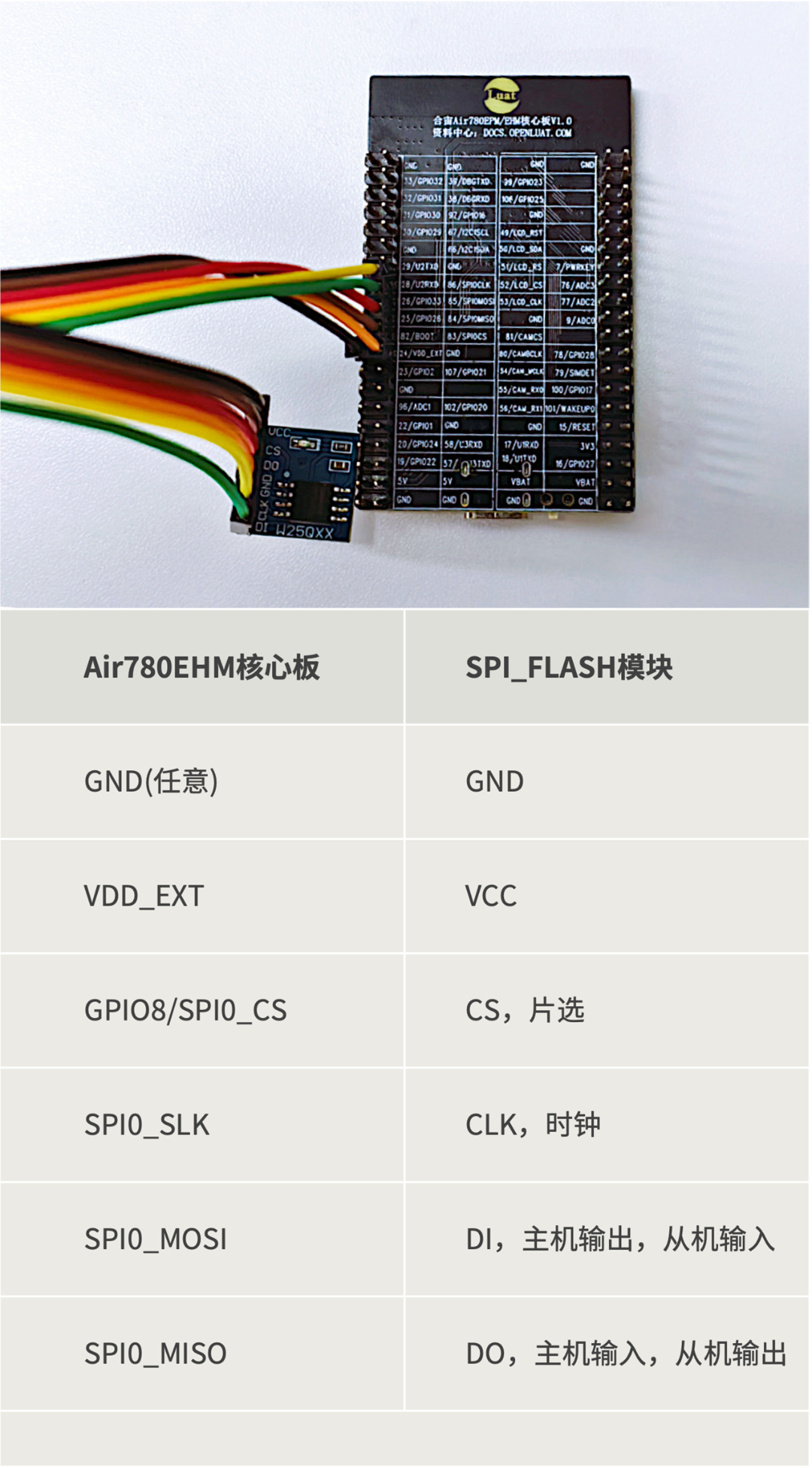

The Air780EHM core board is powered through the Type-C USB port (please switch the switch next to the USB to the ‘on’ position when in use); connect to the SPI Flash module using Dupont wires.
The corresponding pin connection method is shown in the table below:
2
Latest Source Code Download
The latest demo has been uploaded to the source code repository:
https://gitee.com/openLuat/LuatOS/tree/master/module/Air780EHM_Air780EHV_Air780EGH/demo/little_flash

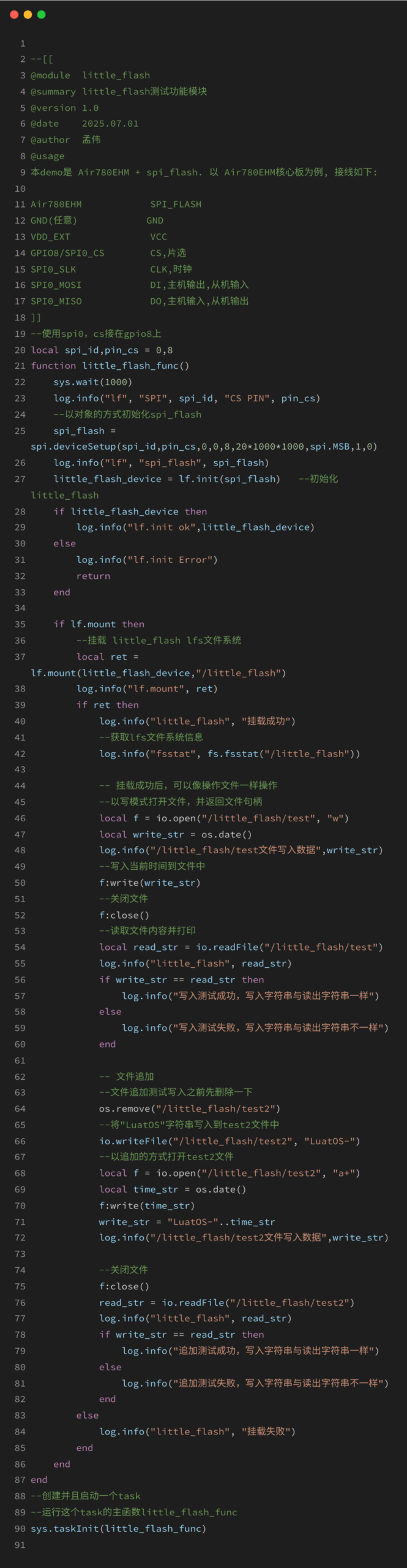

Part of the code for little_flash.lua is shown in the figure below; for the complete demo, please refer to the source code repository.
3
Example Run Results
The Air780EHM core board burns the kernel firmware and demo script code through LuaTools. After successful burning, it automatically boots and runs.

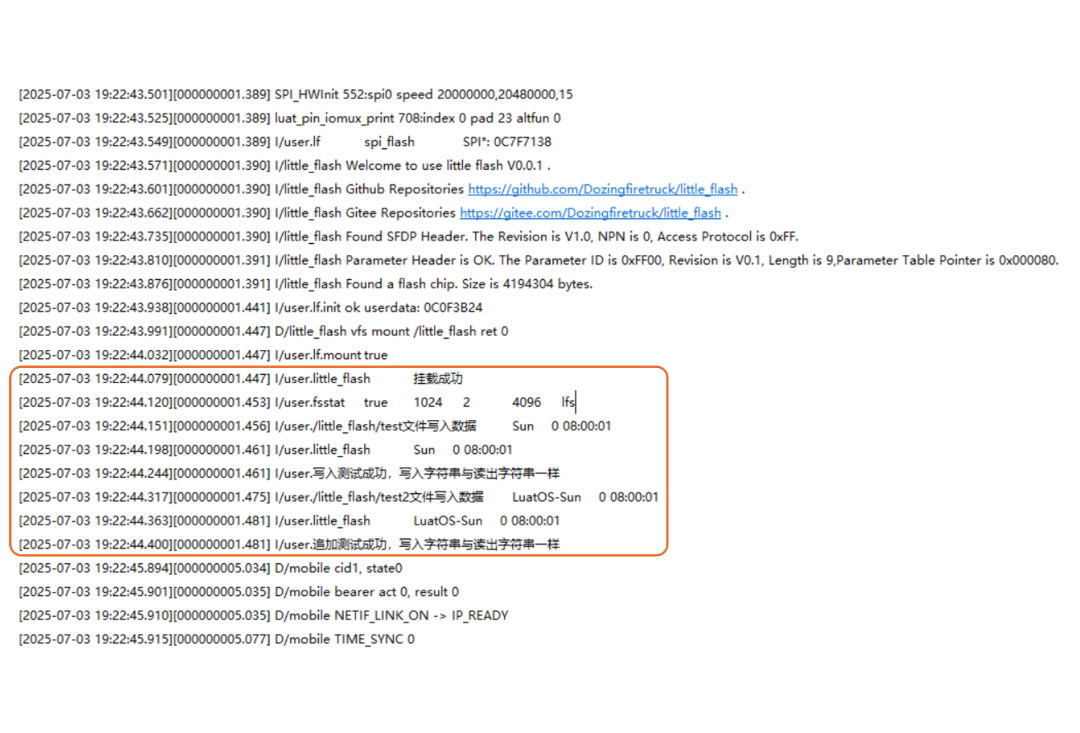

From the logs, it can be seen that the lfs file system is mounted successfully, and operations such as reading, appending, and deleting files in the lfs file system can be performed normally.
