Introduction to Firewall Technology for Industrial Control Systems

Quoted from: “Intelligent Manufacturing Information Security Technology” (Authors: Qin Zhiguang, Nie Xuyun, Qin Zhen)

This book has been published, see the end for details~

Industrial firewalls are essential devices for ensuring information security in industrial control systems. The technology of industrial firewalls forms the foundation of information security technology for industrial control systems. The firewall technology for industrial control systems can achieve regional control, delineate secure zones within the control system, and provide isolation protection for these secure zones, safeguarding legitimate user access to network resources. At the same time, it can perform deep packet inspection of control protocols, analyzing abnormal data streams of application layers such as Modbus and DNP3, and dynamically tracking OPC ports to protect critical registers and operations.

The purpose of industrial control system firewalls is to establish secure control points between different security domains, interpreting and filtering data flows passing through the industrial control firewall according to pre-defined access control policies and security protection strategies, thereby providing controllable service requests to the protected secure domains.

「 1. Features of Industrial Firewalls」

Industrial firewalls differ from traditional firewalls due to their operating environments. In comparison, traditional firewalls lack the following characteristics:

(1) Traditional firewalls do not have industrial protocol parsing modules installed and do not understand or support industrial control protocols. Industrial networks utilize specialized industrial protocols, which come in many varieties, including those based on Industrial Ethernet (Layer 2 and Layer 3) and serial links (RS232, RS485). These protocols require specialized industrial protocol parsing modules for filtering and interpretation.

(2) The hardware and software design architecture of traditional firewalls is not suitable for the real-time and environmental requirements of industrial networks. First, industrial control devices in industrial networks have very high requirements for real-time transmission feedback. Secondly, industrial production environments demand high adaptability of network security devices, with many industrial sites operating in harsh, unattended conditions. Therefore, industrial firewalls must support predictable performance and interference resistance in industrial production environments.

Thus, in addition to the access control, security domain management, and network address translation (NAT) functions of traditional firewalls, industrial firewalls also feature specialized protocol filtering and deep packet inspection modules specifically designed for industrial protocols. These built-in modules can identify, filter, and control various industrial protocols in ICS environments.

「 2. Categories of Industrial Firewalls」

In the industrial network system, depending on the deployment location, industrial control firewalls can be roughly divided into two types:

(1) Rack-mounted industrial firewalls. Rack-mounted firewalls are typically deployed in factory server rooms, so their specifications are similar to traditional firewalls, mostly using 1U or 2U rack-mounted designs. They are fanless and designed to meet IP40 protection level requirements, used to isolate factory networks from management networks or other factory networks.

(2) DIN rail industrial firewalls. DIN rail firewalls are mostly deployed in production environments on the factory floor, so these firewalls typically use a DIN rail architecture design, which can be easily clipped onto the rail without the need for screws, making maintenance convenient. Additionally, their internal design is more closed and secure, with embedded computing motherboards that generally use integrated cooling designs, ultra-compact structures, and no internal wiring to avoid damage from vibrations in industrial production environments.

「 3. Main Application Scenarios of Industrial Firewalls」

(1) Deployed between management networks and control networks. Industrial firewalls control cross-layer access and deeply filter data exchanges between layers, preventing attackers from launching attacks on control networks from management networks, as shown in Figure 1.

Introduction to Firewall Technology for Industrial Control Systems

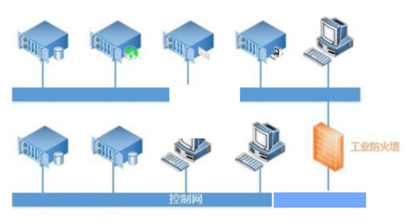

Figure 1: Between Management and Control Networks

(2) Deployed between different security zones within control networks. Industrial firewalls can segment control networks into different security zones, controlling access between these zones and deeply filtering traffic data to prevent the spread of security risks between zones, as shown in Figure 2.

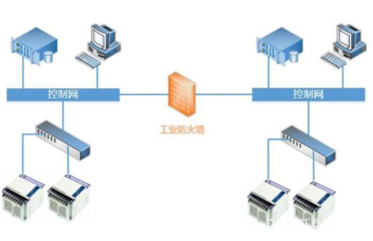

Figure 2: Between Different Security Zones in Control Networks

(3) Deployed between critical devices and control networks. Industrial firewalls detect the IPs accessing critical devices, preventing access to non-business ports and illegal operational commands, recording all access and operation logs for critical devices to achieve security protection and traffic auditing, as shown in Figure 3.

Figure 3: Between Critical Devices and Control Networks

「 4. Performance Requirements of Industrial Firewalls」

The priority order of security goals for industrial control systems primarily considers the availability of all system components, followed by integrity, and confidentiality is usually the last consideration (Figure 4).

Introduction to Firewall Technology for Industrial Control Systems

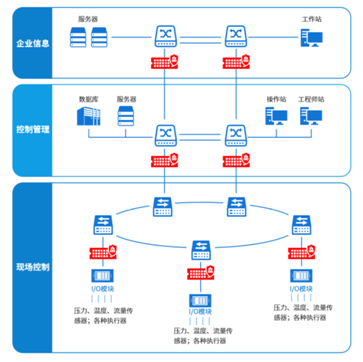

Figure 4: Deployment of Industrial Firewalls

The overall goal of industrial control safety isolation and information exchange products is to resist malicious destruction and attacks on control systems initiated by hackers, viruses, etc., and to prevent failures and damage to industrial equipment caused by information security issues. Specific contents are as follows:

(1) Prevent attacks and intrusions initiated through external boundaries, especially preventing failures of industrial control systems and damage to equipment caused by attacks.

(2) Prevent unauthorized users from accessing the system or illegally obtaining information and performing significant unauthorized operations.

The technical requirements for industrial firewalls are divided into two main categories: security functional requirements and security assurance requirements. Among them, security functional requirements specify the security functions that industrial firewalls should possess, including network layer control, application layer control, and security operation management; security assurance requirements specify the content of development and usage documentation for industrial firewalls. The product security functional requirements mainly stipulate the functions implemented by the product, including network layer control, application layer control, and security operation management.

Due to the unique environments and application scenarios of industrial firewalls, the following requirements must be met during design.

1）Meet the hardware requirements of the industrial environment

The hardware architecture of industrial firewalls needs to meet the requirements of the industrial environment, such as fanless design, wide temperature range (-40~70℃), humidity (5%~95% without condensation), and protection level IP40 (dustproof but not waterproof).

Thus, based on the hardware requirements of the industrial environment, industrial firewalls generally use fanless embedded industrial computers as their carrying platform, and during design, appropriate hardware combination requirements are proposed based on research.

2）Meet the high-speed processing requirements for data packets

Industrial firewalls have predefined rule templates for known protocols and rule templates that are automatically learned and modeled later. Since industrial firewalls process data packets one by one, including packet verification and processing of each layer of the packet header, smaller data packets reach their destination faster, increasing the server’s processing requirements for data packets.

Moreover, the diversity of devices and industrial protocols used in the industrial environment requires industrial firewalls to simultaneously process various industrial protocol messages in parallel within industrial network traffic. Additionally, as time goes on, the number of rules in the rule library continues to increase, all of which require support from firewall processing performance to ensure that the speed of network data transmission and the speed of pattern matching detection meet the real-time requirements of industrial networks.

3）Meet the stability requirements of the industrial environment

From the perspective of meeting the stability requirements of the industrial environment, industrial firewalls need to consider their own stability’s impact on industrial networks from both hardware and software levels.

Industrial firewalls must possess both hardware and software Bypass functionality. In the event of device abnormalities or restarts, the Bypass function will be activated, eliminating concerns about network disconnection due to issues with the industrial firewall itself.

「 5. Industrial Firewall Technologies」

Industrial firewalls are similar in type to general IT firewalls, broadly categorized into packet filtering, stateful packet inspection, and proxy server types.^[1].

1）Packet Filtering Technology

Packet filtering technology selects packets at the OSI Layer 3 network layer based on filtering logic set within the system, known as an access control table. By checking each packet’s source address, destination address, port number, protocol status, and other factors, or their combinations, it determines whether to allow the packet through. Packet filtering firewalls based on access control technology can ensure secure communication between different security zones by setting access control rules to manage and control the information flow entering and exiting different security zones, ensuring resources are effectively used and managed within legal bounds.

2）Stateful Packet Inspection Technology

Stateful packet inspection monitors the state of each active connection and decides whether network packets can pass through the firewall based on this information. It intercepts packets at the protocol stack’s lower layer, analyzes them, and compares the current packet’s state information with that of the previous packet to obtain control information for protecting network security.

Stateful inspection does not require rule matching for every packet in a session, only state checks of the packet’s trajectory, which speeds up packet processing. Compared to traditional packet filtering firewall access control rule lists, it offers better performance and security, becoming increasingly prevalent in industrial control applications.

3）Proxy Service Technology

Proxy service technology is introduced to address the shortcomings of packet filtering and application gateway technologies. It divides all network communication links crossing the firewall into two segments. The application layer “links” between internal and external computer systems are established by two terminating proxy servers, allowing external computer network links to reach only the proxy server, thus isolating the internal and external computer systems. Additionally, the proxy service analyzes and logs the packets passing through, generating reports and alerting network administrators upon detecting attack signs while retaining traces of the attack. However, proxy servers may introduce latency, affecting performance.

The above three firewall technologies are relatively traditional; as network security technologies have evolved, firewall technologies are also continuously advancing. Here are some newly developed industrial firewall technologies:

(1) Transparent Access Technology. The primary feature of transparent mode is that it is invisible to users, who are unaware of the firewall’s existence. To achieve transparent mode, the firewall must operate without an IP address, requiring no IP address configuration, and users will not know the firewall’s IP address. When a firewall adopts transparent mode, users do not need to reconfigure or modify routing; the firewall can be directly installed and used in the network like a switch without needing to set an IP address.

(2) Distributed Firewall Technology. Distributed firewalls are responsible for security protection between network boundaries, subnets, and internal nodes, making them a complete system rather than a single product. Depending on the required functions, the distributed firewall architecture includes three parts: ① Network firewall: which can be implemented purely in software or with appropriate hardware support for protection between internal and external networks and between internal subnets; ② Host firewall: for protecting servers and desktops within the network; ③ Central management: responsible for overall security policy planning, management, distribution, and log aggregation. The workflow of distributed firewalls is as follows: first, the central authority that formulates the firewall access control policies converts the policy language description into an internal format to create policy files; then, the center uses system management tools to distribute these policy files to their respective internal hosts, which determine whether to accept the received packets based on both IP security protocol and the server-side policy files.

(3) Intelligent Firewall Technology. The structure of intelligent firewalls consists of internal and external routers, intelligent authentication servers, intelligent hosts, and bastion hosts. Internal and external routers build a secure subnet between the Intranet and Internet, known as a Demilitarized Zone (DMZ). The working principle of intelligent firewalls can be understood as follows: when an Intranet host connects to an Internet host, it uses the same IP address; however, when an Internet host connects to an Intranet host, it must route through a gateway mapped to the Intranet host. This setup keeps the Intranet network invisible to the Internet. At any time, the application filtering management program in the bastion host within the DMZ can communicate confidentially with the intelligent authentication server in the Intranet through a secure tunnel, allowing the intelligent authentication server to modify the routing tables and filtering rules of the internal and external routers through confidential communication. The coordinated operation of the entire firewall system is primarily controlled by specially designed application filtering management programs and intelligent authentication service programs, running on bastion hosts and intelligent servers, respectively.
