Installing and Testing Level-IP on Linux

First, let’s discuss the overall idea—creating a convenient debugging TCP/IP protocol stack, level-ip. The specific operations can be divided such that we do not have to use the system’s socket interface for TCP communication. Now, this goal has been preliminarily achieved. One required component is tun/tap, which forwards data between the virtual device and the actual network card, allowing the user-space protocol stack to relay through tun0. More content needs to be explored by yourself!

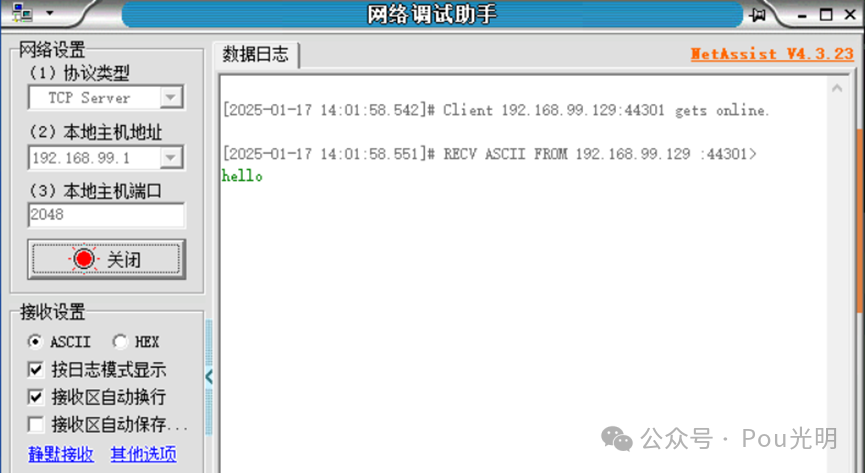

Testing Environment:VMWare virtual machine ubuntu16.04 (must support tun/tap), Windows TCP Server debugging assistant

1.Installation of level-ip on Ubuntu16.04

1.1Introduction to level-ip

1.1.1 Level-IP is a TCP protocol stack running in the Linux user space, with the following features:

Runs independently, completely isolated from applications

Uses Linux virtual network cards for communication

Compatible with the Linux Socket API

Provides network link services for other applications

1.1.2It is important to note that this TCP protocol stack is not perfect; it currently implements the following functions:

ARP requests, replies, and caching

ICMP ping and replies

IPv4 packet processing, checksum

TCPv4 handshake

TCP data transmission

TCP segmentation and reassembly

Timeout retransmission and RTT estimation

1.1.3 The following functions are yet to be improved:

IP fragmentation and reassembly

Sliding window

Confusing window and avoidance

Zero window probe

Congestion control

select sockets

1.2Using Level-IP

1.2.1 Installation

Get the Level-IP source code

git clone https://github.com/EmbedHacker/level-ip

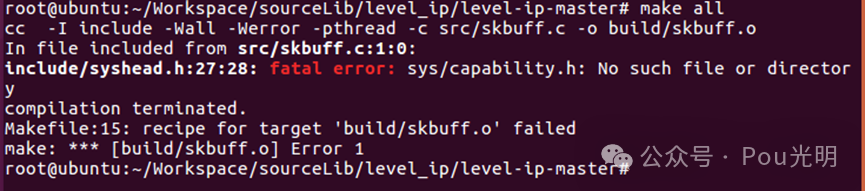

Install libcap-dev tools to modify the permissions of executable programs

sudo apt install libcab-dev (error on git)

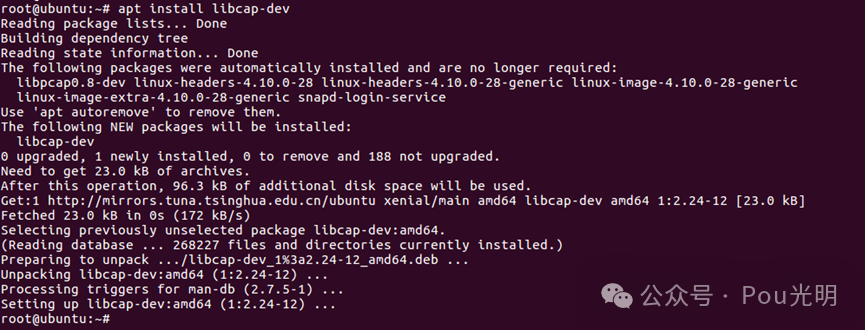

sudo apt install libcap-dev

Ensure that the system has installed gcc, make tools, then compile all target files

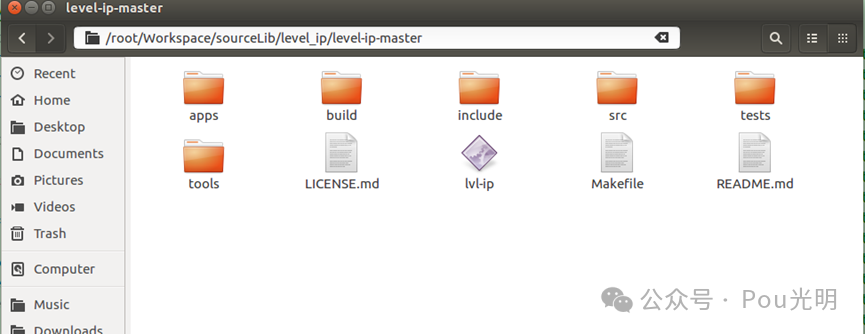

make all

Enable routing function

sudo sysctl -w net.ipv4.ip_forward=1

Accept input information from the virtual network card

sudo iptables -I INPUT –source 10.0.0.0/24 -j ACCEPT

Masquerade the physical network card’s IP, note that enp0s3 is the physical network card,

Users should modify according to the results of the ifconfig command

sudo iptables -t nat -I POSTROUTING –out-interface enp0s3 -j MASQUERADE

Set data forwarding from the physical network card to the virtual network card, remember to modify the physical network card!!

sudo iptables -I FORWARD –in-interface enp0s3 –out-interface tap0 -j ACCEPT

Set data forwarding from the virtual network card to the physical network card, remember to modify the physical network card!!

sudo iptables -I FORWARD –in-interface tap0 –out-interface enp0s3 -j ACCEPT

1.3Add virtual devices

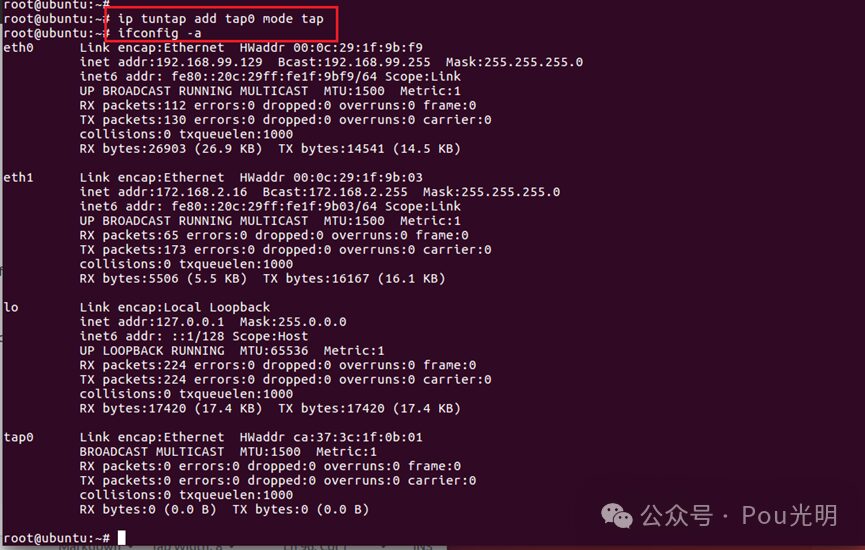

tun network card operates at layer 3 without a MAC address; add a network card named tun0:ip tuntap add tun0 mode tuntap network card operates at layer 2 with a MAC address; add a network card named tap0:ip tuntap add tap0 mode tap

1.4Run the TCP protocol stack

./lvl-ip

1.5 Use level-ip to create your own TCP client

Not sure if you noticed this sentence: “Compatible with the Linux Socket API“. Below is a specific example for understanding.

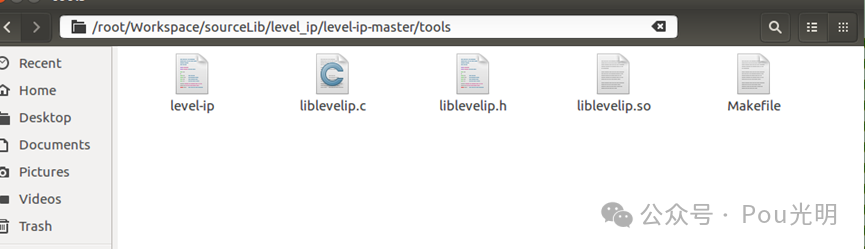

In level-ip-master/tools/ directory

Link to liblevelip.so

// Define sockaddr_instruct sockaddr_in skaddr_in; skaddr_in.sin_family= AF_INET;skaddr_in.sin_port   =htons(2048);skaddr_in.sin_addr.s_addr = inet_addr("192.168.99.1");struct sockaddr *addr = (sockaddr *)&skaddr_in;sock = socket(AF_INET, SOCK_STREAM, 0);if (connect(sock, addr, 16) == -1) {perror("Client could not establish connection");return 1;}std::cout << "tcp_v4_connect!" <<ret <<std::endl;char str[]="hello";int len = strlen(str);if (write(sock, str, len) != len) {printf("Write error\n");return 1;}else{printf("success !!! ");}

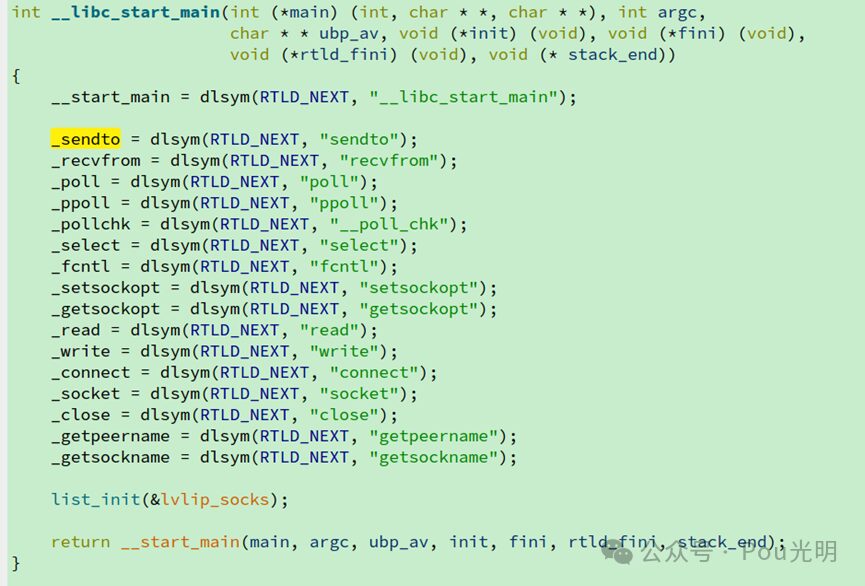

At this point, there may be questions, the socket interface is system-based, how does it switch to level-ip?

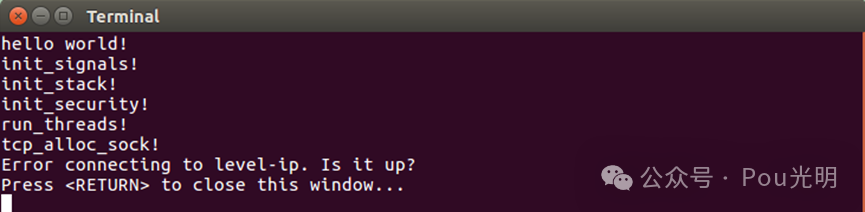

If you do not run level-ip, then you will:

Thus, we can debug the TCP/IP protocol stack on Linux.
