a b o C a s e
Container S
|

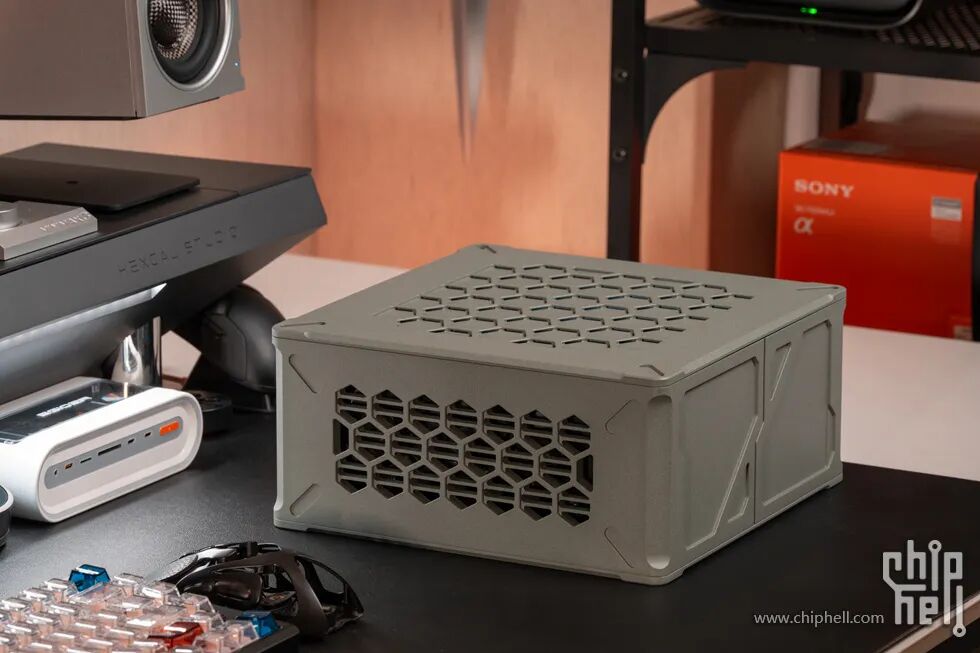

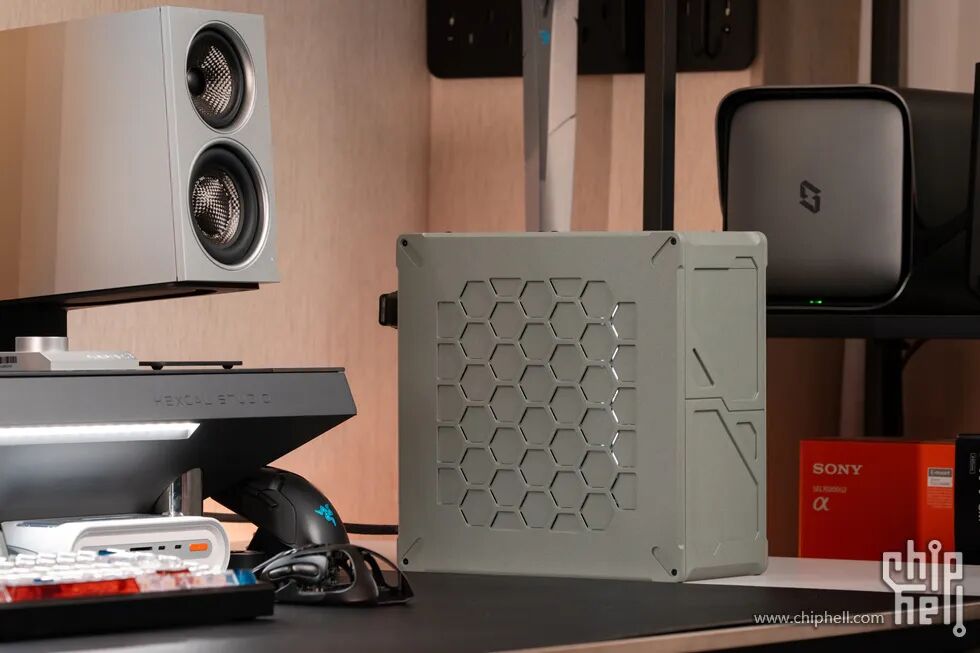

Hello everyone, following yesterday’s hexagonal warrior cannon, today we present a small cannon – the aboCase Container S. I believe PC DIY enthusiasts are quite familiar with aboCase, which impressively merges mechanical elements with avant-garde sci-fi mecha industrial design style. The combination of 1U and half-height blade cards keeps its volume under 7.2L. The aluminum alloy body is made using CNC milling and a new ceramic coating process, with 6mm thick side panels and a 9.5mm thick middle frame, giving it a substantial feel. The seamless design on all four sides enhances its aesthetic appeal, while the CNC engraving process highlights its precision. Additionally, the CPU cooler supports a maximum height of 85mm, maximizing the performance potential of the case.
Part I
Display
Part II
ConfigurationSettings
CPU Intel Core Ultra5 230F
Memory Asgard Valkyrie II 64G 6000 C30
Motherboard Maxsun MS-Challenger H810ITX WIFI
Case AboCase Container S
Cooling ID Cooling IS-47-XT
Power Supply Full Han 1U 500W
Graphics Card ASUS RTX 4060 LP

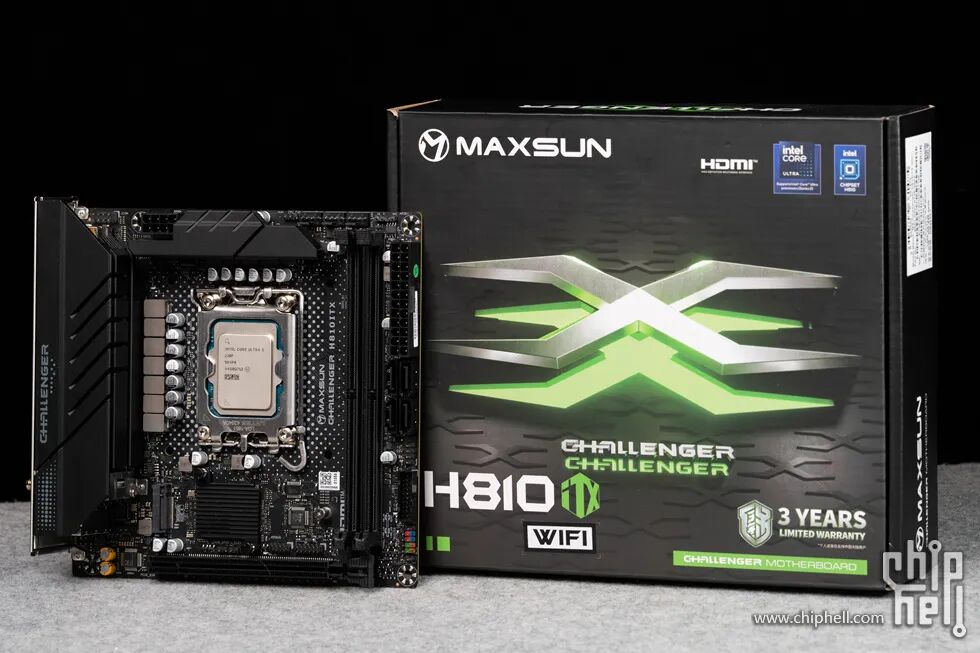

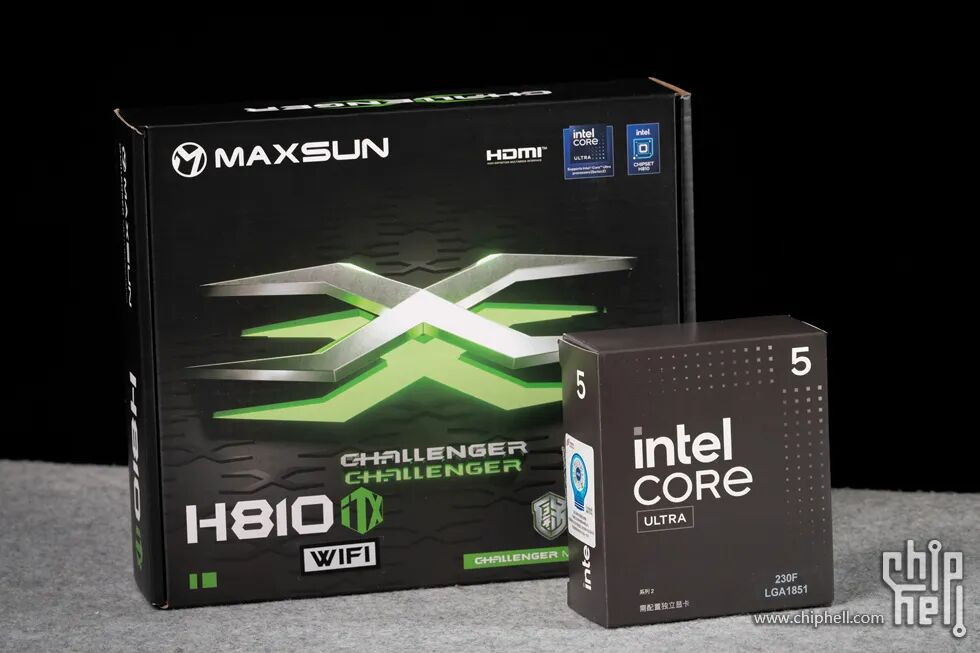

The CPU motherboard comes from Maxsun MS-Challenger H810ITX WIFI with Intel Core Ultra5 230F

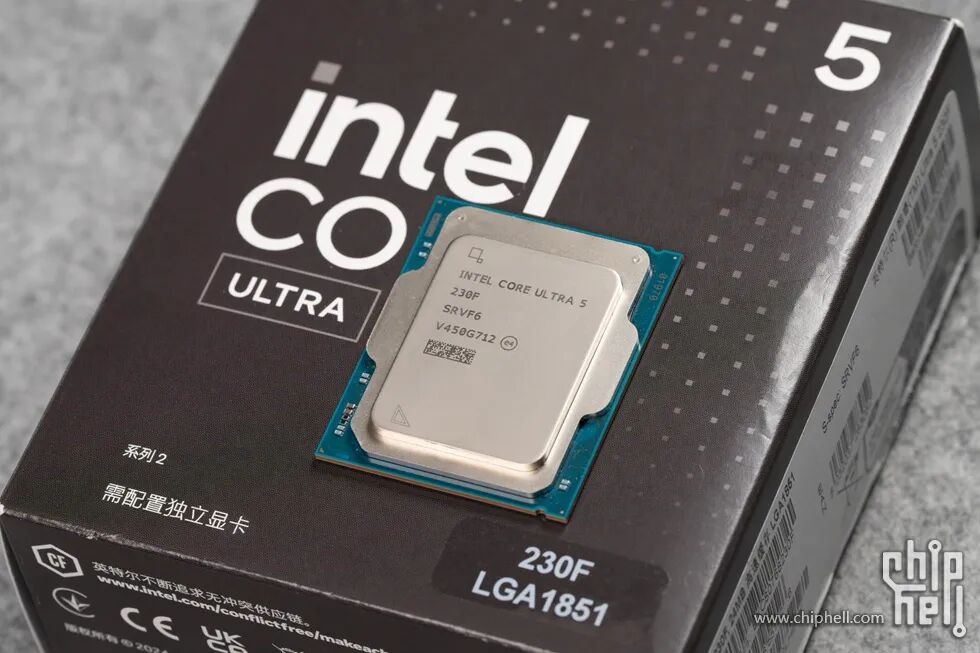

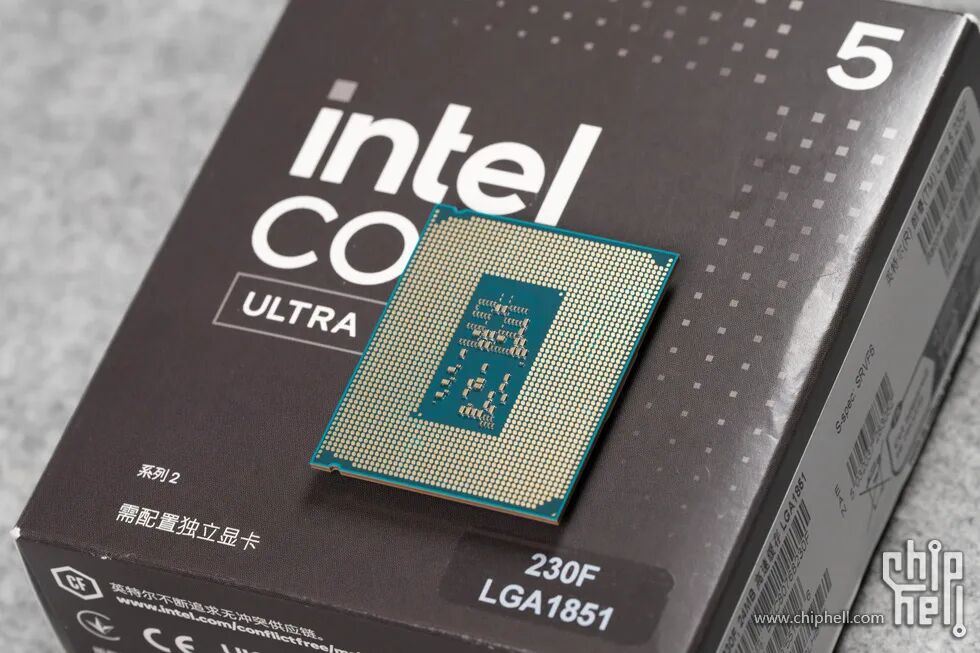

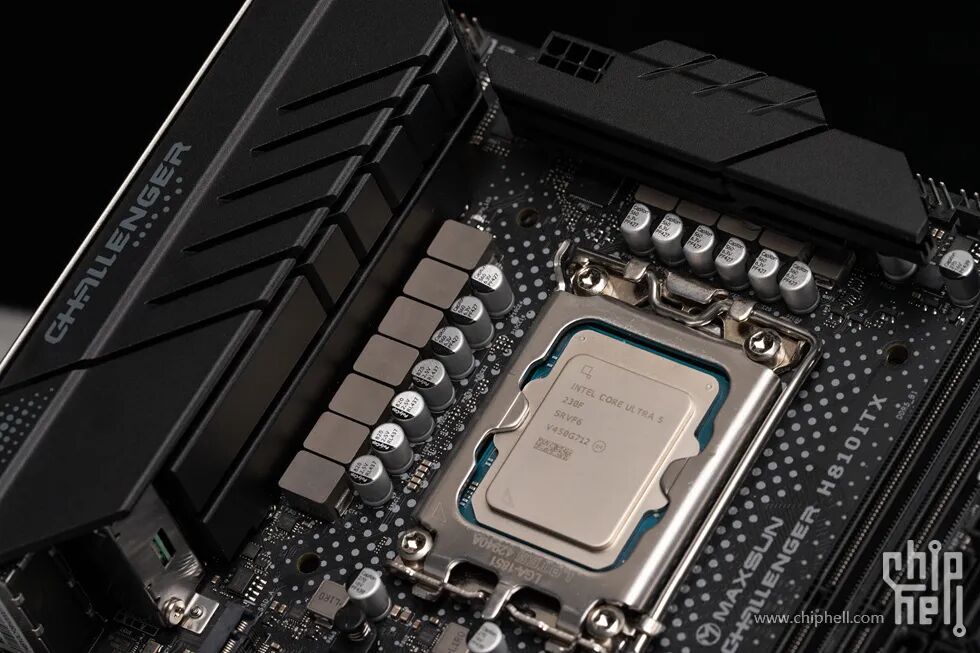

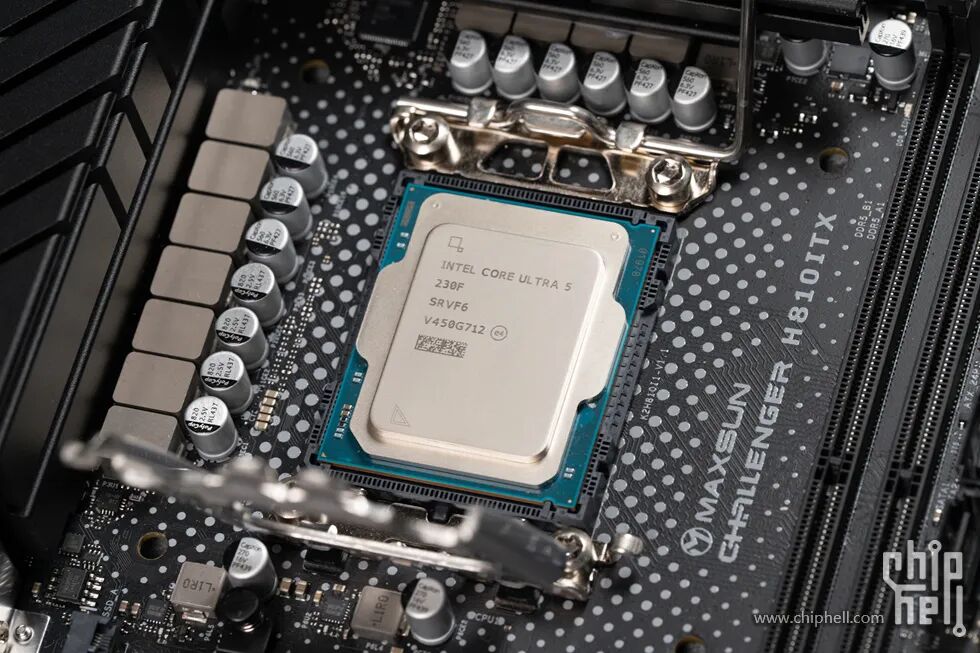

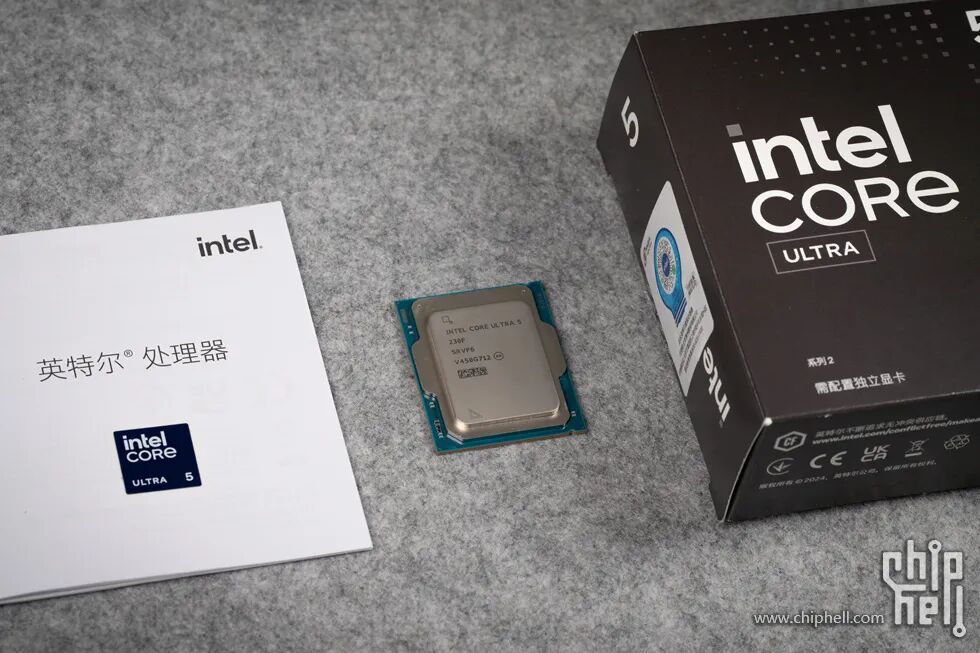

Close-up of the CPU, the 230F features excellent low power consumption design, making it very suitable for ITX builds. Even with a down pressure cooler under 37mm, it can still maintain excellent temperatures below 80 degrees.

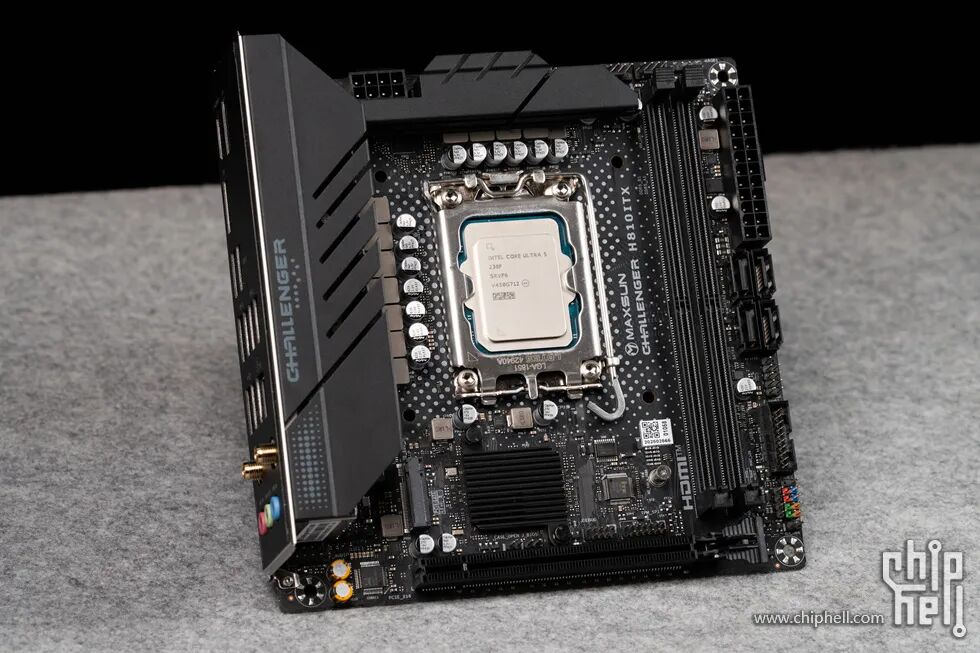

Maxsun MS-Challenger H810ITX WIFI, all-black color scheme
Features an integrated metal cooling armor cover, all matte black finish, excellent texture, and great cost performance.

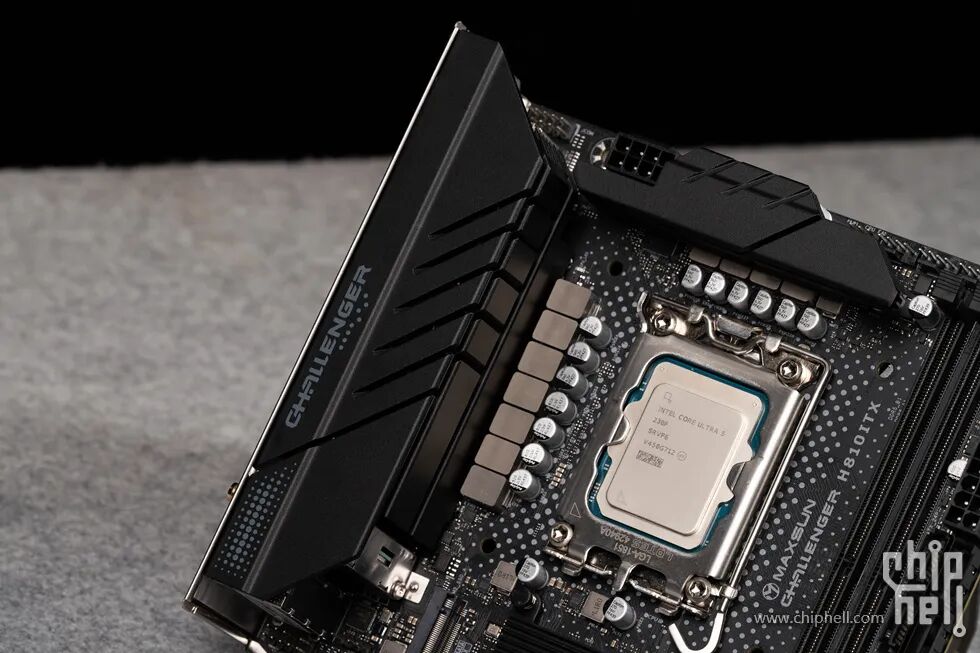

Utilizes an 8+1+1 phase power supply design, with RT3638AE PWM main control chip and 50A Dr.Mos for each phase, ensuring stable performance release for the processor.

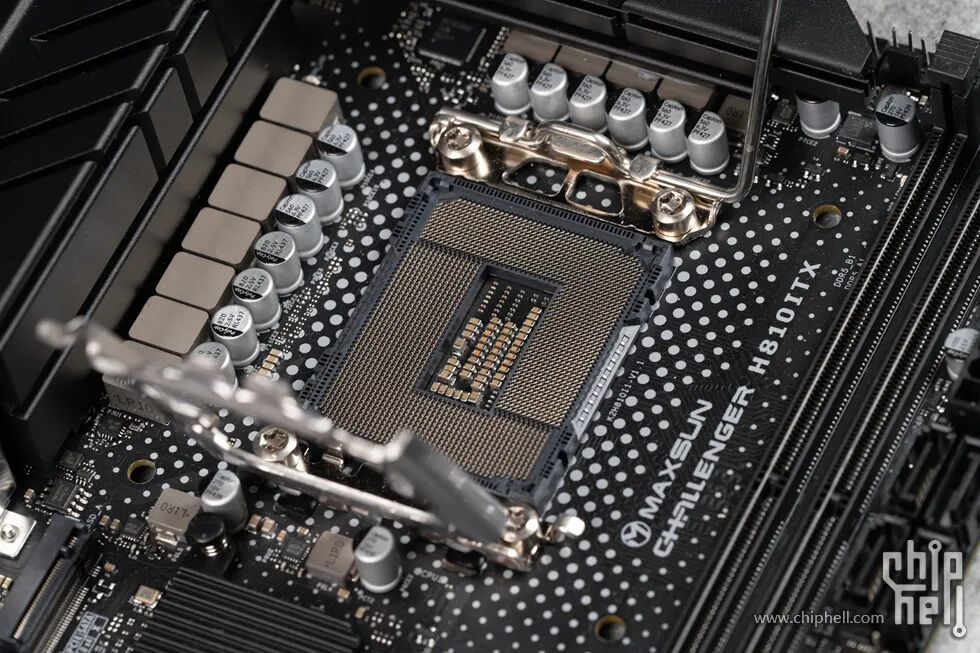

LGA 1851, all Ultra 200s series processors are supported, hoping the next generation continues to use this interface!

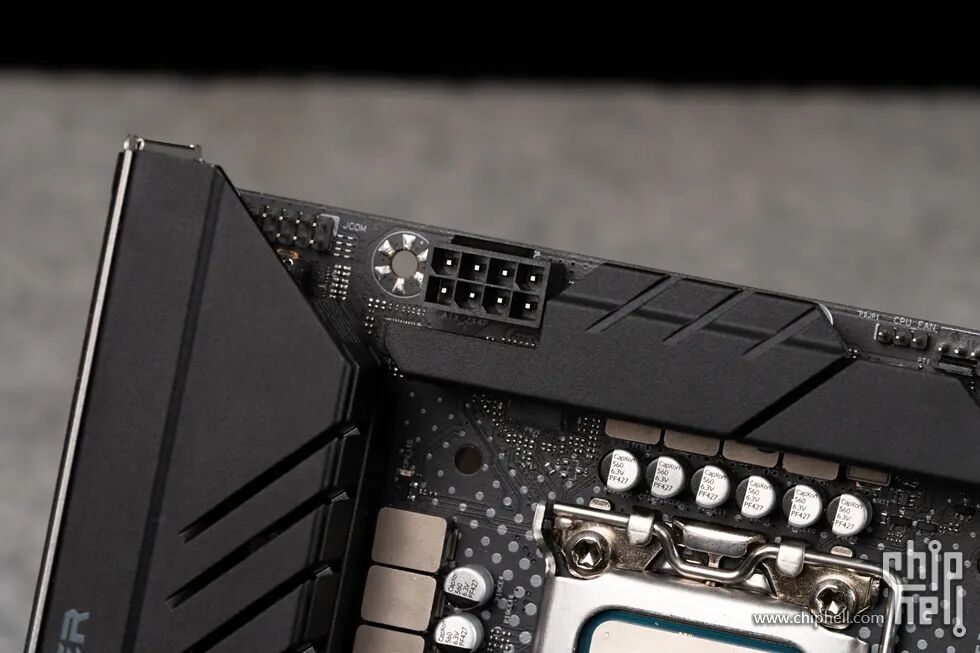

Single 8PIN power supply interface for the CPU

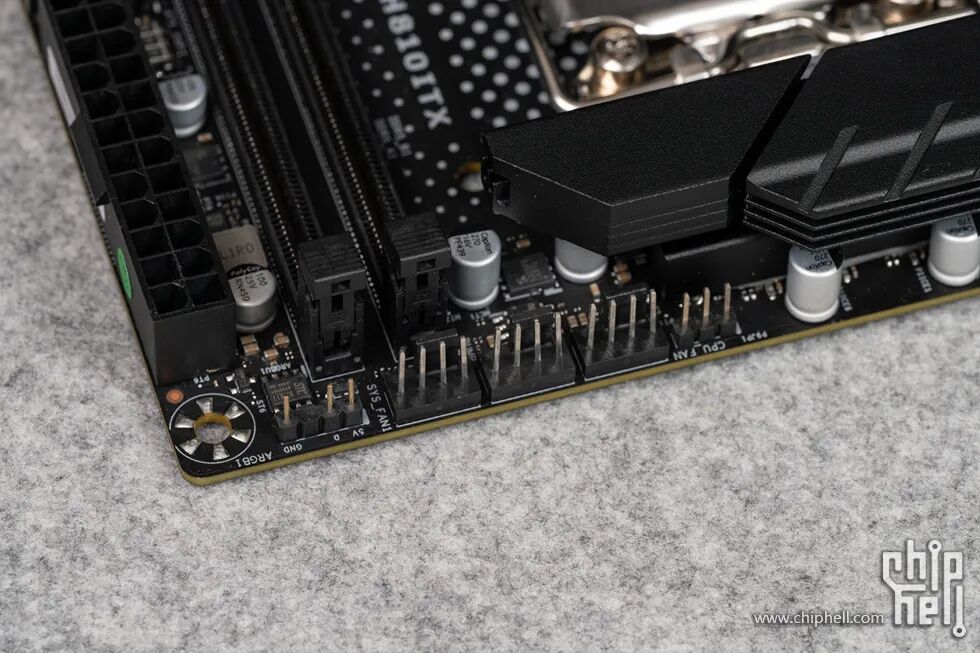

Fan 4PIN interface and 5V ARGB header

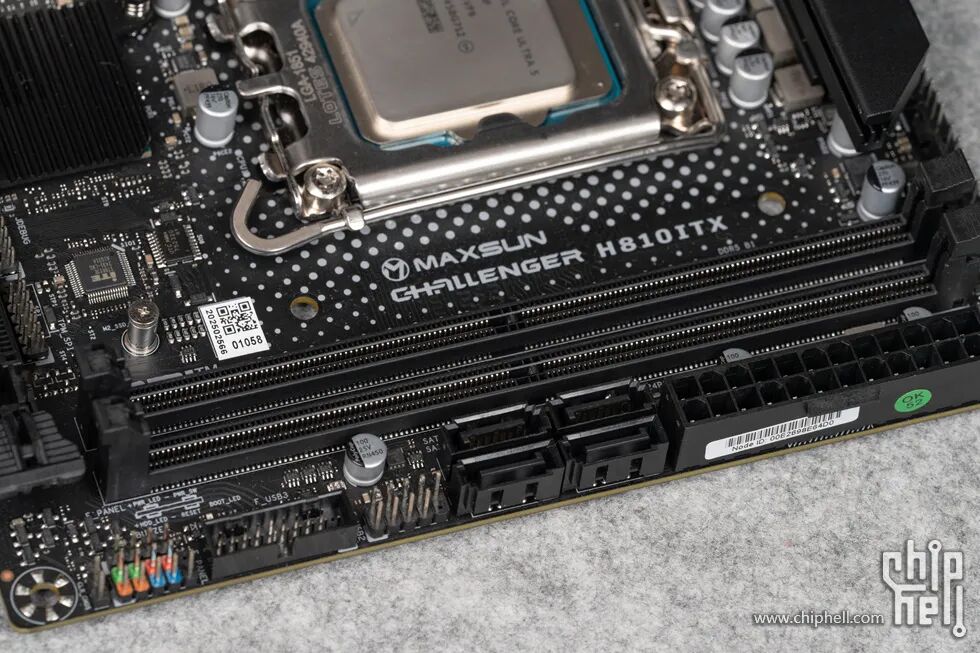

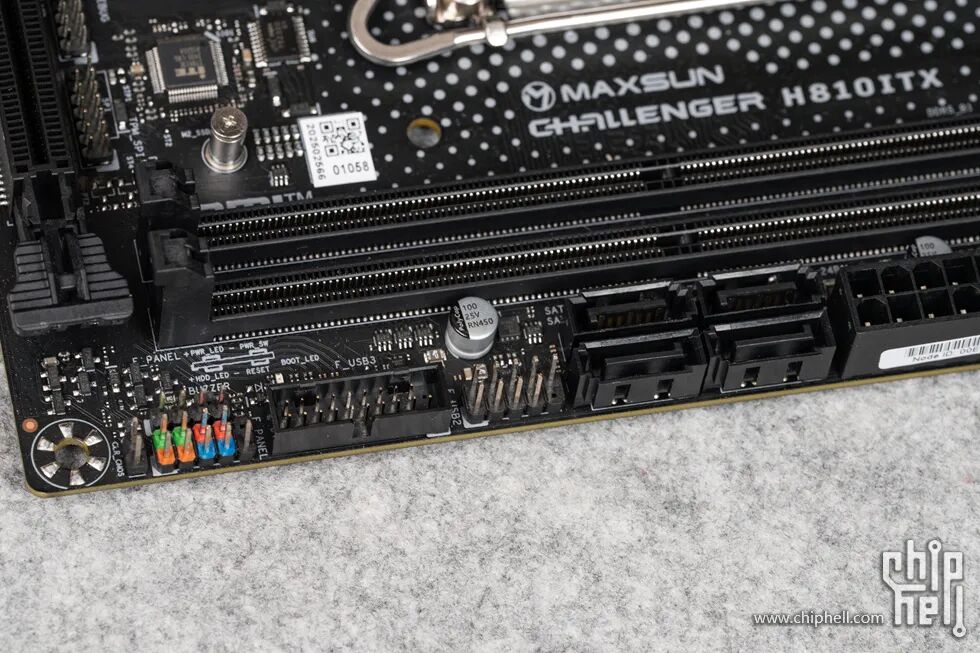

Provides 4 SATA interfaces on the side
Includes 1 USB 2.0 and 1 USB 3.0 header

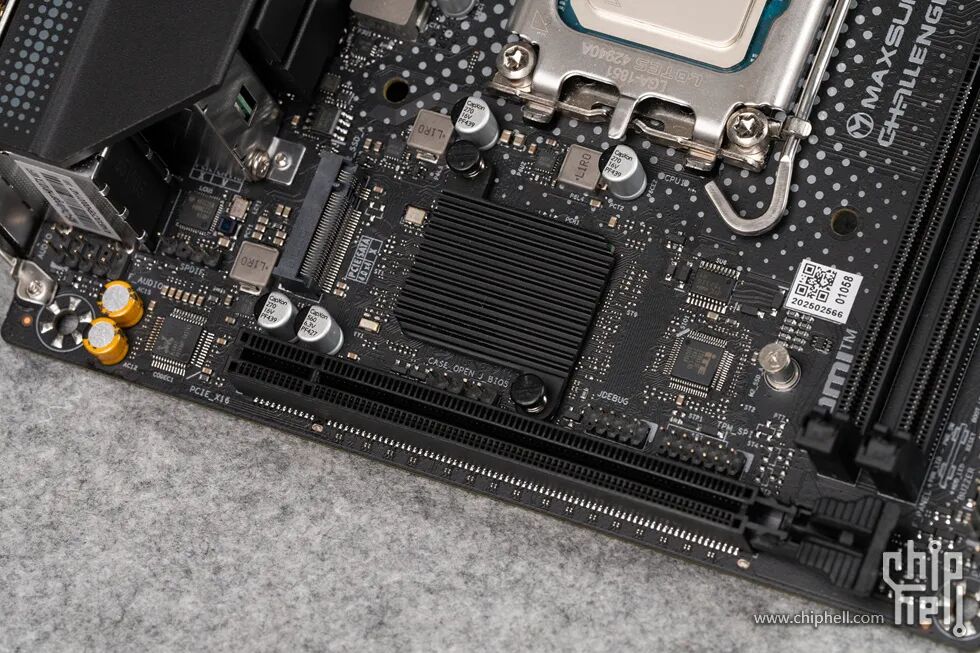

Both front and back interfaces are PCle4.0x4 full-speed M.2 hard disk interfaces, supporting NVMe protocol. The motherboard provides 1 PCle5.0x16 graphics card slot.

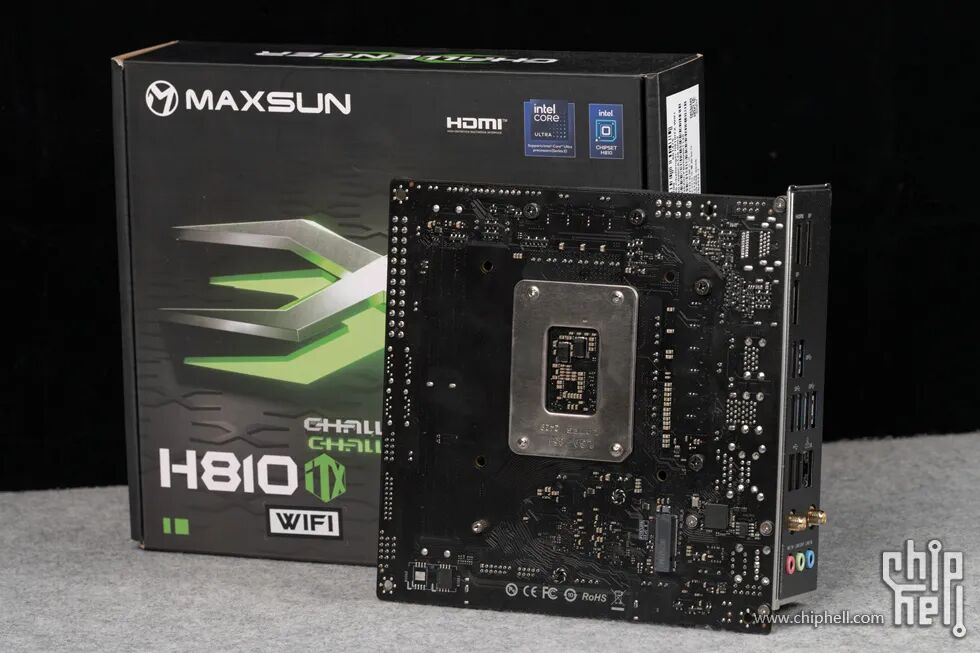

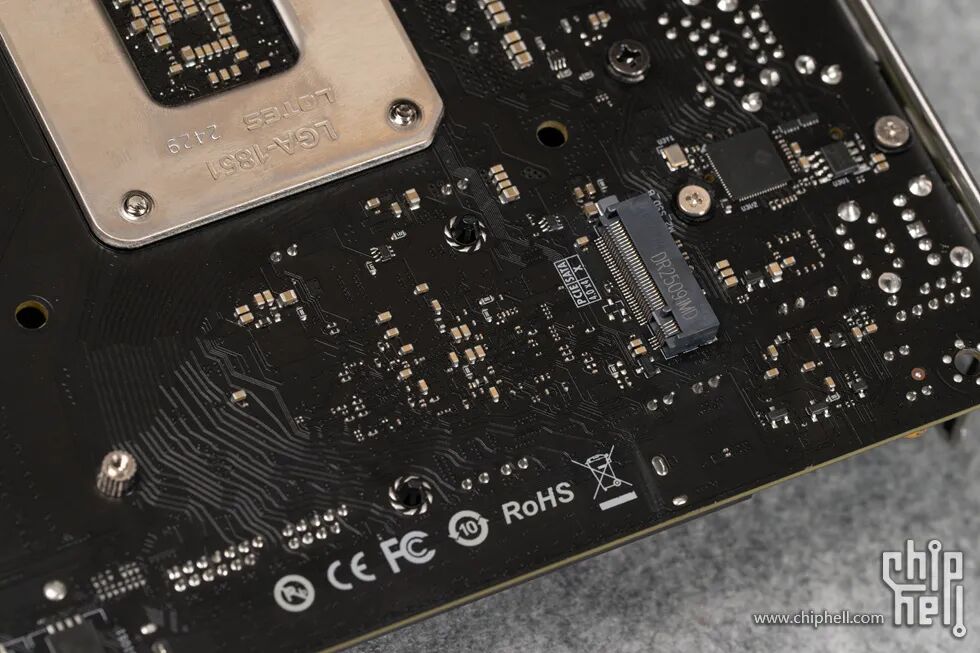

Close-up of the back of the motherboard

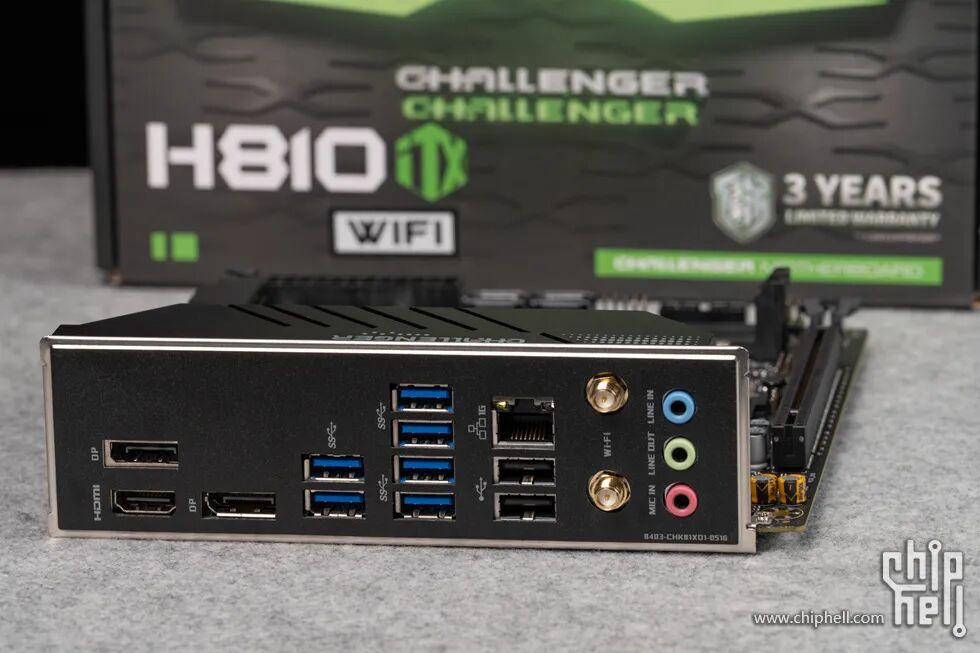

Integrated backplate, providing a rich array of interfaces: 6 USB3.0, 2 USB2.0, 2 DP 1.4, 1 HDMI 2.0. The only regret is the absence of a USB C interface. The wired network card is Intel i219V Gigabit, and the wireless network card is Intel AX101 WIFI 6 & BT 5.2.

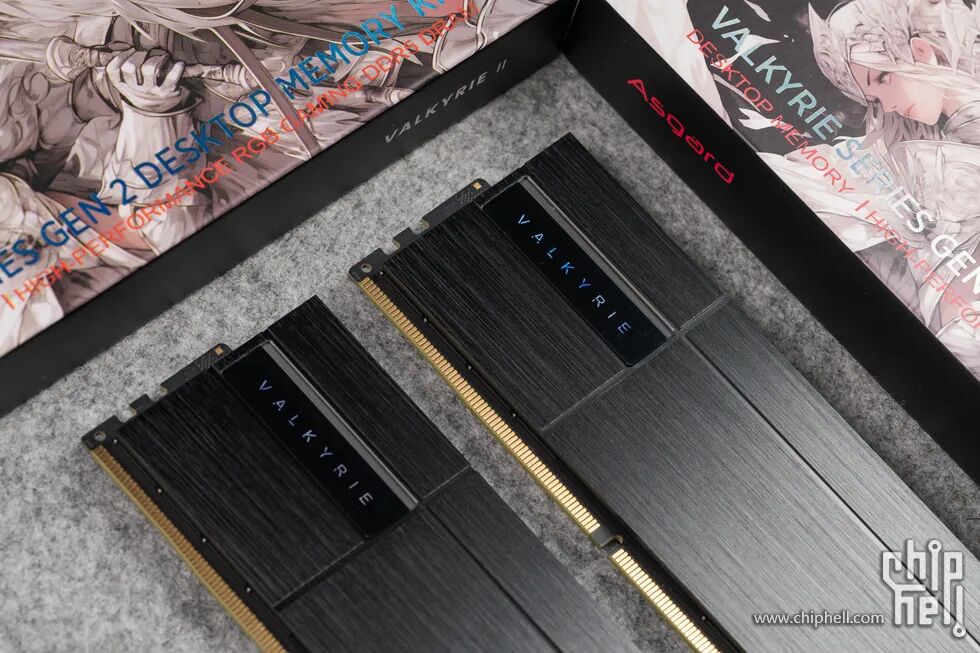

Memory uses Asgard Valkyrie II 64G 6000 C30

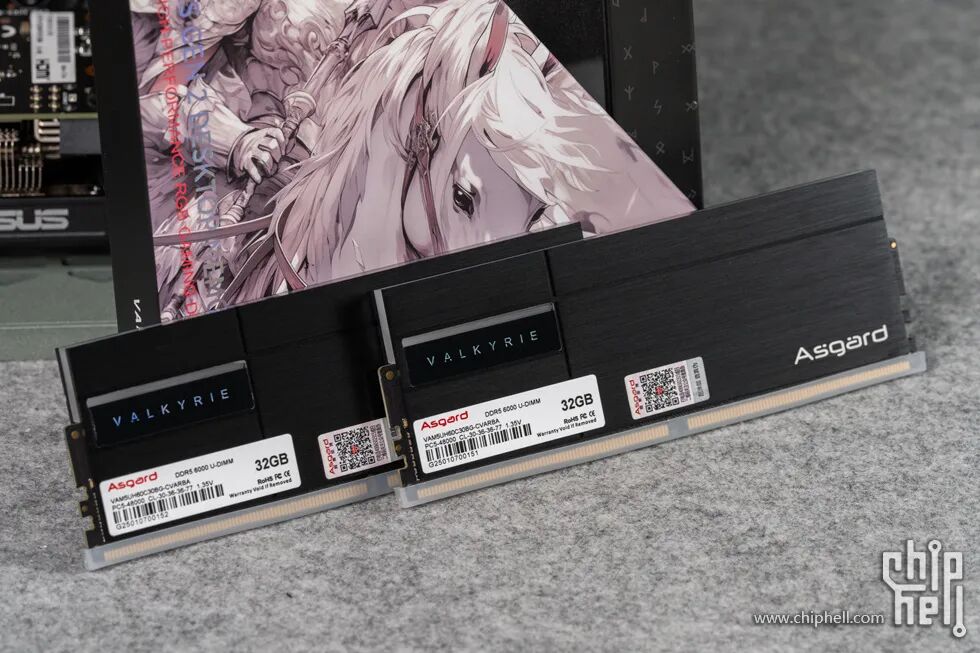

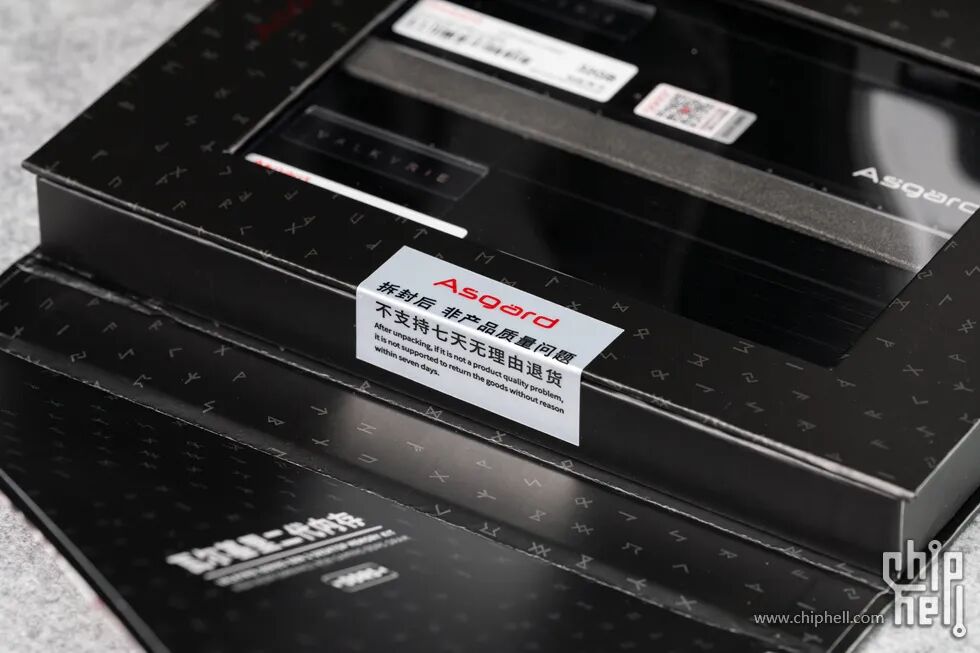

Factory pre-sticker with a new unopened label

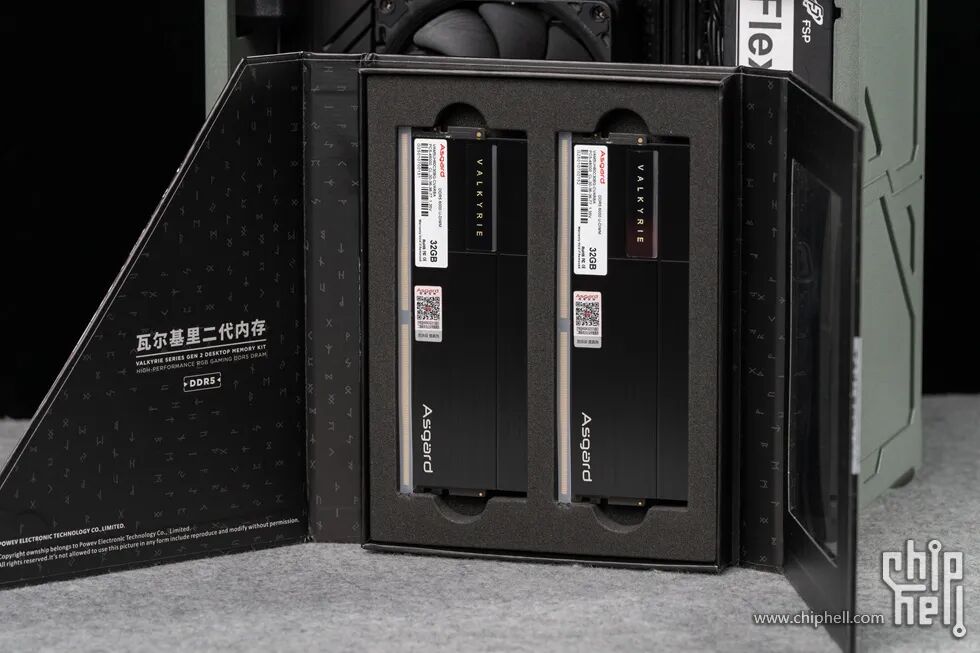

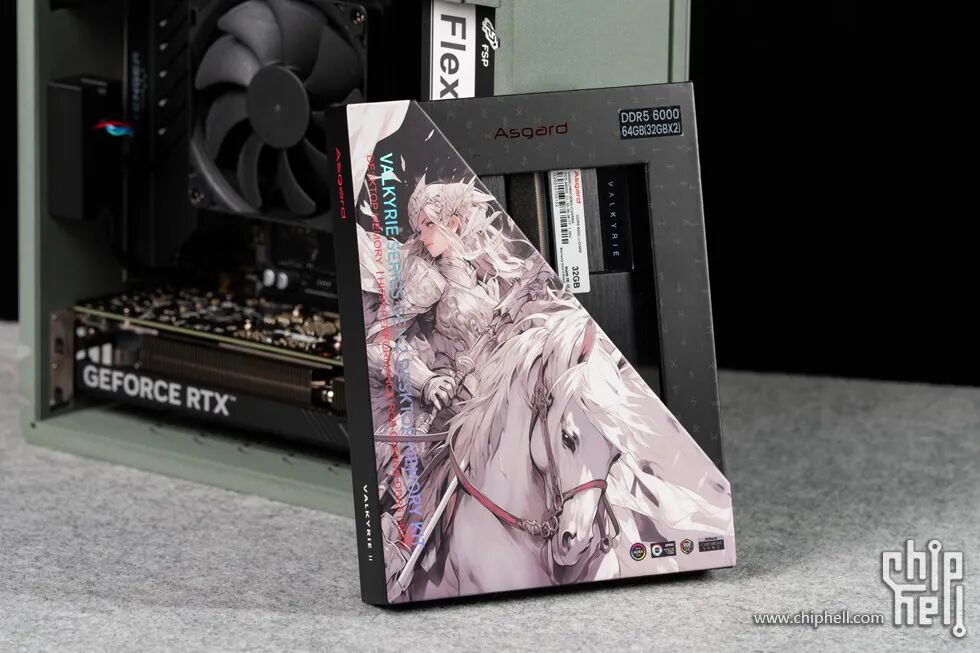

Utilizes magnetic cover packaging, factory sealed

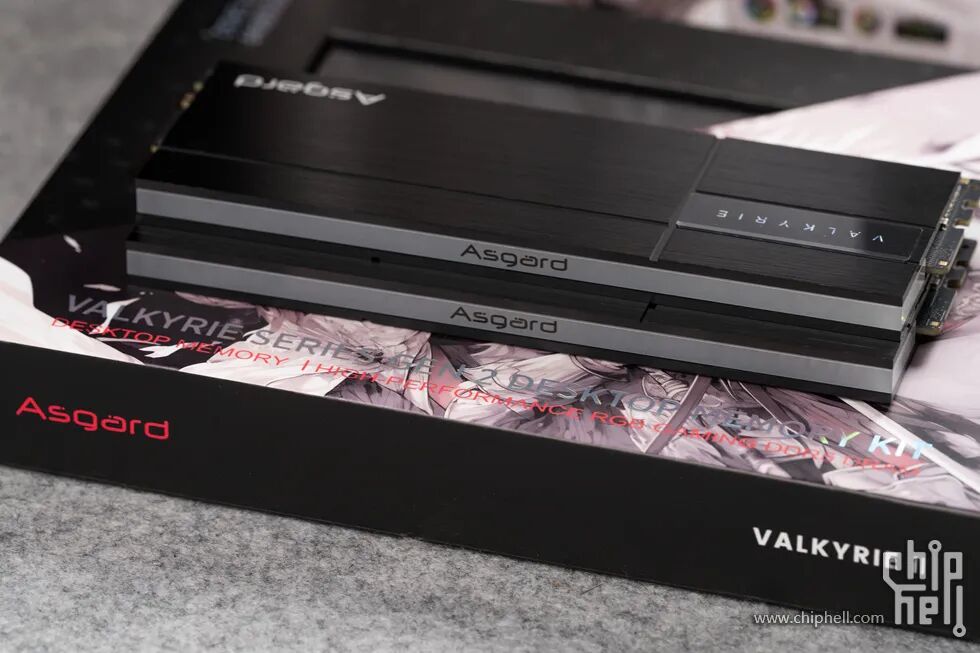

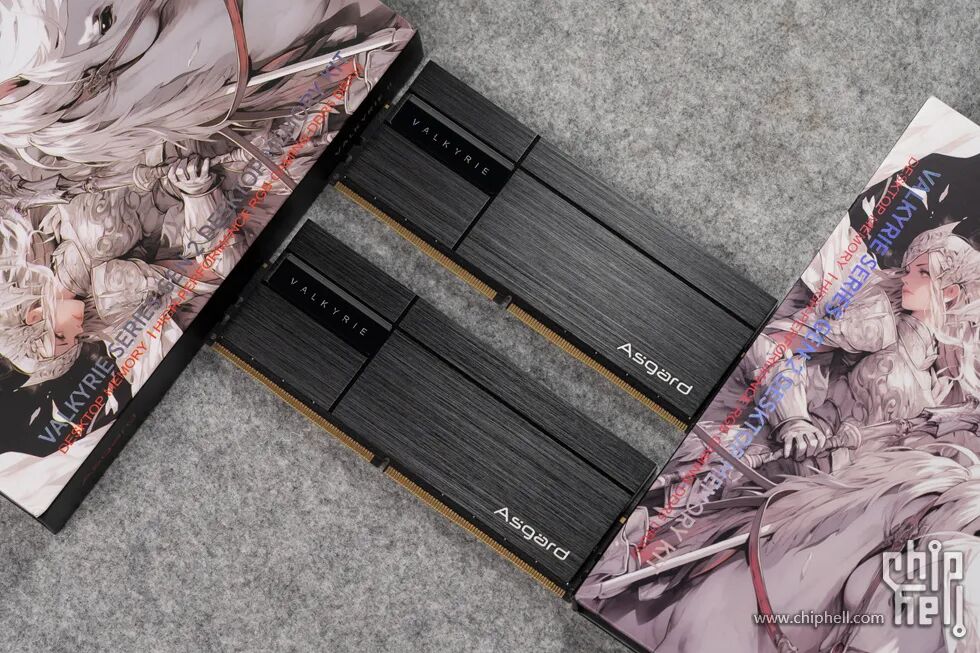

The memory features a mirrored window on the side, with a “VALKYRIE” metal laser nameplate, and an RGB light strip, showcasing a robust design filled with lines.

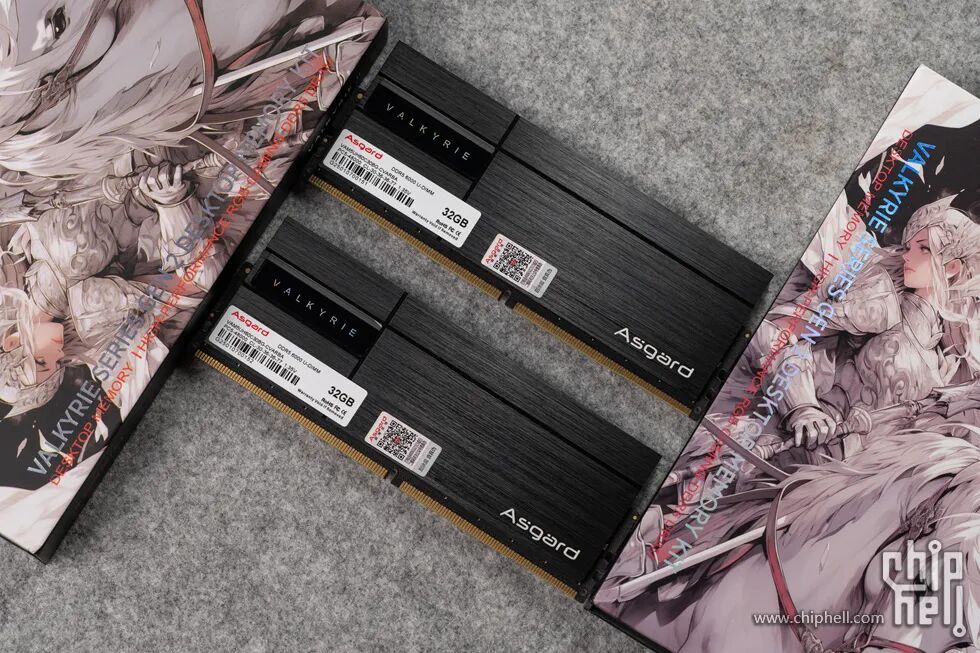

The memory features an ultra-minimalist design with a consistent look on both sides, made of metal with a black brushed three-dimensional baking paint process, 32*2GB 6000 C30 kit.
The “VALKYRIE” nameplate inside reflects different colors depending on the angle, showcasing a strong sense of quality and design style. The memory’s line design also matches well with the case design.

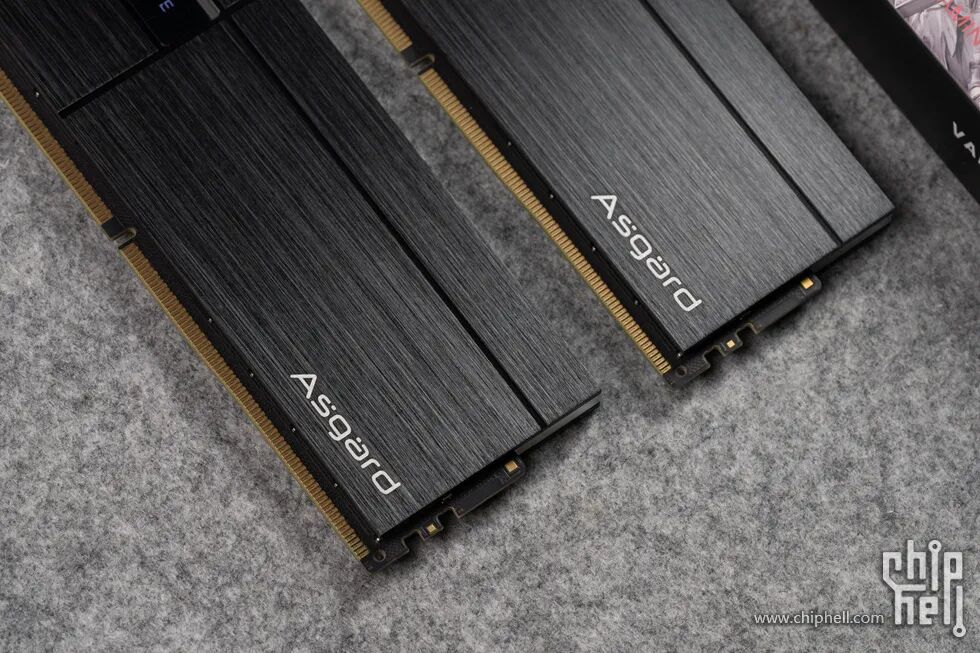

One side of the memory features the ASGARD logo, which is both simple and textured.
The top features a continuous light strip design, with 8 AMICC light beads independently controlled, providing softer colors and higher color reproduction, while supporting major motherboards and lighting control software.

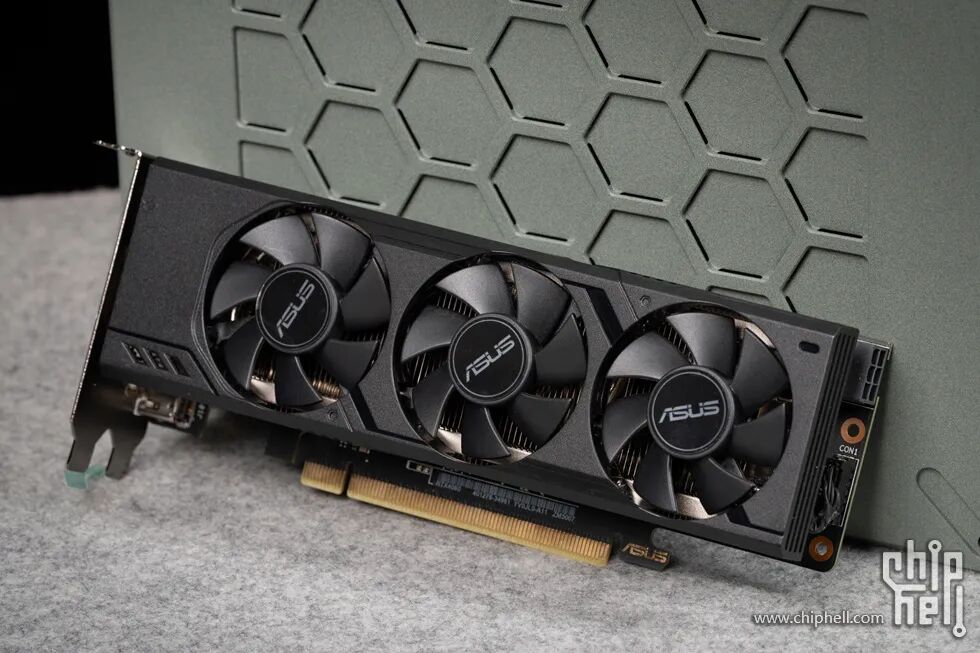

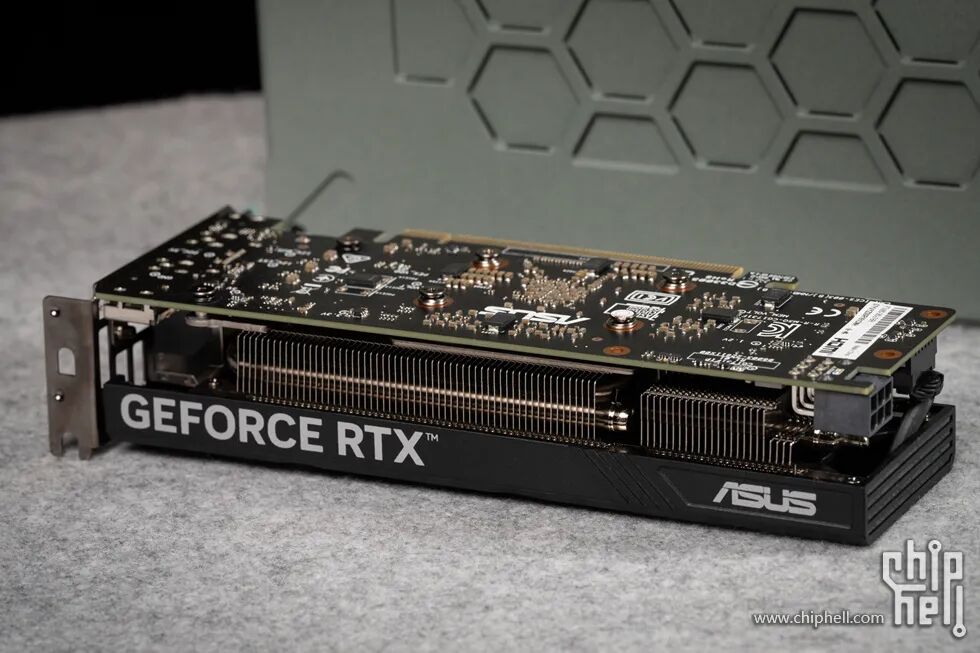

ASUS GeForce RTX 4060 LP OC 8G
Side close-up, standard dual-slot, half-height blade card design

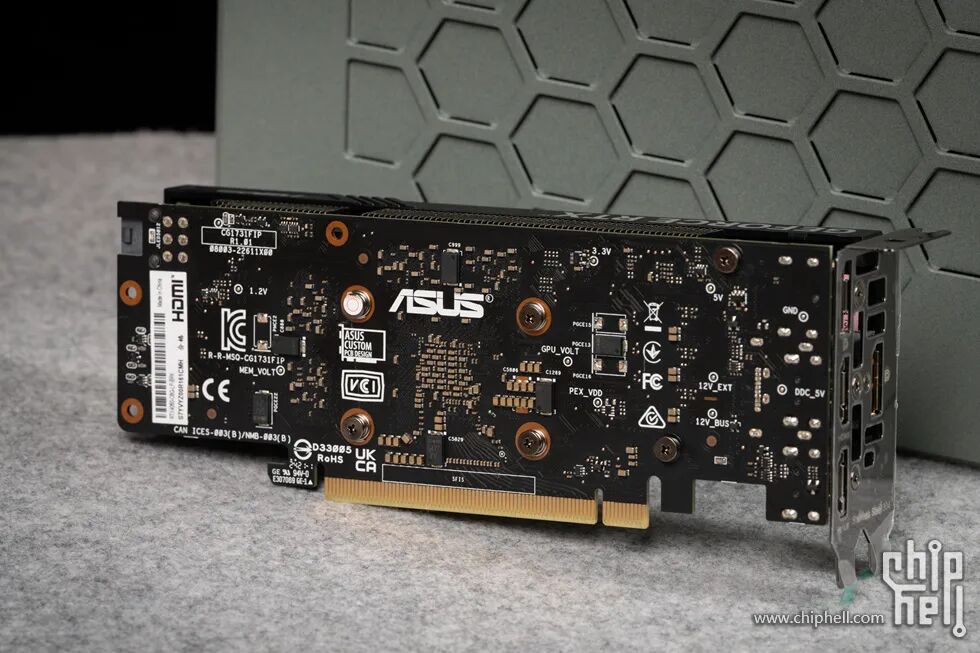

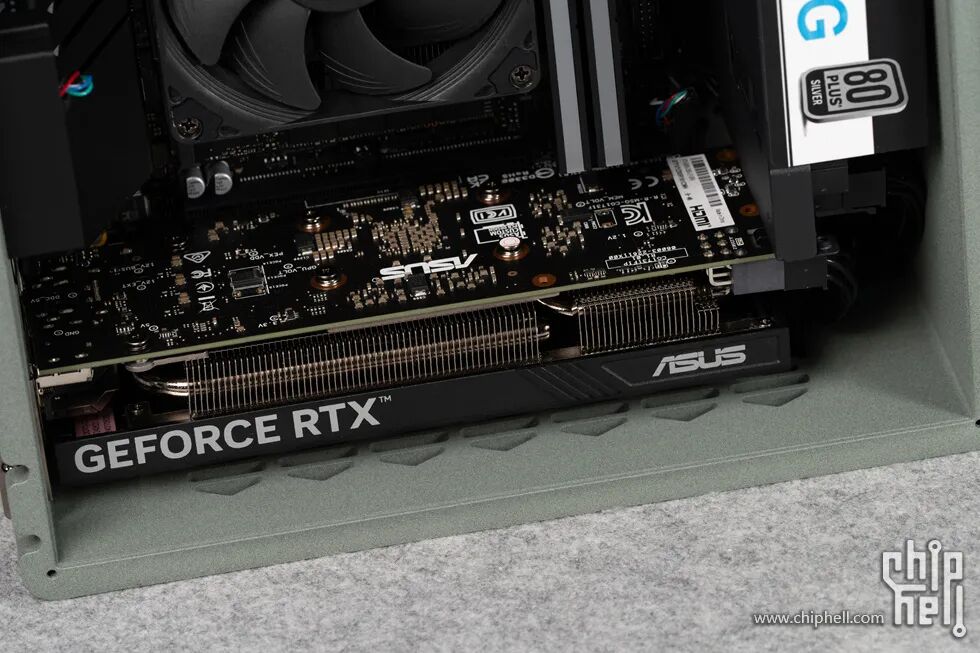

Close-up of the back of the motherboard

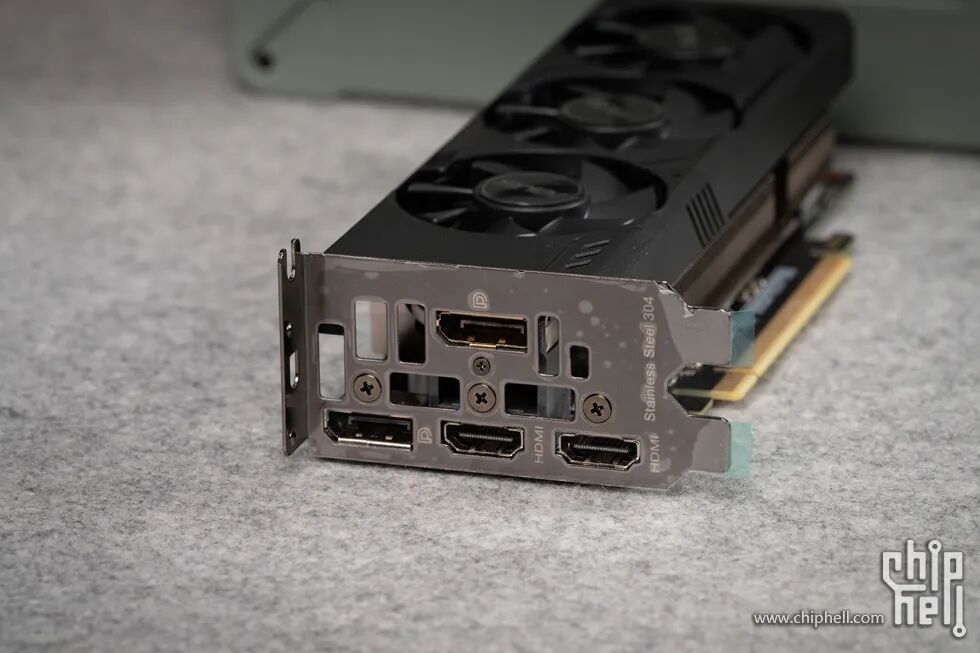

ASUS provides half-height and standard full-height IO shields, with 2 DP1.4 and 2 HDMI2.1 interfaces.

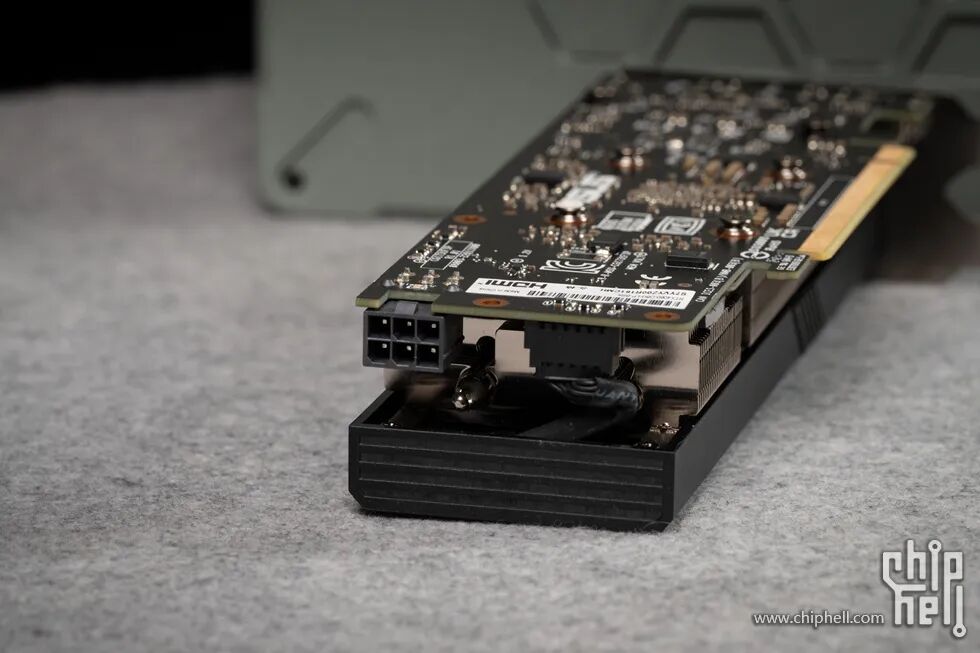

Utilizes a single 6PIN power supply interface design, with the power supply interface located at the rear.

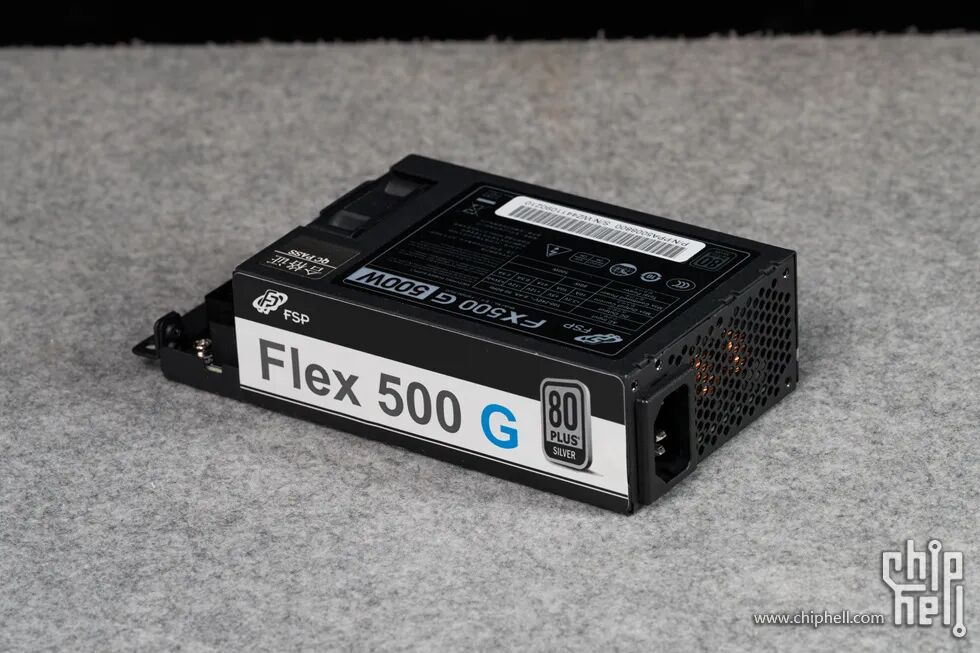

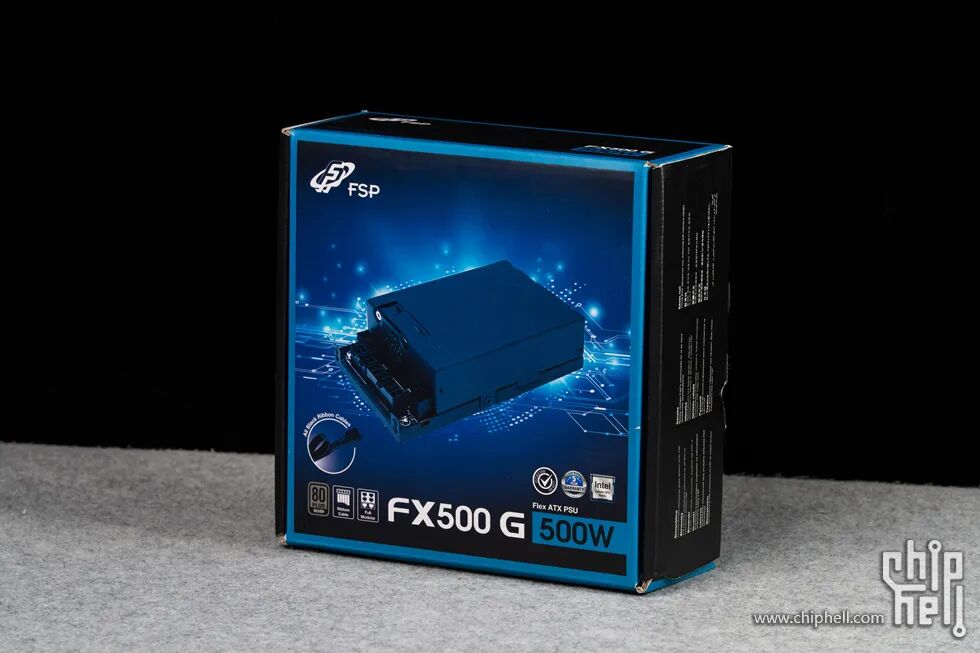

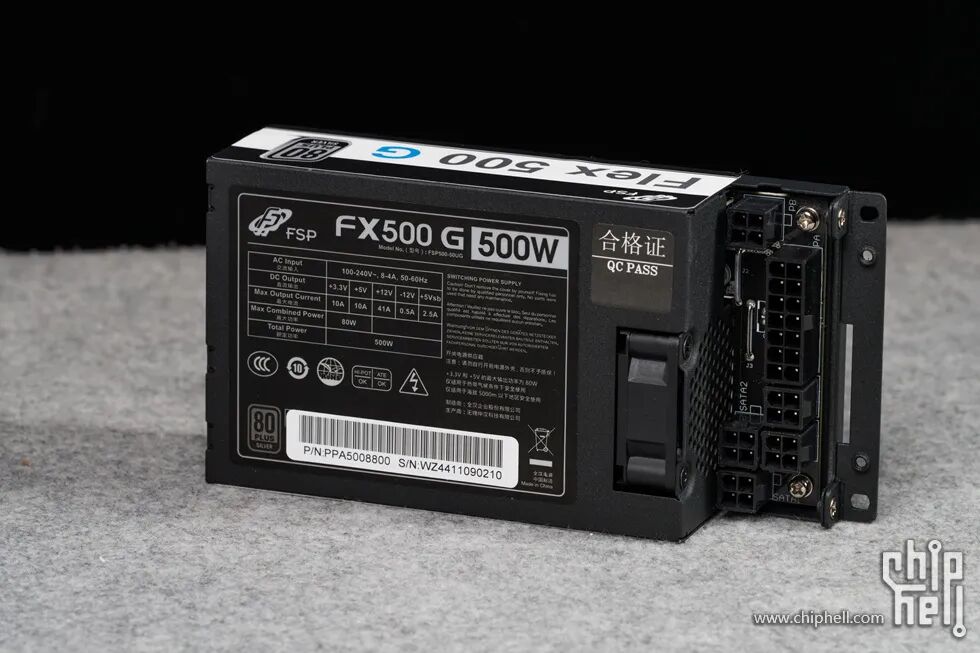

Power supply uses Full Han 1U FX500G

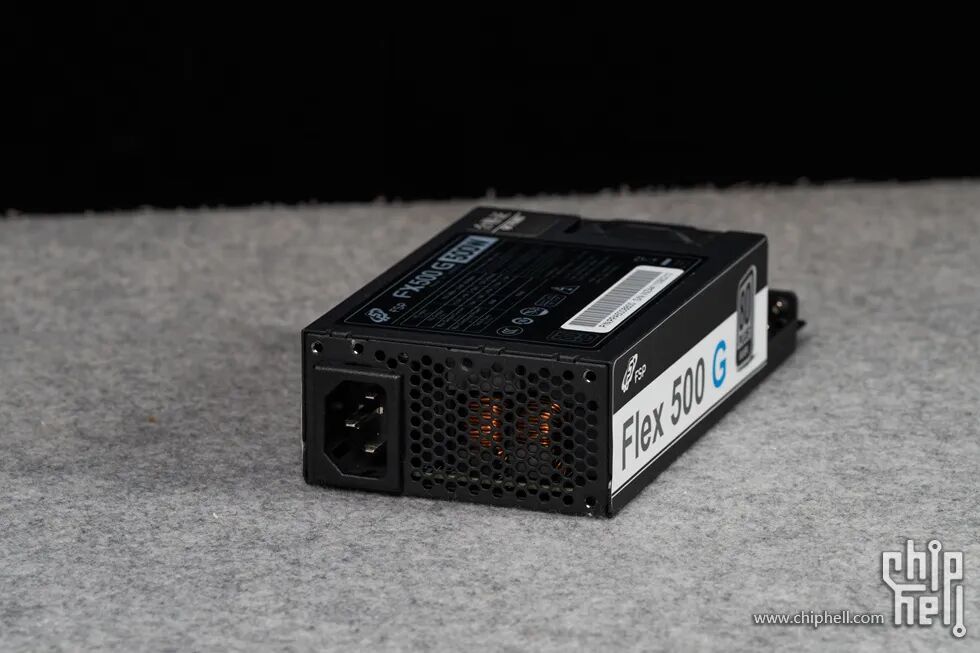

Full Han’s 1U size is very compact, measuring 150mm*81.5mm*40.5mm

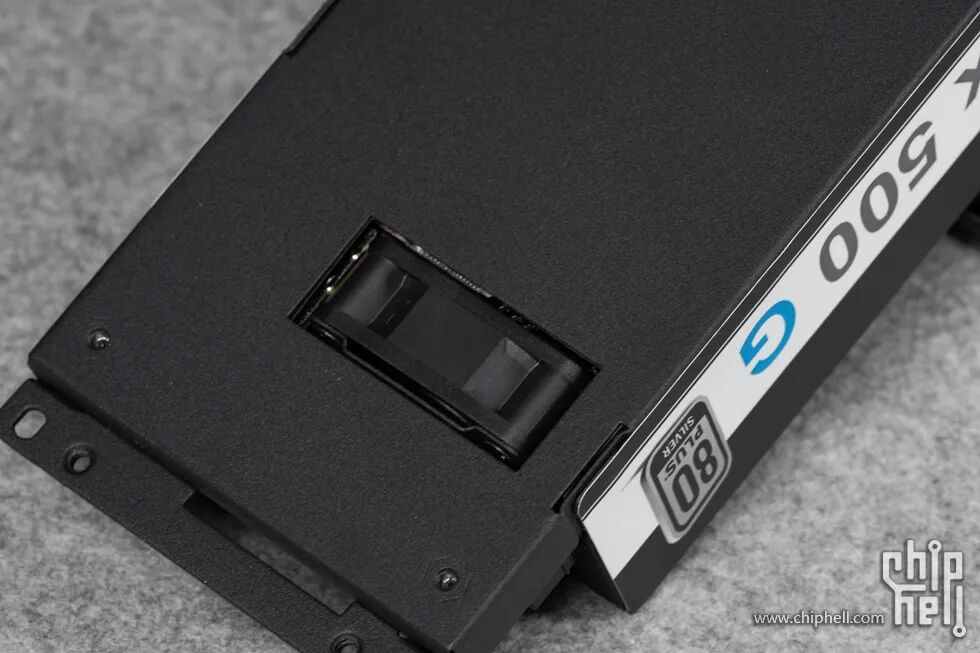

Equipped with a 40mm ball bearing fan, featuring start-stop technology.
The power supply has passed 80PLUS Silver certification, achieving an effective conversion efficiency of 90% at 50% typical load.
Utilizes a fully modular design, very friendly for ITX and 1U cases.

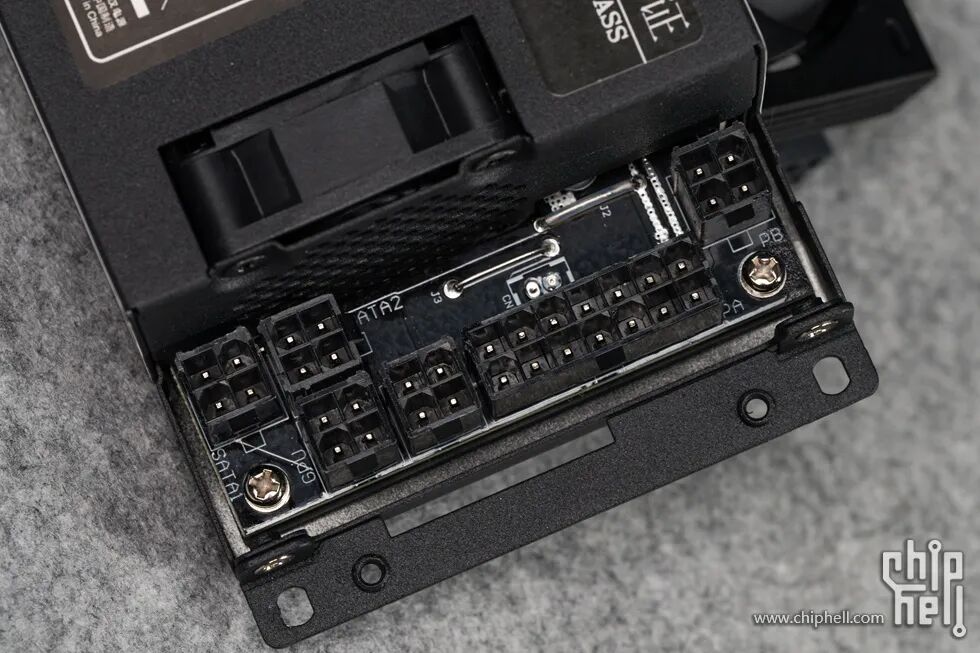

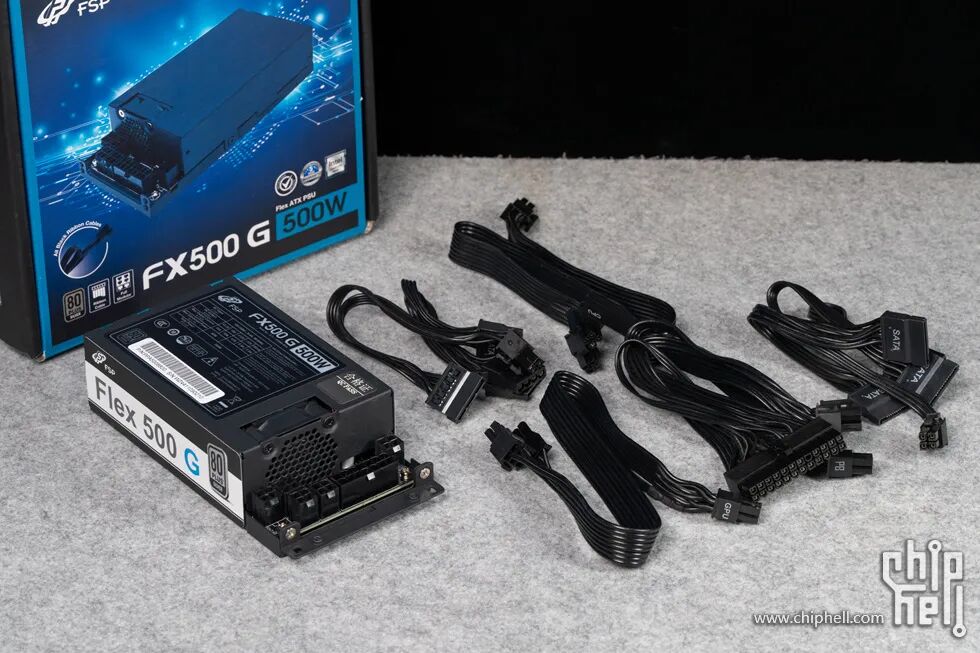

Standard fully modular flat cables

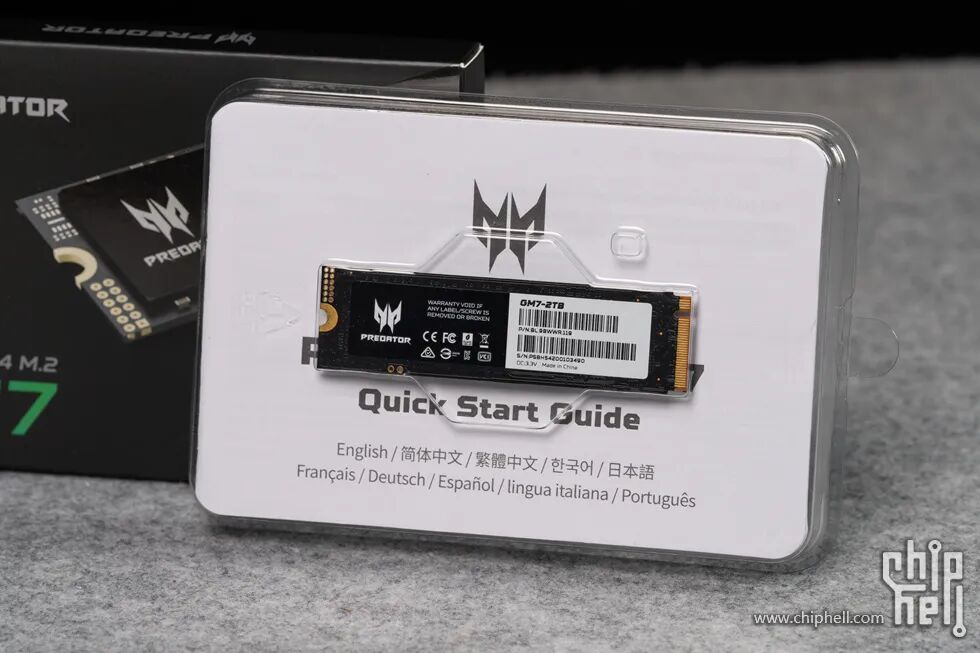

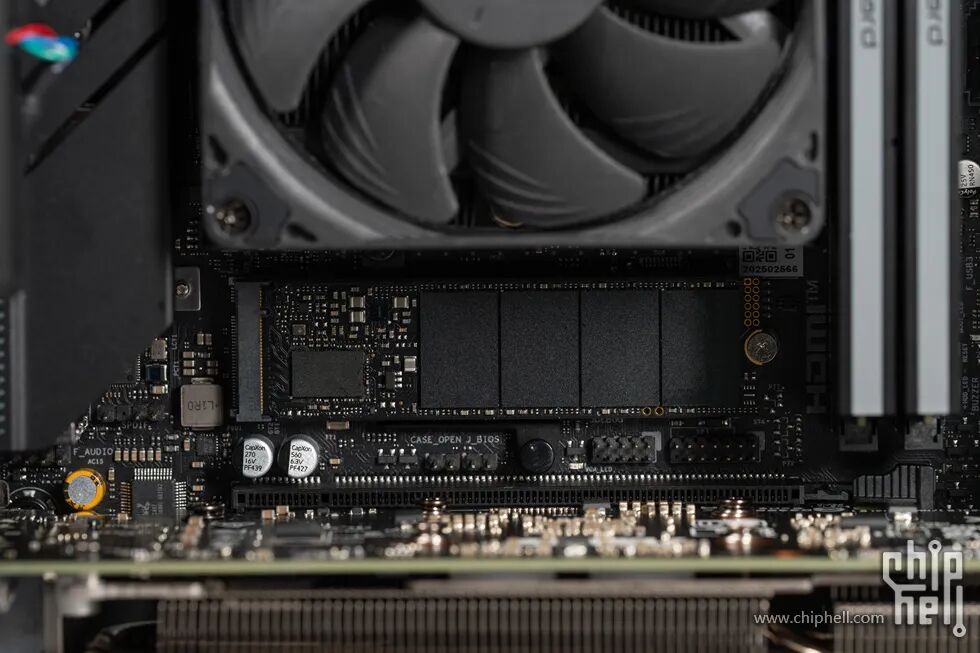

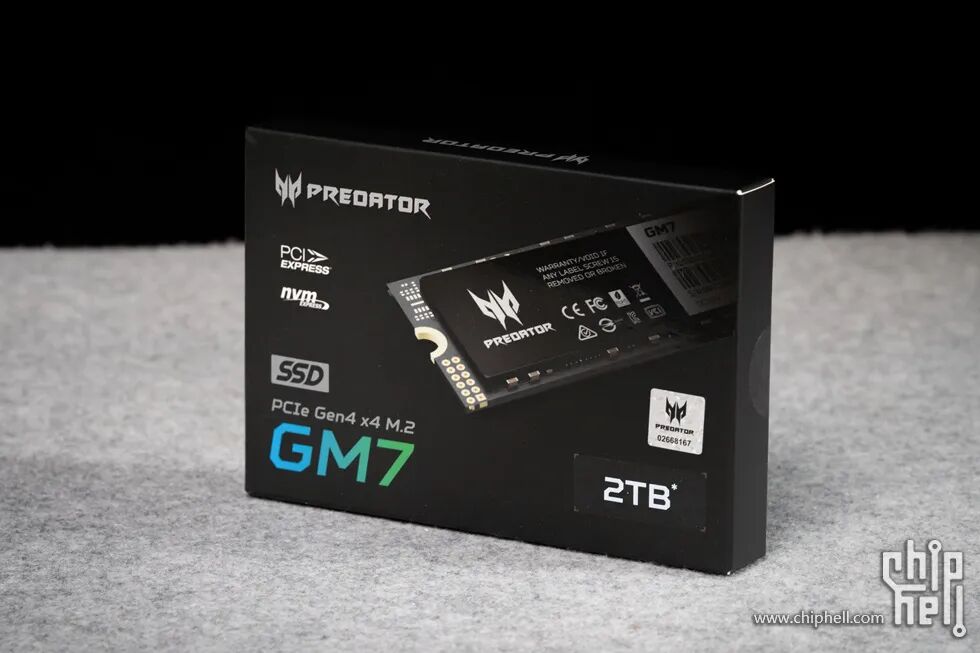

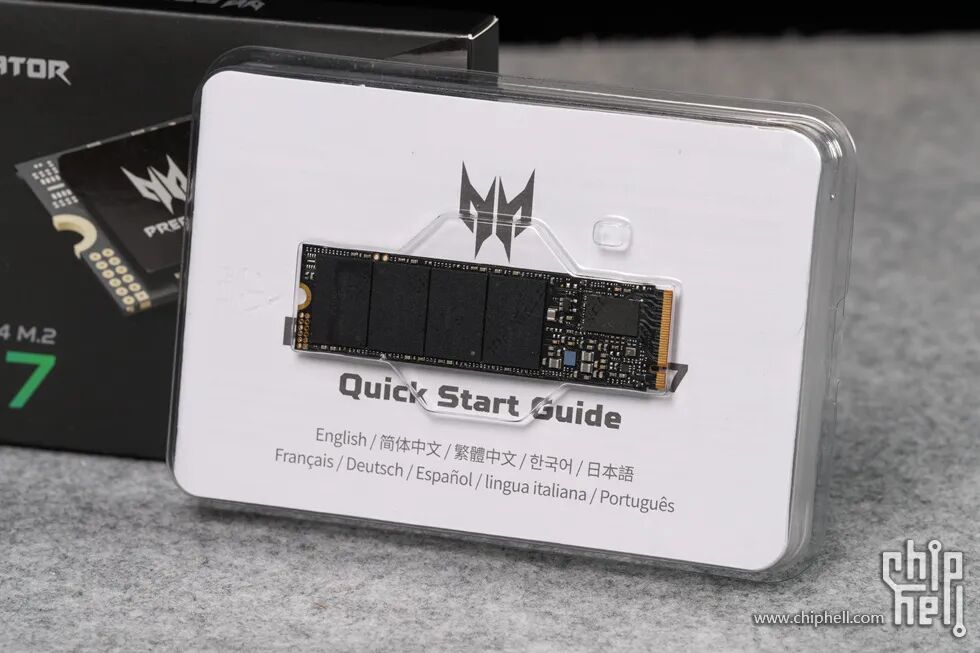

The SSD is from Acer Predator GM7 2TB
Utilizes the Lianyun MAP1602 main control, paired with Yangtze Memory particles, PCIe 4.0×4 2280, with read speeds of 7200MB/s and write speeds of 6300MB/s.
Utilizes a single-sided particle design, with a graphene heat dissipation patch on the front.

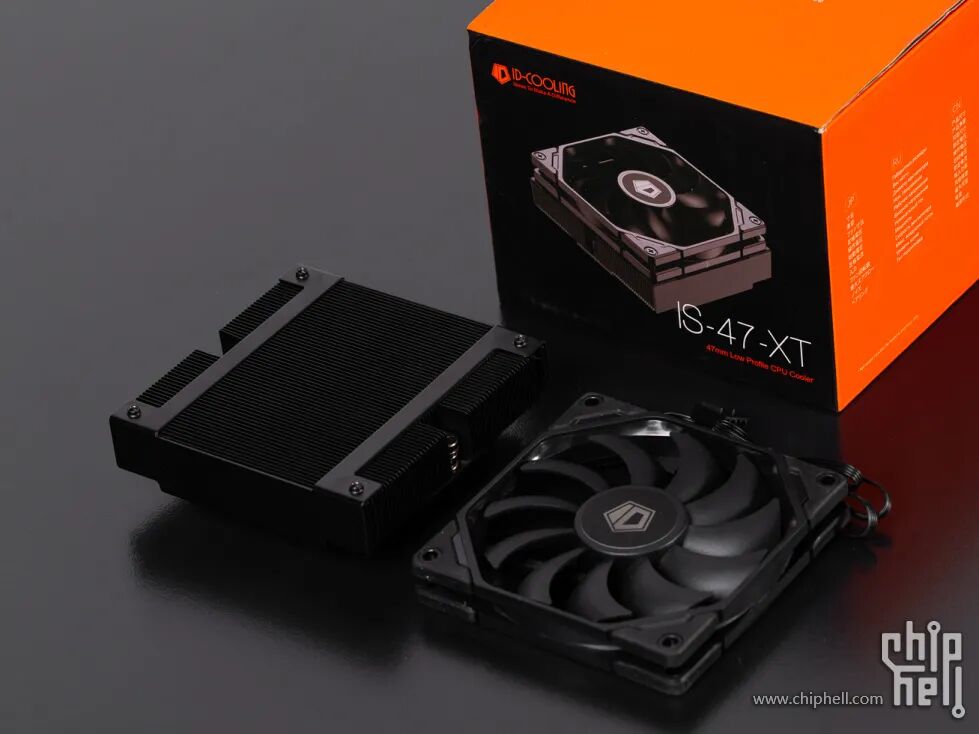

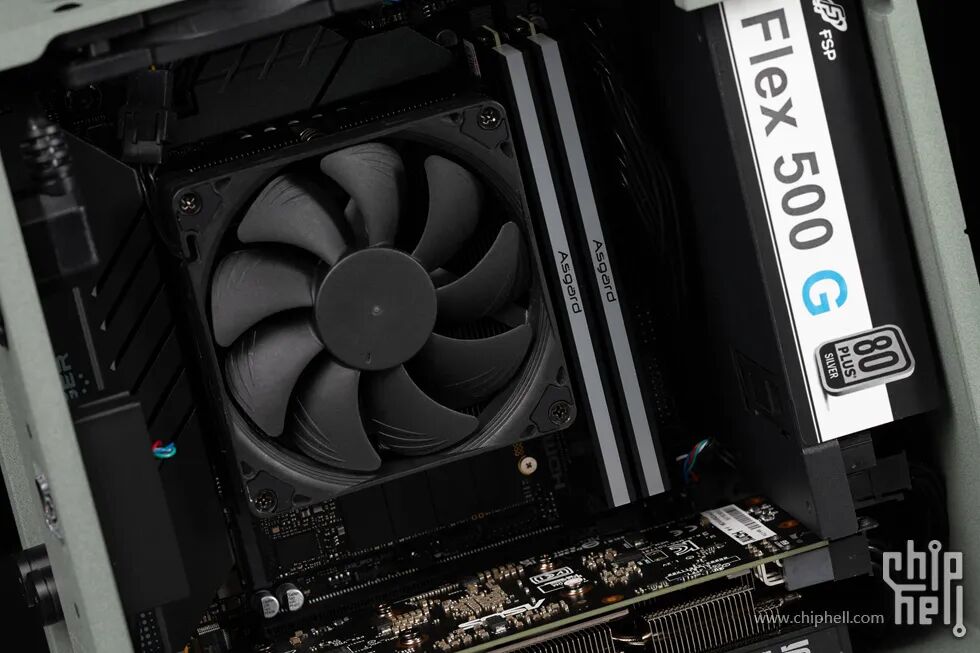

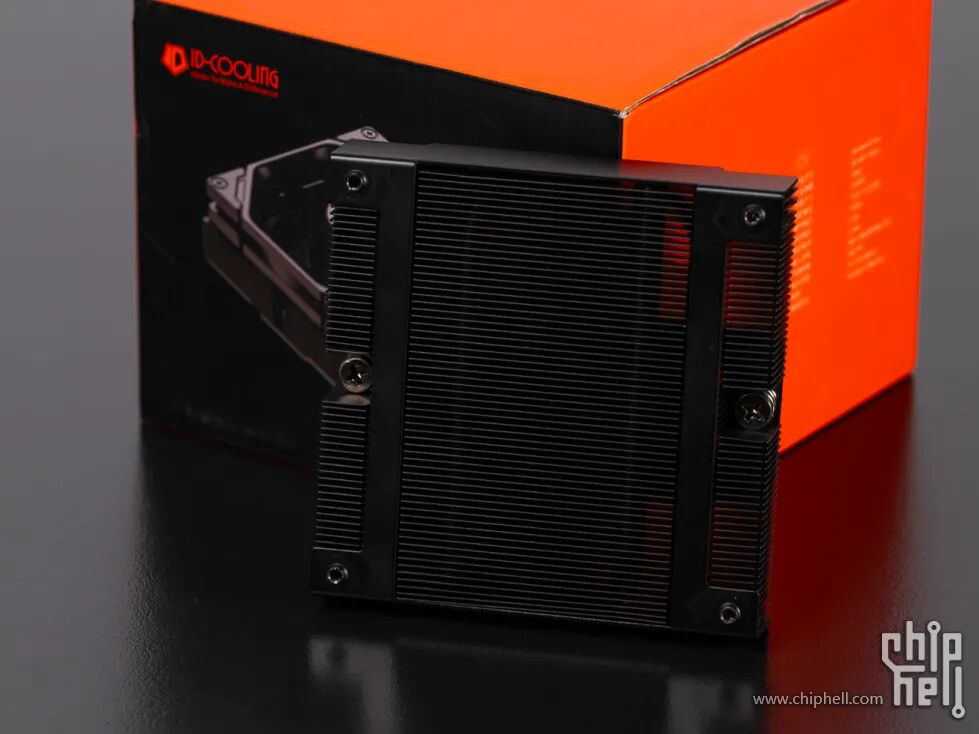

Cooling is provided by ID COOLING IS-47-XT

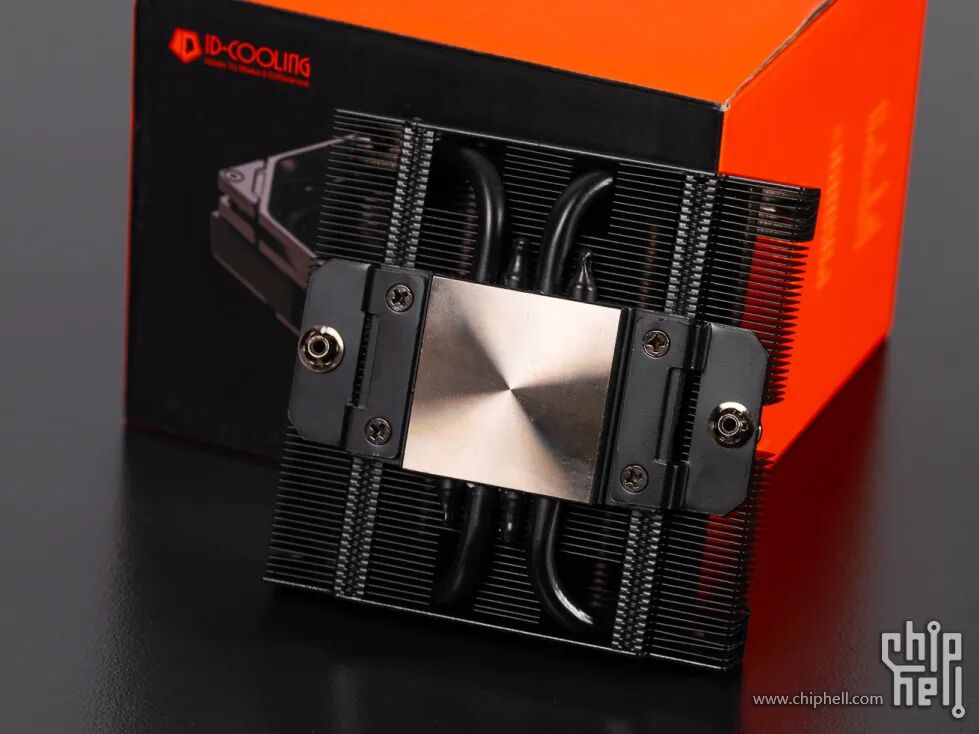

Features a refined CNC copper base, seamlessly welded with the heat pipes for rapid heat conduction. AMD provides two sets of mounting brackets that can rotate freely, ensuring consistent cooling performance in all directions, unaffected by gravity.
Utilizes a four-heat pipe design

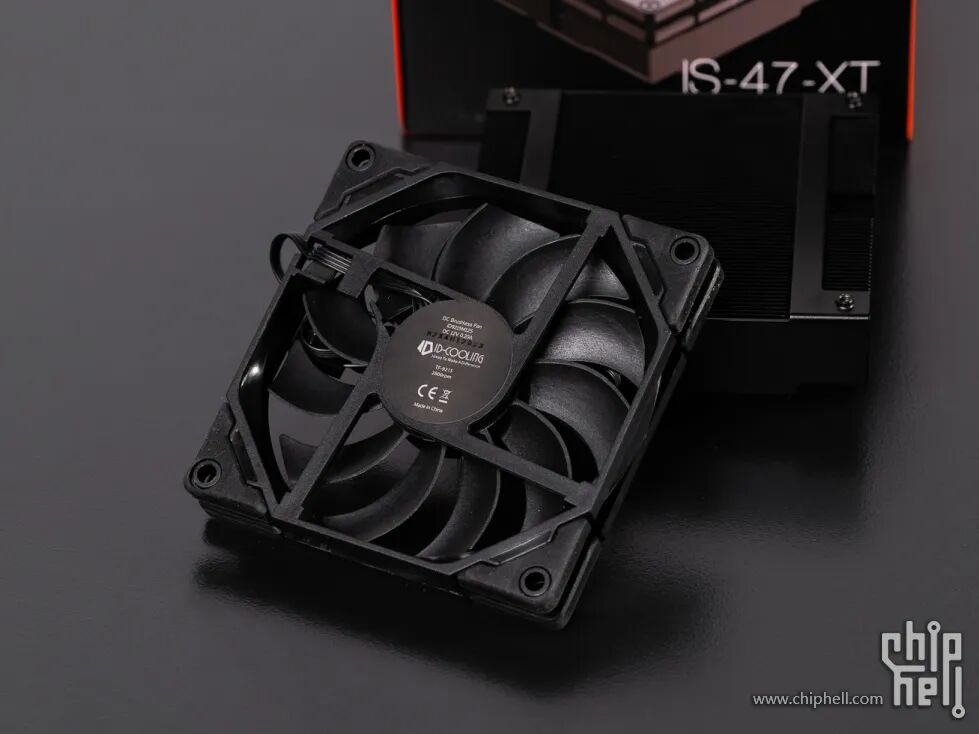

Standard 9015 fan, with a thickness of 15mm, equipped with 8 vibration-damping pads on both sides to reduce noise.

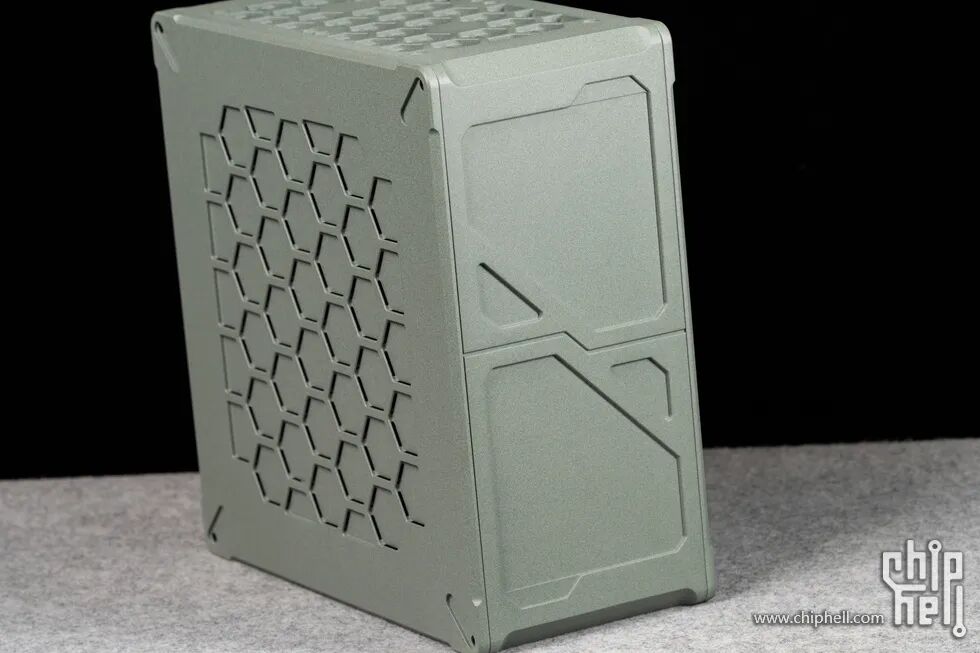

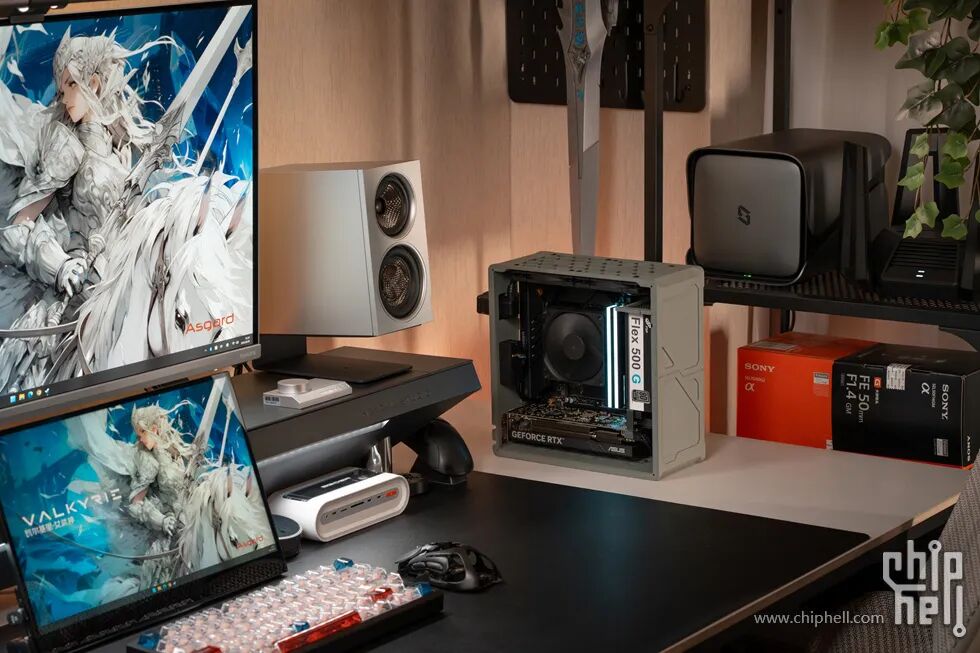

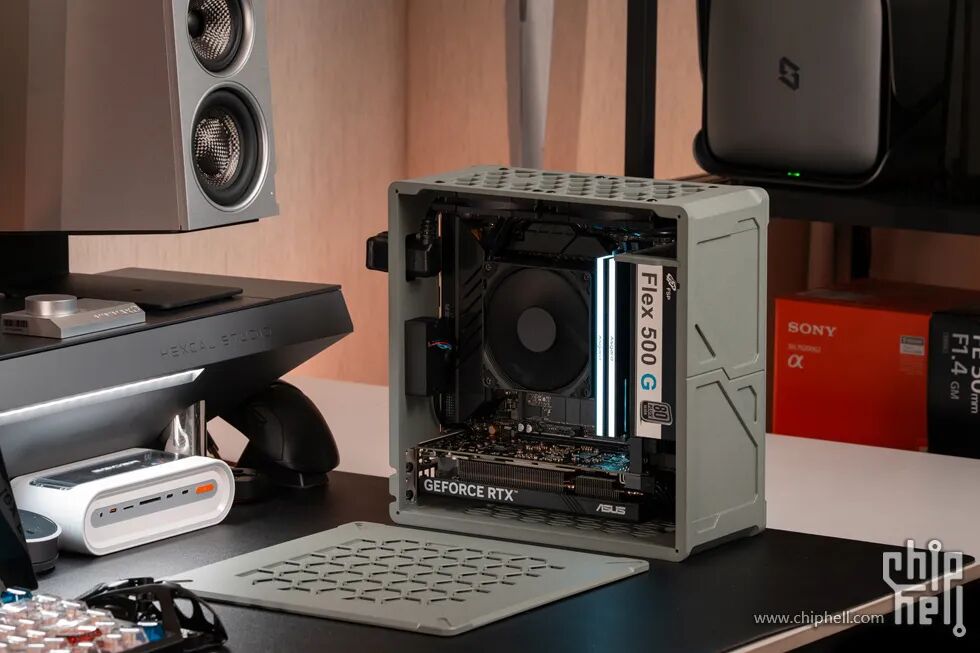

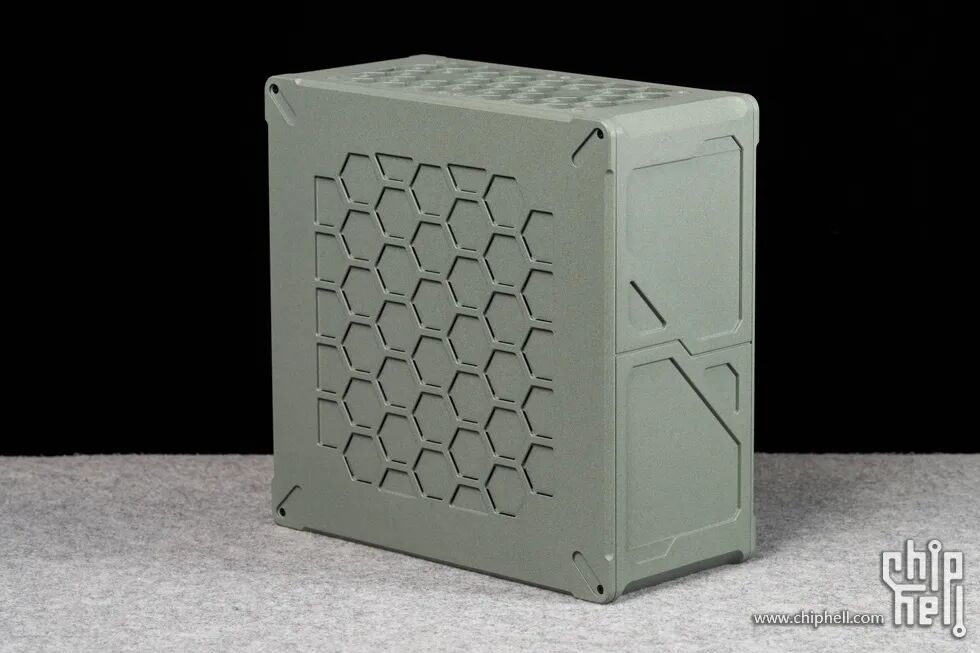

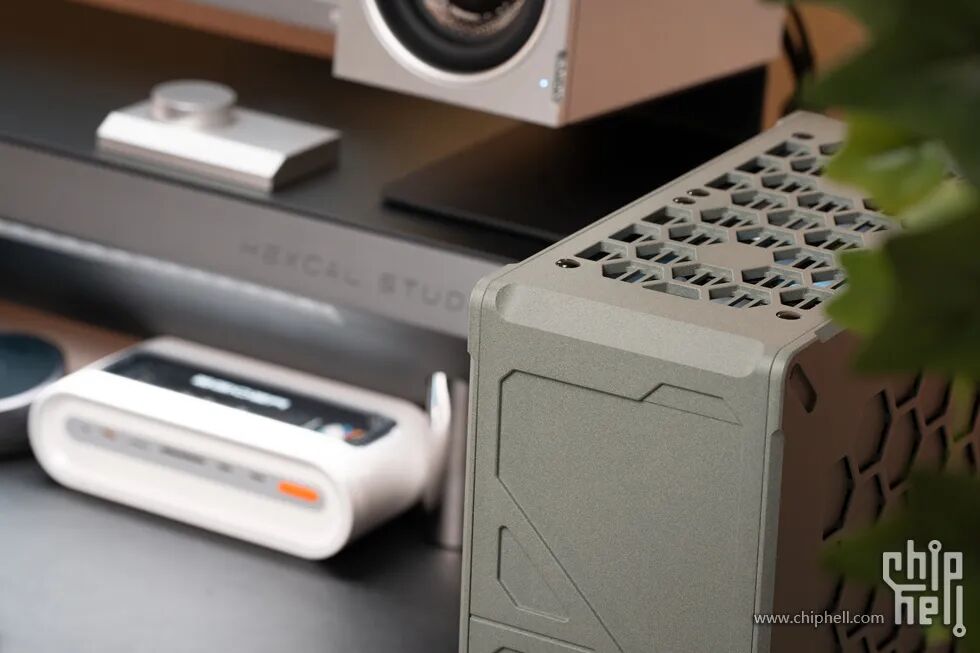

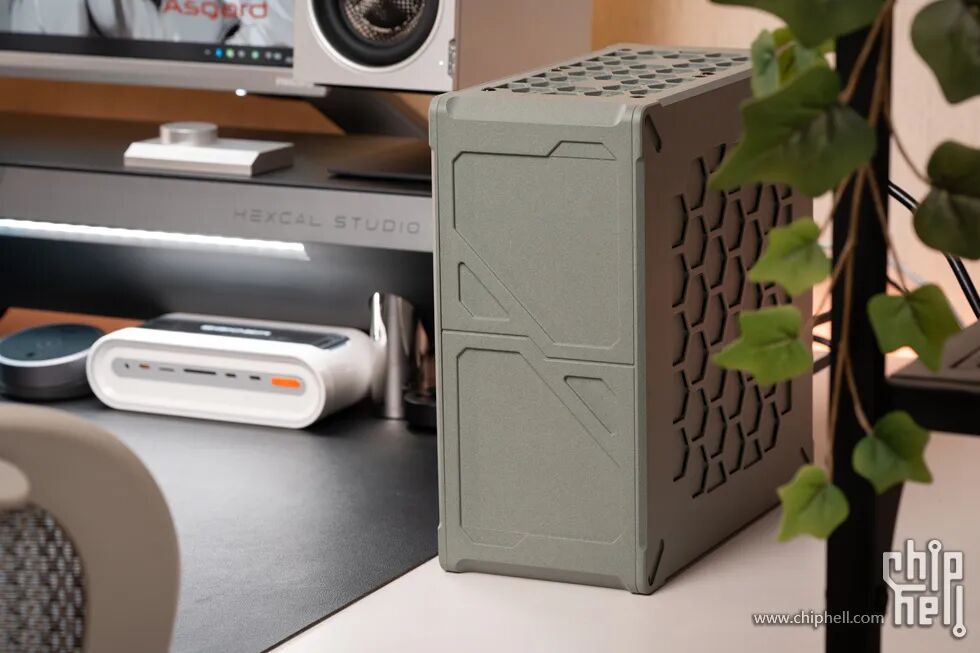

aboCase Container S, the color for this build is Fir Green.

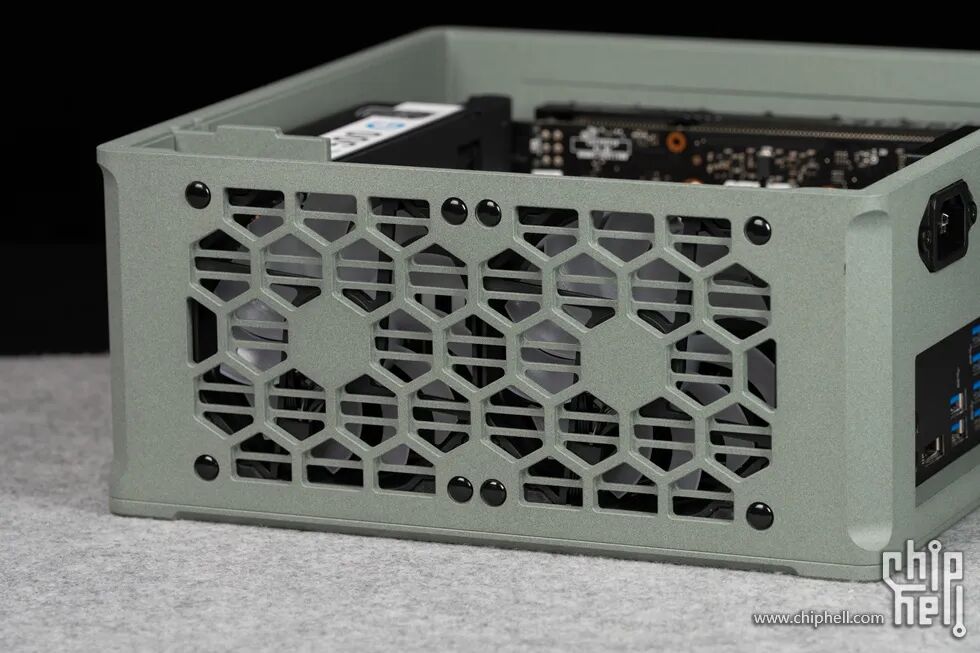

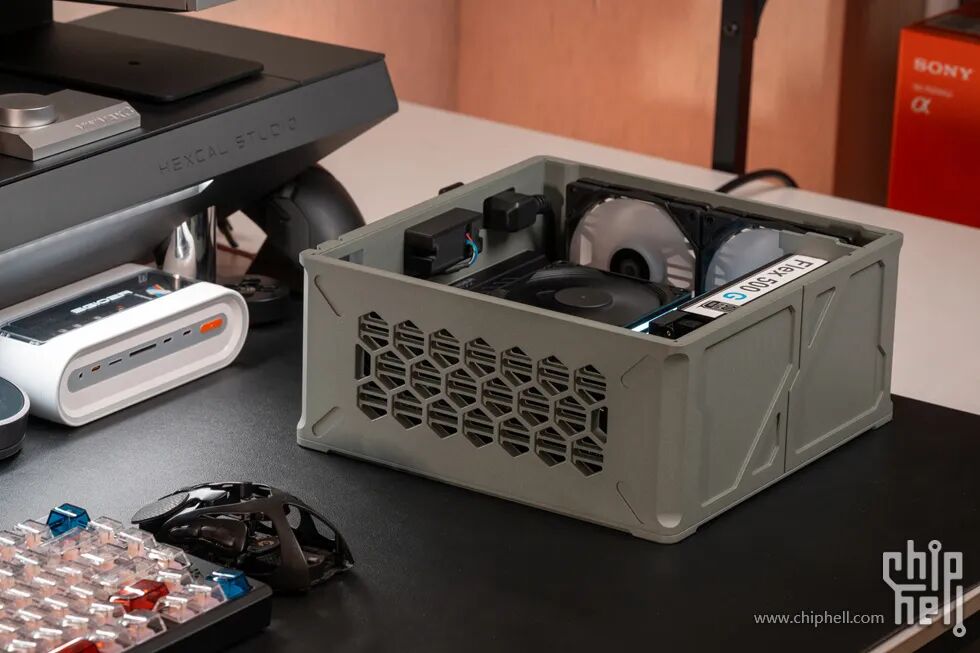

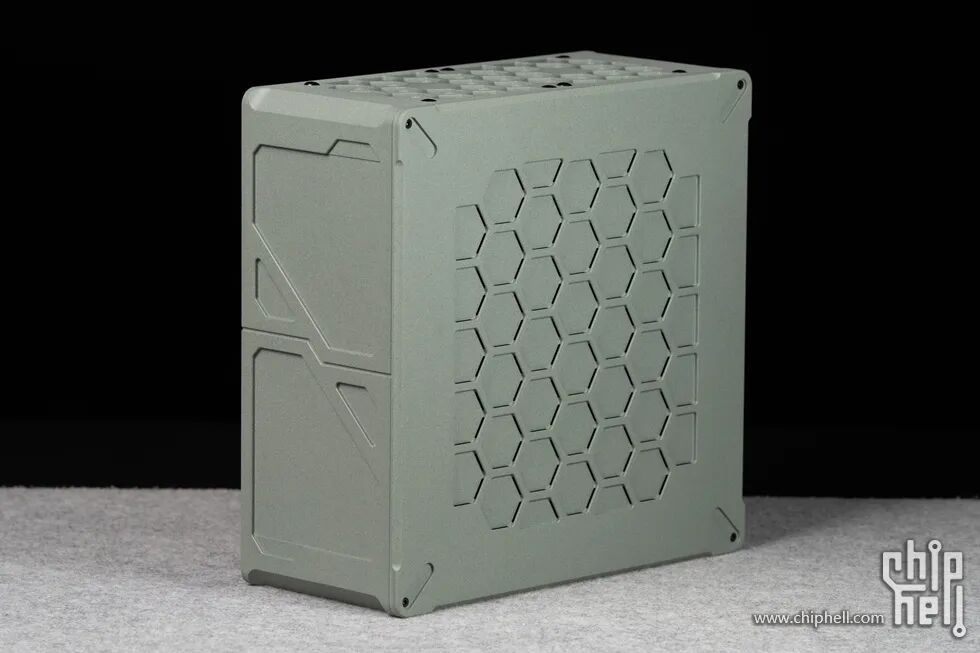

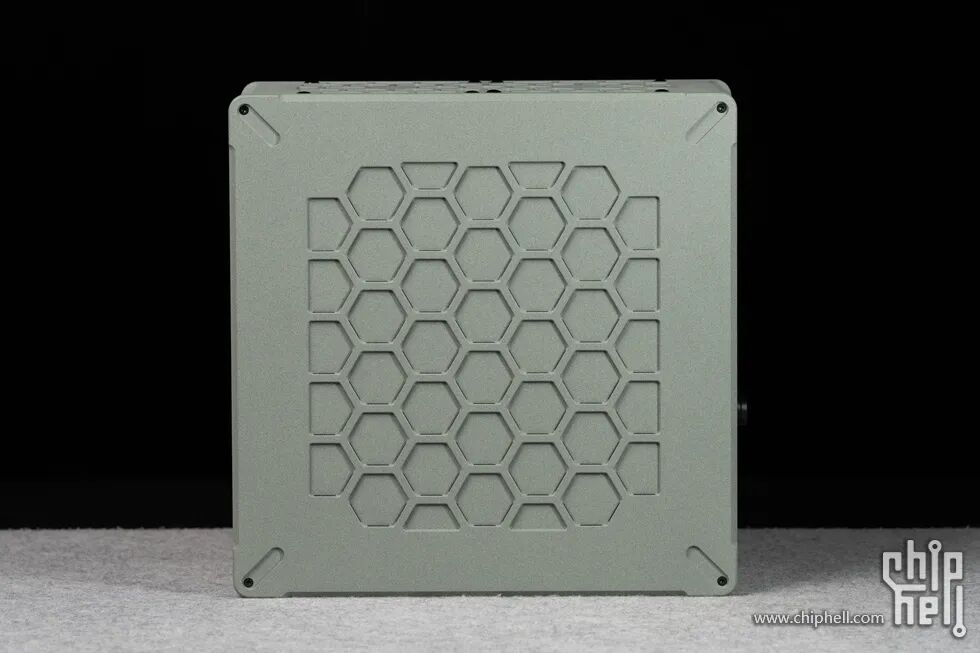

Full aluminum body, integrated middle frame, CNC precision engraving, anodized and sandblasted finish, with honeycomb perforated breathable design on both side panels.

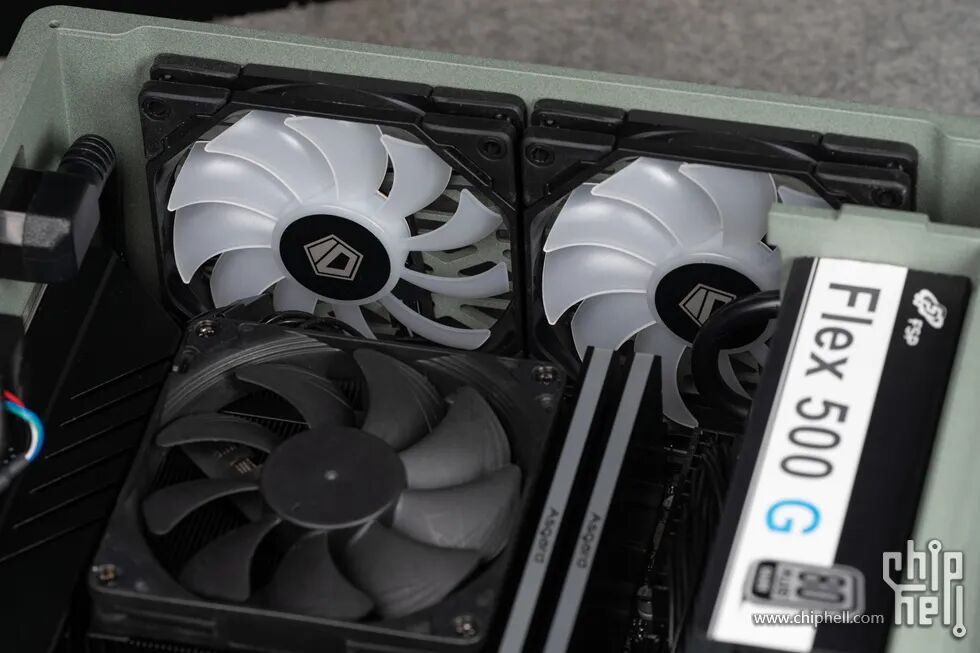

The top fan position features a honeycomb mesh design, supporting 2 9015 or 9025 fans.

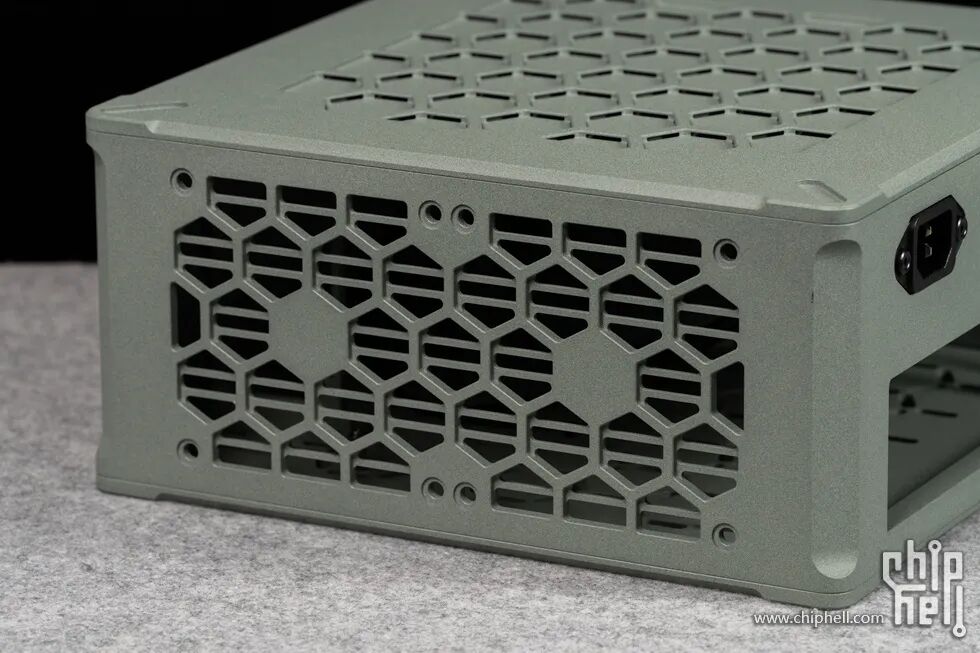

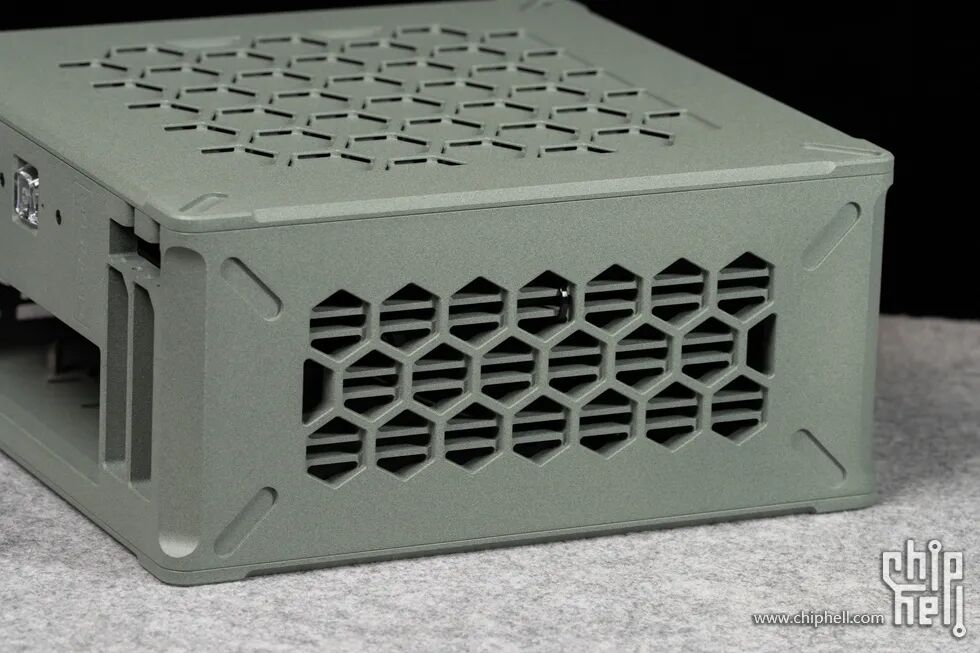

Close-up of the bottom of the case, also featuring a honeycomb mesh design.
Close-up of the front panel of the case.

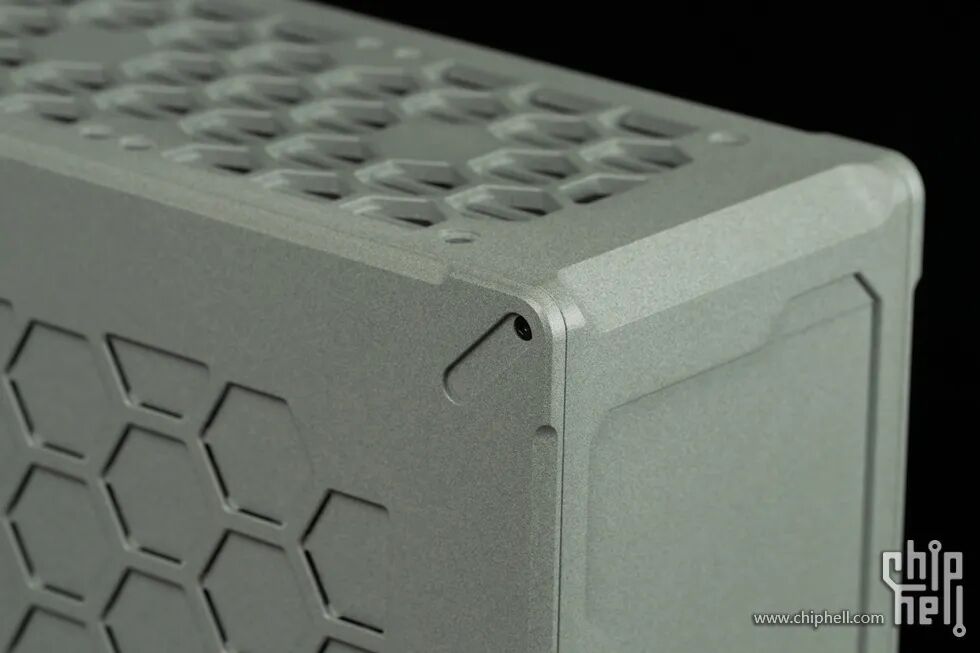

The side panel of the case is secured with 4 hex screws, and each corner of the case features a chamfered design, adding to its aesthetic appeal.

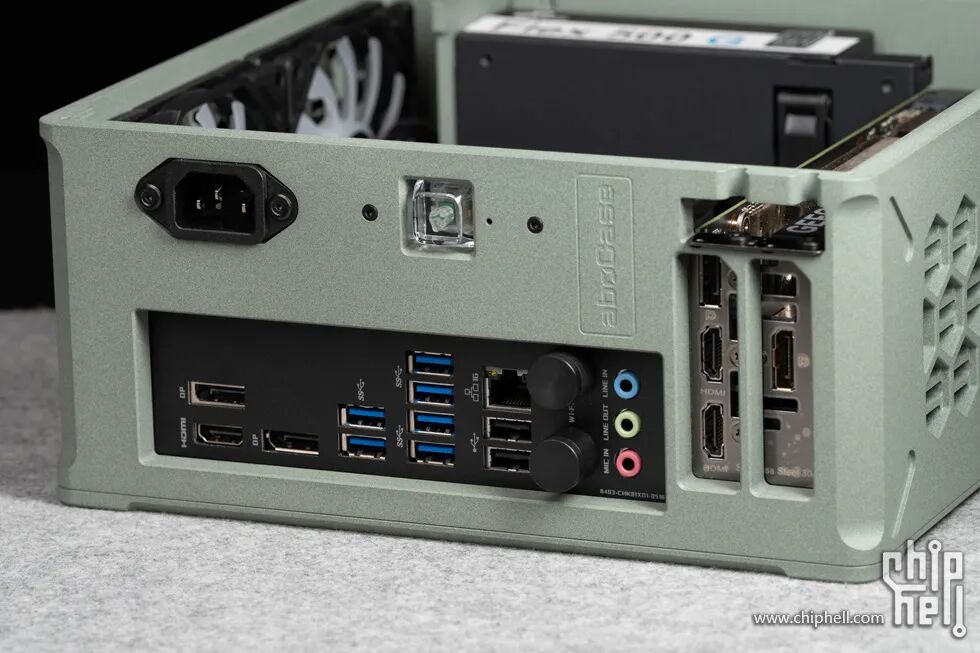

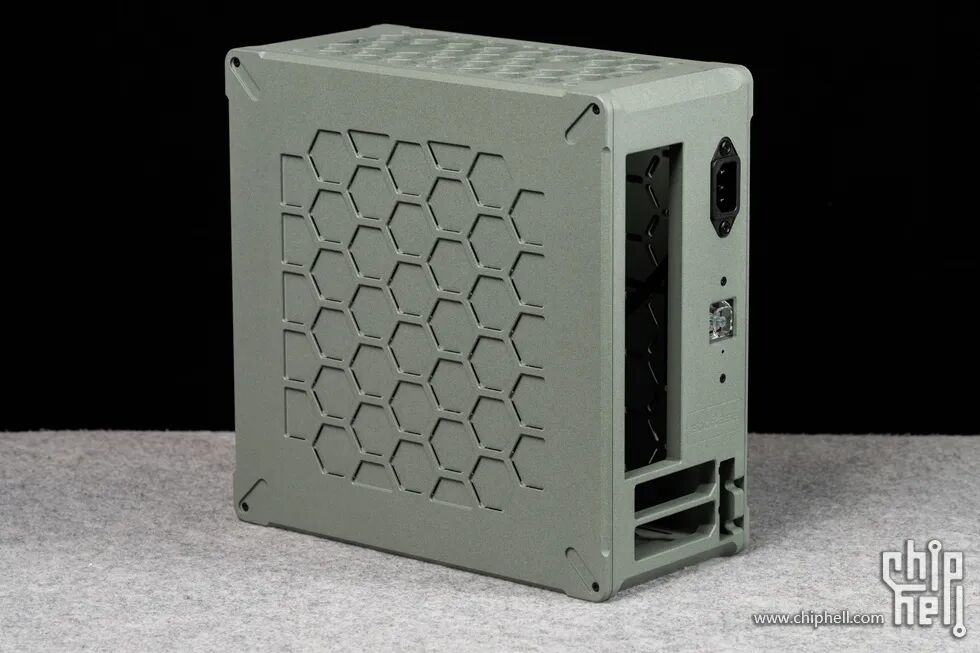

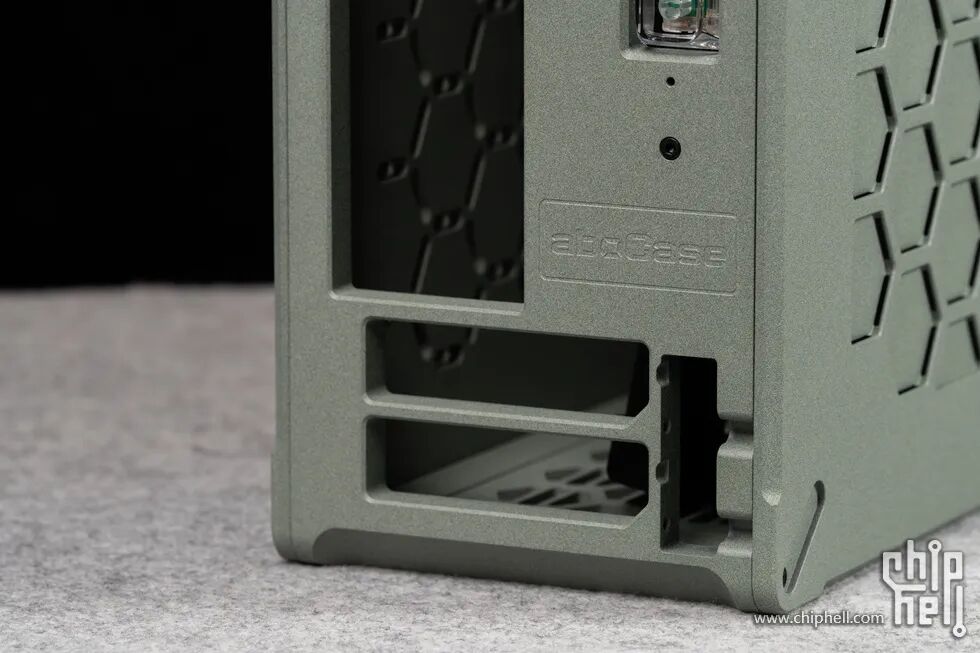

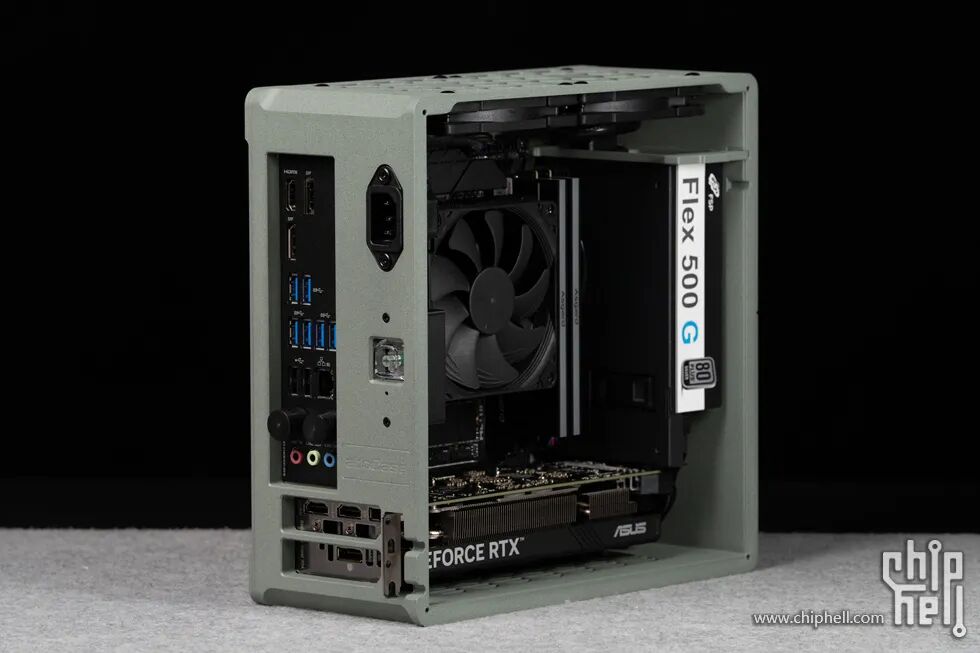

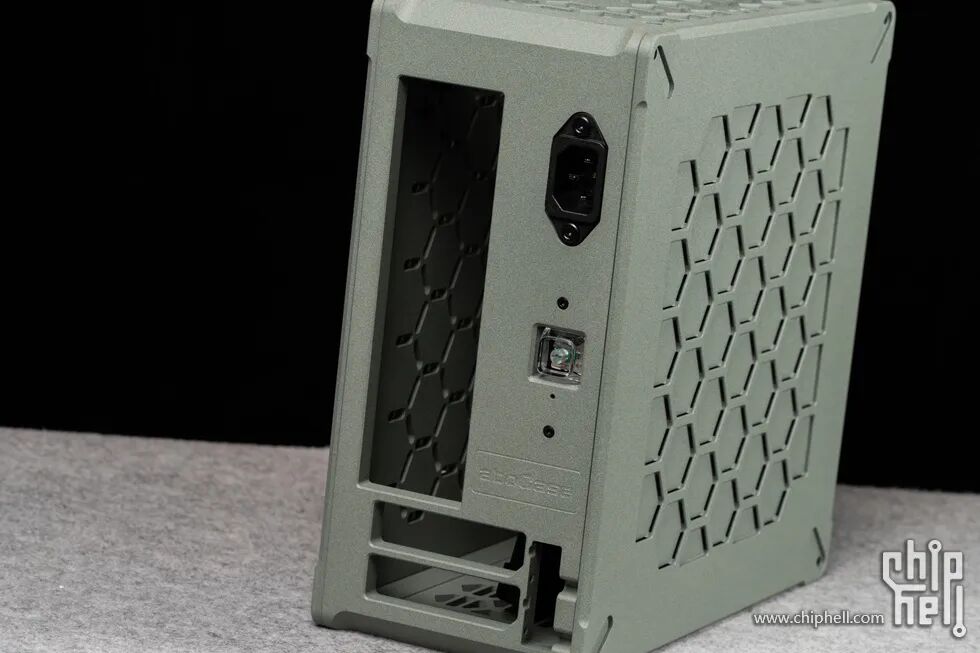

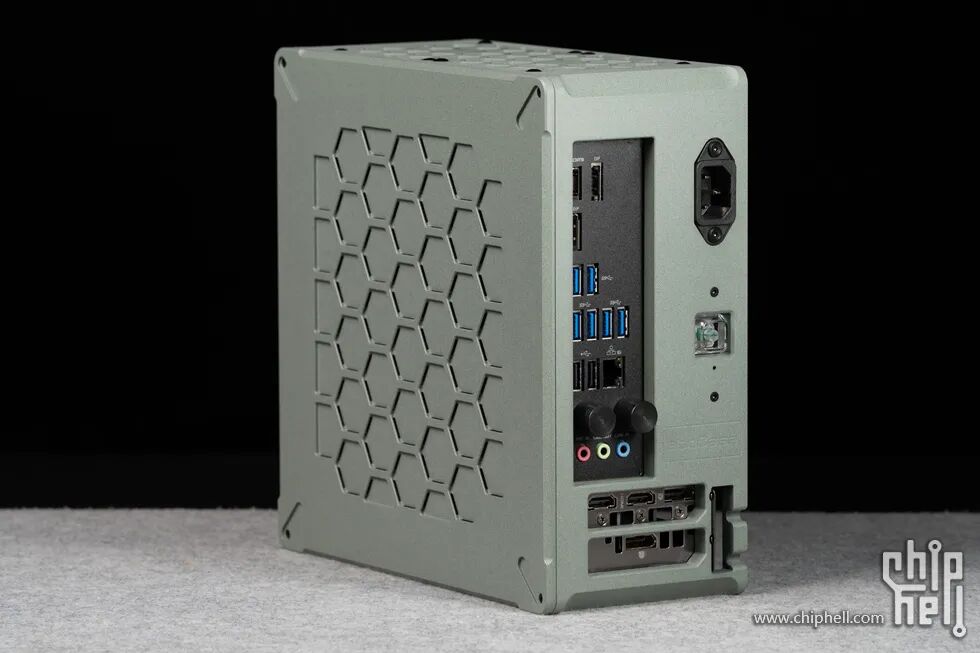

Close-up of the rear of the case, with two PCI slots at the bottom, half-height slots.

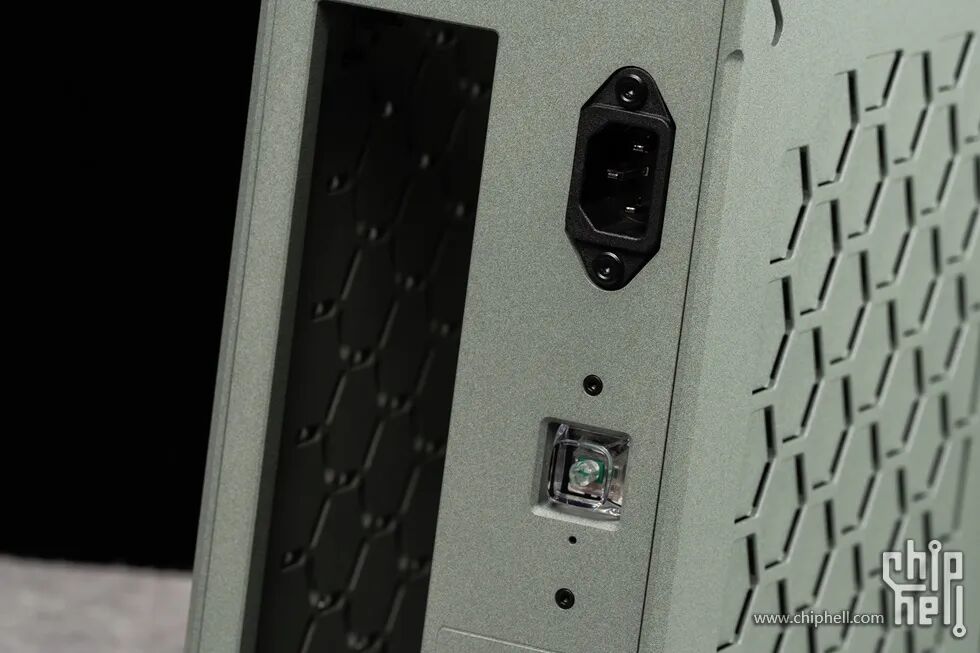

Power supply interface, with the power button located in the middle at the rear, and the power button features a replaceable mechanical switch.

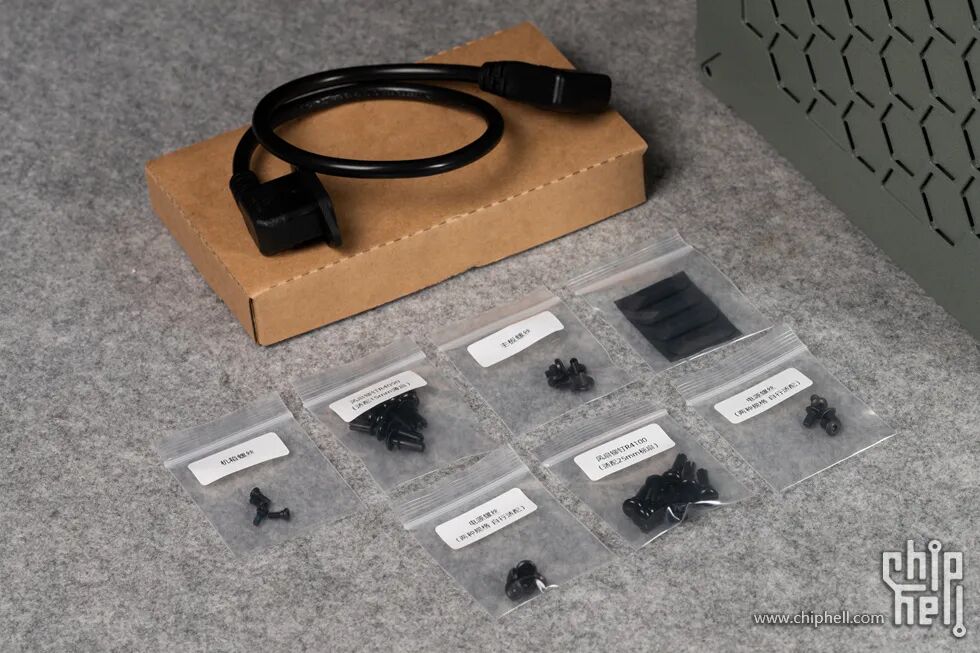

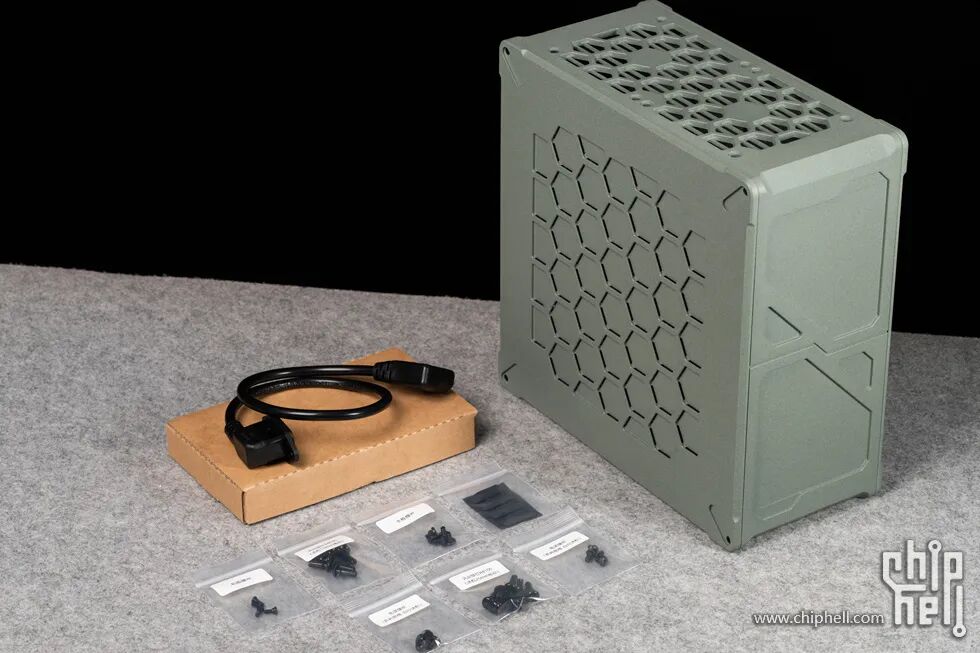

The case comes with two AC power cables (one for each direction to fit different power supply interface orientations) and a rich assortment of installation screws, all categorized and packaged.

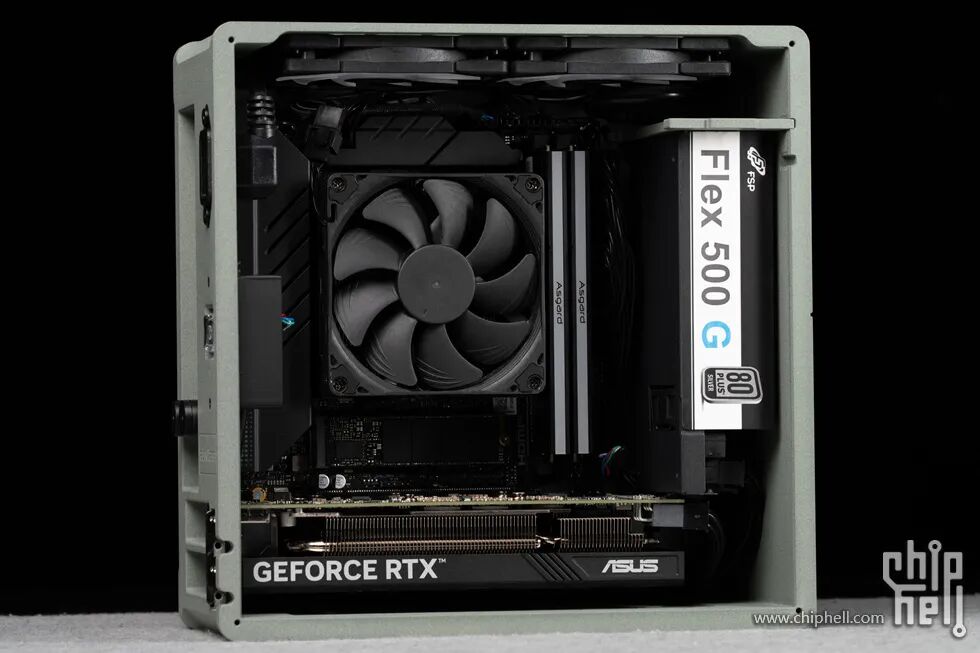

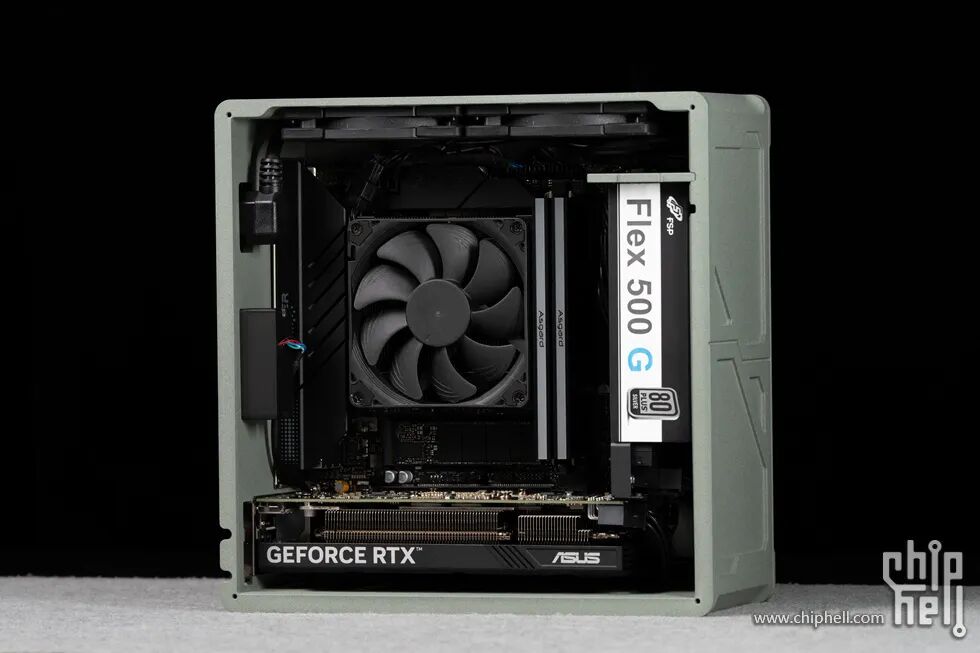

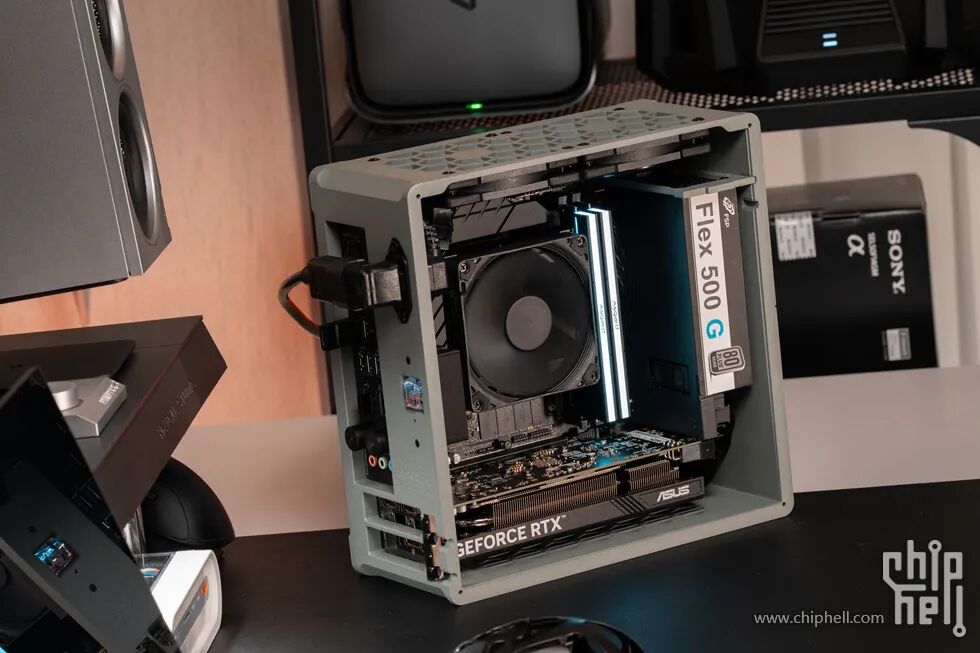

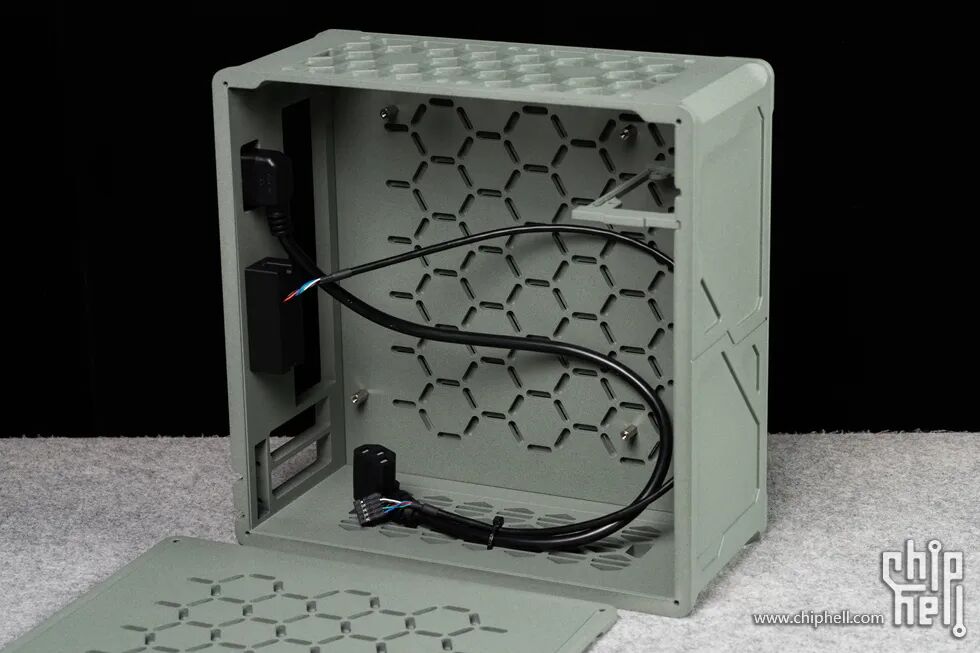

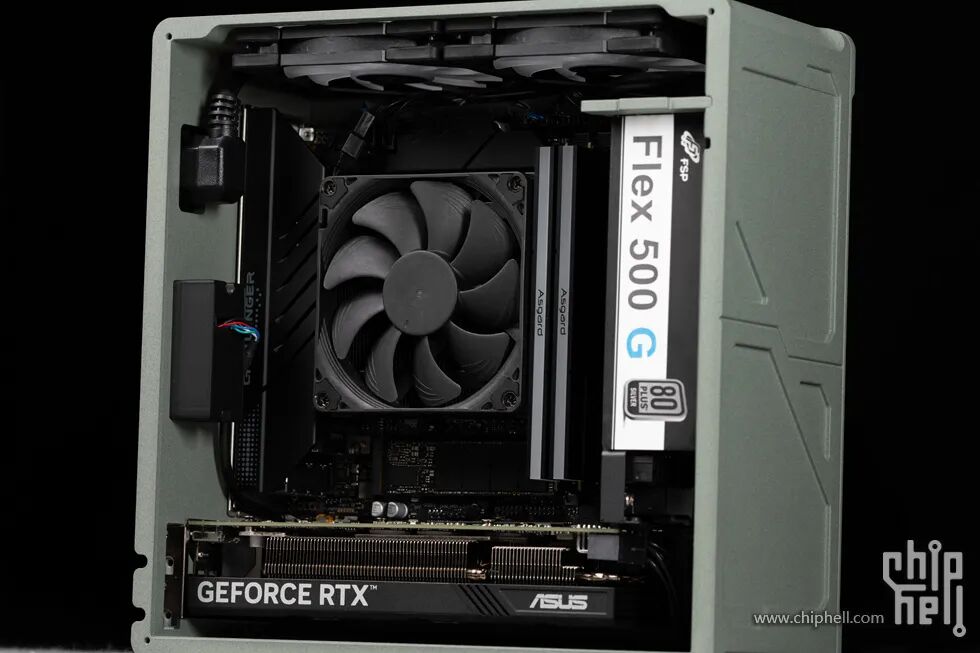

Close-up of the interior of the case, with AC power using an extension cable design.

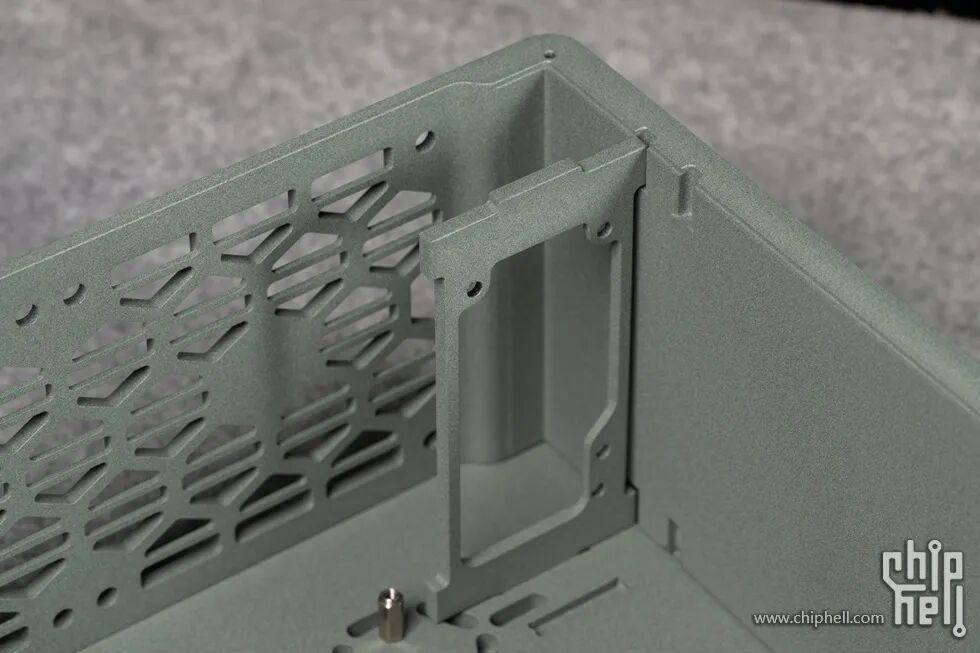

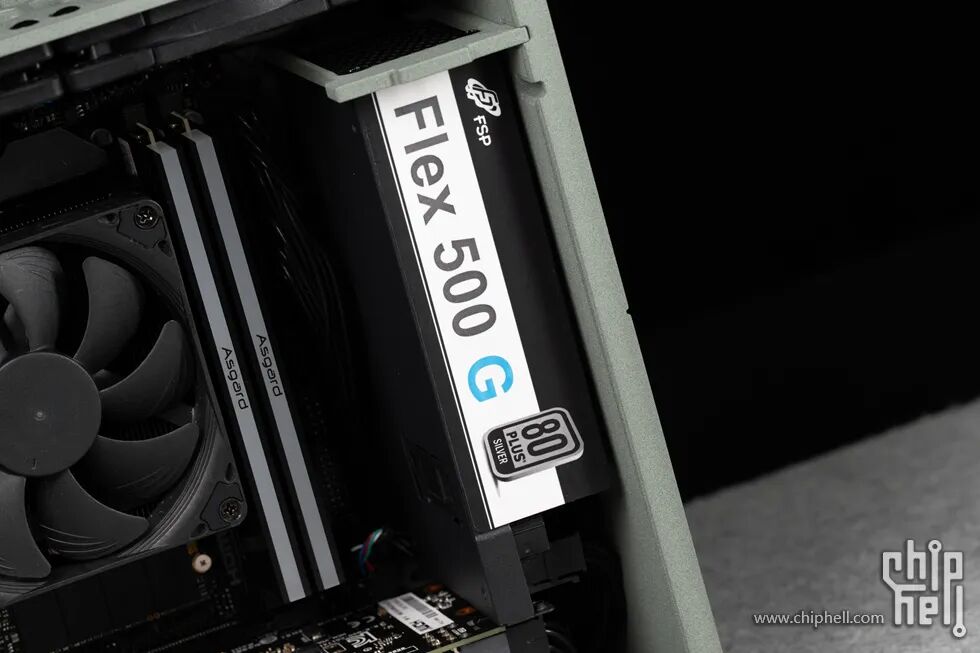

The power supply is located at the front side of the case, providing two height installation positions to accommodate different 1U power supply lengths.

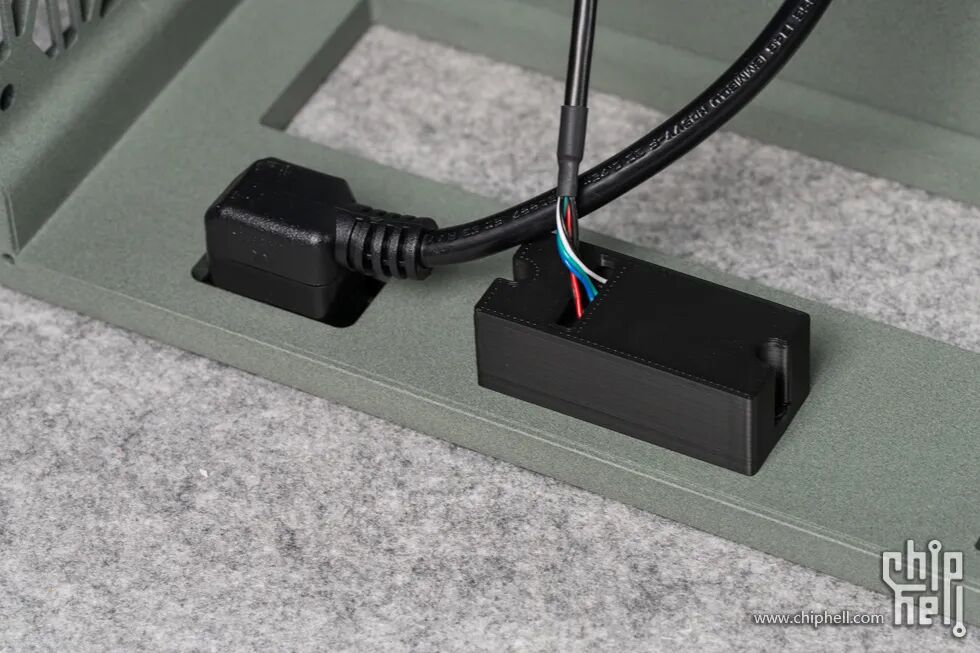

Close-up of the AC power and power button module.
Part III

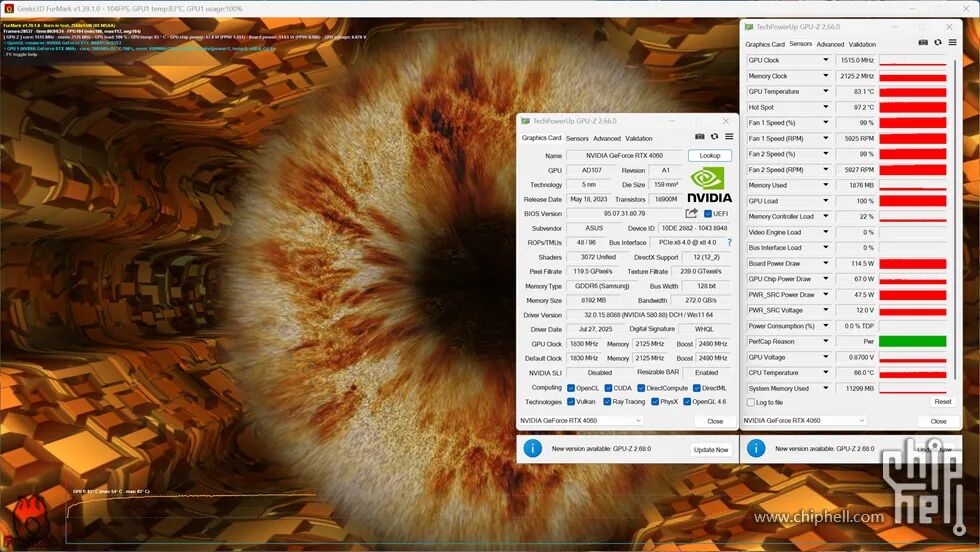

TestingTrial
