Various computer manufacturers are rushing to618 to sell computer products,Mingfan recently launched a mini PC equipped with the 13th generation Intel Core i5-13500H processor, featuring dual RJ45 2.5 network interfaces, primarily targeting high-performance enterprise-customized dual Ethernet soft routing. Let’s take a look..
Due to WeChat’s change in push rules, following this public account and marking it as a star will allow you to receive new article notifications in real-time..
Processor and Integrated Graphics: Intel Core i5-13500H, 12 cores, 16 threads, base frequency 3.5GHz, maximum turbo frequency 4.7GHz; Iris Xe graphics, 80EU, frequency 1.45GHz; base power consumption 45W, maximum power consumption 95W.
Memory: Supports up to 32 GB DDR5 5200MHz dual-channel memory, the vendor offers a barebone system without memory/16GB/32GB memory options available. Storage: Supports up to 2TB PCIe 4.0 SSD, the vendor provides a barebone system without storage/512GB/1TB SSD options available; provides 2.5 inch SATA hard drive slot limited to 7mm, supports SATA3.0 6.0Gb/s, can accommodate either mechanical or solid-state drives..

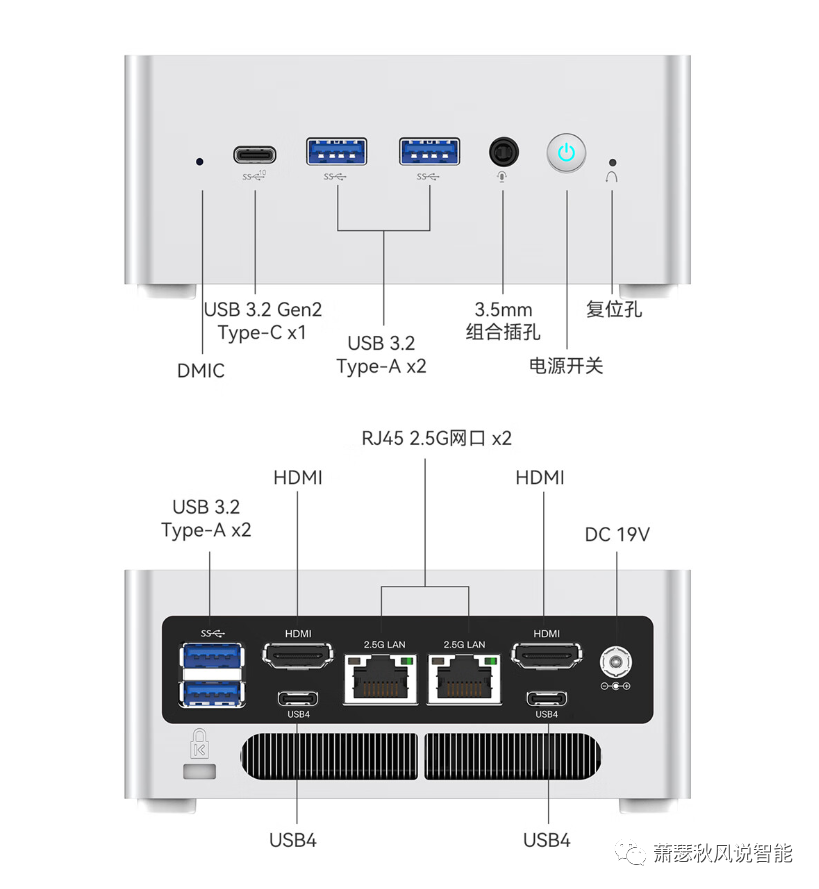

Interfaces: 4 USB3.2 standard interfaces(2 front 2 rear), 3 USB-C interfaces (front 1/USB3.2 standard/ does not support video output/ does not support power delivery,2 rear/USB4.0 standard/ supports data transfer 40Gbps/ does not support power delivery), 2 HDMI2.0 interfaces(2 rear), 2 RJ45 2.5G gigabit ports(2 rear), 1 3.5mm headphone jack(1 front), 1 power interface(1 rear).
Appearance: With foot pads 128*127*55 mm, volume approximately 0.9 L, barebone system weight 570g.

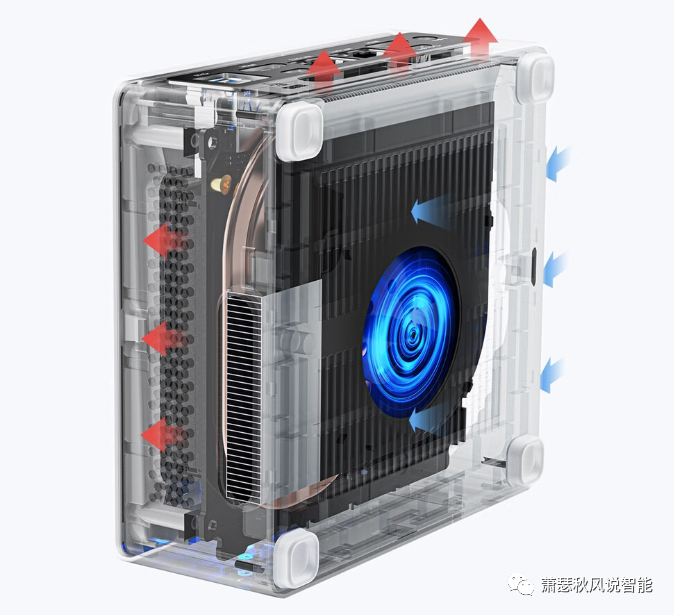

Cooling: CPU liquid metal cooling+ dual heat pipes+ dual exhaust cooling, active memory and hard drive cooling fan..
Others: WiFi6, Bluetooth 5.2, Windows11(excluding barebone system), supports 4 screens output simultaneously, supports 15W portable screens, supports VESA wall mounting, top press-type cover for easy memory/SSD replacement, 120W mini power adapter, 3 year warranty.
Summary:Mingfan mini PC Venus Series NPB5, equipped with the 13th generation Intel Core i5-13500H processor, supports 32GB DDR5 memory, provides SATA3.0 hard drive interface to meet data storage requirements, dual Ethernet ports can serve as enterprise-customized soft routing, dual HDMI+USB4.0 interfaces support 4 screens output simultaneously, meeting the needs of office users, and is also quite suitable for home use.
Mingfan mini PC Venus Series NPB5 offers three configurations for users to choose from, the e-commerce platform has already started pre-sales, 6.25 around shipping, barebone system price 2349 yuan, 16GB+ 512GB price 3049 yuan, 32GB+1TB price 3649 yuan. Personally, I think, the price difference of 1300 for a 32GB+1TB+Windows11 system is also reasonable, saving the hassle of setup, and if you have extra memory or SSD, you can also purchase the barebone system to customize it yourself..

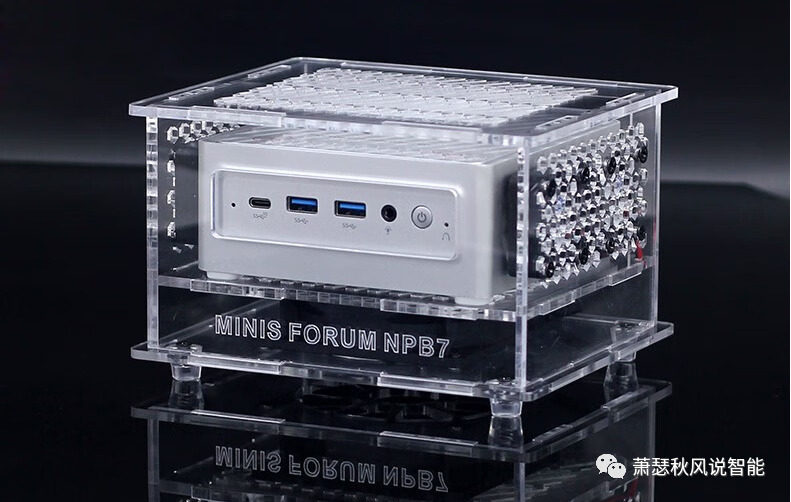

Additionally, some users commented on my previous article about mini PCs asking how the cooling performance is and how to enhance it. In fact, many vendors now offer mini PC cooling solutions for various brands and models, such as this one, which is suitable for NBP5/NBP7 as they share the same dimensions and are interchangeable, or users with strong DIY skills can also make one themselves. Good cooling performance for mini PCs will maximize their performance.
