I. Function
1.Supports HXFB graphical programming software
Support HXFB graphical programming software
2.Can realize functions such as mechanical dogs, robotic arms, intelligent trash cans, and intelligent cars, and open source related graphical programs
It can realize functions such as mechanical dogs, robotic arms, intelligent trash cans, and intelligent cars, and open source related graphical programs
3.Graphical programmingfunctions
Support functions
(1) Initialization
Initialization
(2) Delay
Delay
(3) Pin configuration
Pin configuration
(4) Pin input
Pin input
(5) Pin output
Pin output
(6) Car control
Car control
(7) Infrared obstacle avoidance module
Infrared obstacle avoidance module
(8) Infrared tracking module
Infrared tracking module
(9) Ultrasonic module
Ultrasonic module
(10) Bluetooth module
Bluetooth module
(11) LED
LED
(12) Motor control
Motor control
(13) PS2 controller
PS2 controller
(14) PWM output
PWM
(15) Infrared remote control module
Infrared remote control module
(16) NRF24L01 wireless remote control
NRF24L01 wireless remote control
(17) Steering gear control
Steering gear control
(18) Key input
KEY
(19) Variable read/write
Variable reads and writes
(20) Eight-degree-of-freedom quadruped robot dog
Robot Dog
(21) More features to be developed
More features to be developed
4.Provide HXFB graphical routines
Provide HXFB graphical routines
II. Characteristic
1.Total of 24 pins: P00~P07, P10, P13~P17, P20~P27, P30, P53
24 pins in total: P00~P07, P10, P13~P17, P20~P27, P30, P53
2.Pins can be configured for input/output mode
Pin configurable input/output mode
3.Supports 4-wheel drive car control (requires motor driver board)
Support 4-wheel drive car control (It needs to be used with the motor drive board)
(1)Can control the car to stop, move forward, move backward, turn left, turn right, turn left in place, turn right in place
Can control the car to stop, move forward, move backward, turn left, turn right, turn left in place, turn right in place
(2)Combined with the Mecanum wheel, it can also control left translation, right translation, upper left translation, lower left translation, upper right translation, and lower right translation
Combined with the Mecanum wheel, it can also control left translation, right translation, upper left translation, lower left translation, upper right translation, and lower right translation
(3)Currently only supports 2-wire control mode driver chips such as MX1919
Currently only supports 2-wire control mode driver chips such as MX1919
4.Supports 2-channel infrared obstacle avoidance module
Support 2-channel infrared obstacle avoidance module
5.Supports 2 infrared tracking modules
Supports 2 infrared tracking modules
6.Supports 1 ultrasonic module to achieve obstacle avoidance function
Support 1 ultrasonic module to achieve obstacle avoidance function
7.Supports Bluetooth module with a baud rate of 9600bps
Supports Bluetooth module with a baud rate of 9600bps
8.All pins support LED control, with adjustable brightness, and the LED lights up at a low level
All pins support LED control, with adjustable brightness, and the LED lights up at a low level
9.Supports up to 4 motor controls, which can control speed, forward and reverse rotation, and stop (requires motor driver board)
Supports up to 4 motor controls, which can control speed, forward and reverse rotation, and stop (It needs to be used with the motor drive board)
10.Supports PS2 controller remote control
Support PS2 controller remote control
11.All pins support PWM control with adjustable duty cycle
All pins support PWM control with adjustable duty cycle
12.Onboard 2 user programmable LEDs
Onboard 2 user programmable LEDs
13.Support infrared remote control
Support infrared remote control
14.Support NRF24L01 wireless remote control
Support NRF24L01 wireless remote control
15. Up to 9 servos can be controlled
Up to 9 servos can be controlled
16.Support eight-degree-of-freedom quadruped robot dog
Support Robot Dog
17. Power supply mode: DC7-12V
Power supply mode: DC7-12V
18.Circuit board size: 68.6×53.3mm
Circuit board size: 68.6×53.3mm

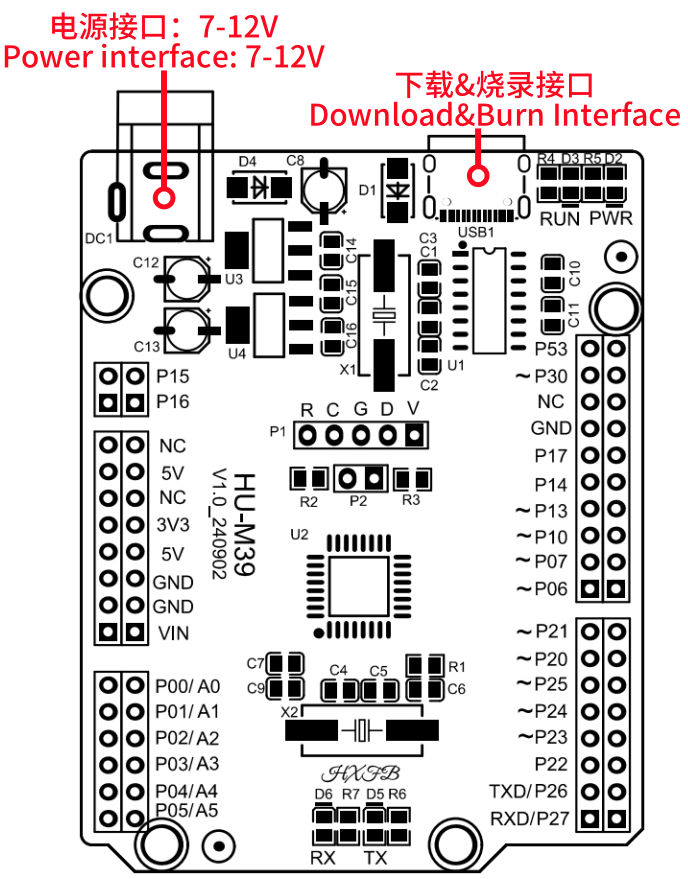

IV. Component Distribution Diagram

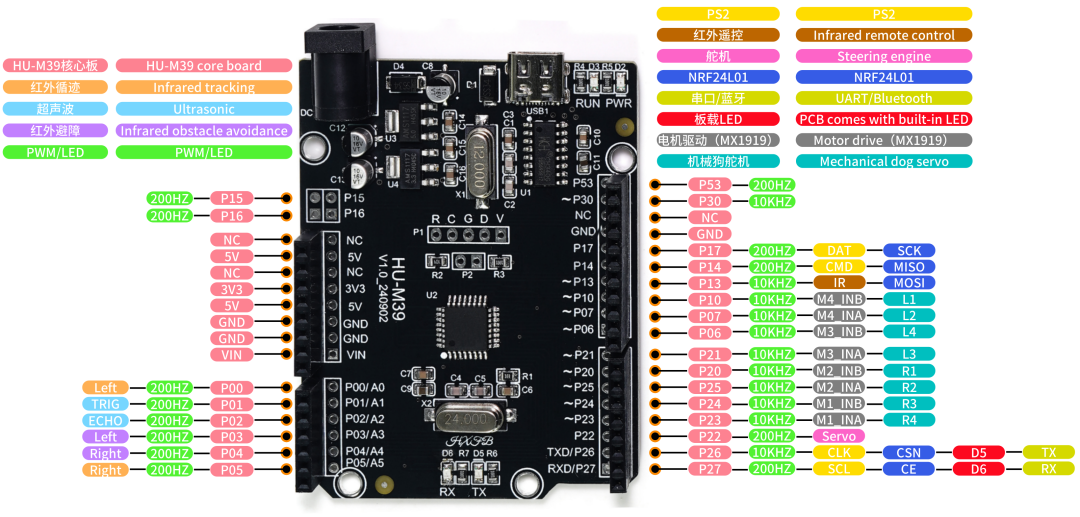

V. Pin Diagram
