In the development of EtherCAT master stations, the bus control logic often relies on a fixed network configuration. Once the position of the slave devices changes, the control logic must be readjusted. Today, we will explore how the ZLG PCle-2E master station card cleverly addresses this issue, enhancing development efficiency.

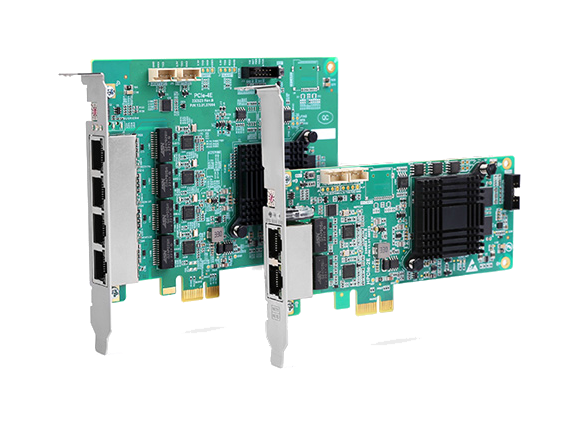

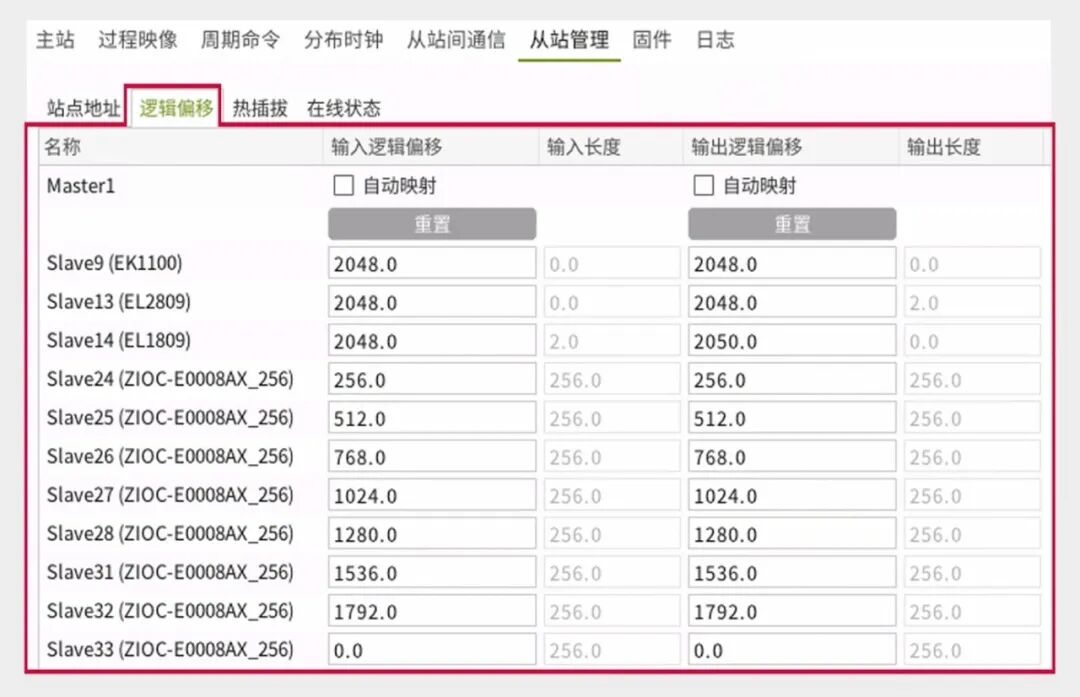

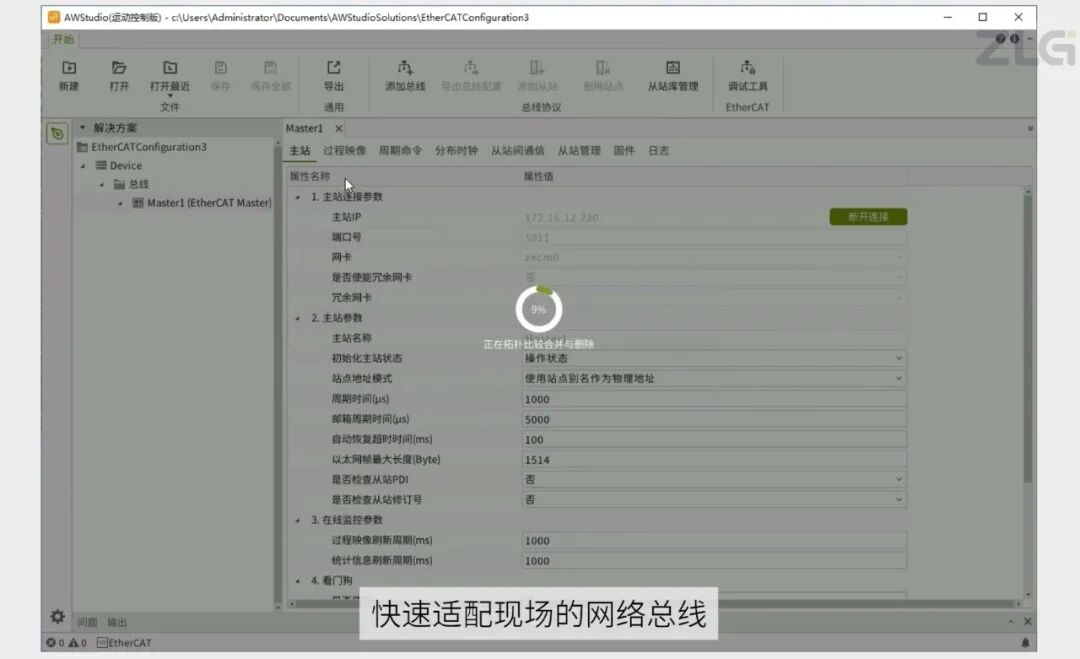

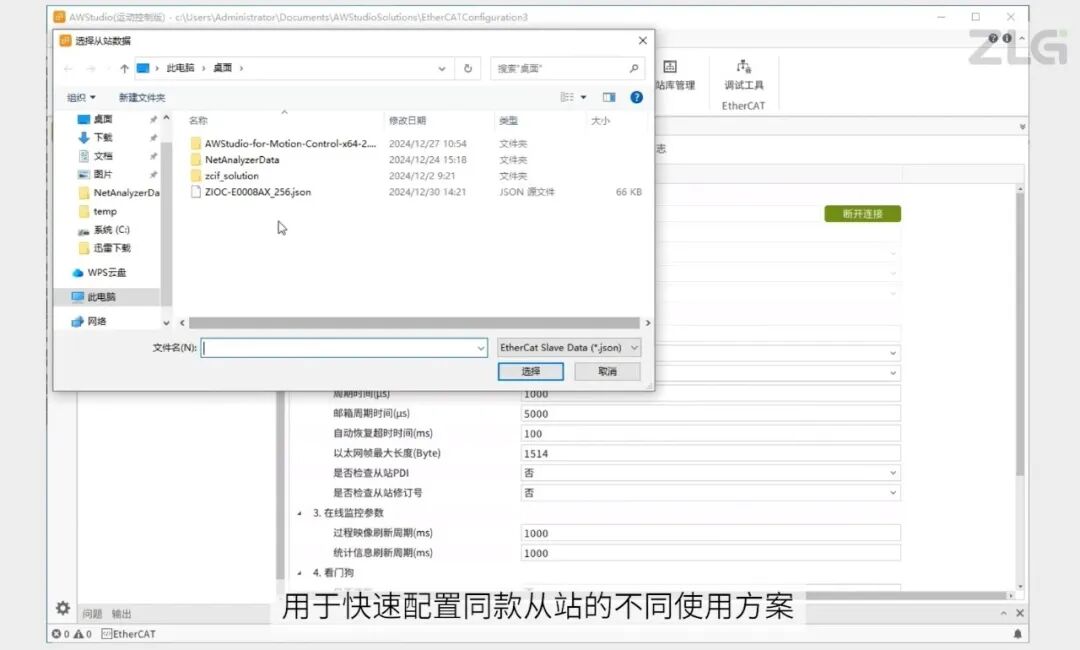

How to Quickly Adapt to the Ever-Changing EtherCAT Bus Network? IntroductionFor engineers who frequently use EtherCAT master stations, writing bus control logic typically requires the bus network to be fully determined before starting. However, in practical applications, the positions of slave devices may change, some slaves may be removed, or some slaves may not be online throughout the process. These situations can lead to changes in the offsets of slave PDO data, necessitating modifications to the previously written control logic, significantly increasing the workload for field engineers. How to Quickly Adapt to the Ever-Changing EtherCAT Bus Network? Solutions from ZLG PCle-2E Master Station CardTo address this issue, the ZLG PCle-2E master station card offers several solutions aimed at reducing the burden on field engineers and improving program compatibility and development efficiency:1. Binding Slave PDO Data OffsetsBind the offsets of slave PDO data to the slaves. When adjusting the order of slaves, the offsets of process data remain unchanged. This means that even if the positions of the slaves change, the control logic does not need to be modified, greatly enhancing the flexibility and stability of the system.2. Quick Adaptation with Master Station TemplatesEstablish master station templates in advance, and upon arrival at the site, use the templates for topology merging to quickly adapt to the on-site bus network. This method can significantly reduce the time for on-site configuration, improve development efficiency, and ensure project completion on time.3. Importing Configuration for Individual SlavesAllow importing configurations for individual slaves to quickly configure different usage scenarios for the same type of slave. This not only improves configuration efficiency but also ensures consistency between configurations of different slaves, reducing the likelihood of errors. How to Quickly Adapt to the Ever-Changing EtherCAT Bus Network? ConclusionBy binding slave PDO data offsets, using master station templates for quick adaptation, and importing configurations for individual slaves, the ZLG PCle-2E master station card provides efficient and flexible solutions for EtherCAT master station development. These features not only alleviate the workload of field engineers but also enhance program compatibility and development efficiency.If you have any questions or suggestions regarding the PCle-2E master station card, feel free to leave a comment for discussion.
