The programmer is equipped with a Bluetooth module, allowing control via a mobile APP, printing information, accessing the console, and sending serial commands. The RT809H programmer, RT809F programmer, and JT1199 programmer can all be enhanced with a Bluetooth module, enabling mobile viewing of printed information, console access, and sending serial commands.
Standard Version: The baud rate is fixed at 115200, and the line sequence is set by the programmer’s buttons.

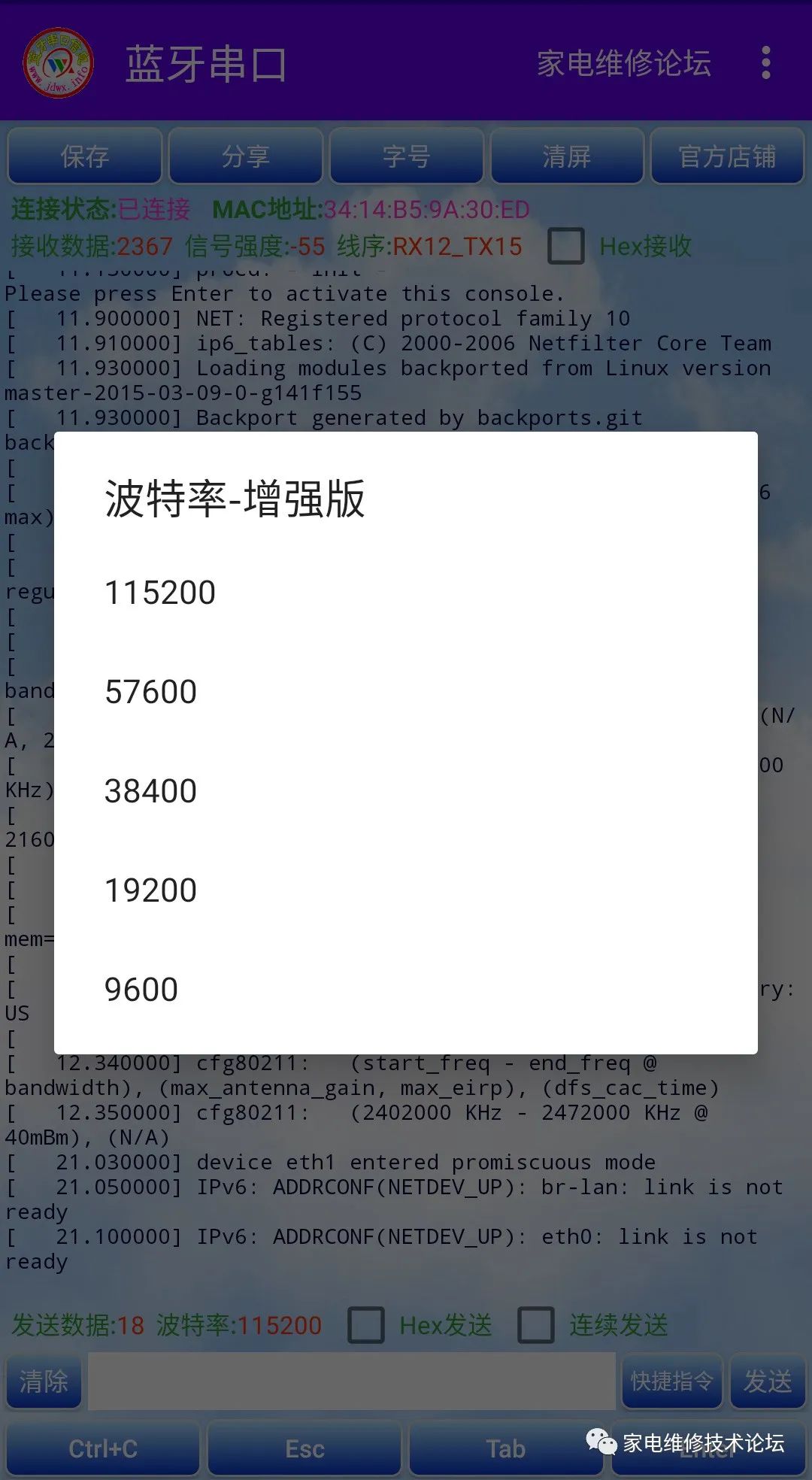

Enhanced Version: The baud rate can be set to multiple options via mobile, and the line sequence can be switched using the mobile device.
Enhanced Version Installation Method:
1. Locate and connect the 3.3V and GND ground in the programmer.

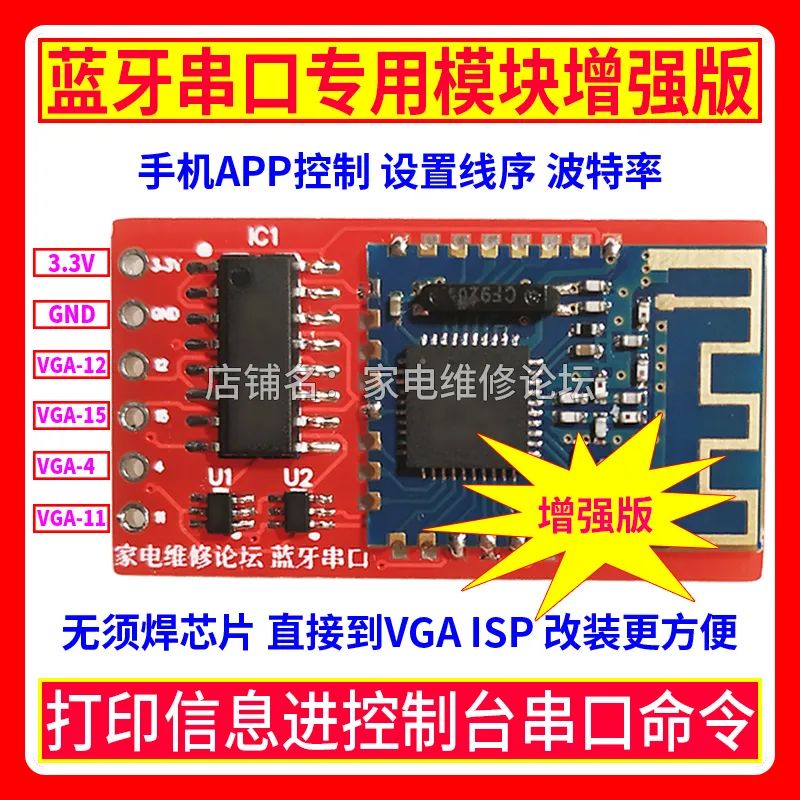

2. Connect the Bluetooth module’s pins 12, 15, 4, and 11 to the corresponding pins on the programmer’s VGA ISP interface.
3. Download and install the mobile APP application. Reply to the official account with 【编程器】 to download the Bluetooth serial mobile APP.
Taobao Store Name:Home Appliance Repair Forum
Bluetooth Serial Module for Printing Information:
https://item.taobao.com/item.htm?id=619731291566
Reply to the official account with 【编程器】 to download the Bluetooth serial mobile APP.
