The CANopen protocol originated from the CAN protocol used in automotive communication and is popular in Europe. The first company to integrate the CANopen protocol was BECKOFF, WeChat Public Account: Industrial Control Sharing primarily promotes BECKOFF control solutions, combined with other third-party peripherals such as I/O, servo, and frequency converters.

CANopen consists of master and slave nodes, where one master can network with up to 127 slaves, forming a distributed control network with one entry and one exit between nodes. WeChat Public Account: Industrial Control Sharing generally does not support multi-master mode. Compared to traditional protocols like pulse and Modbus, its advantages include: WeChat Public Account: Industrial Control Sharing

1. Long transmission distance, up to 1 kilometer;

2. High speed, up to 1Mbit/S;

3. More I/O can be controlled with more nodes;

4. In motion control applications, it saves a significant amount of wiring labor and hardware costs compared to pulse types;

5. In scenarios requiring multiple axes, it reduces the number of pulse axis modules, resulting in a higher cost-performance ratio for the overall solution.

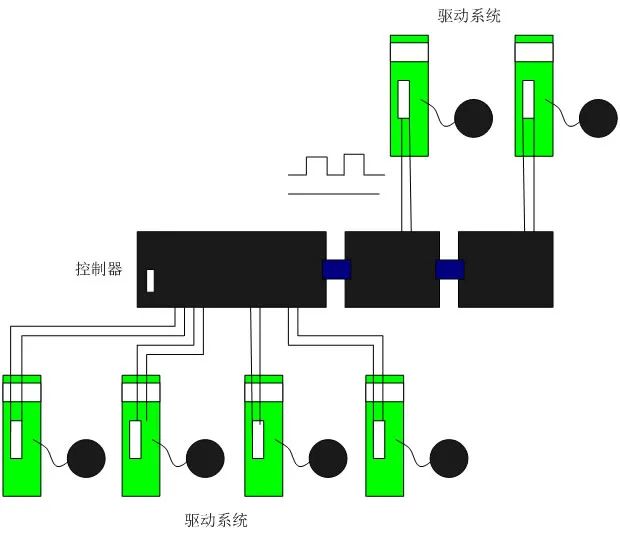

Figure 1 Pulse Type System Solution

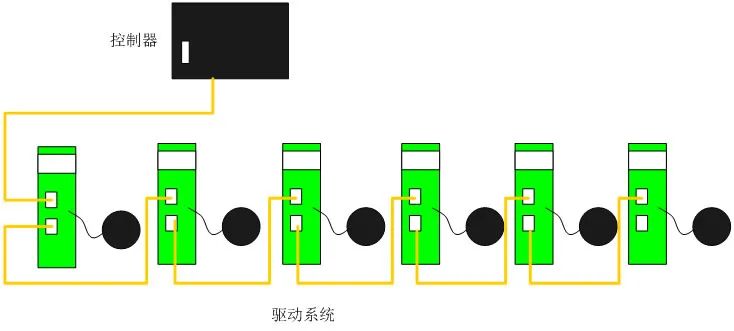

Figure 2 Bus Solution

Due to the above advantages, a large number of products based on the CANopen protocol have emerged in recent years. Companies making PLCs and motion controllers/cards have integrated the CANopen protocol and launched various CANopen masters and remote slave I/Os; companies making servos have integrated the CANopen protocol and launched various CANopen slave servos; companies making frequency converters have integrated the CANopen protocol and launched various CANopen slave frequency converters; even manufacturers of stepper motors have launched CANopen protocol-based slave drivers. For example, BECKOFF’s CANopen PLC master/slave; a certain Taiwanese company’s CANopen WeChat Public Account: Industrial Control Sharing PLC master and frequency converter slave; a famous American company’s CANopen PLC master/slave; of course, there are also the SMC606 CANopen master/slave I/O and the CANopen protocol-based L6C series slave servos and DM3C series stepper slaves from Leadshine. In short, Leadshine can provide a full range of CANopen bus products from master to slave, open loop to closed loop.

Figure 3 Product Solutions

Currently, the main application scenarios for products based on the CANopen protocol include:

1. Production line applications with high axis and I/O requirements;

2. Applications for distributed sites over long distances;

3. Applications with multiple axes in a single machine, such as electronic devices;

4. Multi-joint robot applications.

5. WeChat Public Account: Industrial Control Sharing

Of course, CANopen also has its limitations:

1. The speed of 1Mbit/S is fast compared to other protocols, but it also has distance requirements;

2. Although it saves wiring, if one node fails, the entire network will be disrupted;

3. The stability of most domestic products still does not meet customer requirements.

So how can we successfully implement CANopen bus product solutions? When selecting and applying, we recommend:

1. When networking, choose shielded cables and connectors, or simply select those provided by manufacturers specializing in industrial buses;

2. When there are many axes, do not forget to choose terminal resistors for the end axes;

3. Try to select master and slave devices from the same company for easier debugging and maintenance.

Source: Leadshine
