Discussing C Programming - Address Manipulation and Byte Control in C Language

1. Basics of Address Manipulation

1. Nature of Pointer Variables

A pointer is a variable that stores a memory address, and its core function is to enable direct access to any memory unit. Unlike ordinary variables, the value of a pointer is a memory address rather than data.

int num =100;
int* ptr =&num; // ptr stores the address of num (e.g., 0x20000000)
printf("num address: %p\n", &num); // Output variable address
printf("ptr value: %p\n", ptr); // Address stored in pointer variable
printf("value pointed by ptr: %d\n", *ptr); // Access data through dereferencing *

2. Representation and Range of Addresses

32-bit System: Address is a 32-bit integer (range 0x00000000~0xFFFFFFFF)
64-bit System: Address is a 64-bit integer (range 0x0000000000000000~0xFFFFFFFFFFFFFFFF)
Address Format: Typically represented in hexadecimal (e.g., 0x20001234)

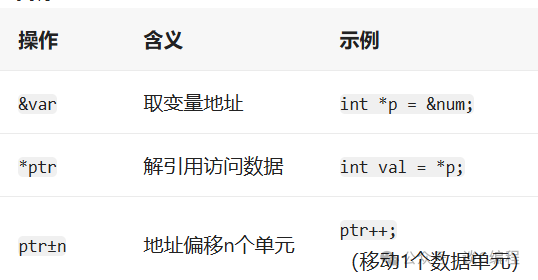

3. Basic Operations on Pointers

Pointer Offset Example

int arr[3]={1,2,3};
int* p = arr; // p points to arr[0] (address 0x20000000)
p++; // p points to arr[1] (address 0x20000004, moves 4 bytes)
*p =10; // arr[1] = 10

2. Byte Access Techniques

1. Key to Byte Access: char Pointer

char * is the only pointer type in C that can access a single byte (sizeof(char)=1)

// Access any byte through char pointeruint32_t data =0x12345678;char* p =(char*)&data;// Access by byte (little-endian system)printf("Byte 0: 0x%02X\n", p[0]);// 0x78 (low address byte)printf("Byte 1: 0x%02X\n", p[1]);// 0x56printf("Byte 2: 0x%02X\n", p[2]);// 0x34printf("Byte 3: 0x%02X\n", p[3]);// 0x12 (high address byte)

2. Endianness (Little-endian and Big-endian) Issues

Little-endian Mode (x86/ARM): Low byte stored at low address (e.g., 0x12345678 → 0x78,0x56,0x34,0x12)
Big-endian Mode (PowerPC): Low byte stored at high address (e.g., 0x12345678 → 0x12,0x34,0x56,0x78)
Detection Method: Determine by accessing the first byte of a multi-byte variable through a char pointer

Endianness Detection Code

bool is_little_endian(){
uint32_t test =0x01234567;
return((char*)&test)[0]==0x67; // Returns true for little-endian
}

3. Byte Operation Example: Data Parsing

Parsing multi-byte data from a buffer (e.g., network protocol parsing)

uint8_t buffer[]={0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08};uint32_t* p32 =(uint32_t*)buffer;// Parsing result in little-endian system:printf("32-bit data: 0x%08X\n", p32[0]);// 0x04030201 (buffer[0-3])printf("32-bit data: 0x%08X\n", p32[1]);// 0x08070605 (buffer[4-7])

3. Practical Application Scenarios

1. Peripheral Register Access (Embedded Development)

Directly access hardware register addresses through pointers

// Define GPIO register address (STM32 example)
#define GPIOA_BASE 0x40010800
#define GPIOA_ODR (*(volatile uint32_t*)(GPIOA_BASE + 0x0C))

// Operate register (control LED)
GPIOA_ODR |=(1<<5); // Set PA5 pin to 1 (turn on LED)

2. Memory Data Packing/Unpacking

// Pack multiple bytes into a 32-bit integer
uint8_t bytes[4]={0x11,0x22,0x33,0x44};
uint32_t data =(bytes[3]<<24)|(bytes[2]<<16)|(bytes[1]<<8)| bytes[0];
// data = 0x44332211 (big-endian packing)

3. Buffer Operations and Boundary Checks

// Safe byte copy (prevent overflow)
void safe_copy(uint8_t* dest, const uint8_t* src, size_t n){
for(size_t i =0; i < n; i++){
        dest[i]= src[i]; // Byte-level copy
}
}

4. Common Issues and Risks

1. Pointer Out-of-Bounds Access

int arr[3]={1,2,3};
int* p = arr;
p[5]=10; // Out-of-bounds access (unallocated memory), may cause program crash

2. Dangling Pointers and Wild Pointers

Wild Pointer: Uninitialized pointer (points to a random address)
Dangling Pointer: Pointer that points to freed memory
Defensive Measures: Initialize pointers before use, set to NULL after freeing

3. Type Conversion Risks

Converting between different types of pointers may lead to address alignment issues

uint32_t data;
uint16_t* p =(uint16_t*)&data; // May be unaligned
*p =0x1234; // Alignment error (some architectures do not support unaligned access)

5. Safety Operation Guidelines

Clarify Pointer Types: Always use the correct type of pointer to access data
Boundary Checks: Check pointer range before operations to avoid overflow
Use of volatile Modifier: Use volatile for hardware access to ensure reading from memory each time
Aligned Access: Ensure address alignment for multi-byte data access (e.g., int needs 4-byte alignment)

// Safe unaligned access example (using char pointer)
uint32_t read_unaligned(const void* ptr){
const char* p =(const char*)ptr;
return(p[3]<<24)|(p[2]<<16)|(p[1]<<8)| p[0];
}

6. Conclusion

Address manipulation and byte control are core advantages of the C language, achieved through pointers

Direct memory access (hardware control, efficient data processing)
Byte-level precision operations (network protocols, file format parsing)
Peripheral control in embedded systems (register operations)

Mastering these techniques requires understanding memory models, address representation, and type conversion rules, while also focusing on safety and portability.
