This series will explain the book “Assembly Language”. This section covers Chapter 5 – **[BX] Register and Loop Instructions**.

In this section, we introduce another way to describe memory, the [BX] register, and the commonly used loop instruction: loop, discussing its applications, significance, and related content.

The entire text uses (ax) to represent the contents of the ax register, and (address) to represent the contents at address address.

Overview of This Section
1. Meaning of [BX]
2. Essence of the loop instruction
3. Execution steps of the loop instruction
4. Commands to skip loops: p, g

1. [BX]

1. Explanation of [BX]

In Chapter 3 of “Assembly Language” – Interaction between Registers and Memory, we learned that [address] represents the offset address (i.e., effective address EA), and the segment address is by default in the ds register. In that chapter, we directly provided specific constants, for example, [1000], which indicates an offset address of 1000. A natural extension of this idea is to store this constant in a register: [AX], and the [BX] introduced here is precisely that!

[BX] and [address] also represent a memory unit, with its offset address stored in the bx register.

Clearly, BX is just an example; it can be replaced with AX, BX, CX, or DX! The essence is simply to store the offset address of data in memory using a register!

2. A Small Test

Let’s take a look at the functionality of the following instructions.

Source Code:

mov ax,[bx]

Function:

The data stored in bx serves as an offset address EA, with the segment address SA by default in ds. The data at SA:EA is then loaded into ax. That is: (ax)=((ds)*16+(bx)).

Source Code:

mov [bx],ax

Function:

The data stored in bx serves as an offset address EA, with the segment address SA by default in ds, and the data in ax is stored at memory location SA:EA. That is: ((ds)*16+(bx))=(ax).

2. Loop Instruction

1. Introduction to the loop instruction

The format of the loop instruction is:

loop label

When the CPU executes the loop instruction, it performs two operations:

Operations of the loop instruction
① (cx) = (cx) – 1;
② Check the value in cx; if it is not zero, jump to the label to execute the program, if it is zero, continue executing downwards.

From the above description, we can see that the value in <span>cx</span> affects the execution result of the loop instruction. Typically (note that we say typically), we use the loop instruction to implement looping functionality, with <span>cx</span> storing the number of iterations.

2. Essence of loop s

Jump to the address indicated by label s. For example, if the address of label s is ffff:0006, it is equivalent to <span>loop ffff:0006</span>.

3. A Small Test

1. Problem

Task: Program to calculate 2^6, with the result stored in ax.

Analysis: Let (ax) = 2, we can calculate (ax) = (ax) * 2, so the final value in (ax) will be 2^2. Therefore, each addition doubles the original value, and we can use a loop to achieve the calculation of 2^6.

2. Program to calculate 2^2 is as follows

assume cs:code
code segment
    mov ax, 2
    add ax, ax
    mov ax, 4c00h
    int 21h
code ends
end

3. Program to calculate 2^6 is as follows

assume cs:code
code segment
    mov ax, 2
    mov cx, 6-1
    ; Note that we loop 6 times, we only need to write 6-1 because the operation is executed, and the loop instruction is executed afterwards!
    L: add ax, ax
    loop L
    mov ax, 4c00h
    int 21h
code ends
end

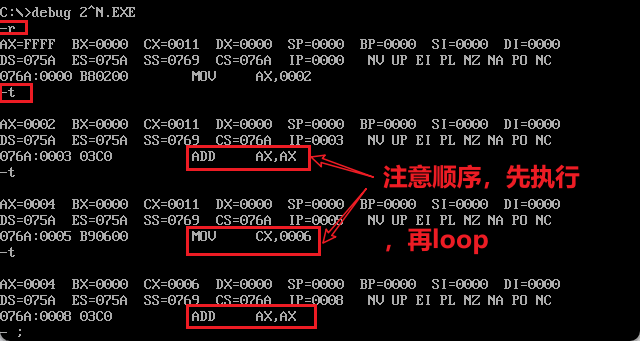

4. Step-by-step Debugging Analysis

The final result of 2^6 = 64, and with each loop, the value in ax is doubled:

Compilation and Linking Process:For the specific compilation and linking process to create an executable file, please refer to this article:😉【DOSBox】3- Complete Development Process

Debugging the Executable File Process:For the specific debugging of the executable file, please refer to this article:【DOSBox】2- Debugging Executable Files

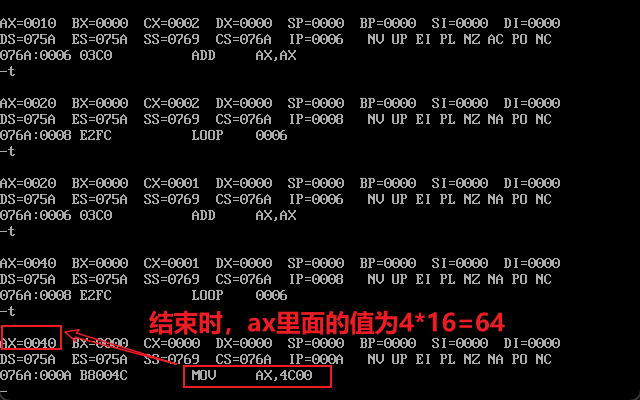

Step-by-step Debugging Process:Clearly, after 6 loops, the result is 64!

Note that the essence of s is the address of the label, and <span>loop s</span> essentially jumps to the address indicated by label s.

3. Comprehensive Practice

1. Problem

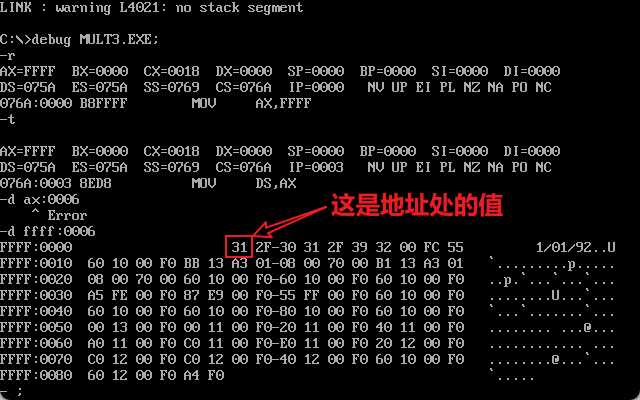

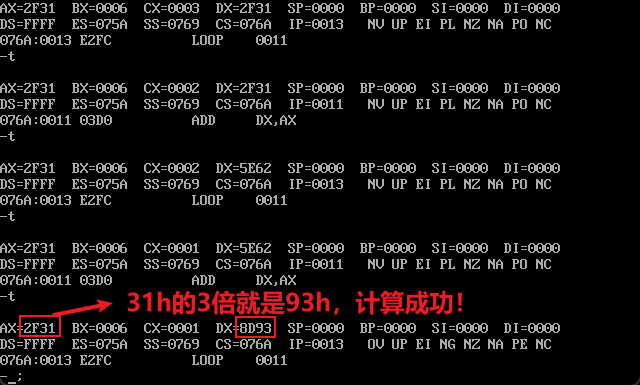

Consider the problem of multiplying the number in <span>ffff:0006</span> by 3, storing the result in <span>dx</span>.

2. Analysis

Since the data range of one unit is <span>0~2^8-1 (255)</span>, <span>255*3 < 2^16 = 65535</span>, so it can be completely stored in <span>dx</span>.

3. Source Code

assume cs:code
code segment
    mov ax, 0ffffh
    mov ds, ax
    xor ax, ax
    mov bx, 0006h
    mov ax, ds:[bx]
    mov cx, 3
s:  add ax, ax
    loop s
    mov ax, 4c00h
    int 21h
code ends
end

4. Direct Execution Until Skipping Loop Commands: g

1. -p, -g Commands

In the execution process above, we completed it step by step using the -t command. If there are 100 loops, it would require pressing the keyboard many times. Is there a way to skip directly? Of course, and there are many commands!

Commands to Skip Loops Directly(Multi-step Commands)	Explanation
-p	Applicable for those who wish to quickly skip loops, interrupt handling, or subroutine calls, to quickly check the status of subsequent programs.
-g	No parameters: DEBUG will start executing the program from the current instruction pointer (IP) position until it normally ends, encounters an interrupt instruction (such as int instruction), or encounters an error in the program (such as illegal instruction, memory access error, etc.) to stop.With parameters: The command format is –g start address breakpoint address1 breakpoint address2 …. The start address specifies where the program starts executing (can be omitted, in which case it starts from <span>the current IP position</span>); the breakpoint address is the position in the program execution where it needs to pause.

2. Demonstration

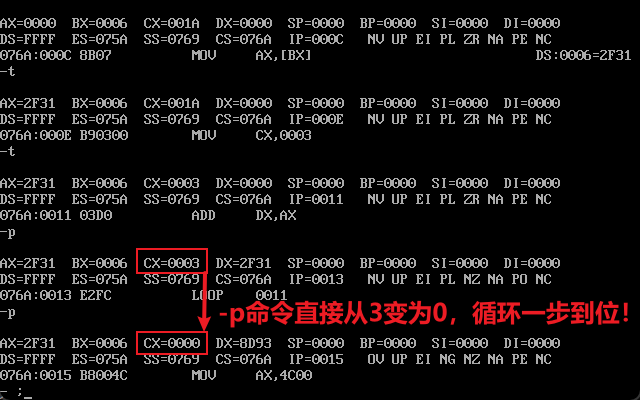

-p Command

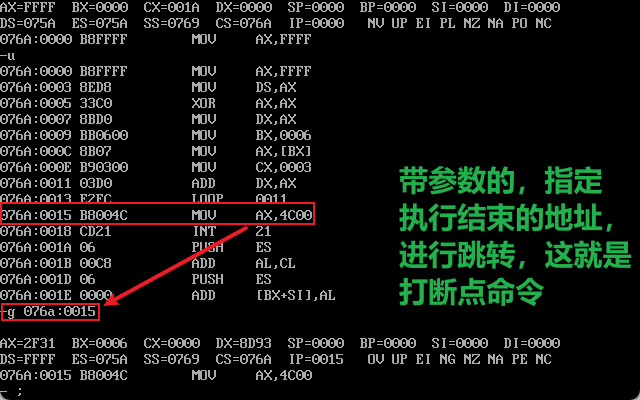

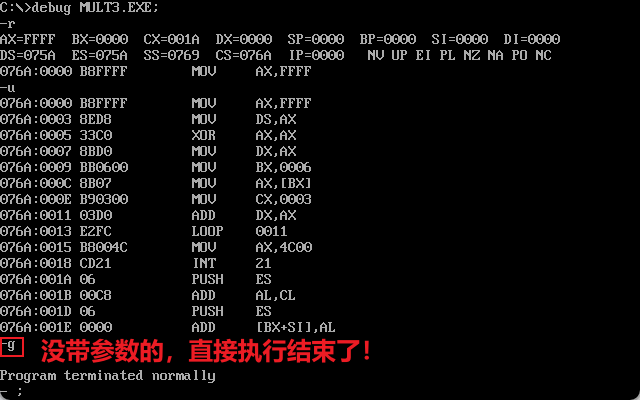

-g Command

5. Note

Note that in assembly source programs, data cannot start with a letter, so <span>ffffh</span> must be written as <span>0ffffh</span>

Conclusion

Alright, in this section, we discussed the basic knowledge of <span>Chapter 5 of "Assembly Language": [BX] Register and Loop Instructions</span>. Let’s review:

Review of Knowledge on [BX] and Loop Instructions
1. What is the meaning of [BX]?
2. What is the essence of the loop instruction?
3. What are the execution steps of the loop instruction?
4. What are the functions of the commands p and g to skip loops? What are their respective roles?
5. Can assembly data start with a letter? Why?
6. What is the relationship between loop instruction and cx register?

If you cannot explain each item in this table, then please review the above content carefully!

Answers can be found in the comments section, and everyone is welcome to discuss~
