Ansible Playbook

Ansible Playbooks use YAML format and have strict indentation requirements. A playbook consists of multiple plays.

Playbook Example

---
- name: init    # Define the name of the Playbook
  hosts: all    # Define the range of managed hosts
  tasks:        # Define the tasks to be executed, each - corresponds to one task (a - indicates a list)
  - name: set hostname        # Name of the first task
    ansible.builtin.hostname:    # Module used in the first task
      name: "{{ inventory_hostname }}.{{ host_search_name }}"    # Module options
  - name: dnf install package    # Name of the second task
    ansible.builtin.dnf:        # Module used in the second task
      name:                        # Module options
      - bash-completion
      - vim
      - gcc
      - make
      - git
      - wget
      - tar
      - bzip2
      - unzip
      - python3
      - sysstat
      state: present
  - name: set hosts
    ansible.builtin.template:
      src: ./templates/hosts.j2
      dest: /etc/hosts
      owner: root
      group: root
      mode: '0644'

---: indicates the document separator in a YAML file. Multiple YAML documents can be placed in one file, separated by ---.

- name: used to define the names of the Playbook and Play, similar to comments.

hosts: defines the range of hosts affected by the Playbook.

tasks: defines multiple automation tasks in the Playbook, containing multiple tasks below.

YAML has strict indentation requirements. For example, - name and hosts are at the same level (in a list), so the indentation is aligned. The tasks section’s - name and ansible.builtin.hostname are its sub-items (part of the tasks list), so they are indented two spaces more (indentation counts from the first letter, ignoring -).

  - name: set hosts
    ansible.builtin.template:
      src: ./templates/hosts.j2
      dest: /etc/hosts
      owner: root
      group: root
      mode: '0644'

This represents a play, with the play named set hosts, using the module ansible.builtin.template, with parameters including src, dest, owner, group, and mode.

Common Options for Ansible Playbook Commands

1. You can execute a Playbook using the ansible-playbook command, and use -v to view more detailed information.

•-v: provides detailed information about task and host status, but does not include variable values and detailed debug information.
•-vv: provides more detailed task execution information, including variable values.
•-vvv: displays more debug information, including variable expansion and task details.
•-vvvv: displays all debug information, including detailed HTTP request and response content.

2. You can check the format of the Playbook using the --syntax-check option.

3. You can execute the Playbook using --check, but it will not make any actual changes.

Error Handling Mechanism in Ansible Playbook Queues

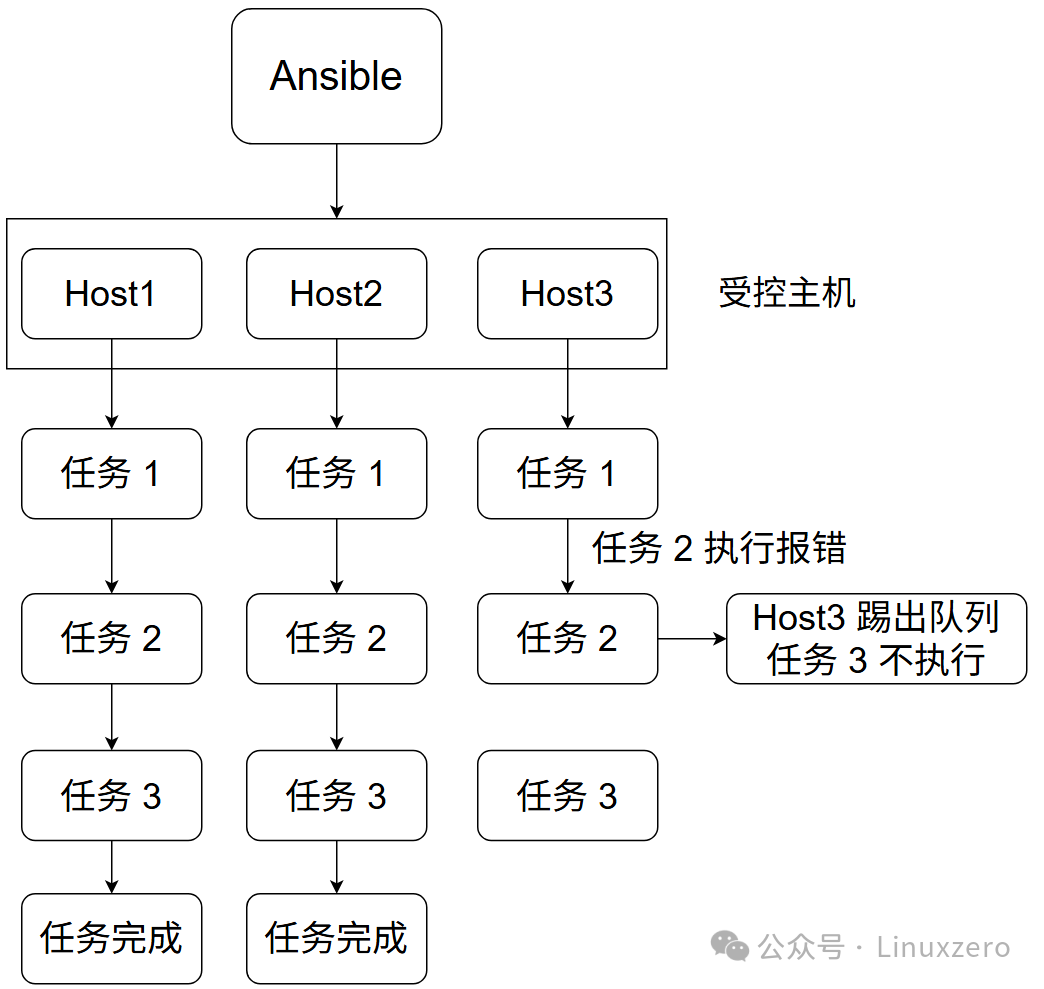

The mechanism of Ansible Playbook is that if a Play fails on a host, that host will be removed from the execution queue, and all subsequent Plays related to that host will not be executed.

Ansible Playbook: From Introduction to Mastery (Part 7) — image-20250407233502883

Sometimes we may want the tasks to continue executing after an error occurs, in which case we can use ignore_errors: yes to achieve this.

  - name: dnf install package
    ansible.builtin.dnf:
      name:    sysstat
      state: present
    ignore_errors: yes

Ansible Handlers

Ansible Handlers represent a set of special tasks that are only executed under specific conditions. For example, configuring the sssd service can be achieved using Ansible Handlers to ensure that the sssd service is restarted only if its configuration file has changed.

Ansible Handlers have two common options: notify, handlers, and listen.

handlers: defines special tasks that are executed only under certain conditions, which are related to notify.

notify: when appended under a play, indicates that after the play executes successfully and makes changes, it triggers a special task in handlers.

Ansible Handlers Example

---
- name: set sssd
  hosts: all
  gather_facts: false
  vars:
    sssd_packages:
    - sssd
    - sssd-tools
    - oddjob
    - oddjob-mkhomedir
    - libsss_sudo
  tasks:
  - name: install packages
    ansible.builtin.yum:
      name: "{{ sssd_packages }}"
      state: present
  - name: set sssd.conf
    ansible.builtin.template:
      src: templates/sssd.conf.j2
      dest: /etc/sssd/sssd.conf
      mode: '0600'
      owner: root
      group: root
    notify: set_pam_and_service
  - name: set oddjob service
    ansible.builtin.systemd:
      name: oddjobd
      state: started
      enabled: true
  handlers:
  - name: set authselect
    ansible.builtin.command: "authselect select sssd with-sudo with-mkhomedir --force"
    listen: set_pam_and_service
  - name: set sssd service
    ansible.builtin.systemd:
      name: sssd
      state: restarted
    listen: set_pam_and_service

In this Playbook, under the play named set sssd.conf, a notify is defined, named set_pam_and_service. Then, two plays are defined in handlers, namely set authselect and set sssd service, both having a listen option with the content set_pam_and_service. The result is that when set sssd.conf executes successfully and makes changes, it triggers the tasks set authselect and set sssd service. If set sssd.conf does not make changes, the tasks set authselect and set sssd service will be skipped.

In the above example, one play triggers two handlers. If the play triggered in handlers is only one, then listen is not needed; you can directly set the name of the play in handlers to be the same as the content of notify. (If multiple plays in handlers have the name set_pam_and_service, only the first play will be executed.)
---
- name: set sssd
 hosts: all
 gather_facts: false
 tasks:
 - name: set sssd.conf
 ansible.builtin.template:
 src: templates/sssd.conf.j2
 dest: /etc/sssd/sssd.conf
 mode: '0600'
 owner: root
 group: root
 notify: set_pam_and_service
 handlers:
 - name: set_pam_and_service
 ansible.builtin.systemd:
 name: sssd
 state: restarted

Force Executing Handlers

The mechanism of Ansible is that if a Play fails on a host, that host will be removed from the execution queue, and all subsequent Plays related to that host will not be executed. Therefore, to ensure that handlers can execute normally, you can add the force_handlers: true option, so that regardless of whether there are error tasks, handlers will execute normally.

---
- name: set sssd
  hosts: all
  gather_facts: false
  force_handlers: true
  tasks:
  ...
