Aixin Micro Launches Ultra-Thin High-Performance SDM Card Module Solutions

As displays become thinner and energy efficiency increasingly important, Aixin Microelectronics has launched the SDM-S and SDM-L modules that can be integrated into stylish all-in-one designs. The Aixin Micro SDM card specification module features a lightweight and compact design, eliminating the need for an outer shell, making it suitable for slim integrated displays and smart display devices adopted by many brand stores.

As a reference design manufacturer for Intel® SDM-L modules, the SDM card specification module launched by Aixin Microelectronics makes a new scalable all-in-one design possible. This module can be integrated into visual IoT applications, such as welcome screens and smart bedside terminals that require high performance but occupy minimal space.

The Aixin Micro SDM-S uses an entry-level processor RK3399 with Atom N4000, measuring 109×60mm; the SDM-L is equipped with Intel’s 7th generation Kaby Lake-U high-performance processor, measuring 110×175mm. The Aixin Micro SDM card specification module is an ideal choice for integrated solutions, significantly benefiting display manufacturers, system integrators, and independent software vendors.

SDM (Smart Display Module) is another unified specification launched by Intel following the open pluggable specification Intel® OPS introduced in 2010, aimed at introducing standardized modules into the highly differentiated media player market. With the increasing emergence of SoC advertising screens, x86 needs to provide an all-in-one integration solution for display manufacturers before shipment. The SDM does not have an outer shell, uses a standardized PCIe interface, and can be quickly integrated into the display’s base plate to become an all-in-one solution. The launch of SDM can help display manufacturers provide more applicable screens focused on vertical industries.

Aixin Microelectronics, as one of the earliest reference designers for Intel® SDM specifications, has launched the independently developed SDM-S module and released the world’s first SDM-L module.

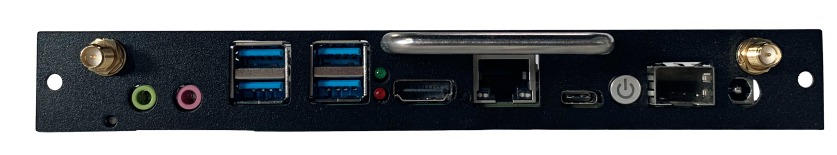

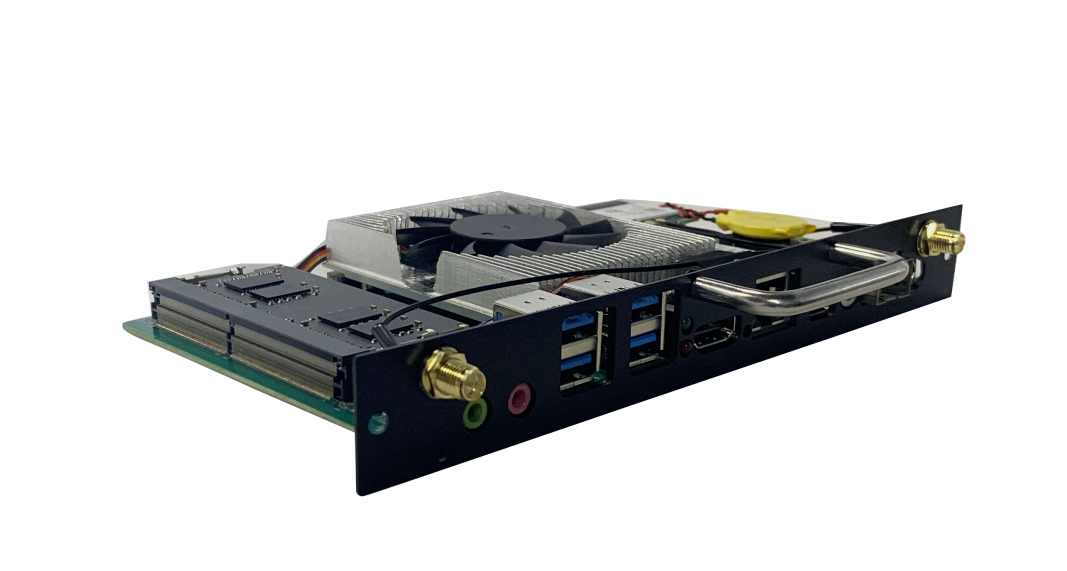

The Aixin Micro SDM-L module is equipped with Intel® Celeron 3865U/Kabylake Core i3-7100U/i5-7200U/7300U/7500U processors, supports DDR4 memory (Max. 32GB), and provides an HDMI video output port, capable of playing 4K 60HZ resolution videos and images, while supporting one gigabit network + one gigabit fiber network to ensure long-distance transmission of industrial network communications.

The main parameter specifications are as follows:

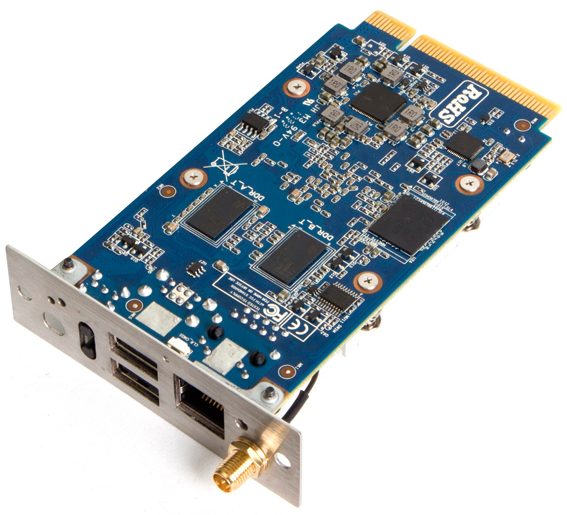

The Aixin Micro SDM-S module is equipped with Intel® Atom N4000 processor, supports 2-4 GB memory and 32-128 GB flash storage, supports 4K 60HZ resolution videos and images, while supporting one gigabit network + one gigabit fiber network to ensure long-distance transmission of industrial network communications.

1. Business Solutions

Optimized for applications such as digital signage, public kiosks, professional monitors, point of sale, magic mirror projection, bedside terminals, and welcome screens.

2. Dual Size Supply

Aixin Micro SDM–S module (60 mm x 100 mm) and SDM–L module (175 mm x 100 mm), with a maximum height of 20 mm, excluding accessories.

3. Expandable

The card-edge connector that meets future needs can support multiple generations of Intel® processors, functions, and display resolutions.

4. Flexible Integration

Can be built-in or externally connected to displays, fully realizing integration flexibility

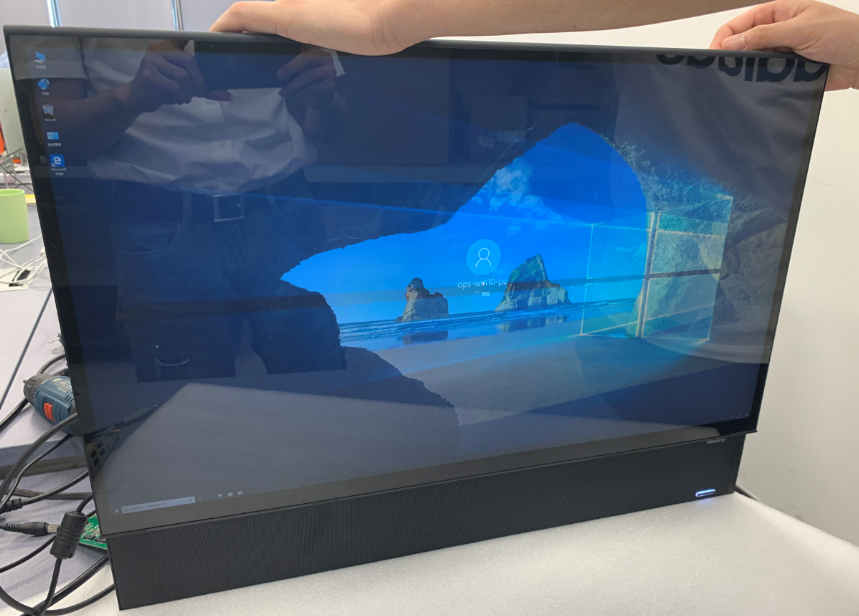

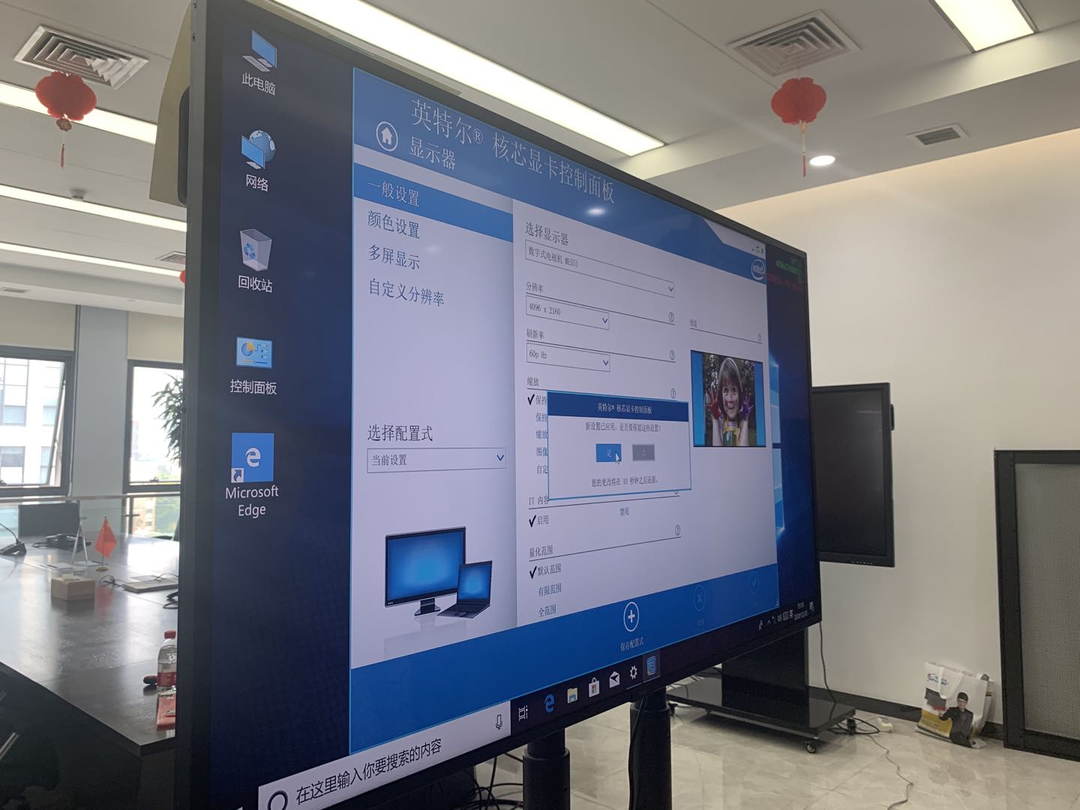

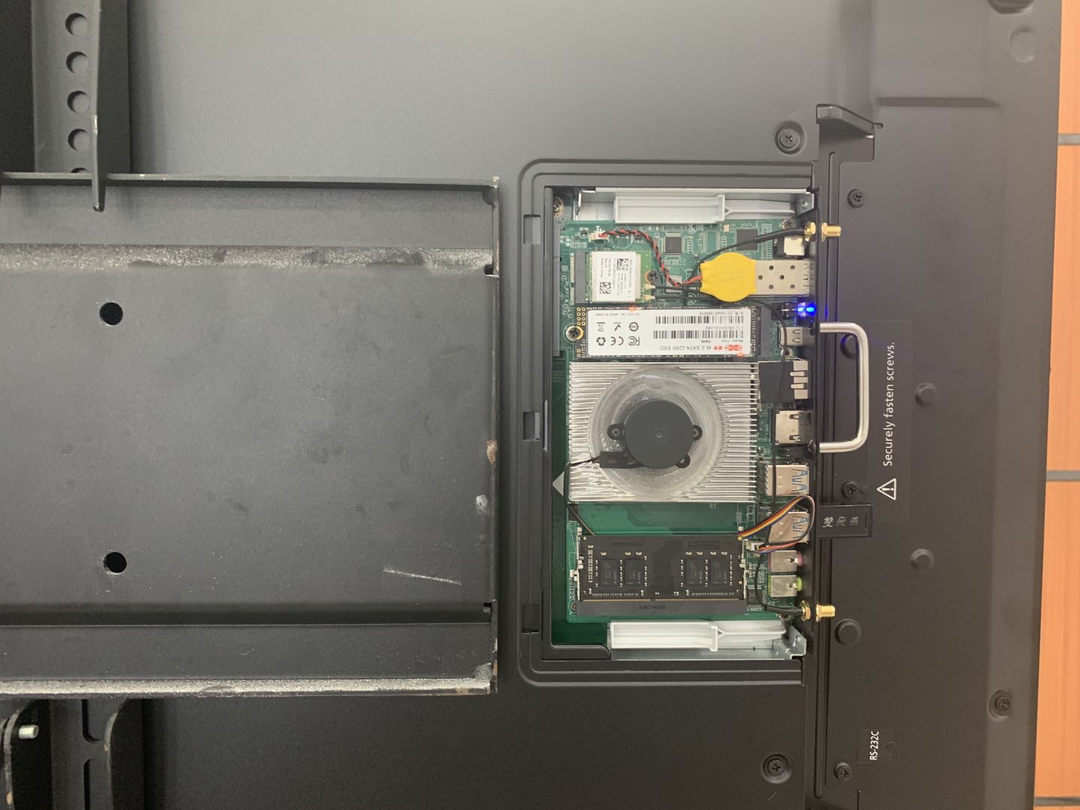

Aixin Microelectronics successfully customized a 27-inch touchscreen all-in-one product equipped with SDM-S and SDM-L modules for a Turkish home appliance industry giant, as well as a 65-inch commercial display all-in-one device for a Japanese display giant, which is applied in digital shelf solutions. In addition, this all-in-one device is also suitable for industries such as retail, dining, and healthcare. This solution adopts a fanless silent design, has low energy consumption, supports long-term operation, and can be applied in confined spaces.

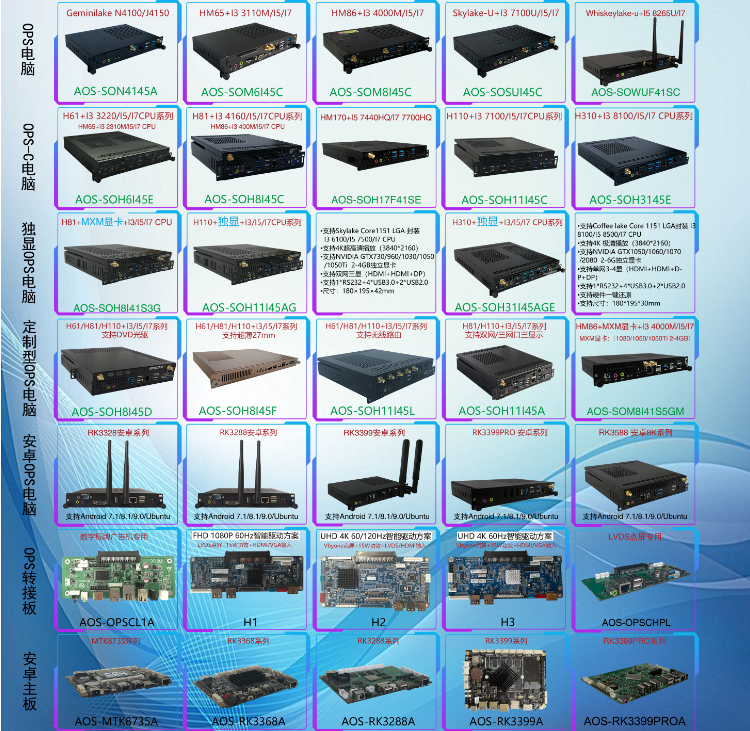

Aixin Microelectronics is the manufacturer with the most complete OP S computer product line in China, integrating R&D, production, and sales, while also providing OEM/ODM customization services. The current main product line includes:

OPS Computer: Baytrail-J1800/J1900/Baytrail-CR Z8350/GeminiLake-N4000/N4100/J4105/J4005 CPU/HM76+2-3 generations CPU/HM86+4 generations CPU/Skylake-u+6-7 generations CPU/Whiskeylake-u+8-10 generations CPU/tigerlake-u+11 generations CPU.

OPS-C Computer: HM76+2-3 generations CPU/HM86+4 generations CPU/H77+2-3 generations CPU/H81+4 generations CPU/H110+6-7 generations CPU/H310+8-9 generations CPU/H510+10-11 generations CPU.

Standalone OPS Computer: H81+4 generations CPU+standalone graphics GT730/960/1030/1050/1050TI/1650 2-4GB/H110++6-7 generations CPU+standalone graphics GT730/960/1030/1050/1050TI/1650 2-4GB/H310, H510+8-9-10-11 generations CPU+standalone graphics GT730/960/1030/1050/1050TI/1650, 1060/1070 2-4-6GB graphics cards.

Domestic OPS Computer: Domestic CPU Feiteng FT-2000/4 /Zhaoxin KX-6000 series CPU + domestic operating system (UOS/Deepin/Kylin) series OPS-C computers

Customized OPS-C Computer: Series OPS-C computers with DVD drives/thin 27MM series OPS-C computers/series OPS-C computers with wireless routers/series OPS-C computers with capture cards/series OPS-C computers with dual network ports/optical terminal OPS modules/SDI OPS modules/fiber SFP OPS computer modules/dual HDMI series OPS computers.

Android OPS Computer: RK3328 Android OPS computer/RK3288 Android OPS computer/RK3399 Android OPS computer/RK3399PRO Android OPS computer/RK3588 Android OPS computer series/4K 30HZ/4K 60HZ/8K display OPS computers.

OPS Adapter Boards: Support 3USB+HDMI/Support 6USB+HDMI/Support 5USB+HDMI+RJ 45 network port/Support 5USB+HDMI+VGA+RJ45 network port/Support LVDS point screen/Support Vbyone point screen.

Shenzhen Aixin Microelectronics Co., Ltd. (hereinafter referred to as “AIOSTAR”) is a high-tech enterprise integrating R&D, production, and sales, and is a close partner of chip manufacturers such as Intel, AMD, and NVIDIA. The company mainly focuses on industrial motherboards (ITX/3.5-inch/NANO, etc.), playback terminals, MINI PCs, commercial hosts, OPS computers, OPS pluggable computer modules, OPS motherboards, BOX-PCs, network security hardware platforms, servers, industrial tablets, all-in-one workstations, and other products. Currently, products are widely used in various fields such as DS, MIDS, IWB, POS, self-service inquiries, retail finance, industrial automation, intelligent transportation, network information security, communications, intelligent security, cloud computing, petroleum and petrochemicals, medical, military equipment, and more. The company highly values customer needs and satisfaction, and can quickly respond to different customer needs, providing tailored design and personalized OEM/ODM services.
