A Classic Set of Embedded Interview Questions!

1. What is variable scope?

The variable scope determines the visibility and lifetime of a variable. In embedded systems, a correct understanding of scope directly relates to memory usage efficiency and system stability.

Code Example:

// Global variable - visible throughout the program's lifetime
int global_var = 0;

void func() {
    // Local variable - visible within the function's stack frame
    int local_var = 10;
    static int static_var = 0;  // Static local variable - lifetime spans the program's execution

    static_var++;
    global_var++;
}

// File scope variable - visible within the current file
static int file_scope_var = 0;

In resource-constrained embedded systems, it is recommended to:

Use local variables as much as possible to reduce global memory usage
Use static variables for data that needs to persist rather than global variables
Use const to protect critical data from accidental modification

2. What should be done if multiple threads access a variable simultaneously?

This is a typical race condition problem. The core solution is the synchronization mechanism.

Code Example (using POSIX threads):

#include <pthread.h>

int shared_data = 0;
pthread_mutex_t mutex = PTHREAD_MUTEX_INITIALIZER;

void* thread_func(void* arg) {
    pthread_mutex_lock(&mutex);
    // Critical section begins
    shared_data++;  // Safe access
    // Critical section ends
    pthread_mutex_unlock(&mutex);
    return NULL;
}

Design Trade-offs:

Mutex: Most commonly used, but may cause priority inversion
Semaphore: Suitable for resource counting scenarios
Atomic operations: Best performance, but only applicable to simple data types

Think of shared variables as a shared tool room, where the mutex is the only key – whoever has the key can enter and use the tools.Any variable that may be accessed by multiple threads must be protected.

Related Articles: Comparison of Various Communication Methods Between Embedded System Modules

3. How should condition variables be used?

Condition variables are used for efficient waiting and notification between threads, avoiding busy waiting that wastes CPU resources.

Code Example (Producer-Consumer scenario):

pthread_cond_t cond = PTHREAD_COND_INITIALIZER;
pthread_mutex_t mutex = PTHREAD_MUTEX_INITIALIZER;
int data_ready = 0;

// Producer thread
void producer() {
    pthread_mutex_lock(&mutex);
    // Produce data
    data_ready = 1;
    pthread_cond_signal(&cond);  // Notify consumer
    pthread_mutex_unlock(&mutex);
}

// Consumer thread
void consumer() {
    pthread_mutex_lock(&mutex);
    while (!data_ready) {  // Must use while to prevent spurious wakeup
        pthread_cond_wait(&cond, &mutex);
    }
    // Consume data
    data_ready = 0;
    pthread_mutex_unlock(&mutex);
}

Key Points:

Always use in conjunction with mutex
Waiting conditions must be checked using a while loop
Notification can be done with signal (wake one) and broadcast (wake all)

Compared to busy waiting, condition variables can significantly reduce CPU usage.

Related Articles: Summary of Basic Knowledge in Multithreaded Programming!

4. What kind of data structure can implement a producer-consumer model?

A circular buffer/circular queue, message queue.A circular buffer is a good choice because it: efficiently manages data flow in limited memory.

Avoids dynamic memory allocation
Provides FIFO semantics
Cache-friendly

A Classic Set of Embedded Interview Questions!

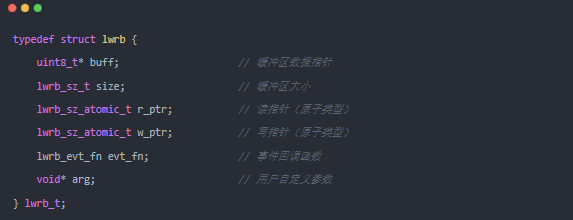

Related Articles: Lightweight Circular Buffer Management Library for Embedded Systems!

Circular Buffer VS Message Queue

A circular buffer (Circular Buffer) and a message queue (Message Queue) are both buffering mechanisms used to pass data between producers and consumers, but they have significant differences in design goals, data processing methods, and applicable scenarios.

Similarities

Support for the “Producer-Consumer” model: Basic logic is the same: producers write data to the buffer, consumers read data from the buffer, and both are decoupled through the buffer (no direct interaction).
Core functionality is the same: Both serve as an “intermediate layer” for data transmission, solving the problem of mismatched speeds between producers and consumers (e.g., producers generating data faster than consumers can process).
Depend on synchronization mechanisms: Both need to handle concurrent access issues (e.g., multithreaded read/write), usually relying on mutexes, semaphores, etc., to ensure data consistency (avoiding read/write conflicts).

Differences

Dimension	Circular Buffer	Message Queue
Data Structure	Based on a fixed-size array/memory block, implemented by cyclically moving the “read pointer” and “write pointer”	Usually based on linked lists or dynamic arrays, supporting dynamic resizing
Data Unit	In units of “byte streams” or “fixed-size data blocks”, with no inherent message boundaries	As “messages” as independent units, each message has clear boundaries (e.g., fixed format, includes length field)
Size Flexibility	Fixed size (determined at creation), cannot dynamically resize (if full, must overwrite old data or block)	Can dynamically grow, or configure maximum length (if full, blocks producer or returns error)
Priority Support	Does not support priority, strictly follows “first in, first out (FIFO)” (read/write pointer moves in order)	Usually supports message priority (e.g., high-priority messages are consumed first)
Overflow Handling	When full, usually has two strategies: 1. Overwrite oldest data (suitable for scenarios with high real-time requirements); 2. Block/return error (to avoid data loss)	When full, usually blocks the producer (waits for consumer to read before writing) or returns an error,will not overwrite existing messages (ensuring message integrity)
Memory Efficiency	Memory allocation is fixed, with no dynamic allocation/release overhead, high efficiency	May cause dynamic memory allocation due to variable message sizes, with a risk of memory fragmentation, slightly higher overhead
Applicable Scenarios	Suitable for continuous, high-frequency, fixed-size data transmission, such as audio/video stream processing, sensor data collection, internal communication in embedded systems	Suitable for discrete, structured message passing, such as inter-process communication (IPC)

Circular Buffer: Advantages include high performance, low overhead, suitable for scenarios with high real-time and memory efficiency requirements (e.g., low-level drivers, streaming media), but low flexibility, requiring manual handling of message boundaries.
Message Queue: Advantages include high flexibility, support for structured messages and priorities, suitable for complex message passing scenarios (e.g., inter-process/service communication), but slightly higher memory overhead, not suitable for high-frequency continuous data transmission.

5. If you were to design a message queue, what aspects would you consider?

The core of an embedded message queue is memory safety + thread safety + low overhead, the message queue is an extension of the producer-consumer model, requiring support for priority, timeout, and other advanced features, and must adapt to the limited resources of MCUs (small RAM, no MMU).

Several key decision points:

Decision 1: Memory Management – Use static memory pool to avoid fragmentation

Dynamic malloc in embedded systems can cause memory fragmentation, so pre-allocate a “message node pool” (e.g., 10 nodes, each storing message data).

Decision 2: Thread Safety – Mutex + Semaphore

Mutex protects modifications to the queue’s head/tail pointers;
Semaphore not_empty: Consumer waits for messages (blocks when the queue is empty);
Semaphore not_full: Producer waits for space (blocks when the queue is full).

Decision 3: Message Type – Fixed size, simplifies implementation

In embedded scenarios, fixed-size messages (e.g., 32B) are more efficient than variable sizes, avoiding dynamic memory calculations.

Decision 4: Priority Support – Insert by priority (optional)

High-priority messages are inserted at the head of the queue, low-priority at the tail, ensuring urgent messages are processed first.

Decision 5: Timeout Mechanism – Avoid permanent blocking

If producers/consumers cannot access resources, return an error after a timeout to prevent the system from deadlocking.

// Message node
typedef struct {
    uint8_t data[MSG_DATA_SIZE];
    uint8_t priority; // 0-low, 3-high
} MsgNode;

// Message queue structure
typedef struct {
    MsgNode pool[MSG_QUEUE_SIZE]; // Node pool
    uint8_t head;                 // Read pointer
    uint8_t tail;                 // Write pointer
    uint8_t count;                // Current number of messages
    SemaphoreHandle_t mutex;      // Protect queue pointers
    SemaphoreHandle_t not_empty;  // Consumer semaphore
    SemaphoreHandle_t not_full;   // Producer semaphore
} MsgQueue;

6. What is the difference between deep copy and shallow copy in constructors?

This relates to object lifecycle management and resource ownership. Shallow copy in constructors may lead to memory-related issues.

Code Comparison:

class String {
private:
    char* data;
    int length;

public:
    // Shallow copy - Dangerous!
    String(const String&amp; other) : data(other.data), length(other.length) {
        // Just copies the pointer value, both objects point to the same memory
    }

    // Deep copy - Safe
    String(const String&amp; other) : length(other.length) {
        data = new char[length + 1];
        memcpy(data, other.data, length + 1);
    }

    ~String() {
        delete[] data;  // This will cause issues!
    }
};

void dangerous_example() {
    String str1("Hello");     // str1.data points to memory of "Hello"
    String str2 = str1;       // Shallow copy: str2.data also points to the same memory
}

When the dangerous_example function ends:

str2 destructs, delete[] data (frees memory)
str1 destructs, delete[] data (frees the same memory again)
Result: Double free, program crashes!

Related Articles: Embedded C++ | Introduction to Object-Oriented Programming

Memory Layout of Shallow Copy: Two objects share the same heap memory

Stack Memory:
str1: [data pointer]  ──┐
str2: [data pointer]  ──┼─→ Heap Memory: ['H']['e']['l']['l']['o']['\0']

Memory Layout of Deep Copy: Each object has its own independent memory copy

Stack Memory:
str1: [data pointer1]  ──→ Heap Memory1: ['H']['e']['l']['l']['o']['\0']
str2: [data pointer2]  ──→ Heap Memory2: ['H']['e']['l']['l']['o']['\0']

If a class manages dynamic resources, the copy constructor, assignment operator, and destructor must be implemented correctly!

7. What is your understanding of smart pointers?

Smart pointers help us use memory safely in resource-constrained environments.

Smart pointers automatically manage resource lifecycles through the RAII mechanism (Resource Acquisition Is Initialization), fundamentally avoiding memory leaks.

#include <memory>

// unique_ptr - exclusive ownership, zero overhead
std::unique_ptr<Sensor> sensor = std::make_unique<Sensor>();

// shared_ptr - shared ownership, reference counting
std::shared_ptr<DataBuffer> buffer = std::make_shared<DataBuffer>();

// weak_ptr - observer pattern, avoids circular references
std::weak_ptr<Device> device_ref = device_ptr;

Pointer Type	Usage Scenario	Embedded Considerations
`<span>unique_ptr</span>`	Exclusive Resource Sensor, Device Driver	Minimal overhead, prefer to use
`<span>shared_ptr</span>`	Shared Resource Configuration Data, Shared Cache	Be cautious of circular references, avoid overuse
`<span>weak_ptr</span>`	Observe Resource Monitoring, Callback Mechanism	Prevent circular references, check validity

8. When should virtual functions be used?

Virtual functions are the implementation of “polymorphism”, the core is “parent class pointer calls child class implementation”, used in embedded systems for “unified interface, differentiated implementation”, reducing code redundancy.

Usage Scenario Determination:

class Device {
public:
    // Use virtual functions when polymorphism is needed
    virtual int read() = 0;

    // Use normal functions when polymorphism is not needed
    int get_id() const { return id; }
};

class Sensor : public Device {
public:
    int read() override { return analog_read(); }
};

Embedded Trade-offs:

When to use: When a plugin architecture or device abstraction layer is needed
When to avoid: For real-time tasks that are extremely performance-sensitive
Alternative: Template strategy pattern (compile-time polymorphism)
