In the MCU market, competition is fierce. STMicroelectronics, as a leader in the MCU field, cannot remain unaffected in this battle for supremacy. According to ST’s performance report for the third quarter of 2024, MCU sales have decreased by 41.3%, amounting to approximately 2.58 billion USD, significantly lower than 4.4 billion USD in the same period of 2023.From this, we can infer that other product lines designed and produced by ST are also facing similar challenges as the MCU. The company’s revenue has been in negative growth for two consecutive years starting in 2024, with annual declines exceeding 20%, facing severe challenges and difficulties.

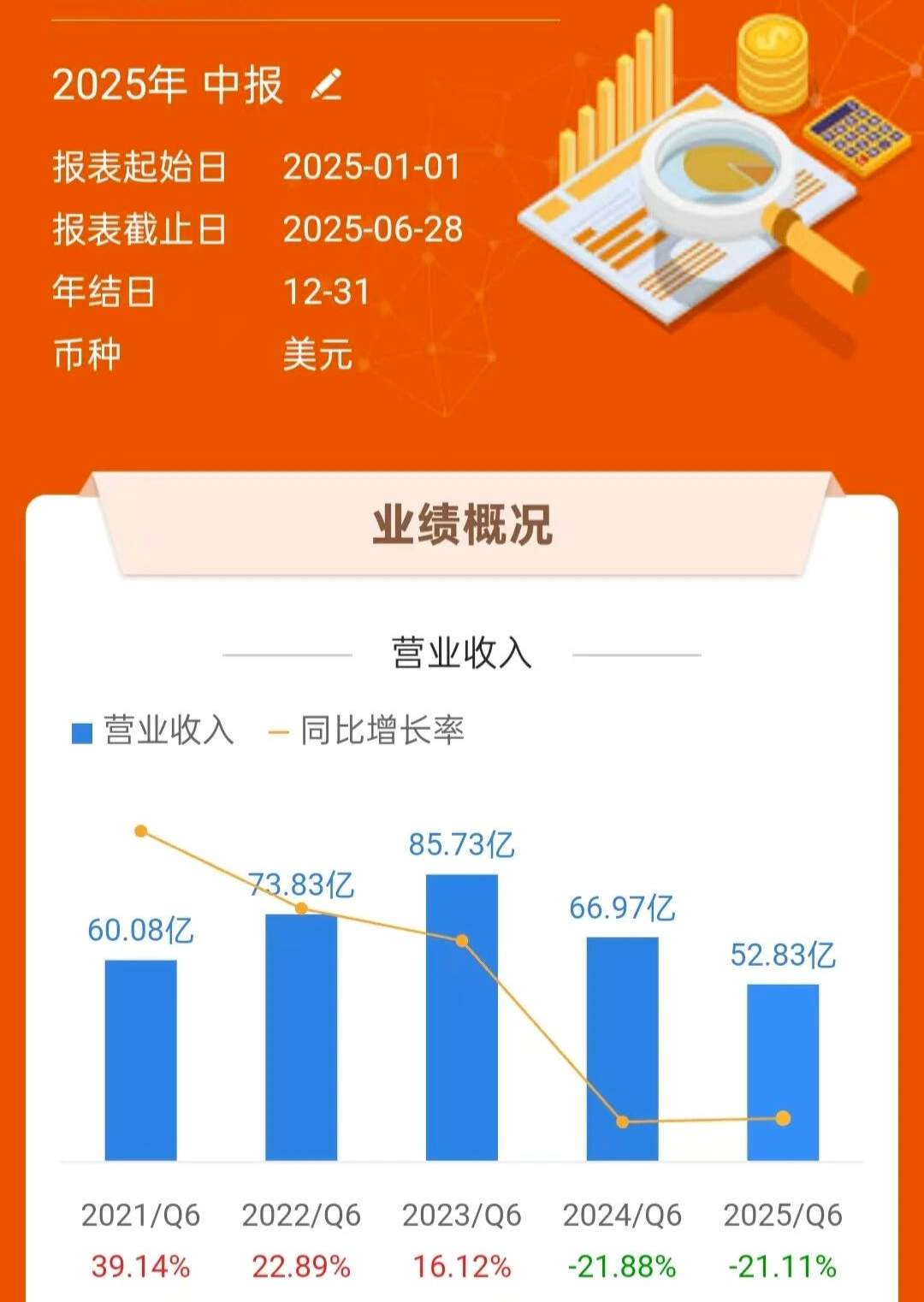

(Source: Dongfang Caifu)Staying stuck in the current situation only leads to stagnation; exploring new directions is the key to breaking through.In the past two years, ST has launched products that integrate edge AI with MCUs, such as the STM32N6 series chips, which incorporate self-developed Neural-ART accelerators (with 600 GOPS computing power) and achieve an energy efficiency ratio of 3 TOPS/W, reducing power consumption by 70% compared to traditional solutions; they have continuously invested in automotive-grade MCUs, such as the Stellar series iterations, which integrate 5G modules and higher performance Cortex-R82 cores, consolidating their advantages in the three-electric system of new energy vehicles; meanwhile, they have been actively launching the STM32W series products in the IoT field, combining traditional MCU computing and control capabilities with wireless communication functions such as Bluetooth, Zigbee, and Thread, widely used in IoT, smart homes, industrial sensing, and wearable devices.
ST Product Image (Source: Network)In the STM32BA series, the WBA52/62 chips only support Bluetooth 5.4 low energy, suitable for basic BLE applications; the WBA64/65 supports multiple protocols, such as Bluetooth low energy 5.4, IEEE 802.15.4 communication protocols, Zigbee, Thread, and Matter, as well as Bluetooth low energy audio, with on-chip flash memory of up to 2MB and RAM of up to 512KB.
STWBA Product Image (Source: Network)Today, we will decode ST’s short-range wireless MCU—STM32WBA63CI👈. It is a multi-protocol wireless microcontroller based on the Arm Cortex-M33 architecture, featuring TrustZone, a floating-point unit, Bluetooth low energy, and IEEE 802.15.4 wireless RF solutions.This chip also employs ST’s most advanced patented technology.

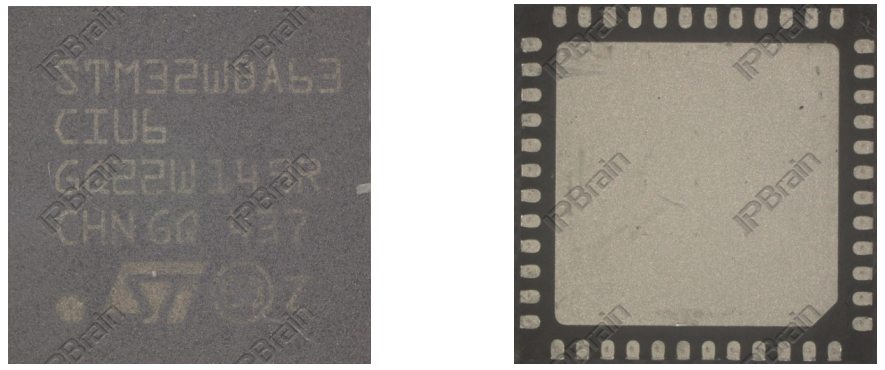

STM32WBA63CI Package Diagram (Source: IPBrain Platform)STM32WBA63CI is labeled as STM32WBA63CIU6, with a package type of QFN, containing a total of 48 pins.
Chip Characteristics
01. Chip Features
STM32WBA63CI integrates a 2.4 GHz radio module, supporting multiple protocols and concurrent operation modes. It supports up to 8 antenna arrays and external power amplifiers, and also supports the PTA (Packet Traffic Arbitration) interface.The Cortex-M33 core is equipped with a single-precision floating-point unit (FPU), supporting Arm single-precision data processing instructions and all data types.STM32WBA6 uniquely adopts a dual-zone flash design (up to 2 MB flash, up to 512 KB SRAM), allowing STM32WBA63CI to serve as a single-chip main MCU for Matter endpoint devices, supporting over-the-air (OTA) updates and concurrent modes.This device also supports STOP2 mode, consuming only 5µA current with the real-time clock enabled. Its security foundation meets Arm’s TBSA (Trusted Base System Architecture) requirements, with dedicated peripherals enhancing security.

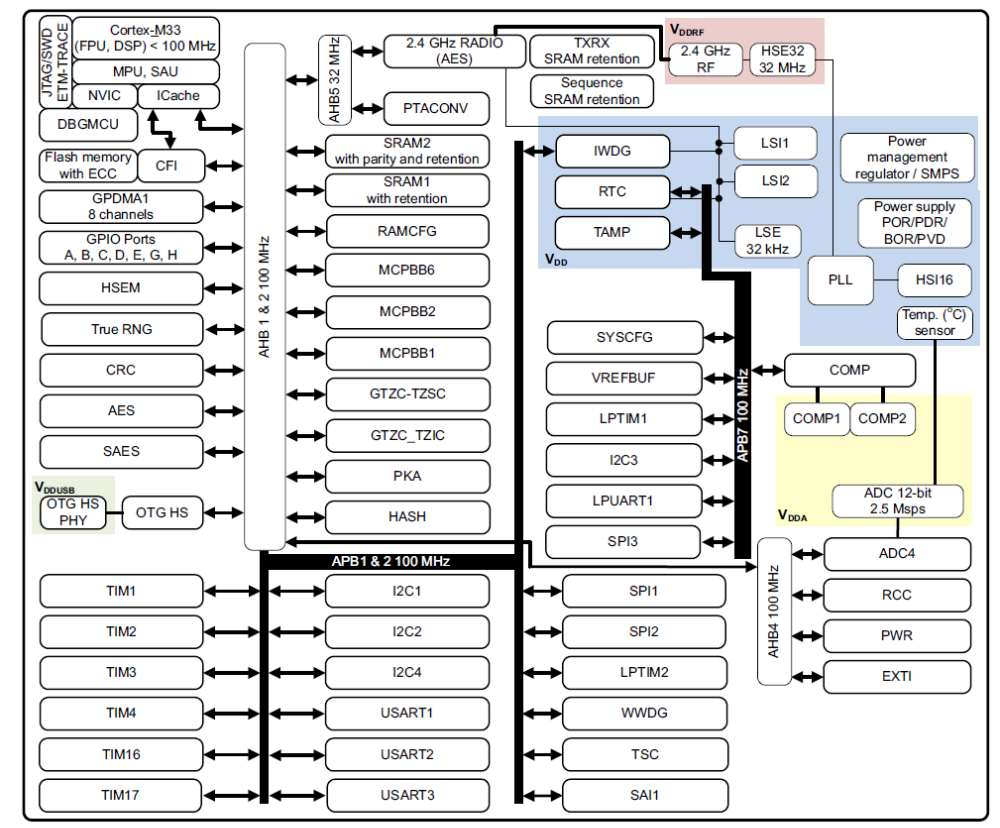

STM32WBA63CI Functional Block Diagram (Source: Chip Specification)STM32WBA63CI provides 1 12-bit ADC (2.5 Msps), up to 2 comparators, 1 low-power RTC, up to 2 32-bit general-purpose timers, 1 16-bit PWM timer for motor control, 3 16-bit general-purpose timers, and 2 16-bit low-power timers.They also feature standard and advanced communication interfaces, with up to 4 I2C, up to 3 SPI, 1 SAI, up to 3 USART, 1 low-power UART, and 1 USB OTG high-speed interface.

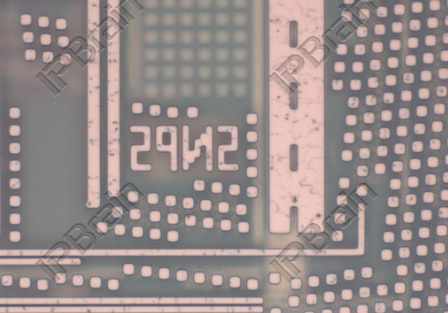

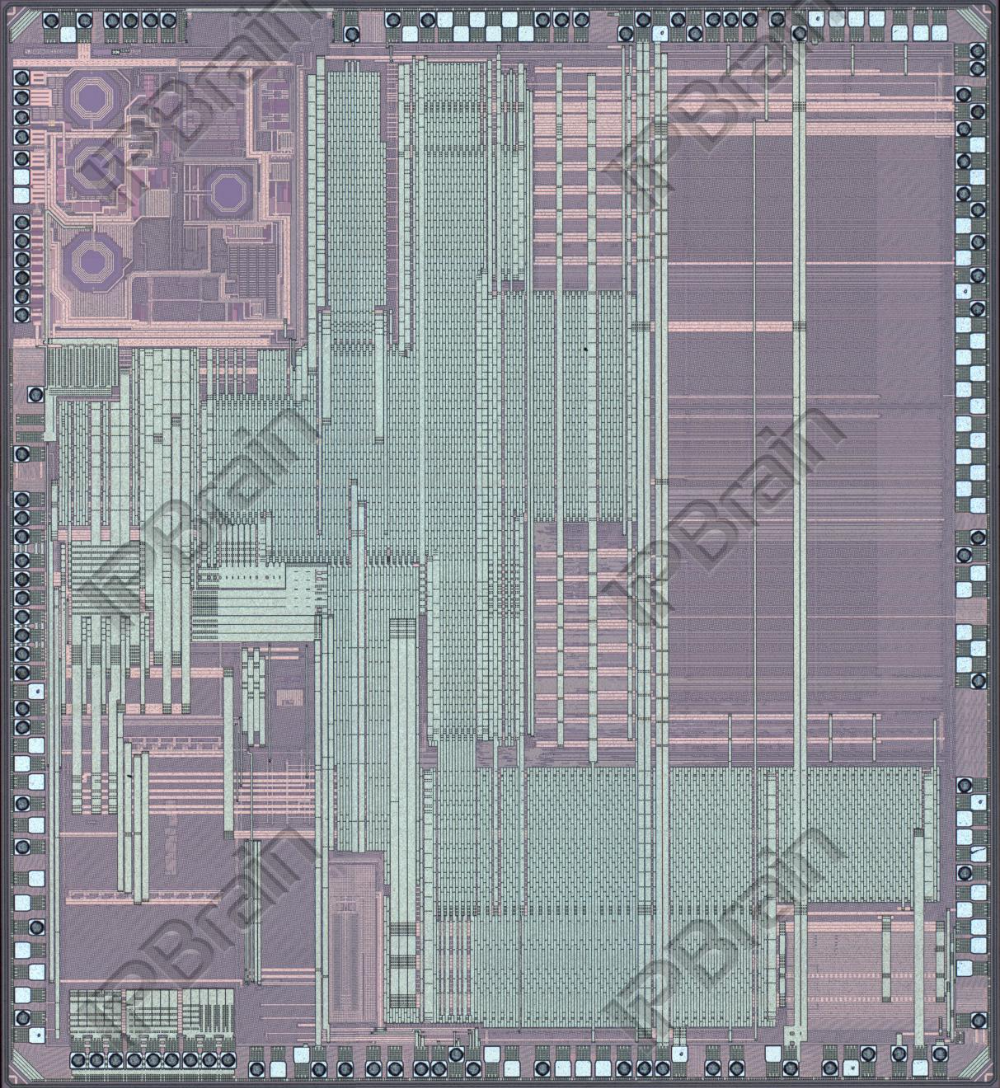

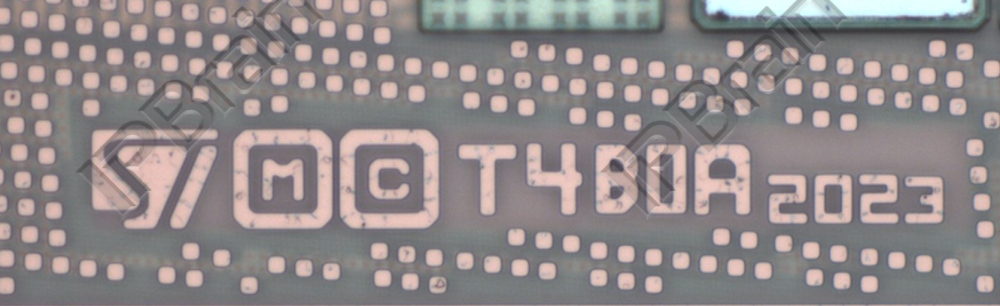

Top-Level Overview (Source: IPBrain Platform)
Similar Products in The Market
02. Market Similar Products
NXP MCX W series: Based on the Arm Cortex-M33 core, it includes a series of pin-compatible multi-protocol wireless MCU products, supporting Matter, Thread, BLE, and Zigbee communication protocols.Among them, the MCX W72x series adds Bluetooth channel scanning capabilities, equipped with Bluetooth channel scanning and NXP’s positioning computing engine, enabling accurate and secure positioning, suitable for IoT and related fields.

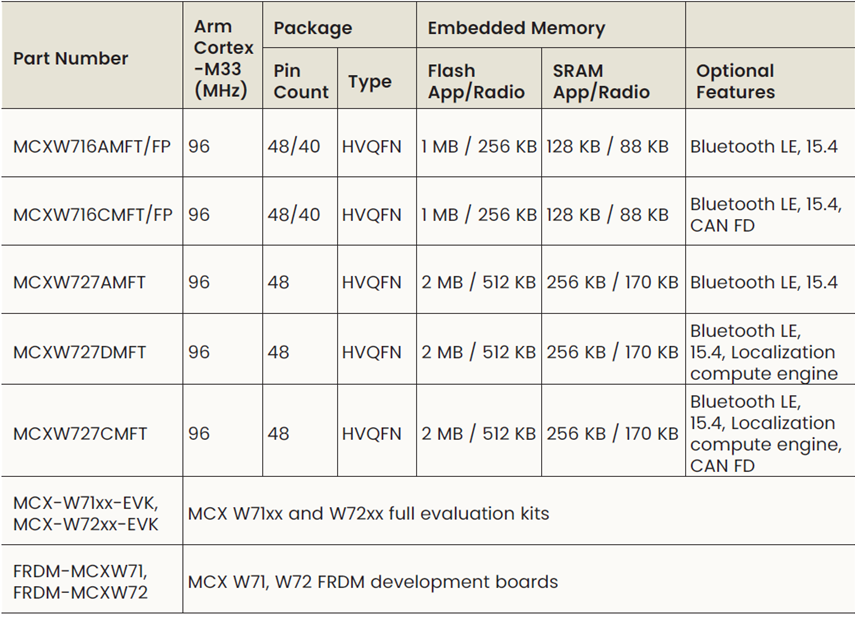

NXP Wireless Products (Source: Network)
- Silicon Labs EFR32 series: This series integrates wireless functions such as Zigbee and Bluetooth. Among them, EFR32xG26, EFR32xG28, etc., are wireless SoC platforms, paired with corresponding software compatible MCU products, such as EFM32PG26, EFM32PG28, making them ideal choices for various low-power, high-performance embedded IoT applications.
- Espressif ESP32 series: Integrating Wi-Fi and Bluetooth functions, suitable for IoT applications. Although it is not a pure MCU, it contains a dual-core Tensilica core, but it can also achieve various wireless connectivity functions in the IoT field, suitable for smart home, smart wearables, etc., with high cost performance and rich development resources.
