For embedded systems, if there is no RTOS running, the main function main() in program development needs to use some mechanism to keep running happily forever; it has no endpoint. If you want to exit the main function, what happens specifically is determined by the C language compiler used.

1. The Question Raised

Today, I saw an interesting question in the microcontroller LED module definition function. The questioner was conducting basic C51 programming experiments and wrote a simple C51 program as follows:

#include <REGX51.H>

void test(num) {
    switch(num) {
        case 1: P2_0=0; P2_1=0;
            break;
    }
}

void main(void) {
    test(1);
}

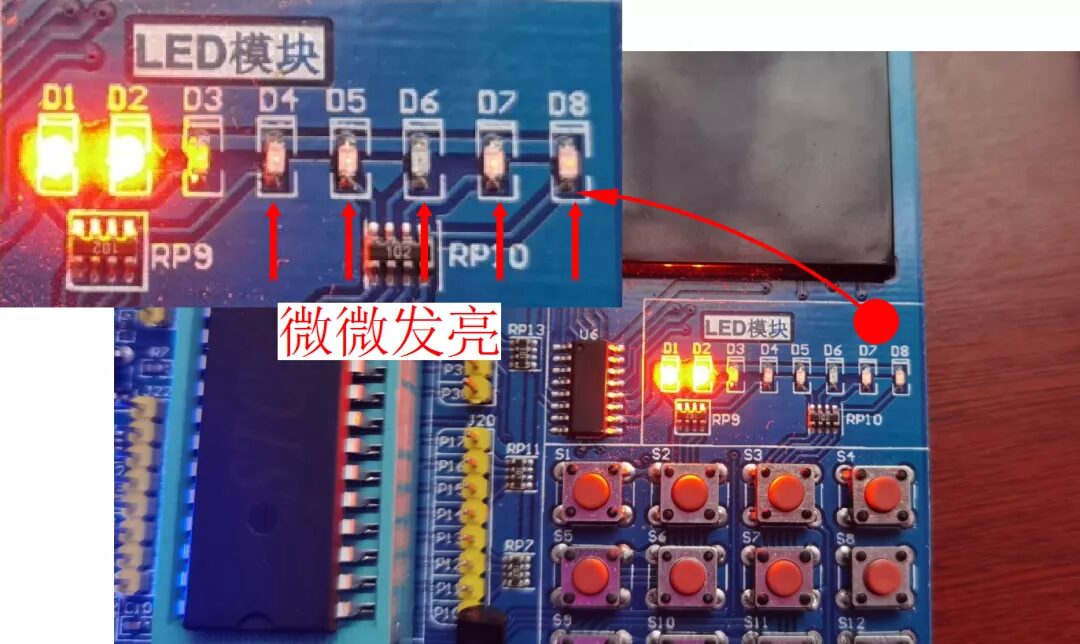

After the program executed, it was observed that two LEDs on the experimental board were lit, while the other six were surprisingly dimly lit.

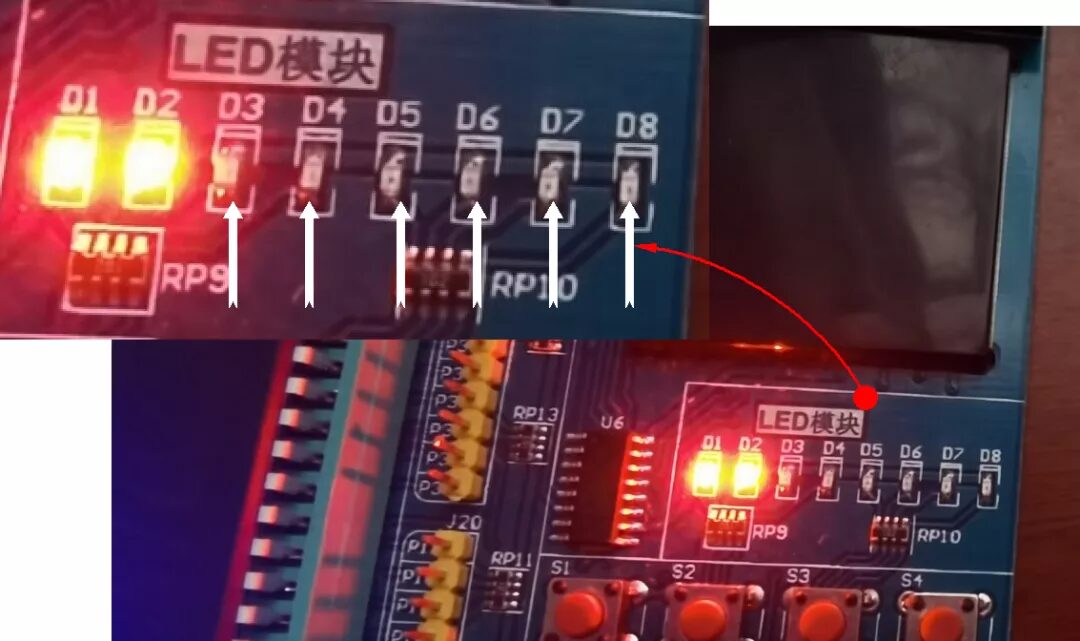

If an infinite loop is added in the main program: while(1);, then the “dimly lit” phenomenon will no longer appear on the circuit board.

#include <REGX51.H>

void test(num) {
    switch(num) {
        case 1: P2_0=0; P2_1=0;
            break;
    }
}

void main(void) {
    test(1);
    while(1);
}

The difference between the two situations is that in the second program, the main loop main() function never exits, while in the first program, the main() function exits. It seems that the previously dimly lit LEDs should be related to what the microcontroller does after the main function exits.

So, one question remains: For ordinary embedded systems, what happens to the program after the main() function exits in C programming?

2. Where Does the Program Go?

From the code written by the questioner, it can be seen that he is a C51 enthusiast using the C51 compiler, happily conducting experiments on a C51 development board. Initially, he did not install the convention of embedded program development, using an infinite loop in the main program void main(void) to keep the program controlled within the main function, which led to the confusing results observed earlier.

“

Note: He is a bold and meticulous person, and observes quite carefully.

”

2.1 The Creation of the World

In C programming, all user program worlds begin with the main program main(). The task of creating the user program world is performed by a small piece of startup code STARTUP.A51.

The execution flow of the 51 microcontroller program (managed by STARTUP.A51 for the execution of the Main function)

Below is an excerpt from the STARTUP.A51 code, which shows that after the microcontroller RESET, it does some preparatory work (initializing global variables, stack pointer) and then directly jumps to:<span>?C_START</span>

 NAME    ?C_STARTUP

?C_C51STARTUP   SEGMENT   CODE
?STACK          SEGMENT   IDATA

                RSEG    ?STACK
                DS      1

                EXTRN CODE (?C_START)
                PUBLIC  ?C_STARTUP

                CSEG    AT      0
?C_STARTUP:     LJMP    STARTUP1

                RSEG    ?C_C51STARTUP

STARTUP1:

IF IDATALEN <> 0
                MOV     R0,#IDATALEN - 1
                CLR     A
IDATALOOP:      MOV     @R0,A
                DJNZ    R0,IDATALOOP
ENDIF

IF XDATALEN <> 0
                MOV     DPTR,#XDATASTART
                MOV     R7,#LOW (XDATALEN)
  IF (LOW (XDATALEN)) <> 0
                MOV     R6,#(HIGH (XDATALEN)) +1
  ELSE
                MOV     R6,#HIGH (XDATALEN)
  ENDIF
                CLR     A
XDATALOOP:      MOVX    @DPTR,A
                INC     DPTR
                DJNZ    R7,XDATALOOP
                DJNZ    R6,XDATALOOP
ENDIF

IF PPAGEENABLE <> 0
                MOV     PPAGE_SFR,#PPAGE
ENDIF

IF PDATALEN <> 0
                MOV     R0,#LOW (PDATASTART)
                MOV     R7,#LOW (PDATALEN)
                CLR     A
PDATALOOP:      MOVX    @R0,A
                INC     R0
                DJNZ    R7,PDATALOOP
ENDIF

IF IBPSTACK <> 0
EXTRN DATA (?C_IBP)

                MOV     ?C_IBP,#LOW IBPSTACKTOP
ENDIF

IF XBPSTACK <> 0
EXTRN DATA (?C_XBP)

                MOV     ?C_XBP,#HIGH XBPSTACKTOP
                MOV     ?C_XBP+1,#LOW XBPSTACKTOP
ENDIF

IF PBPSTACK <> 0
EXTRN DATA (?C_PBP)
                MOV     ?C_PBP,#LOW PBPSTACKTOP
ENDIF

                MOV     SP,#?STACK-1
                LJMP    ?C_START

                END

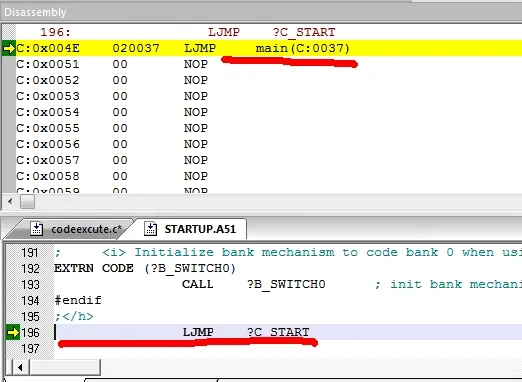

The above code has also been step-debugged and verified in the blog post about the execution flow of the 51 microcontroller program (STARTUP.A51).

2.2 The End of the World

Since entering the main() function is a long jump, the main function does not normally return to the startup program STARTUP.A51. So where does the program go?

In the blog post about the problem of while(1) in microcontroller C language, the author viewed the disassembly of the final moments of the main function in the KEIL compiler and the PIC MAPLAB compiler.

KEIL Compiler

At the end of the main function, the program adds a few lines of code:

MOV R0, #0x7F
CLR A
MOV @R0, A
DJNZ R0, (3)
MOV SP, #0x0C
LJMP main

The first four statements clear the first 128 addresses of the microcontroller’s memory, the fifth defines the stack, and the sixth jumps the program back to the first line of the main function for execution.

MAPLAB Compiler

In the PIC microcontroller language program tracking, it was found that the last statement of the main() function is reset, which means the microcontroller directly resets. This reset statement is added by the MAPLAB compiler based on the characteristics of the PIC microcontroller.

Conclusion

For embedded systems, if there is no RTOS running, the main function (main()) in program development needs to use some mechanism to keep running happily forever; it has no endpoint. If you want to exit the main function, what happens specifically is determined by the C language compiler used.
