Many people studying electronics often encounter the technical terms Printed Circuit Board (PCB) and Integrated Circuit (IC), but they frequently confuse these two concepts and even misuse them in reports, leading to criticism. The root cause lies in insufficient understanding of PCBs and integrated circuits. Therefore, today we will clarify the differences between PCBs and integrated circuits.

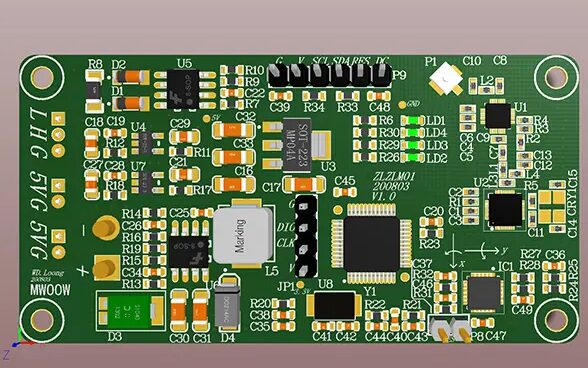

PCB, which stands for Printed Circuit Board, is an important electronic component that serves as a support for electronic components and a carrier for their electrical connections. Since it is made using electronic printing technology, it is also called a printed circuit board. The current PCBs mainly consist of traces and patterns, holes (Through hole/via), dielectric layers, solder resist (Solder Mask), surface finishes, and silkscreen markings. The advantages of PCBs include: high reliability, design flexibility, high density, production line compatibility, testability, assemblability, and maintainability.
An Integrated Circuit, or IC, is a type of microelectronic device or component. In simple terms, it integrates the necessary components such as transistors, resistors, capacitors, and inductors into a single chip or several semiconductor wafers or substrate materials, encapsulated within a package to form a microstructure with the desired circuitry and functions. Since all components are structured as a whole, electronic components begin to exhibit characteristics such as miniaturization, low power consumption, intelligence, and high reliability. Integrated circuits are represented as “IC” in circuits. Depending on their functions and structures, integrated circuits can be classified into three main categories: analog ICs, digital ICs, and mixed-signal ICs. The advantages of integrated circuits include: small size, light weight, long lifespan, low cost, good performance, high reliability, fewer lead wires and solder joints, and ease of mass production.

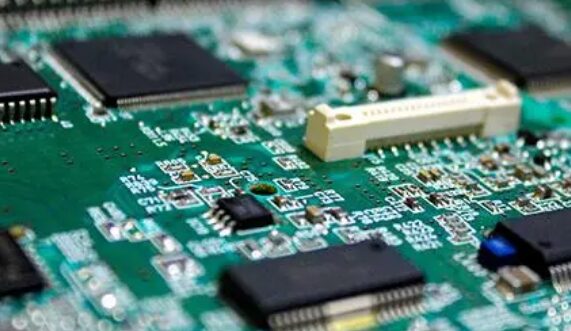

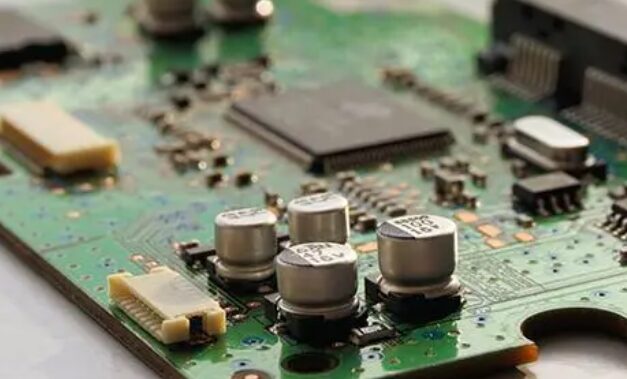

Integrated circuits generally refer to the integration of chips, such as the northbridge chip on a motherboard and the CPU itself, which are categorized as integrated circuits. In contrast, PCB refers to the green circuit boards we often see, including the printed and soldered chips on the circuit board. The relationship between the two can be understood as follows: integrated circuits are soldered onto PCBs, and PCBs serve as carriers for integrated circuits. In simple terms, an integrated circuit integrates a general circuit onto a chip, forming a whole; any damage internally will lead to the failure of the entire chip, while PCBs allow for component soldering, and damaged components can be replaced for repair.
