1.What is make

make is an application

— that can parse the dependencies between source programs

— automatically maintains the compilation work based on dependencies

— executes various commands in the host operating system

How to understand automatically maintains the compilation work based on dependencies? — When we start compiling, it starts normally, but when it encounters an error at some point during compilation, make ensures that the correctly compiled files before the error do not need to be recompiled during the next compilation.

2.What is makefile

makefile is a description file

— defines a series of rules to specify the order of compilation of source files

— has specific syntax rules, supports function definitions and calls

— can directly integrate various commands in the operating system

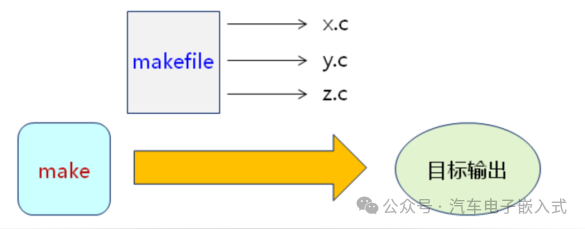

3. The relationship between make and makefile

The descriptions in the makefile guide the make program on how to complete the work; make executes commands based on the rules in the makefile and ultimately completes the compilation output.

4.The simplest makefile example

hello:  echo "hello makefile"

hello: is the target

echo “hello makefile“: the command to execute to achieve the target

Note: The command after the target needs to be separated by the Tab key (‘ ’), not by 4 spaces!

5.Example of using make

make -f mf.txt hello

Description: Find the target using the hello keyword in the mf.txt file and execute the command at hello.

-f: tells the make tool that we are using the file following -f to find the action to execute, which is at hello.

6.Abbreviated example of make

make hello

Description: Use the hello keyword to find the makefile or Makefile file and execute the command at hello.Let make search for the target hello; if we omit -f and do not know the makefile file, it will default to look for a file named makefile or Makefile in the current directory.

make

Description: Searches for the top-level target in the makefile or Makefile file and executes the command for the top-level target.

7.Programming Example

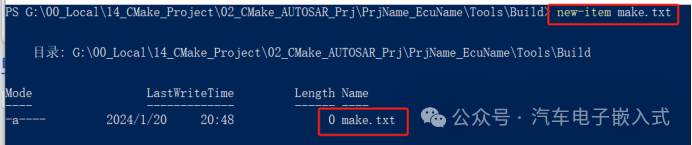

Create a file: make.txt

Write to make.txt

#make.txthello:  echo "hello makefile"

The contents written in the makefile are very similar to a program, and make is like an interpreter, interpreting a script program.

The contents written in the makefile are a type of script program that can be interpreted and executed, with make acting as the interpreter.

Rename make.txt to makefile:

Modify the contents of the makefile as follows:

#makefilehello:  echo "hello makefile"
test:  echo "test"

8.Summary

make is just a specialized application.

make is used to execute corresponding commands based on specified targets.

makefile is used to define targets and the commands needed to achieve those targets.

makefile has specific syntax rules, supporting function definitions and calls.

References:

1. Teacher Tang’s course on DITAI software

2. Professional Embedded Software Development Books

End
