Previously, the backend team configured HTTPS and directly provided us with the certificate. Today, I will walk through the HTTPS configuration process myself to document the steps.
Apache HTTPS configuration steps
1. Check if the mod_ssl.so file is installed
yum -y install openssl openssl-devel mod_ssl

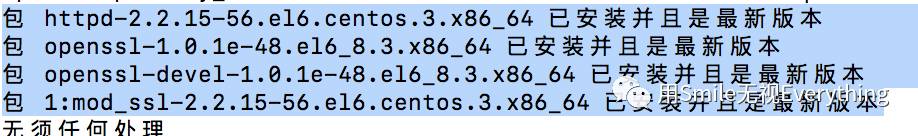

If it is already installed, you will see a prompt like the one below:
2. Generate the certificate and key
openssl genrsa 1024 > server.key
Note: This generates a key using 128-bit RSA algorithm, resulting in the server.key file.
Step 2: Generate the certificate request file
Command: openssl req -new -key server.key > server.csr
Note: This generates the certificate request file server.csr using the key from step 1. This step may prompt many questions, so input them step by step.
Step 3: Generate the certificate
Command: openssl req -x509 -days 365 -key server.key -in server.csr > server.crt
Note: This generates the certificate server.crt using the key and certificate request from steps 1 and 2. The -days parameter specifies the certificate’s validity period in days.
3 Configure Apache
Configure the Apache file path based on the system (httpd.conf、httpd-ssl.conf)
Modify httpd.conf
Step 1: Open the SSL module and remove the # or add the following statement:
LoadModule ssl_module modules/mod_ssl.so
Step 2: Include the SSL configuration file based on the system installation path. If you have this httpd-ssl.conf, include it; if you only have ssl.conf, you do not need to add the following statement:
Include “/apache/conf/httpd-ssl.conf“
Modify /etc/httpd/conf.d/ssl.conf
#LoadModule ssl_module modules/mod_ssl.so
<VirtualHost _default_:443>
DocumentRoot “/var/www/html”
ServerName domain:443
ErrorLog logs/ssl_error_log
TransferLog logs/ssl_access_log
LogLevel warn
SSLEngine on
SSLProtocol TLSv1 TLSv1.1 TLSv1.2
SSLCipherSuite ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4
SSLCertificateFile cert/public.pem
#SSLCertificateFile /etc/httpd/cert/ca.crt
#SSLCertificateKeyFile etc/httpd/cert/214005424610942.key
SSLCertificateKeyFile cert/214005424610942.key
#SSLCertificateKeyFile /etc/httpd/cert/ca.key
#SSLCertificateChainFile /etc/httpd/cert/chain.pem
SSLCertificateChainFile cert/chain.pem
4、 Restart Apache
service httpd restart
5 Check the port
netstat -anp
0.0.0.0:443
If access is denied, it may be due to the firewall blocking it.
iptables -I INPUT -p TCP –dport 443 -j ACCEPT
https://domain
iOS port HTTPS authentication
If you are using a paid or third-party free CA authorized certificate, just throw it to the server configuration. Theoretically, the iOS client only needs to change the address to the HTTPS address to adapt successfully. However, it is still advisable to make some configurations to ensure everything is foolproof.
If the project uses AFNetworking, you can accomplish this with just a few lines of code.
NSString *urlString = @”https://www.in2016.cn/index.php/users/ceshi”;
AFHTTPSessionManager *manager = [AFHTTPSessionManager manager];
AFSecurityPolicy *securityPolicy = [AFSecurityPolicy policyWithPinningMode:AFSSLPinningModePublicKey];
[securityPolicy setAllowInvalidCertificates:YES];
[securityPolicy setValidatesDomainName:YES];
manager.securityPolicy = securityPolicy;
manager.responseSerializer = [AFHTTPResponseSerializer serializer];
[manager GET:urlString
parameters:nil
progress:nil
success:^(NSURLSessionDataTask * _Nonnull task, id _Nullable responseObject) {
NSDictionary * dic = [NSJSONSerialization JSONObjectWithData:responseObject options:NSJSONReadingMutableLeaves error:nil];
NSLog(“OK === %@”,dic);
NSString *htmlString = [[NSString alloc]initWithData:responseObject encoding:NSUTF8StringEncoding];
NSLog(“%@”,htmlString);
} failure:^(NSURLSessionDataTask * _Nullable task, NSError * _Nonnull error) {
NSLog(“error ==%@”,error.description);
}];
Using a self-signed certificate (the backend will provide you with a crt certificate to export a cer file)
Or export the certificate using the command openssl s_client -connect domain:443/dev/null| openssl x509 -outform DER >client.cer
NSString *urlString = @”https://domain”;
AFHTTPSessionManager *manager = [AFHTTPSessionManager manager];
AFSecurityPolicy *securityPolicy = [AFSecurityPolicy policyWithPinningMode:AFSSLPinningModePublicKey];
[securityPolicy setAllowInvalidCertificates:YES];
[securityPolicy setValidatesDomainName:YES];
manager.securityPolicy = securityPolicy;
// Specify the file
// NSData *certData = [NSData dataWithContentsOfFile:[[NSBundle mainBundle] pathForResource:@”client” ofType:@”cer”]];
// NSSet *cerSet = [NSSet setWithObject:certData];
// if(certData){
// [securityPolicy setPinnedCertificates:cerSet];
// }
// allowInvalidCertificates Whether to allow invalid certificates (i.e., self-signed certificates), default isNO
// If you need to validate self-signed certificates, set it to YES
// securityPolicy.allowInvalidCertificates = YES;
//validatesDomainName Whether to validate the domain name, default isYES;
//If the domain name on the certificate does not match the requested domain name, set this to NO; if set to NO, the server can also establish a connection using a certificate issued by another trusted authority, which is very dangerous, so it is recommended to keep it enabled.
//Setting it to NO is mainly used in cases where the client requests a subdomain, while the certificate is for another domain. Since the domain on the SSL certificate is independent, if the registered domain on the certificate is www.google.com, then mail.google.com cannot be validated; of course, if you have the money, you can register a wildcard domain *.google.com, but that is still quite expensive.
//If set to NO, it is recommended to add corresponding domain validation logic.
//securityPolicy.validatesDomainName = NO;
manager.responseSerializer = [AFHTTPResponseSerializer serializer];
[manager GET:urlString
parameters:nil
progress:nil
success:^(NSURLSessionDataTask * _Nonnull task, id _Nullable responseObject) {
NSDictionary * array = [NSJSONSerialization JSONObjectWithData:responseObject options:NSJSONReadingMutableLeaves error:nil];
NSLog(“OK === %@”,array);
NSString *htmlString = [[NSString alloc]initWithData:responseObject encoding:NSUTF8StringEncoding];
NSLog(“%@”,htmlString);
} failure:^(NSURLSessionDataTask * _Nullable task, NSError * _Nonnull error) {
NSLog(“error ==%@”,error.description);
}];
Check HTTPS using MAC
nscurl –ats-diagnostics –verbose https://www.in2016.cn/index.php/users/ceshi
Starting ATS Diagnostics
Configuring ATS Info.plist keys and displaying the result of HTTPS loads to https://www.in2016.cn/index.php/users/ceshi.
A test will “PASS” if URLSession:task:didCompleteWithError: returns a nil error.
================================================================================
Default ATS Secure Connection
—
ATS Default Connection
ATS Dictionary:
{
}
Result : PASS
—
================================================================================
Allowing Arbitrary Loads
—
Allow All Loads
ATS Dictionary:
{
NSAllowsArbitraryLoads = true;
}
Result : PASS
—
================================================================================
Configuring TLS exceptions for www.in2016.cn
—
TLSv1.2
ATS Dictionary:
{
NSExceptionDomains = {
“www.in2016.cn” = {
NSExceptionMinimumTLSVersion = “TLSv1.2”;
};
};
}
Result : PASS
—
—
TLSv1.1
ATS Dictionary:
{
NSExceptionDomains = {
“www.in2016.cn” = {
NSExceptionMinimumTLSVersion = “TLSv1.1”;
};
};
}
Result : PASS
—
—
TLSv1.0
ATS Dictionary:
{
NSExceptionDomains = {
“www.in2016.cn” = {
NSExceptionMinimumTLSVersion = “TLSv1.0”;
};
};
}
Result : PASS
—
================================================================================
Configuring PFS exceptions for www.in2016.cn
—
Disabling Perfect Forward Secrecy
ATS Dictionary:
{
NSExceptionDomains = {
“www.in2016.cn” = {
NSExceptionRequiresForwardSecrecy = false;
};
};
}
Result : PASS
—
================================================================================
Configuring PFS exceptions and allowing insecure HTTP for www.in2016.cn
—
Disabling Perfect Forward Secrecy and Allowing Insecure HTTP
ATS Dictionary:
{
NSExceptionDomains = {
“www.in2016.cn” = {
NSExceptionAllowsInsecureHTTPLoads = true;
NSExceptionRequiresForwardSecrecy = false;
};
};
}
Result : PASS
—
================================================================================
Configuring TLS exceptions with PFS disabled for www.in2016.cn
—
TLSv1.2 with PFS disabled
ATS Dictionary:
{
NSExceptionDomains = {
“www.in2016.cn” = {
NSExceptionMinimumTLSVersion = “TLSv1.2”;
NSExceptionRequiresForwardSecrecy = false;
};
};
}
Result : PASS
—
—
TLSv1.1 with PFS disabled
ATS Dictionary:
{
NSExceptionDomains = {
“www.in2016.cn” = {
NSExceptionMinimumTLSVersion = “TLSv1.1”;
NSExceptionRequiresForwardSecrecy = false;
};
};
}
Result : PASS
—
—
TLSv1.0 with PFS disabled
ATS Dictionary:
{
NSExceptionDomains = {
“www.in2016.cn” = {
NSExceptionMinimumTLSVersion = “TLSv1.0”;
NSExceptionRequiresForwardSecrecy = false;
};
};
}
Result : PASS
—
================================================================================
Configuring TLS exceptions with PFS disabled and insecure HTTP allowed for www.in2016.cn
—
TLSv1.2 with PFS disabled and insecure HTTP allowed
ATS Dictionary:
{
NSExceptionDomains = {
“www.in2016.cn” = {
NSExceptionAllowsInsecureHTTPLoads = true;
NSExceptionMinimumTLSVersion = “TLSv1.2”;
NSExceptionRequiresForwardSecrecy = false;
};
};
}
Result : PASS
—
—
TLSv1.1 with PFS disabled and insecure HTTP allowed
ATS Dictionary:
{
NSExceptionDomains = {
“www.in2016.cn” = {
NSExceptionAllowsInsecureHTTPLoads = true;
NSExceptionMinimumTLSVersion = “TLSv1.1”;
NSExceptionRequiresForwardSecrecy = false;
};
};
}
Result : PASS
—
—
TLSv1.0 with PFS disabled and insecure HTTP allowed
ATS Dictionary:
{
NSExceptionDomains = {
“www.in2016.cn” = {
NSExceptionAllowsInsecureHTTPLoads = true;
NSExceptionMinimumTLSVersion = “TLSv1.0”;
NSExceptionRequiresForwardSecrecy = false;
};
};
}
Result : PASS
—
================================================================================
MacBook-Pro:~ snow$
Based on the above information, configure the plist file
NSAppTransportSecurity YES
NSExceptionDomains
www.in2016.cn
NSIncludesSubdomains
NSExceptionRequiresForwardSecrecy
NSExceptionAllowsInsecureHTTPLoads
