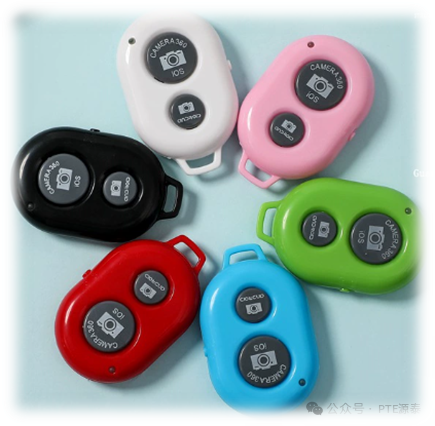

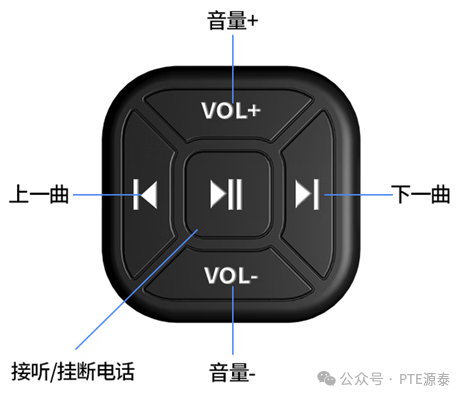

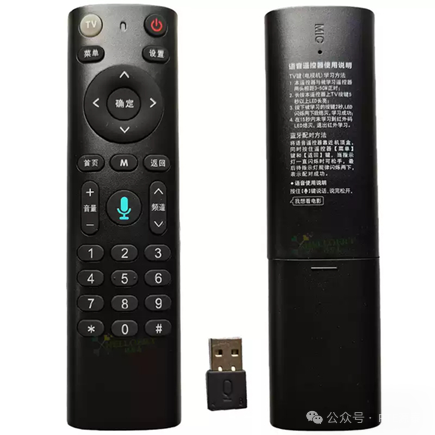

About BLE Bluetooth Remote Control
BLE (Bluetooth Low Energy) remote control is a low-cost, short-range, interoperable, robust wireless technology that operates in the unlicensed 2.4GHz ISM radio frequency band. It was designed from the outset as an ultra-low-power (ULP) wireless technology. It employs various smart techniques to minimize power consumption.
Bluetooth Low Energy technology uses variable connection intervals, which can be set from a few milliseconds to several seconds depending on the specific application. Additionally, because BLE technology employs a very fast connection method, it can remain in a “disconnected” state most of the time (saving energy), where both ends of the link are aware of each other, only establishing the link when necessary and closing it as quickly as possible.
ING91680C Chip Features
-
Supports complete Bluetooth Low Energy 5.3 features
-
Supports all four physical layer rates: 125Kb/s, 500Kb/s, 1Mb/s, and 2Mb/s
-
Supports extended advertising
-
Supports two frequency hopping algorithms: CSA#1 and CSA#2
-
Supports master channel random advertising
-
Supports AOA and AOD direction finding
-
Supports connection subrating
-
Supports channel classification enhancement, GAP, ATT/GATT, SMP, L2CAP
-
Supports link layer privacy
-
Powerful platform
-
Built-in maximum 112MHz 32-bit RISC processor with DSP and FPU capabilities, flexible cache, and 2-wire SWD debugging interface
-
On-chip 512KB FLASH, ROM, 80KB RAM (of which 64KB supports low-power data retention), 128-bit EFUSE. External FLASH supports up to 32MB
-
Supports multiple clock sources, including internal 32KHz RC oscillator and 48MHz RC oscillator, internal 500MHz PLL, external 32.768KHz crystal, and 4MHz oscillator
-
Intelligent power management
-
External power supply 1.62-3.63V
-
Integrated DCDC, LDO, POR, and BOR
-
Automatic power management
-
Supports pin retention and wake-up
-
Supports pin wake-up and RTC wake-up sleep current: 1.4uA
-
Supports pin wake-up and RTC wake-up with 64KB memory retention sleep current: 6.0uA
-
Receive current: 5.0mA @3.3V
-
0dBm transmit current: 5.5mA @3.3V
-
Rich peripheral device interfaces
-
14 GPIOs, can be multiplexed by various peripherals
-
Supports USB2.0 full-speed device
-
2 QSPI, both with master/slave mode, one supports XIP (eXecute In Place)
-
14-bit 4-channel ADC, 400ksps, PGA, supports single-ended and differential modes
-
1 low-power analog comparator with wake-up function
-
1 programmable peripheral trigger engine (PTE)
-
3 RTC timers
-
6 32-bit timers, supports PWM
-
1 watchdog timer
-
3 enhanced PWM, supports capture function
-
2 UARTs, supports flow control, supports LIN
-
2 I2Cs, supports master/slave mode
-
1 I2S, supports PCM
-
1 PDM
-
1 quadrature decoder (QDEC)
-
1 hardware keyboard scanning controller
-
1 infrared transceiver controller
-
Multi-channel DMA
-
128-bit AES/CCM
-
True Random Number Generator (TRNG)
-
Link layer features
-
Supports 128-AES/CCM encryption and decryption
-
Supports link layer broadcasting, data, and control frame processing
-
Supports packet CRC and whitening processing
-
Supports broadcast packets and connection packets CTE
-
Supports all BLE event framing and synchronization
-
Supports extended advertising, periodic advertising
-
Supports multiple advertising sets (up to 1650 bytes)
-
Supports master-slave integrated multi-connection (SDK example defaults to 8 connections, configurable up to 26 connections online simultaneously)
-
Supports mixed configuration of all Bluetooth standard states and roles
-
Supports Privacy
-
RF and modem features:
-
2.200-2.600 GHz
-
Sensitivity: -102dBm @125Kbps, -96dBm @ 1Mbps
-
Output power: -27dBm to +8dBm
-
Supports frequency hopping
-
Built-in PLL
-
Analog RSSI, measurement accuracy 1dBm
-
Automatic VCO & RX filter fine-tuning
-
Built-in hardware modem and RF front-end control unit, supporting AGC, DC cancellation, RSSI measurement, etc.
-
Flexible software
-
Application and protocol stack single-chip solution provides users with a simple, clean, and optimized API software for flexible configuration of device roles, including all roles specified by Bluetooth protocols, such as: advertising role, central role, scanning role, peripheral role, etc.
-
SDK includes 50+ software reference design source codes, such as: standard SIG Mesh solution, OTA example, AoA/AoD precise positioning, beacons, multi-connection, etc.
-
Package
-
QFN32 package:
-
4mmX4mm X0.75mm, pitch 0.4mm
-
Operating temperature range: -40 ℃ ~85 ℃
-
Storage temperature range: -65 ℃~150℃
