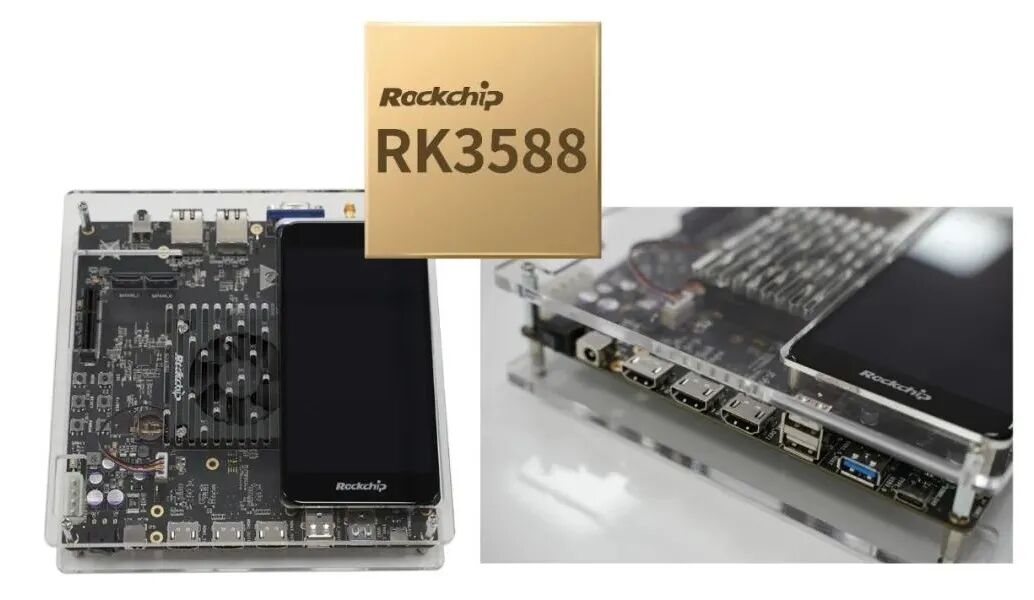

The official development boards for Rockchip’s flagship chip RK3588 series are now on sale, with two products launched: RK3588 EVB and RK3588S EVB.
The RK3588 EVB is primarily aimed at AIoT industry applications such as ARM PCs, NVRs, servers, IPCs, and large display devices; the RK3588S EVB targets consumer electronics like high-end tablets, AR/VR, and personal mobile internet devices.
【Chip Introduction】The RK3588 is Rockchip’s next-generation flagship high-end processor, featuring high computing power, low power consumption, strong multimedia capabilities, and a rich set of data interfaces. It is equipped with an octa-core CPU consisting of four A76 cores and four A55 cores, along with an ARM G610MP4 GPU, and includes a built-in NPU with 6 TOPs of computing power. It has five major technical advantages:
- Built-in various powerful embedded hardware engines, supporting 8K@60fps H.265 and VP9 decoders, 8K@30fps H.264 decoder, and 4K@60fps AV1 decoder; supports 8K30fps H.264 and H.265 encoders, high-quality JPEG encoder/decoder, dedicated image pre-processor and post-processor.
- Built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2. A special 2D hardware engine with MMU maximizes display performance and provides a smooth operating experience.
- Built-in Rockchip’s self-developed 48M pixel ISP (Image Signal Processor), supporting numerous algorithm accelerators such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, dehazing, fisheye correction, gamma correction, etc.
- High-performance NPU supports INT4/INT8/INT16/FP16 mixed operations, with strong compatibility that easily converts network models based on TensorFlow / MXNet/PyTorch/Caffe and other frameworks.
- High-performance 4-channel external memory interface (LPDDR4/LPDDR4X/LPDDR5), capable of supporting demanding memory bandwidth.
【Introduction to the Two Official EVB Development Boards】1. RK3588EVB: High Performance, Multi-InterfaceThe RK3588EVB adopts the RK3588 chip and the RK806-2 dual PMIC power supply scheme; it uses LPDDR4X and eMMC for storage; it has 2xHDMI TX, 1xHDMI RX, MIPI TX, VGA, SATA, PCIe30x4, TYPEC, 2xRJ45 and other peripheral interfaces, with dimensions of 18cmX18cm.

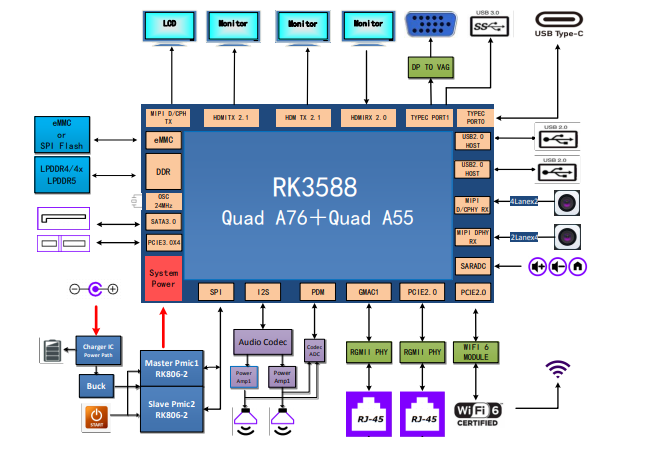

Figure: RK3588 EVB System Block DiagramThe RK3588 EVB is equipped with a rich set of peripheral interfaces (as shown in the figure), suitable for various industry AIoT terminal devices.

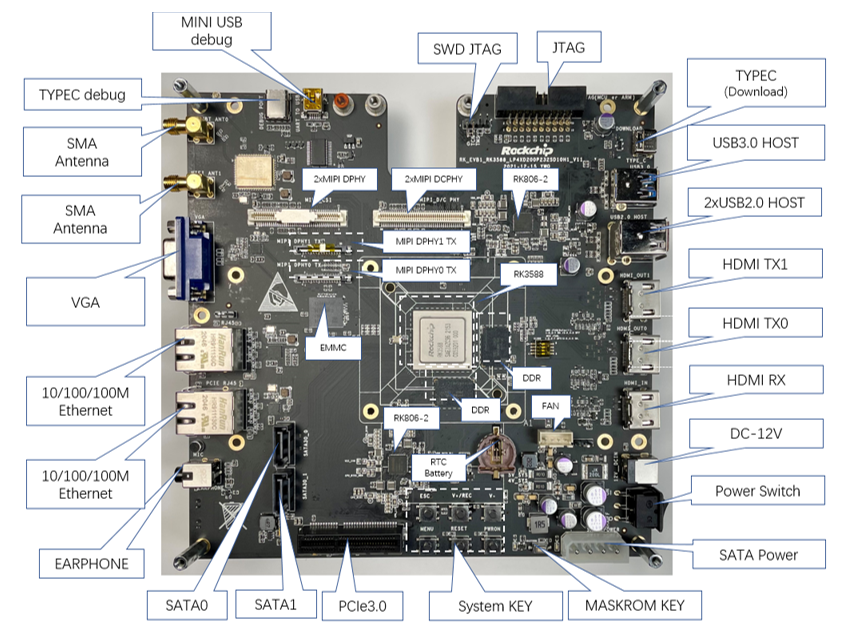

Figure: RK3588 EVB Functional Interface Front Distribution Diagram

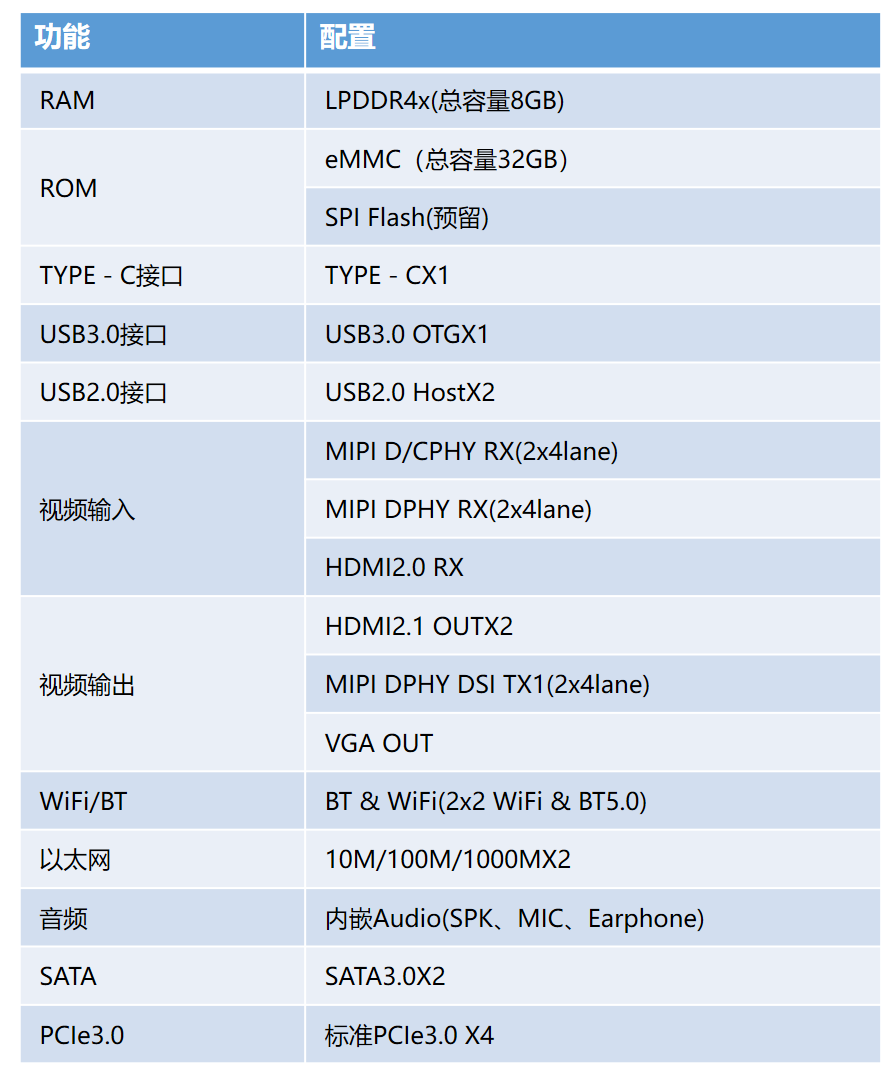

RK3588EVB Functional Configuration Table
2. RK3588SEVB: Thinner and Lighter, Consumer GradeThe RK3588S EVB uses the RK3588S chip, which has performance nearly identical to the RK3588. To meet the performance requirements and product structure design needs for consumer applications, the RK3588S EVB has optimized its interfaces and board dimensions, measuring 20cmX14cm, suitable for high-end tablets, AR/VR, and personal mobile internet devices.

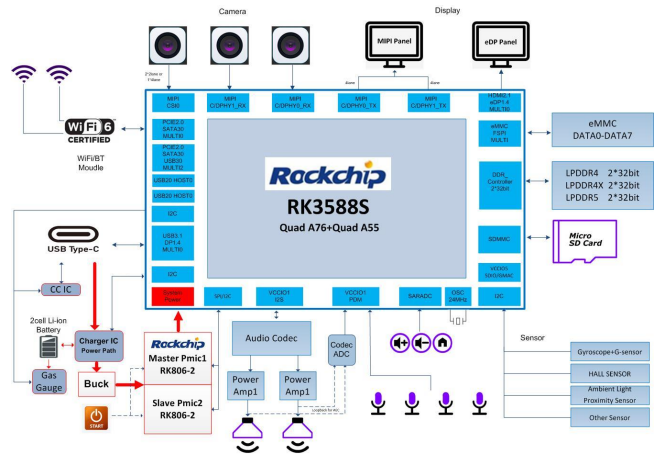

Figure: RK3588S EVB System Block Diagram The RK3588S is also equipped with the RK806-2 dual PMIC power supply scheme; it uses LPDDR4X, eMMC, and SD3.0 for storage; it has eDP TX, MIPI D/C PHY TX, MIPI D/C PHY RX, MIPI DPHY RX, PCIe20, TYPEC, audio output, array MIC input, and other peripheral interfaces.

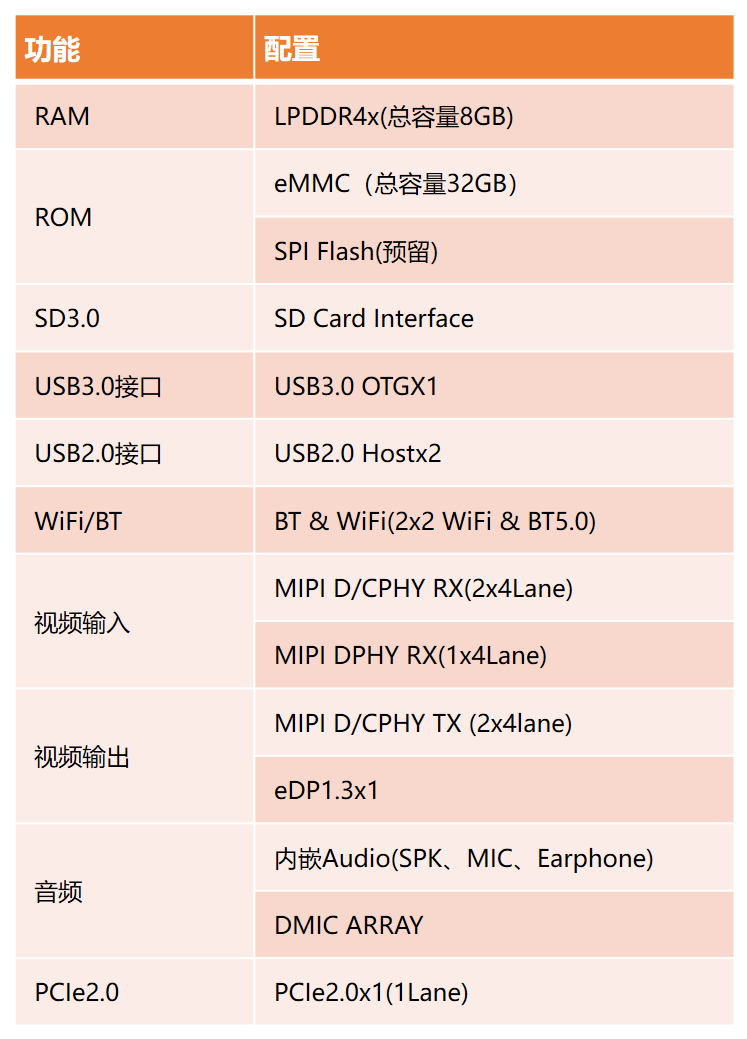

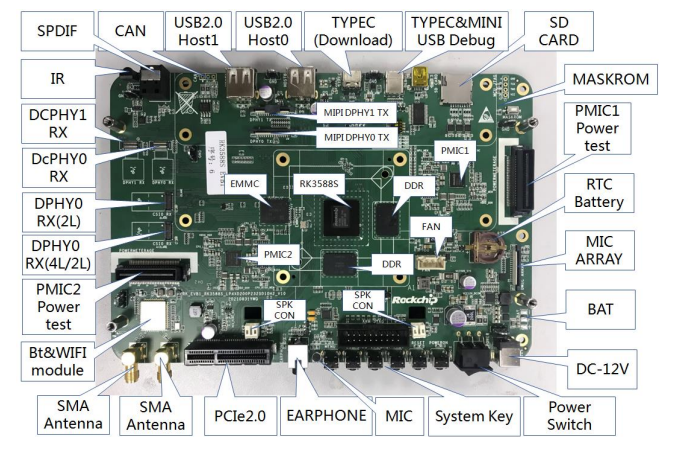

Figure: RK3588S EVB Functional Interface Front Distribution Diagram RK3588S EVB Functional Configuration Table
Source: Rockchip Electronics
