Real-Time Task Scheduling Design for Avionics Relay System

1 Introduction

1.1 Task Model

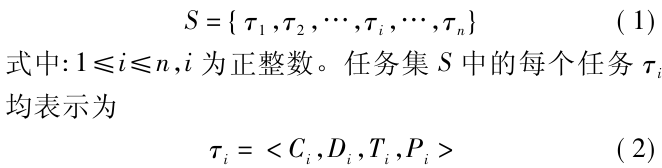

The multitasking environment of the real-time system is modeled as a task set S containing n tasks, that is,

where: Ci is the task execution time; Di is the task deadline; Ti is the task period; Pi is the task priority value, Pi=0, 1, 2, …, n, where a smaller Pi indicates a higher priority, and conversely, a larger Pi indicates a lower priority. The parameters Pi in the task model are determined based on one or several of the other parameters Ci, Di, Ti according to the corresponding task allocation algorithm.

In the scheduling algorithm based on priority allocation, this paper makes the following assumptions: 1) At any moment, the highest priority ready task is allocated to the processor; 2) The time cost of task preemption can be ignored; 3) Tasks are independent, and the requests of each task do not depend on the start or end of other task requests; 4) Each task priority is unique; 5) The task model is a discrete time model; 6) The interval between two arrivals of the same task is at least Ti, that is, periodic tasks; 7) Tasks can mutually exclude access to shared resources.

1.2 Priority-Based Preemptive Scheduling

VxWorks supports the priority preemptive scheduling algorithm. The priority preemptive scheduling algorithm assigns the processor to the highest priority ready task based on the set task priorities. If the kernel detects that a task with a higher priority than the current task becomes ready, it immediately saves the context of the current task, changes its state to ready, and inserts it at the end of the corresponding task queue according to its priority, while switching to the context of the higher priority task for execution.

1.3 Schedulability Analysis

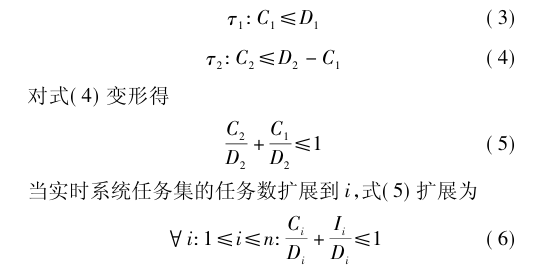

To apply the DM priority allocation method in an engineering environment, it is necessary to determine the schedulability of the real-time system task set. The schedulability condition for a real-time task set containing only two tasks is

where Ii is the interference encountered by task τi between its start and deadline, attributed to the execution demands of higher-priority tasks, i.e., the occupation of the processor by higher-priority tasks is interference to lower-priority tasks. Obviously, the highest priority task runs first, with no tasks occupying the processor before it, thus, I1=0. When i>1, the value of Ii is

The avionics relay system terminal runs on the VxWorks real-time operating system, belonging to a single-processor real-time system. When multiple types of avionics data are relayed simultaneously, the terminal software must implement functions such as network communication control, control of various data boards, and reflective memory forwarding control, which requires breaking down the functions into specific tasks based on the characteristics of the real-time system. The real-time performance of the real-time operating system application software largely depends on task real-time scheduling. Before task scheduling, task partitioning, priority allocation, and schedulability determination are all very important.

2.1 Task Partitioning

Task partitioning often faces a contradiction between increasing system switching overhead due to too many tasks and reducing system parallelism and real-time performance due to too few tasks. Therefore, this paper follows the following principles for task partitioning of the terminal system: 1) Time criticality; 2) High computational load; 3) Functional cohesion; 4) Temporal cohesion; 5) Periodic execution.

Thus, through in-depth analysis of the time characteristics, computational load, and periods (initialization tasks are not subject to periodic constraints) of the terminal software, tasks are created based on the above principles: 1) System initialization module task, which initializes system resources, sets clock frequency, starts network control communication, and starts reflective memory read/write; 2) Network control communication task, which receives control commands from the configuration management system and controls the initialization, start, and stop of the relay network; 3) Data board initialization module task, which initializes ARINC429 boards, CAN bus boards, discrete boards, and serial bus boards; 4) Reflective memory card initialization task, including initializing the reflective memory card hardware resources and initializing FIFO area data; 5) Reflective memory read/write task, which writes and reads reflective memory data, performs reflective memory data forwarding and writing operations; 6) ARINC429 board data acquisition and stimulus task, which collects ARINC429 data and performs ARINC429 data stimulation; 7) CAN bus board data acquisition and stimulus task, which collects CAN data and performs CAN data stimulation; 8) Serial bus board data acquisition task, which collects RS422 data, as the serial bus board’s acquisition task is blocking mode, it continues execution only after receiving valid data or timing out, which affects the sending of stimulus data, thus, two tasks are created for the serial bus board; 9) Serial bus board stimulus task, which stimulates RS422 data; 10) Discrete board data acquisition and stimulus task, which collects discrete data and performs discrete data stimulation.

2.2 Priority Allocation

Based on the deadline parameters of the avionics relay system tasks and specific allocation algorithms, the priorities of these tasks are allocated. Based on the data transmission delay of optical fibers and the execution time of reflective memory network hardware found in the literature, the deadline for the reflective memory read/write task is set to 0.02ms. The data transmission rate of ARINC429 in the avionics relay system is 12.5Kibit/s, and one frame of ARINC429 data is 32 bits. By calculation, the transmission time of one frame of ARINC429 data is 2.56ms, thus, the deadline for the ARINC429 board data acquisition and stimulus task is set to 2.56ms. Similarly, the deadlines for the serial bus board data acquisition task and the serial bus board stimulus task are both set to 0.833ms, the deadline for the discrete board data acquisition and stimulus task is set to 0.05ms, and the deadlines for the CAN bus board data acquisition and stimulus tasks are set to 1.016ms.

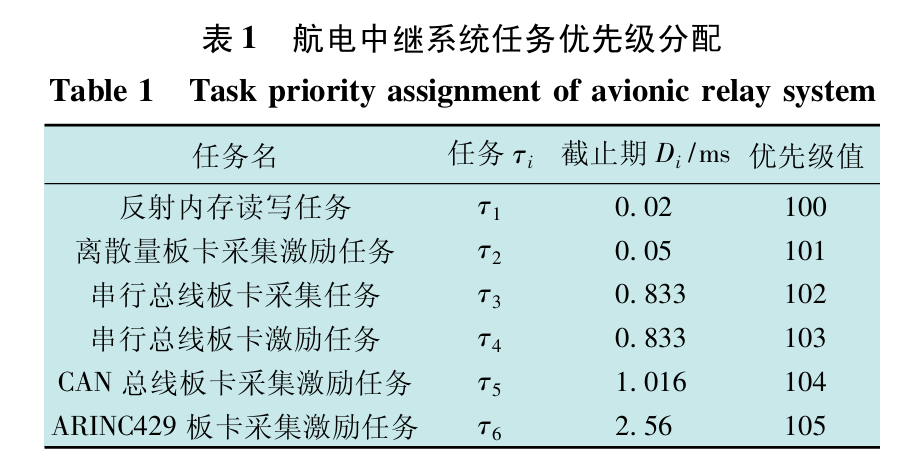

The priorities of the terminal system tasks are determined based on the DM priority allocation method. The DM priority allocation method stipulates that the shorter the deadline of a task, the higher its priority. The Wind kernel supports 256 priorities, ranging from high to low as 0-255. Generally, system tasks correspond to 0-50, driver tasks correspond to 51-99, and user application tasks correspond to 100-255. Therefore, the priority allocation of terminal periodic tasks is shown in Table 1, where the initialization task and control communication task do not affect schedulability.

2.3 Schedulability Determination

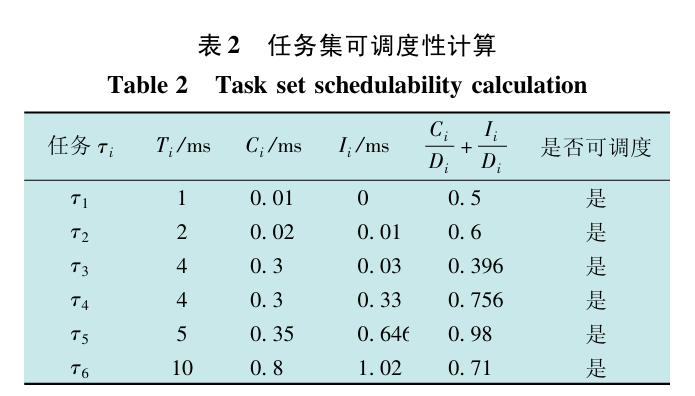

Based on equations (6) and (7) and the task parameters, calculations are performed to determine whether the task set is schedulable. The calculation results are shown in Table 2. All values in the table are approximations, and Ti and Ci are set according to functional requirements. The results indicate that the priority preemptive scheduling based on the DM priority allocation method is schedulable for this task set.

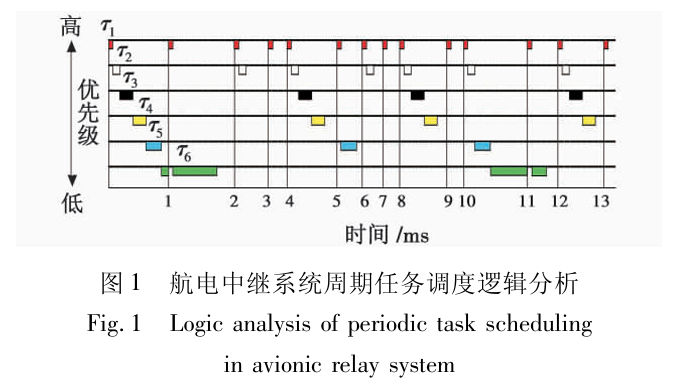

The scheduling logic for the avionics relay periodic tasks is shown in Figure 1, where the vertical lines represent task preemption of processor execution. For convenience in drawing, the processor’s idle time is minimized.

As shown in Figure 1, after the system starts running, all tasks trigger at the beginning, with task τ1 having the highest priority and preempting the processor for execution. Then, tasks τ2 to τ6 are executed in order of priority from high to low, until task τ1 preempts the currently executing task τ6 in its next cycle. After task τ1 completes execution, task τ6 continues execution. There is idle time for the processor before the next cycle of other tasks. At 2ms, tasks τ1 and τ2 are triggered simultaneously again; at this moment, task τ1 preempts the processor for execution again, and after its execution ends, task τ2 executes next. This continues, and all tasks in the avionics relay system can complete execution before their respective deadlines, theoretically achieving the scheduling objectives.

Taking the ARINC429 data forwarding function of the avionics relay system as an example, this function is mainly implemented by the reflective memory read/write task, ARINC429 board data acquisition and stimulus task, and other initialization tasks, with different tasks completing mutual communication through binary semaphores during the design process.

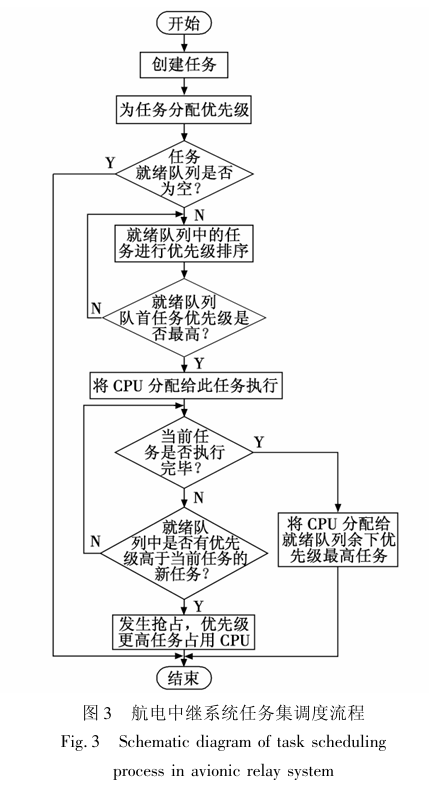

Firstly, a global structure variable for ARINC429 is defined, where the ARINC429 data from each channel FIFO of the ARINC429 board is read into this structure variable for caching. Secondly, the reflective memory read/write task reads this cached data from the global structure variable and stores it in the corresponding address of the reflective memory. Then, the reflective memory read/write task writes this data back to the local global structure variable from the same address in the network’s reflective memory. Finally, the ARINC429 acquisition and stimulus task writes this data from the local global structure variable into the corresponding channel FIFO cache of the local ARINC429 board, and the board driver sends the data. The data acquisition and stimulus process is shown in Figure 2, while the scheduling flow of the system task set is shown in Figure 3.

This mainly conducts experimental analysis of the correctness and delay measurement of data forwarding.

1) Data forwarding correctness measurement. The avionics relay system starts running, and all terminals synchronously forward data of four types across all their channels, that is, the data sources synchronously send data to the terminals. During the long-term stable operation of the system, measurement tools are used to repeatedly detect the forwarded output data of different channels of CAN bus data, ARINC429 data, discrete data, and serial bus data. The results indicate that the data forwarded by the avionics relay system is correct.

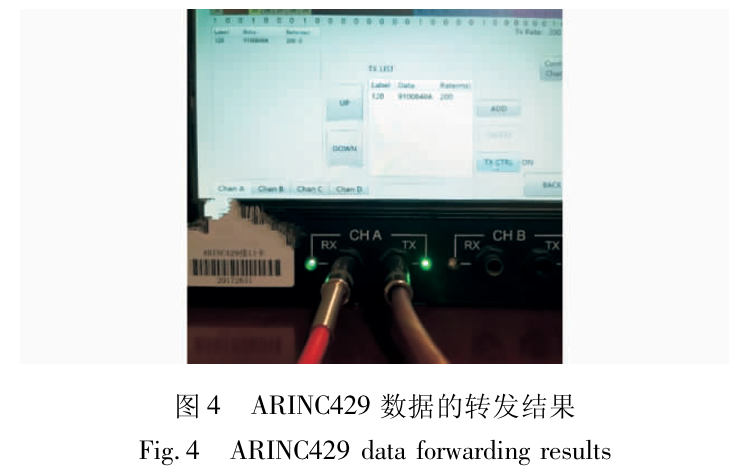

In one measurement, the recorded ARINC429 data is shown in Figure 4, where the CHA channel TX indicator light is on, indicating that the ARINC429 transceiver is sending data, and the RX indicator light is on, indicating that the device is receiving data. As seen in Figure 4, the data displayed on the TXLIST sending end, 0x9100840A, is consistent with the data displayed on the receiving end in the upper left corner, 0x9100840A.

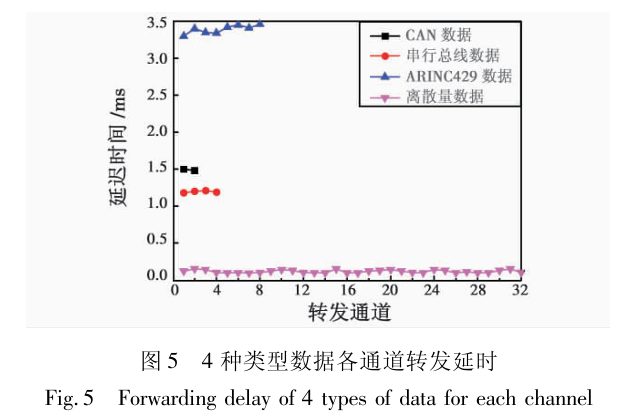

2) Data forwarding delay measurement. The four types of data are still set for synchronous forwarding, and oscilloscopes are used to measure the delay of the system’s output of CAN data, serial bus data, ARINC429 data, and discrete data multiple times, with the delay measurement values taken as averages, as shown in Figure 5. As seen in Figure 5, the delay for ARINC429 data forwarding does not exceed 3.5ms, the delay for CAN data forwarding is about 1.5ms, the delay for serial bus data forwarding is around 1.2ms, and the delay for discrete data forwarding does not exceed 0.2ms. Therefore, the experimental results indicate that the maximum delay for data forwarding in the system does not exceed 3.5ms, meeting the real-time requirements, which refer to a few milliseconds of data forwarding delay.

The DM stable saturation allocation method and the minimal priority allocation algorithm are not suitable for VxWorks application development. Combining DM priority allocation with VxWorks’ priority preemptive scheduling can fully leverage the advantages of VxWorks development. ALLAH primarily studies schedulability testing theory but has not combined it with practical application development, leading to a lack of clear guidance for specific engineering projects. AUDSLEY mainly provides theoretical proof of schedulability but lacks a concrete development process illustration for pseudo-polynomial schedulability testing applications. The avionics relay system terminal application development provides a complete example from allocation methods to scheduling algorithms, to scheduling design, schedulability theoretical analysis, and finally to application implementation, offering a more intuitive reference for engineering development of real-time operating system applications.

This paper studies the priority allocation algorithms for single-processor real-time systems and combines them with priority preemptive scheduling methods, selecting the deadline monotonic priority allocation preemptive scheduling strategy to schedule tasks for the avionics relay system, and conducts theoretical schedulability analysis calculations. A general design process for user application software based on VxWorks is provided, and data forwarding experiments are completed on the avionics relay system implemented through this design process, proving that its real-time performance and reliability meet the requirements, providing a reference for the practical application development of real-time systems.
